ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )CBU

Click highlighted areas on diagram

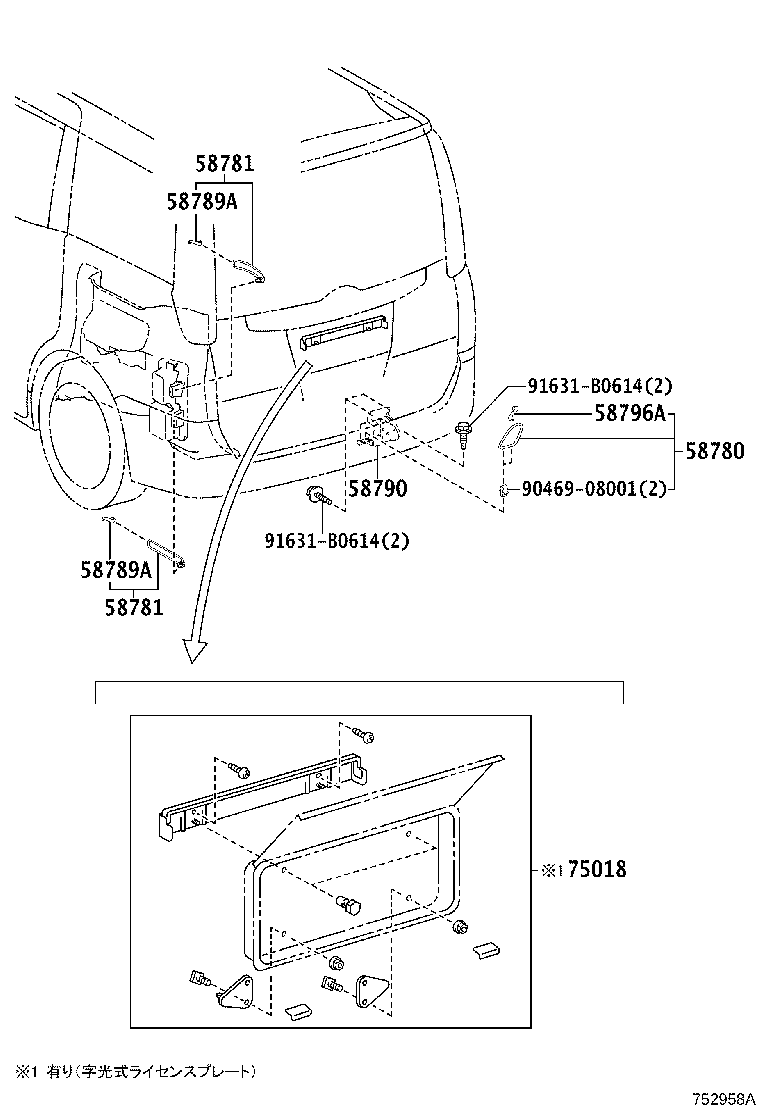

diagram 58780 58781 58781 58789A 58789A 58790 58796A 75018 9046908001 91631B0614 91631B0614
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-28090

ZRR8#,ZWR80..CBU

 1
58781 - BAND, TOOL BAG
58424-28020

ZRR8#,ZWR80

 2
58781 - BAND, TOOL BAG
58424-28020

ZRR8#,ZWR80

 2
58789A - HOOK, TOOL BOX BAND, NO.2
58788-28030

ZRR8#,ZWR80

 2
58789A - HOOK, TOOL BOX BAND, NO.2
58788-28030

ZRR8#,ZWR80

 2
58790 - CARRIER ASSY, JACK
58790-28070

ZRR8#,ZWR80..CBU

 1
58796A - HOOK, JACK CLAMP
58788-95J01

ZRR8#,ZWR80..CBU

 1
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-44010

ZRR8#,ZWR80

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応

 1
Common parts
90469-08001
91631-B0614
