ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )

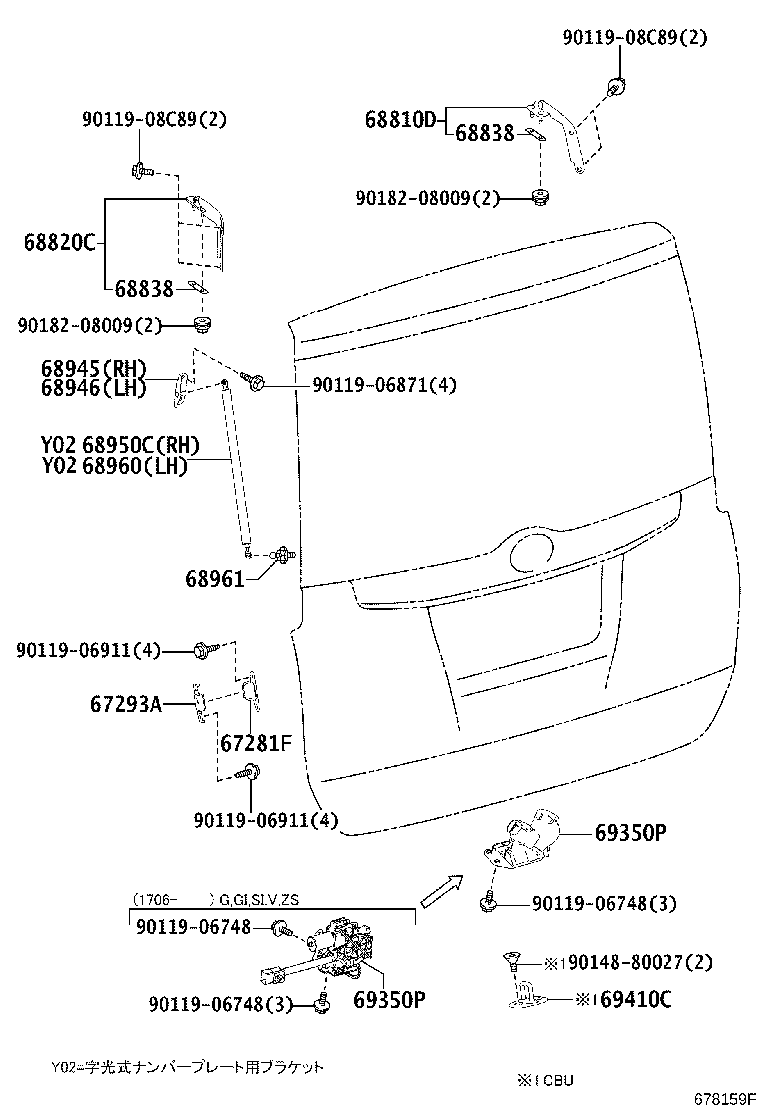

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-28020 |
ZRR8#,ZWR80 |
2 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-28040 |
ZRR8#,ZWR80 |
2 | ||
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-28050 |
ZRR8#,ZWR80 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-28040 |
ZRR8#,ZWR80 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-28020 |
ZRR8#,ZWR80 厚さ=1.0 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-28020 |
ZRR8#,ZWR80 厚さ=1.0 |
2 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-28030 |
ZRR8#,ZWR80 |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-28020 |
ZRR8#,ZWR80 |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-0W600 |
ZRR8#,ZWR80 |
1 | ||
| 68950-0W890 |
ZRR8#,ZWR80 ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応 |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-0W680 |
ZRR8#,ZWR80 |
1 | ||
| 68960-0W890 |
ZRR8#,ZWR80 ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20140 |
ZRR8#,ZWR80 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-58040 |
ZRR8#,ZWR80 |
1 | ||
| 69350-28170 |
ZRR8#,ZWR80 |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-58040 |
ZRR8#,ZWR80 |
1 | ||
| 69350-28170 |
ZRR8#,ZWR80 |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-60030 |
ZRR8#,ZWR80..CBU |
1 | ||
| Common parts | ||||
| 90119-06748 | ||||
| 90119-06871 | ||||
| 90119-06911 | ||||
| 90119-08C89 | ||||
| 90148-80027 | ||||
| 90182-08009 | ||||
