ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401- )

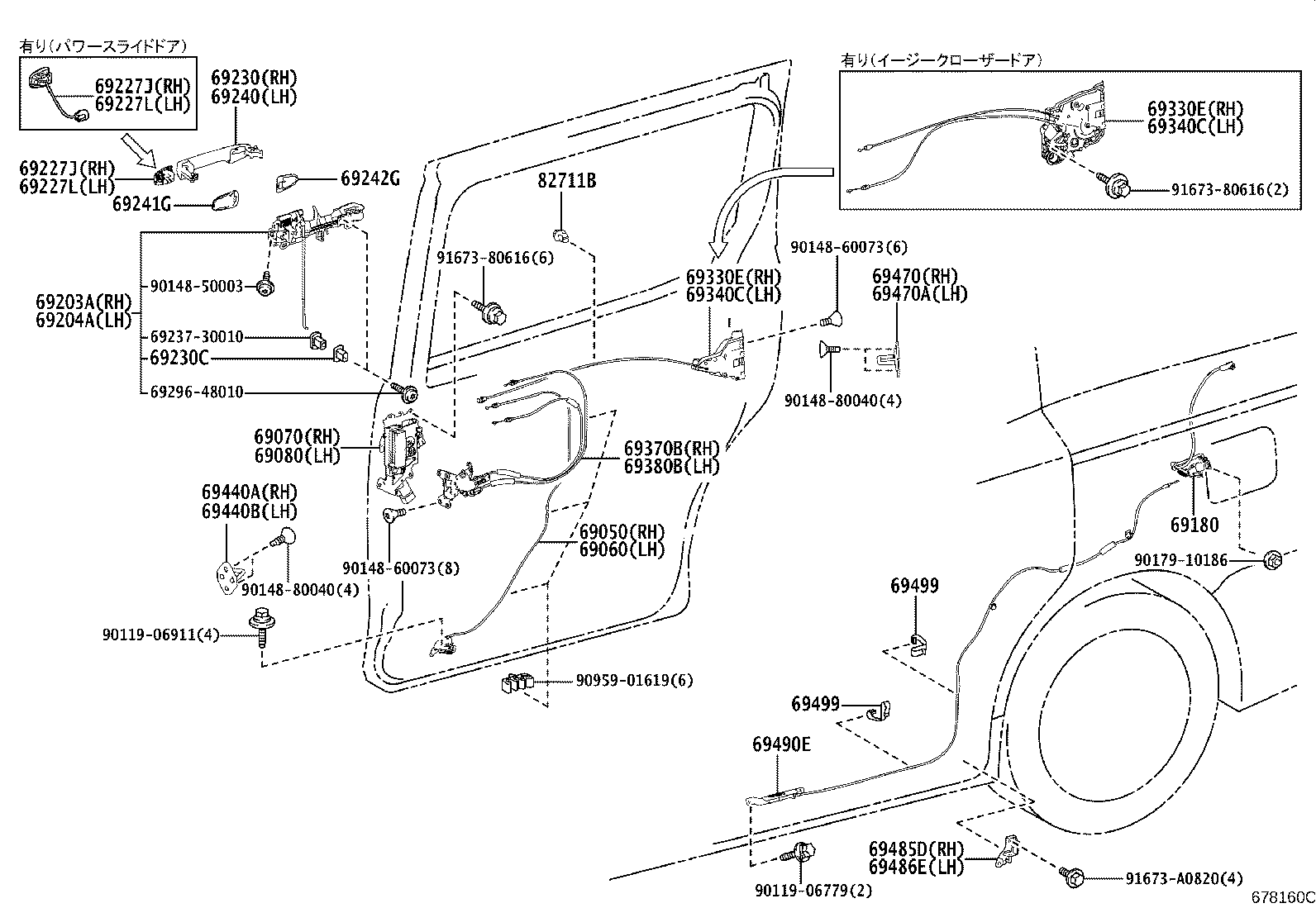

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69305-28010 |
ZRR8#,ZWR80 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69306-28010 |
ZRR8#,ZWR80 |
1 | ||
| 69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH | ||||
| 69070-28190C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 69070-28170C0 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,BLACK,TRIM0#,2# |
1 | ||
| 69070-28190C0 |
ZRR8#,ZWR80..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 69070-28180C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),BLACK,TRIM0#,2# |
1 | ||
| 69070-28180C0 |
ZRR8#,ZWR80..SI,V,ZS;ZRR8#,ZWR80..VOXY..X ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),BLACK,TRIM2# |
1 | ||
| 69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH | ||||
| 69080-28180C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 69080-28170C0 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,BLACK,TRIM0#,2# |
1 | ||
| 69080-28180C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28090 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 69180-28150 |
ZRR8#,ZWR80 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-28040 |
ZRR8#,ZWR80 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-28040 |
ZRR8#,ZWR80 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52040C2 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69217-52040B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69217-52040A1 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69217-52040E9 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69227-28080B0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),SILVER ME.,1F7 |
1 | ||
| 69217-52040K1 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69227-28080A0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),WHITE PEARL CS.,070 |
1 | ||
| 69227-28080C0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),BLACK,202 |
1 | ||
| 69227-28080H0 |
ZWR80..G,V,X;ZRR8#..G,SI,V,X ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),OCEAN MINT ME.,789 |
1 | ||
| 69227-28080K0 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),DK.VIOLET M.M.,9AF |
1 | ||
| 69227-28080D0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),DEEP RED M.M.,3R9 |
1 | ||
| 69227-28111 |
ZRR8#,ZWR80..SI..CBU *CR,Si“WxB”*(C)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69217-52040H3 |
ZRR8#,ZWR80..G,V,X OCEAN MINT ME.,789 |
1 | ||
| 69227-28080B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU;ZRR8#,ZWR80..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69227-28080E0 |
ZRR8#,ZWR80..NOAH..(G,X) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040D6 |
ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X DEEP RED M.M.,3R9 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52040C2 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69217-52040B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69217-52040A1 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69217-52040E9 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69227-28080B0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),SILVER ME.,1F7 |
1 | ||
| 69217-52040K1 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69227-28080A0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),WHITE PEARL CS.,070 |
1 | ||
| 69227-28080C0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),BLACK,202 |
1 | ||
| 69227-28080H0 |
ZWR80..G,V,X;ZRR8#..G,SI,V,X ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),OCEAN MINT ME.,789 |
1 | ||
| 69227-28080K0 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),DK.VIOLET M.M.,9AF |
1 | ||
| 69227-28080D0 |
ZRR8#,ZWR80..NOAH,VOXY ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),DEEP RED M.M.,3R9 |
1 | ||
| 69227-28111 |
ZRR8#,ZWR80..SI..CBU *CR,Si“WxB”*(C)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69217-52040H3 |
ZRR8#,ZWR80..G,V,X OCEAN MINT ME.,789 |
1 | ||
| 69227-28080B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU;ZRR8#,ZWR80..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69227-28080E0 |
ZRR8#,ZWR80..NOAH..(G,X) ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040D6 |
ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X DEEP RED M.M.,3R9 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69217-52040A1 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,WHITE PEARL CS.,070 |
1 | ||
| 69227-28080B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU;ZRR8#,ZWR80..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69217-52040B0 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,SILVER ME.,1F7 |
1 | ||
| 69227-28080E0 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040H3 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,OCEAN MINT ME.,789 |
1 | ||
| 69227-28080C0 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69227-28080B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69227-28080K0 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69217-52040D6 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,DEEP RED M.M.,3R9 |
1 | ||
| 69227-28080A0 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69217-52040E9 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040C2 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,BLACK,202 |
1 | ||
| 69227-28080H0 |
ZWR80..G,V,X;ZRR8#..G,SI,V,X OCEAN MINT ME.,789 |
1 | ||
| 69227-28111 |
ZRR8#,ZWR80..SI..CBU *CR,Si“WxB”*(C)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69227-28080D0 |
ZRR8#,ZWR80..NOAH,VOXY DEEP RED M.M.,3R9 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69217-52040A1 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,WHITE PEARL CS.,070 |
1 | ||
| 69227-28080B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU;ZRR8#,ZWR80..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69217-52040B0 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,SILVER ME.,1F7 |
1 | ||
| 69227-28080E0 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040H3 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,OCEAN MINT ME.,789 |
1 | ||
| 69227-28080C0 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69227-28080B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69227-28080K0 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69217-52040D6 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,DEEP RED M.M.,3R9 |
1 | ||
| 69227-28080A0 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69217-52040E9 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040C2 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し,BLACK,202 |
1 | ||
| 69227-28080H0 |
ZWR80..G,V,X;ZRR8#..G,SI,V,X OCEAN MINT ME.,789 |
1 | ||
| 69227-28111 |
ZRR8#,ZWR80..SI..CBU *CR,Si“WxB”*(C)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69227-28080D0 |
ZRR8#,ZWR80..NOAH,VOXY DEEP RED M.M.,3R9 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69213-28030B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU;ZRR8#,ZWR80..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69213-28030C0 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69213-28030E1 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69213-28030B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69213-58060 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69213-28030H0 |
ZRR8#,ZWR80..G,V,X OCEAN MINT ME.,789 |
1 | ||
| 69213-28030D0 |
ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X DEEP RED M.M.,3R9 |
1 | ||
| 69213-28030A0 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69213-28030K0 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 69239-30010 |
ZRR8#,ZWR80 |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69213-28030B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU;ZRR8#,ZWR80..NOAH..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69213-28030C0 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69213-58060 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C)&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69213-28030E1 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69213-28030A0 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69213-28030B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69213-28030K0 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69213-28030H0 |
ZRR8#,ZWR80..G,V,X OCEAN MINT ME.,789 |
1 | ||
| 69213-28030D0 |
ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X DEEP RED M.M.,3R9 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-52030 |
ZRR8#,ZWR80 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-52020 |
ZRR8#,ZWR80 |
2 | ||
| 69330E - LOCK ASSY, SLIDE DOOR, RH | ||||
| 69200-28080 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 69330-28110 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 69200-28070 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69330E - LOCK ASSY, SLIDE DOOR, RH | ||||
| 69200-28080 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 69330-28110 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 69200-28070 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 69340C - LOCK ASSY, SLIDE DOOR, REAR LH | ||||
| 69300-28110 |
ZRR8#,ZWR80 |
1 | ||
| 69340-28200 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 69340C - LOCK ASSY, SLIDE DOOR, REAR LH | ||||
| 69300-28110 |
ZRR8#,ZWR80 |
1 | ||
| 69340-28200 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-28141 |
ZRR8#,ZWR80 |
1 | ||
| 69370-28140 |
ZRR8#,ZWR80 |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-28161 |
ZRR8#,ZWR80 |
1 | ||
| 69380-28160 |
ZRR8#,ZWR80 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28120 |
ZRR8#,ZWR80 |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28120 |
ZRR8#,ZWR80 |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-28080 |
ZRR8#,ZWR80 |
1 | ||
| 69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28020 |
ZRR8#,ZWR80 |
2 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28020 |
ZRR8#,ZWR80 |
2 | ||
| 82711B - CLAMP, WIRING HARNESS | ||||
| 82711-1A750 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69296-48010 | ||||
| 90119-06779 | ||||
| 90119-06911 | ||||
| 90148-50003 | ||||
| 90148-60073 | ||||
| 90148-80040 | ||||
| 90179-10186 | ||||
| 90959-01619 | ||||
| 91673-80616 | ||||
| 91673-A0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
