ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

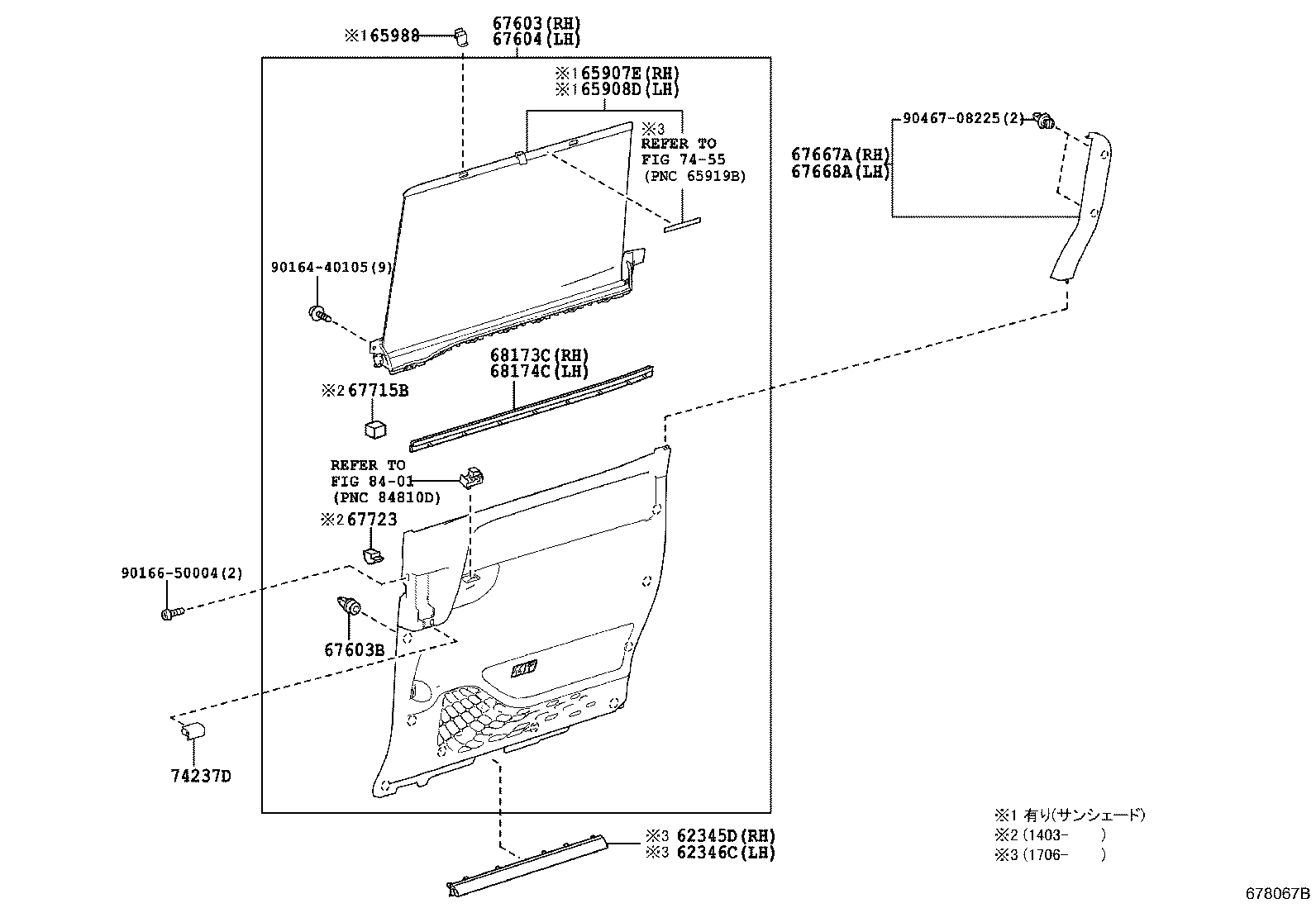

(1401- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-28010C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 65907-28010C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 65907-28010 |
ZRR8#,ZWR80 |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-28010 |
ZRR8#,ZWR80 |
1 | ||
| 65908-28010C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 65908-28010C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 65988 - HOOK, SUNSHADE | ||||
| 65988-28010 |
ZRR8#,ZWR80 |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-28530C5 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/IVORY,TRIM0# |
1 | ||
| 67680-2854021 |
ZRR8#..SI,X BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-2854020 |
ZRR8#..NOAH..X BLACK/IVORY,TRIM0# |
1 | ||
| 67680-28550C6 |
ZRR8#..V BLACK/BLACK,TRIM2# |
1 | ||
| 67680-28531C5 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/IVORY,TRIM0# |
1 | ||
| 67680-28530C6 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-28531C6 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-2854121 |
ZRR8#,ZWR80..SI,X BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-2854220 |
ZRR8#,ZWR80..NOAH..X BLACK/IVORY,TRIM0# |
1 | ||
| 67680-28532C5 |
ZRR8#..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/IVORY,TRIM0# |
1 | ||
| 67680-2854120 |
ZRR8#,ZWR80..NOAH..X BLACK/IVORY,TRIM0# |
1 | ||
| 67680-28551C6 |
ZRR8#,ZWR80..G,V BLACK/BLACK,TRIM2# |
1 | ||
| 67680-2854221 |
ZRR8#,ZWR80..SI..CBU BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-28532C6 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-28552C6 |
ZRR8#,ZWR80..G,V BLACK/BLACK,TRIM2# |
1 | ||
| 67680-2854221 |
ZRR80..X..CBU;ZRR85,ZWR80..X;ZRR80..(SI,X)..IV5 BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67680-2854221 |
ZRR8#,ZWR80..SI..CBU BLACK/DK.BLUE,TRIM20 |
1 | ||
| 67680-2854224 |
ZRR8#,ZWR80..SI..CBU BLACK/BLACK,TRIM24 |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZRR8#,ZWR80 |
20 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-28860C5 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/IVORY,TRIM0# |
1 | ||
| 67690-28860C6 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-2887021 |
ZRR8#..SI,X BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-28880C6 |
ZRR8#..V BLACK/BLACK,TRIM2# |
1 | ||
| 67690-2887020 |
ZRR8#..NOAH..X BLACK/IVORY,TRIM0# |
1 | ||
| 67690-28861C5 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/IVORY,TRIM0# |
1 | ||
| 67690-2887121 |
ZRR8#,ZWR80..SI,X BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-2887120 |
ZRR8#,ZWR80..NOAH..X BLACK/IVORY,TRIM0# |
1 | ||
| 67690-28861C6 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-28862C5 |
ZRR8#..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/IVORY,TRIM0# |
1 | ||
| 67690-2887221 |
ZRR8#,ZWR80..SI..CBU BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-2887221 |
ZRR80..X..CBU;ZRR85,ZWR80..X;ZRR80..(SI,X)..IV5 BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-28881C6 |
ZRR8#,ZWR80..G,V BLACK/BLACK,TRIM2# |
1 | ||
| 67690-28862C6 |
ZRR8#..X..CBU X“V Package” *(E) OR “C Package” *(E),BLACK/DK.BLUE,TRIM2# |
1 | ||
| 67690-2887224 |
ZRR8#,ZWR80..SI..CBU BLACK/BLACK,TRIM24 |
1 | ||
| 67690-28882C6 |
ZRR8#,ZWR80..G,V BLACK/BLACK,TRIM2# |
1 | ||
| 67690-2887220 |
ZRR8#,ZWR80..NOAH..X BLACK/IVORY,TRIM0# |
1 | ||
| 67690-2887221 |
ZRR8#,ZWR80..SI..CBU BLACK/DK.BLUE,TRIM20 |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-28030 |
ZRR8#,ZWR80 |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-28030 |
ZRR8#,ZWR80 |
1 | ||
| 67715B - PAD, REAR DOOR TRIM | ||||
| 67713-28010 |
ZRR8#,ZWR80 |
2 | ||
| 67723 - PAD, REAR DOOR TRIM, UPPER | ||||
| 67713-28020 |
ZRR8#,ZWR80 |
2 | ||
| 68173C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER RH | ||||
| 68173-28061 |
ZRR8#,ZWR80 |
1 | ||
| 68173-28060 |
ZRR8# |
1 | ||
| 68174C - WEATHERSTRIP, SLIDE DOOR GLASS, INNER LH | ||||
| 68174-28071 |
ZRR8#,ZWR80 |
1 | ||
| 68174-28070 |
ZRR8# |
1 | ||
| 74237D - CAP, REAR DOOR ARMREST BASE | ||||
| 74222-28160 |
ZRR8#,ZWR80 左側 |
1 | ||
| 74221-28160 |
ZRR8#,ZWR80 右側 |
1 | ||
| Common parts | ||||
| 90164-40105 | ||||
| 90166-50004 | ||||
| 90467-08225 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||

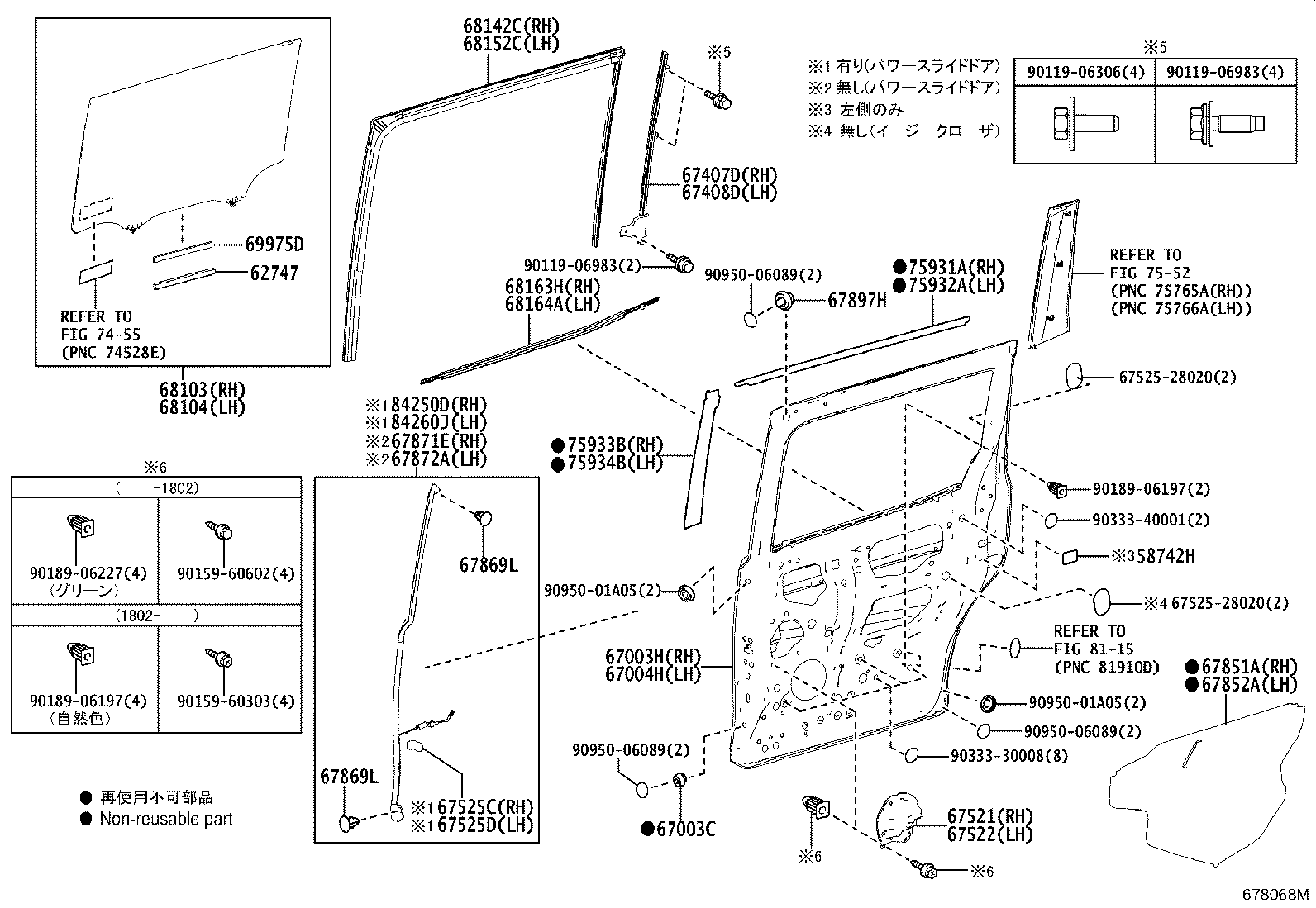

(1401- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742H - PROTECTOR, SLIDE DOOR, LH | ||||
| 58743-28020 |
ZRR8#,ZWR80 |
1 | ||
| 62747 - CHANNEL, REAR DOOR WINDOW GLASS | ||||
| 69955-47010 |
ZRR8#,ZWR80 |
2 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-08032 |
ZRR8#,ZWR80 |
2 | ||
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-28650 |
ZRR8#,ZWR80..G,V,X,XI ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 67003-28640 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 67003-28670 |
ZRR8#,ZWR80..(G,V,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 67003-28660 |
ZRR8#,ZWR80..SI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 67003-28630 |
ZRR8#,ZWR80..G,V,X,XI |
1 | ||
| 67003-28680 |
ZRR8#,ZWR80..(SI,ZS)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 67003-28700 |
ZRR8#,ZWR80..(SI,ZS)..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 67003-28690 |
ZRR8#,ZWR80..(G,V,X,XI)..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-28560 |
ZRR80..X;ZRR85..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 67004-28610 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 67004-28630 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 67004-28620 |
ZRR8#..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) &*CUSA |
1 | ||
| 67004-28640 |
ZRR8#,ZWR80..(SI,ZS)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 67004-28650 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-28050 |
ZRR8#,ZWR80 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-28080 |
ZRR8#,ZWR80 |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-28060 |
ZRR8#,ZWR80 |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-28050 |
ZRR8#,ZWR80 |
1 | ||
| 67525C - COVER, SLIDE DOOR PANEL, LOWER RH | ||||
| 67525-28050 |
ZRR8#..08S..(SI,X,XI,ZS)..CBU ｳｪﾙﾗｲﾄﾞ仕様車&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 67525-28050 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 67525D - COVER, SLIDE DOOR PANEL, LOWER LH | ||||
| 67526-28050 |
ZRR8#,ZWR80 |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-28130 |
ZRR8#,ZWR80 |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-28150 |
ZRR8#,ZWR80 |
1 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-28020 |
ZRR8#,ZWR80 |
4 | ||
| 67869L - CLIP, REAR DOOR WEATHERSTRIP | ||||
| 67869-28020 |
ZRR8#,ZWR80 |
4 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67865-28060 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 67865-28071 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 67865-28070 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67866-28060 |
ZRR8#..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 67866-28050 |
ZRR8#..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 67866-28061 |
ZRR8#..X..CBU ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−無し |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 90541-09141 |
ZRR8#,ZWR80 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-28301 |
ZRR8#,ZWR80 |
1 | ||
| 68103-28320 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 68103-28321 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 68103-28300 |
ZRR8#,ZWR80 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-28331 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 68104-28310 |
ZRR8#,ZWR80 |
1 | ||
| 68104-28330 |
ZRR80..X;ZRR85..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 68104-28311 |
ZRR8#,ZWR80 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-28091 |
ZRR8#,ZWR80 |
1 | ||
| 68142-28090 |
ZRR8#,ZWR80 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-28060 |
ZRR8#,ZWR80 |
1 | ||
| 68152-28061 |
ZRR8#,ZWR80 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-28060 |
ZRR8#,ZWR80..NOAH,VOXY |
1 | ||
| 68163-28061 |
ZRR8#,ZWR80..NOAH,VOXY |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-28061 |
ZRR8#,ZWR80..NOAH,VOXY |
1 | ||
| 68164-28060 |
ZRR8#,ZWR80..NOAH,VOXY |
1 | ||
| 69975D - FILLER, REAR DOOR GLASS CHANNAL | ||||
| 69975-47010 |
ZRR8#,ZWR80 |
2 | ||
| 75931A - TAPE, BLACK OUT, OUTER UPPER RH | ||||
| 75931-28050 |
ZRR8#,ZWR80 |
1 | ||
| 75932A - TAPE, BLACK OUT, OUTER UPPER LH | ||||
| 75932-28050 |
ZRR8#,ZWR80 |
1 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-28050 |
ZRR8#,ZWR80 |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-28050 |
ZRR8#,ZWR80 |
1 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-28320 |
ZRR8#..08S..(SI,X,XI,ZS)..CBU ｳｪﾙﾗｲﾄﾞ仕様車&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84250-28320 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84250-28371 |
ZRR8#..08S..(SI,X,XI,ZS)..CBU ｳｪﾙﾗｲﾄﾞ仕様車&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84250-28370 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84250-28370 |
ZRR8#..08S..(SI,X,XI,ZS)..CBU ｳｪﾙﾗｲﾄﾞ仕様車&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84250-28371 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-28110 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 84260-28100 |
ZRR8#,ZWR80 |
1 | ||
| 84260-28111 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 84260-28110 |
ZRR8#..08S..(SI,X,XI,ZS)..CBU ｳｪﾙﾗｲﾄﾞ仕様車&ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 84260-28110 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| Common parts | ||||
| 67525-28020 | ||||
| 90119-06306 | ||||
| 90119-06983 | ||||
| 90159-60303 | ||||
| 90159-60602 | ||||
| 90189-06197 | ||||
| 90189-06227 | ||||
| 90333-30008 | ||||
| 90333-40001 | ||||
| 90950-01A05 | ||||
| 90950-06089 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 7552 | ||||
| 8115 | ||||
