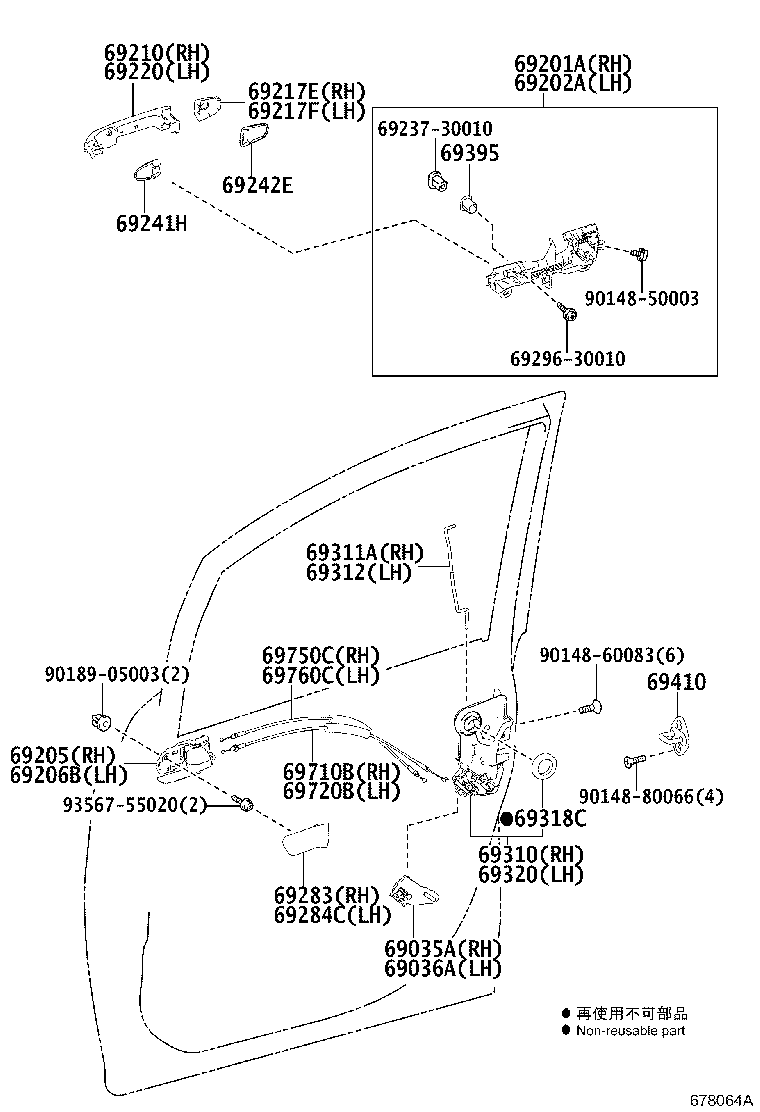

ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
ZRR8#,ZWR80 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
ZRR8#,ZWR80 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52130 |
ZRR8#,ZWR80 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52070 |
ZRR8#,ZWR80 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-28160C0 |
ZRR8#,ZWR80..SI,ZS BLACK,TRIM2# |
1 | ||
| 69205-30210C0 |
ZRR8#,ZWR80..GI,V BLACK,TRIM2# |
1 | ||
| 69205-28160C3 |
ZRR8#,ZWR80..SI,ZS BLACK,TRIM2# |
1 | ||
| 69205-28160C2 |
ZRR8#,ZWR80..SI,ZS BLACK,TRIM2# |
1 | ||
| 69205-28170C3 |
ZRR8#,ZWR80..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 69205-30210C0 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),BLACK,TRIM2# |
1 | ||
| 69205-30210C1 |
ZRR8#,ZWR80..GI,V,XI BLACK,TRIM2# |
1 | ||
| 69205-30210C1 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),BLACK,TRIM2# |
1 | ||
| 69205-28170C0 |
ZRR8#,ZWR80..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-28150C0 |
ZRR8#,ZWR80..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 69206-28140C2 |
ZRR8#,ZWR80..SI,ZS BLACK,TRIM2# |
1 | ||
| 69206-30210C0 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),BLACK,TRIM2# |
1 | ||
| 69206-28140C3 |
ZRR8#,ZWR80..SI,ZS BLACK,TRIM2# |
1 | ||
| 69206-30210C0 |
ZRR8#,ZWR80..GI,V BLACK,TRIM2# |
1 | ||
| 69206-28140C0 |
ZRR8#,ZWR80..SI,ZS BLACK,TRIM2# |
1 | ||
| 69206-30210C1 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),BLACK,TRIM2# |
1 | ||
| 69206-28150C3 |
ZRR8#,ZWR80..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 69206-30210C1 |
ZRR8#,ZWR80..GI,V,XI BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-28090B0 |
ZRR8#..G,SI,V,ZS;ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69210-28090A0 |
ZRR8#..G,SI,V,ZS;ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69210-28090A0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-28090B5 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69210-28090B5 |
ZWR80..NOAH..X;ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 69210-28090C0 |
ZRR8#..G,SI,V,ZS;ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69210-28090D0 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 69210-28090B0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-28090E1 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69210-28090C1 |
ZRR8#..V,ZS;ZWR80..VOXY BLACKISH AGEHA M.M.,221 |
1 | ||
| 69210-28090C0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-28090K0 |
ZWR80..VOXY..X;ZRR8#,ZWR80..SI,V DK.VIOLET M.M.,9AF |
1 | ||
| 69210-28090D0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),DEEP RED M.M.,3R9 |
1 | ||
| 69211-52100A1 |
ZRR8#..X WHITE PEARL CS.,070 |
1 | ||
| 69210-28090H0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),OCEAN MINT ME.,789 |
1 | ||
| 69211-52100E8 |
ZRR8#..NOAH..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69211-52100C2 |
ZRR8#..X BLACK,202 |
1 | ||
| 69211-52100B0 |
ZRR8#..X SILVER ME.,1F7 |
1 | ||
| 69210-28090H0 |
ZRR8#..G,V;ZWR80..G,V,X OCEAN MINT ME.,789 |
1 | ||
| 69211-52100H3 |
ZRR8#..X OCEAN MINT ME.,789 |
1 | ||
| 69210-58030 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 69211-52100D6 |
ZRR8#..X DEEP RED M.M.,3R9 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-52030P0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69217-52030P0 |
ZWR80..NOAH..X;ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 69217-52030B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69217-52030A1 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69217-52030D6 |
ZRR8#,ZWR80..NOAH,VOXY DEEP RED M.M.,3R9 |
1 | ||
| 69217-52030E9 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52030C2 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69217-52070 |
ZRR8#,ZWR80..SI..CBU *CR,Si“WxB”*(C) |
1 | ||
| 69217-52030K1 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69217-52030H3 |
ZWR80..G,V,X;ZRR8#..G,SI,V,X OCEAN MINT ME.,789 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-52040P0 |
ZWR80..NOAH..X;ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 69217-52040D6 |
ZRR8#,ZWR80..NOAH,VOXY DEEP RED M.M.,3R9 |
1 | ||
| 69217-52040B0 |
ZRR8#,ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69217-52040E9 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69217-52040A1 |
ZRR8#,ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69217-52040C2 |
ZRR8#,ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69217-52081 |
ZRR8#,ZWR80..SI..CBU *CR,Si“WxB”*(C) |
1 | ||
| 69217-52040P0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69217-52040H3 |
ZWR80..G,V,X;ZRR8#..G,SI,V,X OCEAN MINT ME.,789 |
1 | ||
| 69217-52040K1 |
ZRR8#,ZWR80..SI,V;ZRR8#,ZWR80..VOXY..X DK.VIOLET M.M.,9AF |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-28090A0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),WHITE PEARL CS.,070 |
1 | ||
| 69210-28090A0 |
ZRR8#..G,SI,V,ZS;ZWR80..NOAH,VOXY WHITE PEARL CS.,070 |
1 | ||
| 69210-28090B0 |
ZRR8#..G,SI,V,ZS;ZWR80..NOAH,VOXY SILVER ME.,1F7 |
1 | ||
| 69210-28090C0 |
ZRR8#..G,SI,V,ZS;ZWR80..NOAH,VOXY BLACK,202 |
1 | ||
| 69210-28090B5 |
ZWR80..NOAH..X;ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 69210-28090C1 |
ZRR8#..V,ZS;ZWR80..VOXY BLACKISH AGEHA M.M.,221 |
1 | ||
| 69210-28090B5 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 69210-28090H0 |
ZRR8#..G,V;ZWR80..G,V,X OCEAN MINT ME.,789 |
1 | ||
| 69210-28090E1 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69210-28090B0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),SILVER ME.,1F7 |
1 | ||
| 69210-28090D0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),DEEP RED M.M.,3R9 |
1 | ||
| 69210-28090H0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),OCEAN MINT ME.,789 |
1 | ||
| 69211-52100A1 |
ZRR8#..X WHITE PEARL CS.,070 |
1 | ||
| 69211-52100C2 |
ZRR8#..X BLACK,202 |
1 | ||
| 69210-28090D0 |
ZWR80..NOAH..X;ZRR8#,ZWR80..G,SI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 69211-52100E8 |
ZRR8#..NOAH..X ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 69211-52100H3 |
ZRR8#..X OCEAN MINT ME.,789 |
1 | ||
| 69210-28090C0 |
ZRR8#..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,202 |
1 | ||
| 69210-58030 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 69210-28090K0 |
ZWR80..VOXY..X;ZRR8#,ZWR80..SI,V DK.VIOLET M.M.,9AF |
1 | ||
| 69211-52100B0 |
ZRR8#..X SILVER ME.,1F7 |
1 | ||
| 69211-52100D6 |
ZRR8#..X DEEP RED M.M.,3R9 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-52020 |
ZRR8#,ZWR80 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-52030 |
ZRR8#,ZWR80 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30060C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 69283-30060C2 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 69283-30060C2 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 69283-30060C1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30060C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 69284-30060C2 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 69284-30060C2 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 69284-30060C1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-30A70 |
ZRR8#,ZWR80 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-28070 |
ZRR8#,ZWR80 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-28070 |
ZRR8#,ZWR80 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ZRR8#,ZWR80 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-30A80 |
ZRR8#,ZWR80 |
1 | ||
| 69395 - BUSH(FOR DOOR OUTSIDE HANDLE) | ||||
| 69239-30010 |
ZRR8#,ZWR80 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
ZRR8#,ZWR80 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-28060 |
ZRR8#,ZWR80 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-28060 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90189-05003 | ||||
| 93567-55020 | ||||
