ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

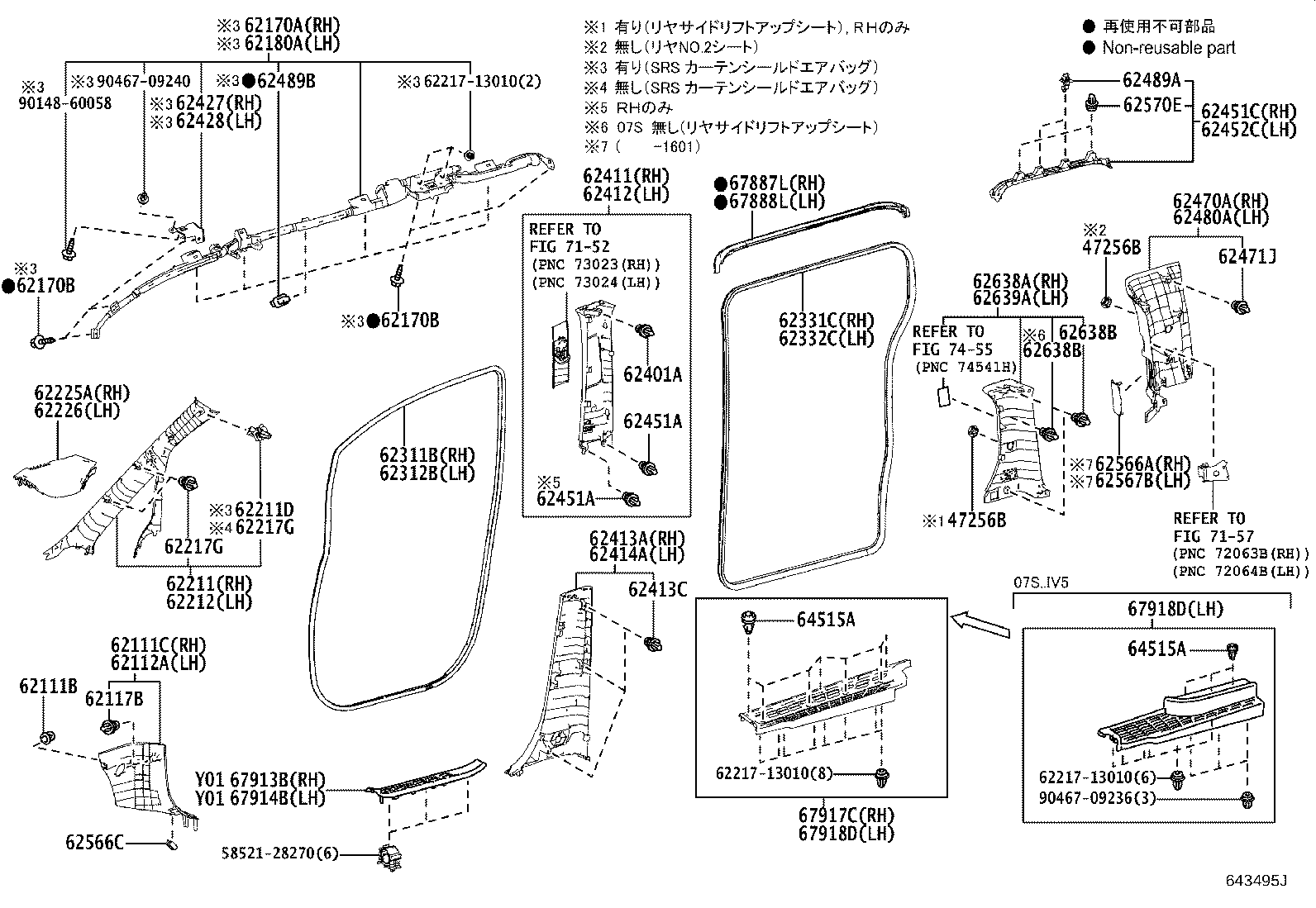

ILLUST NO. 1 OF 2(1401- )
ﾌﾛﾝﾄｻｲﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
ZRR8#,ZWR80 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-28230C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62111-28230C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-28240C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62112-28240C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-28050 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
12 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
12 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-28050 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-28140C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62210-28150C0 |
ZRR8#,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM2# |
1 | ||
| 62210-28150C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 62210-28140C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 62217-52120 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-28140C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62220-28140C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62220-28150C0 |
ZRR8#,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM2# |
1 | ||
| 62220-28150C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
4 | ||
| 90467-10161 |
ZRR8#,ZWR80 |
6 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
4 | ||
| 90467-10161 |
ZRR8#,ZWR80 |
6 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62225-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62226-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-28130C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62311-28130C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-28130C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62312-28130C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 67871-28100 |
ZRR8#,ZWR80 |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 67872-28160 |
ZRR8#,ZWR80 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
ZRR8#,ZWR80 |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-28110B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 62410-28110C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 62410-28110B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62410-28110B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-28110B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 62420-28110B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 62420-28110C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 62420-28110B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-28110C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62413-28110C0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
6 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-28140C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62414-28140C0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62427 - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62533-28080 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 62428 - BRACKET, CENTER PILLAR GARNISH, LH | ||||
| 62534-28120 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
3 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
3 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62451-28050B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 62451-28050C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 62451-28050B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-28050B0 |
ZRR80..07S..ZS..CBU;ZRR8#,ZWR80..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 62452-28050C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 62452-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62452-28050B0 |
ZRR85..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62470-28120B0 |
ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20 |
1 | ||
| 62470-28120C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 62470-28050B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62470-28120B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
ZRR8#,ZWR80 |
12 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-28150B0 |
ZRR85,ZWR80..SI;ZRR80..08S..SI..CBU LT.GRAY,TRIM20 |
1 | ||
| 62480-28070B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62480-28070B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62480-28150C0 |
ZRR80..GI;ZRR85,ZWR80..GI,SI;ZRR80..08S..SI..CBU BLACK,TRIM24 |
1 | ||
| 62480-28150B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
ZRR8#,ZWR80 |
4 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
ZRR8#,ZWR80..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA |
10 | ||
| 62566A - COVER, REAR PILLAR, RH | ||||
| 62566-28050B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62566-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62566C - CLAMP, COWL SIDE TRIM | ||||
| 67923-28020 |
ZRR8#,ZWR80 |
2 | ||
| 62567B - COVER, REAR PILLAR, LH | ||||
| 62567-28060B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62567-28060B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62570E - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
4 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-28310B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62638-28310B0 |
ZRR8#..08S..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 62638-28320B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM0#,2# |
1 | ||
| 62638-28310C0 |
ZRR8#..08S..(GI,SI)..CBU BLACK,TRIM24 |
1 | ||
| 62638-28310B0 |
ZRR8#..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 62638-28320B0 |
ZRR8#..08S..(GI,SI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM2# |
1 | ||
| 62638-28320C0 |
ZRR8#..08S..(GI,SI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM24 |
1 | ||
| 62638-28320B0 |
ZRR8#..08S..SI..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM20,27 |
1 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
ZRR8#..08S |
4 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
ZRR8#..08S |
4 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-28330B0 |
ZRR8#..08S..(GI,SI)..CBU LT.GRAY,TRIM2# |
1 | ||
| 62639-28330B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62639-28340B0 |
ZRR8#..08S..(GI,SI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM2# |
1 | ||
| 62639-28340B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM0#,2# |
1 | ||
| 62639-28330B0 |
ZRR8#..08S..SI..CBU LT.GRAY,TRIM20,27 |
1 | ||
| 62639-28330C0 |
ZRR8#..08S..(GI,SI)..CBU BLACK,TRIM24 |
1 | ||
| 62639-28340B0 |
ZRR8#..08S..SI..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM20,27 |
1 | ||
| 62639-28340C0 |
ZRR8#..08S..(GI,SI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM24 |
1 | ||
| 64515A - HOLDER, LUGGAGE COMPARTMENT DOOR HOOK | ||||
| 64515-28020C0 |
ZRR80..VOXY..08S..X..IV5;ZRR8#,ZWR80..VOXY..X..CBU;ZRR80..08S..(GI,SI,V,XI,ZS);ZRR85..(GI,SI,V,XI,ZS)..CBU;ZRR85..(ESQIR,VOXY)..08S..IV5;ZRR80,ZWR80..07S..(GI,SI,V,XI,ZS)..CBU BLACK,TRIM2# |
14 | ||
| 64515-28020C0 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU BLACK,TRIM0#,2# |
14 | ||
| 64515-28020C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
14 | ||
| 64515A - HOLDER, LUGGAGE COMPARTMENT DOOR HOOK | ||||
| 64515-28020C0 |
ZRR80..VOXY..08S..X..IV5;ZRR8#,ZWR80..VOXY..X..CBU;ZRR80..08S..(GI,SI,V,XI,ZS);ZRR85..(GI,SI,V,XI,ZS)..CBU;ZRR85..(ESQIR,VOXY)..08S..IV5;ZRR80,ZWR80..07S..(GI,SI,V,XI,ZS)..CBU BLACK,TRIM2# |
14 | ||
| 64515-28020C0 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU BLACK,TRIM0#,2# |
14 | ||
| 64515-28020C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
14 | ||
| 67887L - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-28080 |
ZRR8#,ZWR80 |
1 | ||
| 67888L - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-28090 |
ZRR8#,ZWR80 |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-28080C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67913-28080C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-28080C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67914-28080C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-28161C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67917-28161C0 |
ZRR80..VOXY..08S..X..IV5;ZRR8#,ZWR80..VOXY..X..CBU;ZRR80..08S..(GI,SI,V,XI,ZS);ZRR85..(GI,SI,V,XI,ZS)..CBU;ZRR85..(ESQIR,VOXY)..08S..IV5;ZRR80,ZWR80..07S..(GI,SI,V,XI,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67917-28160C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 67917-28160C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-28160C0 |
ZRR80..VOXY..X..CBU;ZRR85..VOXY..08S..X;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR80..VOXY..08S..X..IV5;ZRR80..08S..(SI,ZS)..IV5;ZRR85..VOXY..07S..X..CBU;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 67918-28161C0 |
ZRR80..VOXY..08S..X..IV5;ZRR8#,ZWR80..VOXY..X..CBU;ZRR80..08S..(GI,SI,V,XI,ZS);ZRR85..(GI,SI,V,XI,ZS)..CBU;ZRR85..(ESQIR,VOXY)..08S..IV5;ZRR80,ZWR80..07S..(GI,SI,V,XI,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67918-28161C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67918-28160C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-28160C0 |
ZRR80..VOXY..X..CBU;ZRR85..VOXY..08S..X;ZRR8#..(GI,SI,V,ZS)..CBU;ZRR80..VOXY..08S..X..IV5;ZRR80..08S..(SI,ZS)..IV5;ZRR85..VOXY..07S..X..CBU;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 67918-28161C0 |
ZRR80..VOXY..08S..X..IV5;ZRR8#,ZWR80..VOXY..X..CBU;ZRR80..08S..(GI,SI,V,XI,ZS);ZRR85..(GI,SI,V,XI,ZS)..CBU;ZRR85..(ESQIR,VOXY)..08S..IV5;ZRR80,ZWR80..07S..(GI,SI,V,XI,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67918-28161C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67918-28160C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 58521-28270 | ||||
| 62217-13010 | ||||
| 90148-60058 | ||||
| 90467-09236 | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7157 | ||||
| 7455 | ||||

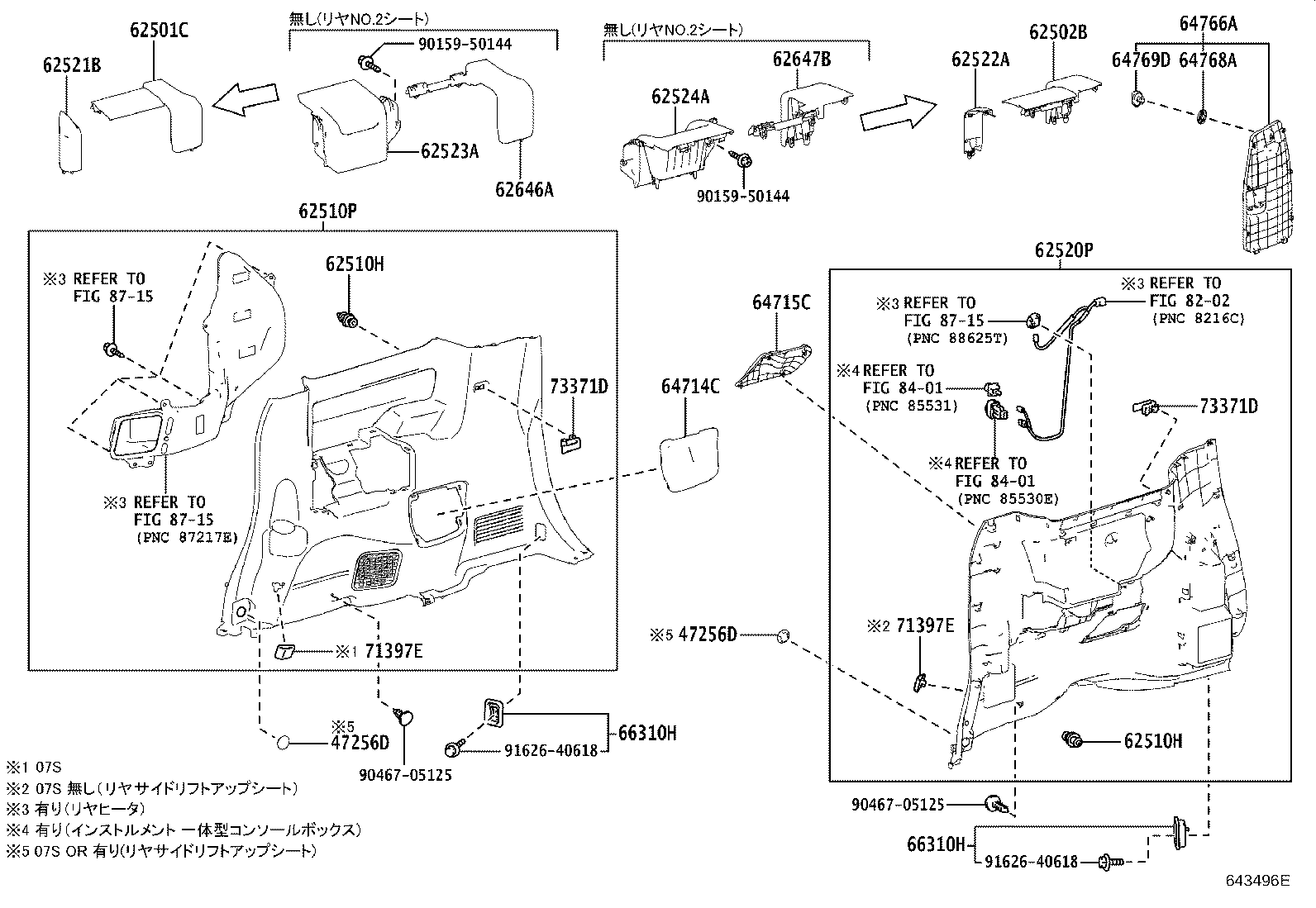

ILLUST NO. 2 OF 2(1401- )CBU
ﾃﾞｯｷｻｲﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62501C - COVER SUB-ASSY, QUARTER TRIM, RH | ||||
| 62501-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62501-28010C0 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62502B - COVER SUB-ASSY, QUARTER TRIM, LH | ||||
| 62502-28010C0 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62502-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-09236 |
ZRR8#,ZWR80 |
22 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-09236 |
ZRR8#,ZWR80 |
22 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-28350C1 |
ZRR8#..NOAH..08S..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り,BLACK,TRIM0#,2# |
1 | ||
| 62510-28330C1 |
ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 62510-28350C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU 寒冷地仕様−有り,BLACK,TRIM0#,2# |
1 | ||
| 62510-28350C1 |
ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU 寒冷地仕様−有り,BLACK,TRIM2# |
1 | ||
| 62510-28350C1 |
ZRR8#..NOAH..08S..X..CBU X“Delight Plus”*(A),BLACK,TRIM0#,2# |
1 | ||
| 62510-28330C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-28480C1 |
ZRR8#..NOAH..08S..X..CBU X“Delight Plus”*(A),BLACK,TRIM0#,2# |
1 | ||
| 62520-28460C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 62520-28480C1 |
ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU 寒冷地仕様−有り,BLACK,TRIM2# |
1 | ||
| 62520-28480C1 |
ZRR8#..NOAH..08S..X..CBU X“Delight Plus”*(A)&寒冷地仕様−有り,BLACK,TRIM0#,2# |
1 | ||
| 62520-28460C1 |
ZRR8#..VOXY..08S..X..CBU;ZRR8#..08S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 62520-28480C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU 寒冷地仕様−有り,BLACK,TRIM0#,2# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-28040C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62521-28040C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-28030C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62522-28030C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64714-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64715-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64766A - COVER, DECK SIDE TRIM TOOL | ||||
| 64766-28100C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64766-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64768A - STOPPER, QUARTER TRIM LID | ||||
| 64768-60030 |
ZRR8#,ZWR80 |
1 | ||
| 64769D - KNOB, JACK COVER | ||||
| 64769-60010C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64769-60010C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 66310-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 66310-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73371D - HANGER, REAR SEAT SHOULDER BELT | ||||
| 73371-1605022 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73371-1605022 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73371D - HANGER, REAR SEAT SHOULDER BELT | ||||
| 73371-1605022 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73371-1605022 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| Common parts | ||||
| 90159-50144 | ||||
| 90467-05125 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
