ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

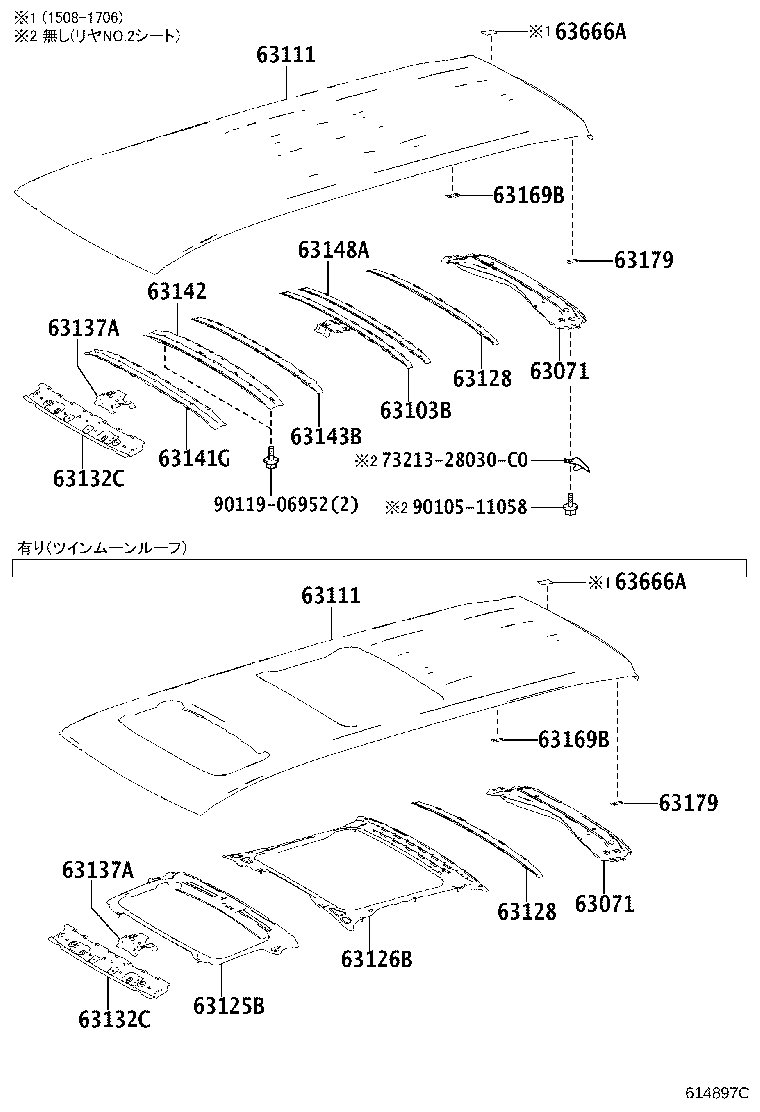

ILLUST NO. 1 OF 3(1401- )
ﾙｰﾌﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-28080 |
ZRR8#,ZWR80 |
1 | ||
| 63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER | ||||
| 63071-28080 |
ZRR8#,ZWR80 |
1 | ||
| 63103B - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER | ||||
| 63103-28090 |
ZRR8#,ZWR80 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28300 |
ZRR8#,ZWR80 |
1 | ||
| 63111-28310 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28300 |
ZRR8#,ZWR80 |
1 | ||
| 63111-28310 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63125B - REINFORCEMENT, ROOF PANEL, FRONT | ||||
| 63125-28100 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2 | ||||
| 63126-28020 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-28030 |
ZRR8#,ZWR80 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-28030 |
ZRR8#,ZWR80 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28120 |
ZRR8#,ZWR80 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-28120 |
ZRR8#,ZWR80 |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-28070 |
ZRR8#,ZWR80 |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-28070 |
ZRR8#,ZWR80 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-28160 |
ZRR8#,ZWR80 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-28110 |
ZRR8#,ZWR80 |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-28110 |
ZRR8#,ZWR80 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-28010 |
ZRR8#,ZWR80 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-28030 |
ZRR8#,ZWR80 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-28030 |
ZRR8#,ZWR80 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63169-28030 |
ZRR8#,ZWR80 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63169-28030 |
ZRR8#,ZWR80 |
1 | ||
| 63666A - PROTECTOR, ROOF, REAR | ||||
| 76587-28060 |
ZRR8#,ZWR80 |
1 | ||
| 76587-28060 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63666A - PROTECTOR, ROOF, REAR | ||||
| 76587-28060 |
ZRR8#,ZWR80 |
1 | ||
| 76587-28060 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| Common parts | ||||
| 73213-28030C0 | ||||
| 90105-11058 | ||||
| 90119-06952 | ||||

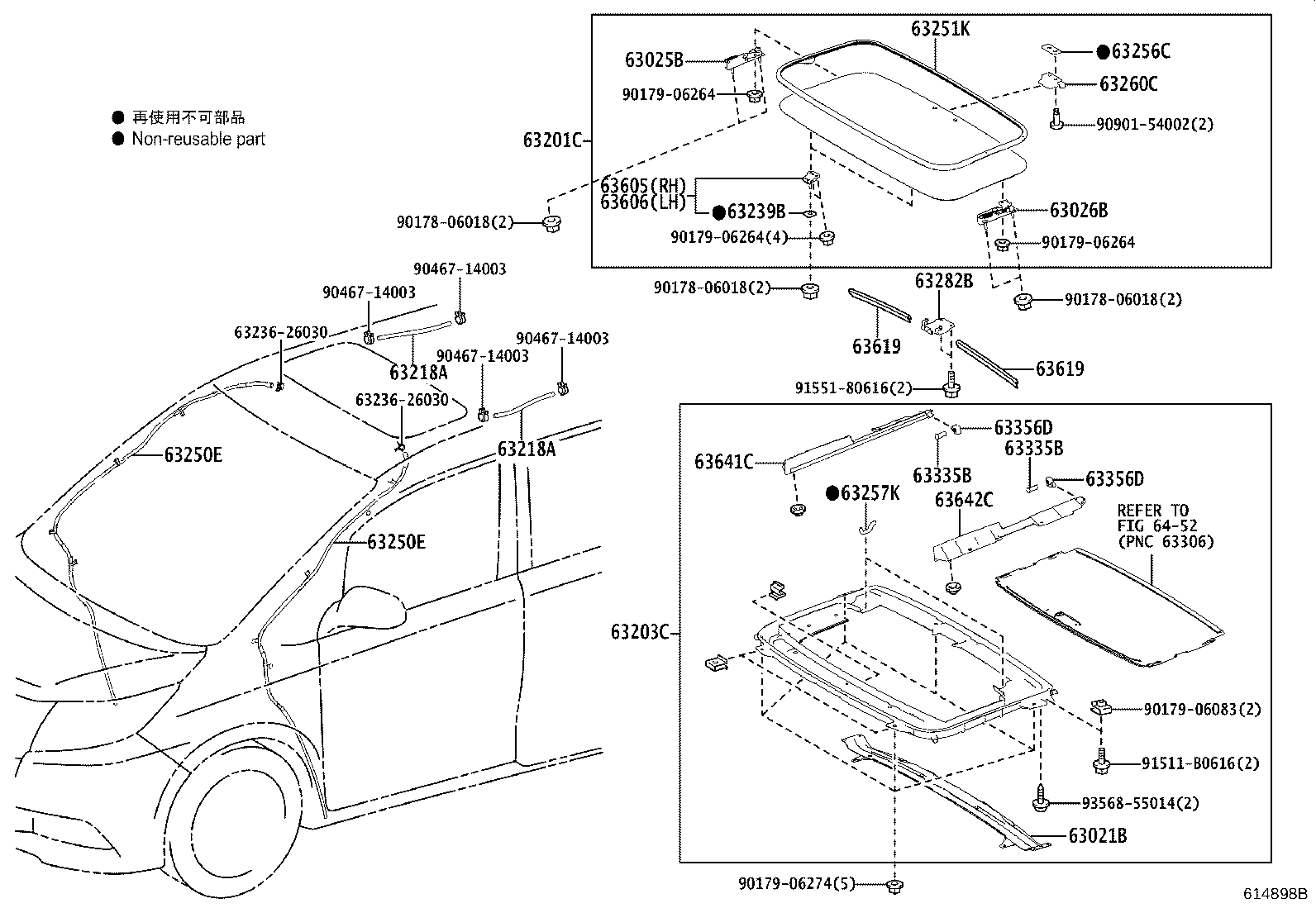

ILLUST NO. 2 OF 3(1401- )
ｱﾘ(ﾂｲﾝﾑｰﾝﾙｰﾌ(ﾁﾙﾄﾙ-ﾌ ﾊｳｼﾞﾝｸﾞ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63021B - STRENGTH SUB-ASSY, ROOF PANEL | ||||
| 63021-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63025B - LINK SUB-ASSY, TILT ROOF, RH | ||||
| 63025-28080 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63026B - LINK SUB-ASSY, TILT ROOF, LH | ||||
| 63026-28090 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28420 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63201-28390 |
ZRR85..SI,ZS;ZRR85..07S..(G,V);ZRR80..(G,SI,V,ZS)..CBU *TEM,厚さ=4.0,ﾀﾞｰｸｸﾞﾚｰ,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-28230B0 |
ZRR85..SI,ZS;ZRR85..07S..V;ZRR80..(SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-28110 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU 長さ=329,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63245-28110 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU 長さ=329,ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63239B - PAD, TILT ROOF GLASS | ||||
| 63239-26020 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63250E - HOSE ASSY, TILT ROOF DRAIN | ||||
| 63250-28100 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,左側 |
1 | ||
| 63250-28090 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,右側 |
1 | ||
| 63250E - HOSE ASSY, TILT ROOF DRAIN | ||||
| 63250-28100 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,左側 |
1 | ||
| 63250-28090 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,右側 |
1 | ||
| 63251K - WEATHERSTRIP, TILT ROOF | ||||
| 63251-28120 |
ZRR85..SI,ZS;ZRR85..07S..(G,V);ZRR80..(G,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251-28121 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63256C - SEAL, TILT ROOF GLASS | ||||
| 63256-44010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63257K - SEAL, TILT ROOF HOUSING | ||||
| 63257-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-26030 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63282B - STRIKER, TILT ROOF LOCK | ||||
| 63282-44021 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63335B - CUSHION, SUNSHADE TRIM, NO.1 | ||||
| 63335-28060 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63335B - CUSHION, SUNSHADE TRIM, NO.1 | ||||
| 63335-28060 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63356D - HOLDER, SUNSHADE TRIM | ||||
| 63356-28020 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63356D - HOLDER, SUNSHADE TRIM | ||||
| 63356-28020 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-28070 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-28070 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63641C - RAIL, SUNSHADE, NO.1 FRONT RH | ||||
| 63681-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63642C - RAIL, SUNSHADE, NO.1 FRONT LH | ||||
| 63682-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| Common parts | ||||
| 63236-26030 | ||||
| 90178-06018 | ||||
| 90179-06083 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90467-14003 | ||||
| 90901-54002 | ||||
| 91511-B0616 | ||||
| 91551-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 6452 | ||||

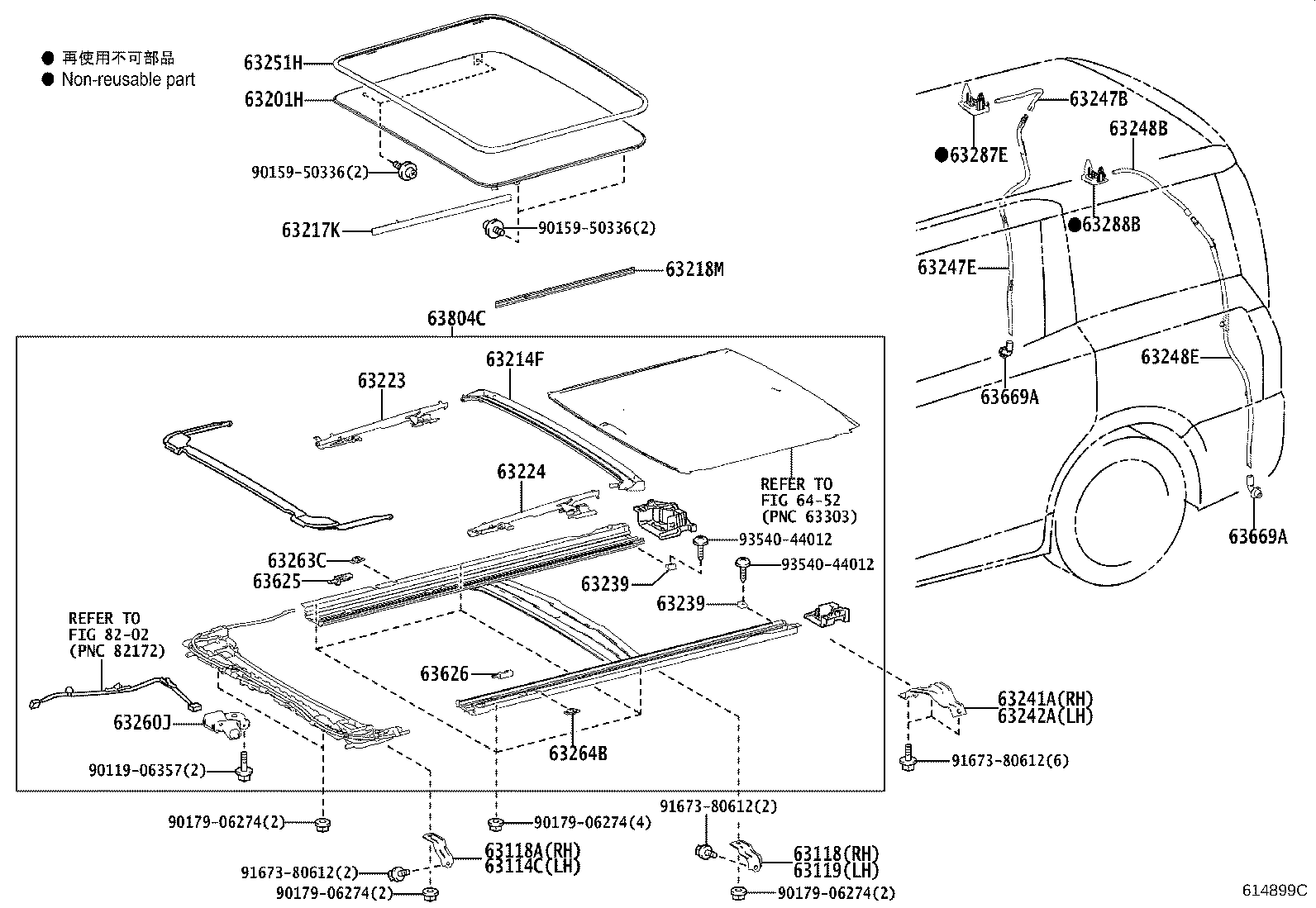

ILLUST NO. 3 OF 3(1401- )
ｱﾘ(ﾂｲﾝﾑｰﾝﾙｰﾌ(ｽﾗｲﾃﾞｨﾝｸﾞﾙ-ﾌ ﾊｳｼﾞﾝｸﾞ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63114C - SUPPORT, ROOF PANEL, FRONT LH | ||||
| 63118-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-28060 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63118A - SUPPORT, ROOF PANEL, FRONT RH | ||||
| 63118-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-28060 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63204-28110 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-28120 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-28040 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-28040 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-28050 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-28070 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-28080 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63247B - HOSE, SLIDING ROOF | ||||
| 63247-28080 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63247-28090 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63248B - HOSE, SLIDING ROOF | ||||
| 63248-28080 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63248-28090 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-28131 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63251-28130 |
ZRR85..SI,ZS;ZRR85..07S..(G,V);ZRR80..(G,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-28170 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63263C - PLATE, SLIDING ROOF LOCK CATCH, RH | ||||
| 63263-60030 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH | ||||
| 63263-60030 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63287E - CAP, SLIDING ROOF HOUSING DRAIN END, RH | ||||
| 63287-28030 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63288B - CAP, SLIDING ROOF HOUSING DRAIN END, LH | ||||
| 63288-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-28010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-50010 |
ZRR85..08S..(SI,ZS);ZRR85..07S..(G,GI,SI,V,ZS);ZRR80..(G,GI,SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF | ||||
| 63804-28060B0 |
ZRR85..SI,ZS;ZRR85..07S..V;ZRR80..(SI,V,ZS)..CBU ﾂｲﾝﾑｰﾝﾙｰﾌ−有り,LT.GRAY,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 91673-80612 | ||||
| 93540-44012 | ||||
| Linked diagrams | ||||
| 6452 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
