ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )

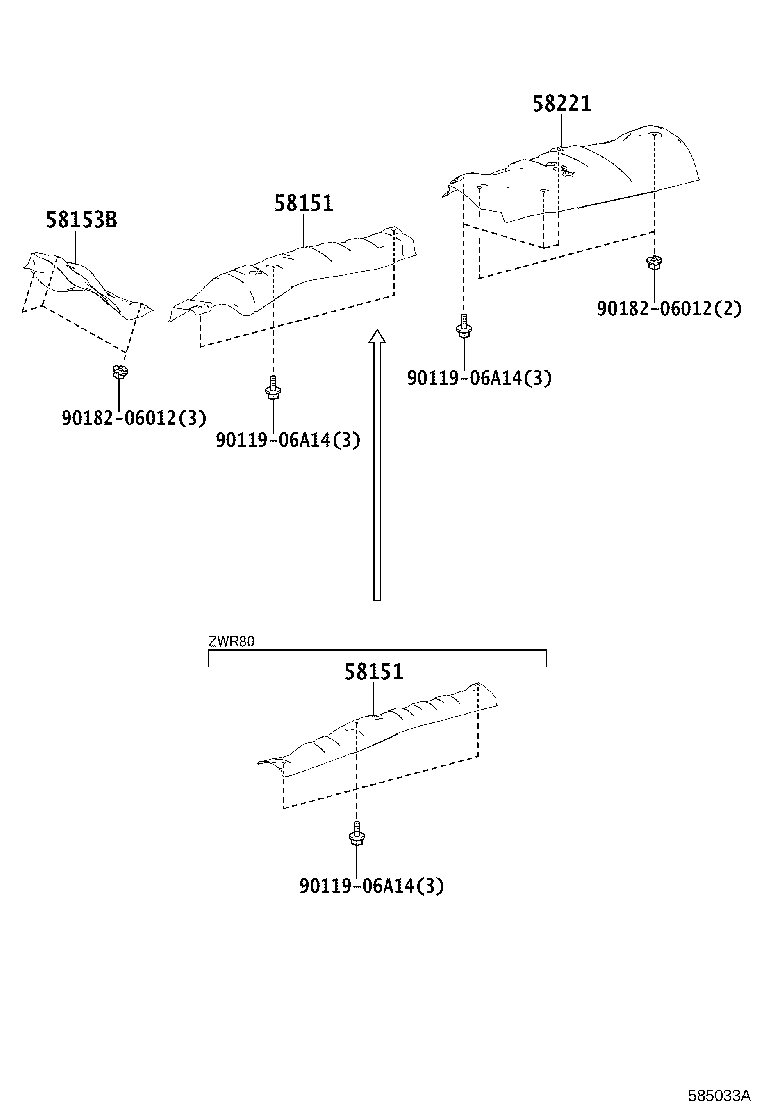

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-28170 |
ZRR85 |
1 | ||
| 58151-28171 |
ZRR85 |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-28170 |
ZRR85 |
1 | ||
| 58151-28171 |
ZRR85 |
1 | ||
| 58153B - INSULATOR, FLOOR HEAT, NO.3 | ||||
| 58153-28050 |
ZRR8#,ZWR80 |
1 | ||
| 58221 - INSULATOR, CENTER FLOOR HEAT, NO.1 | ||||
| 58152-28090 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90182-06012 | ||||
