ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

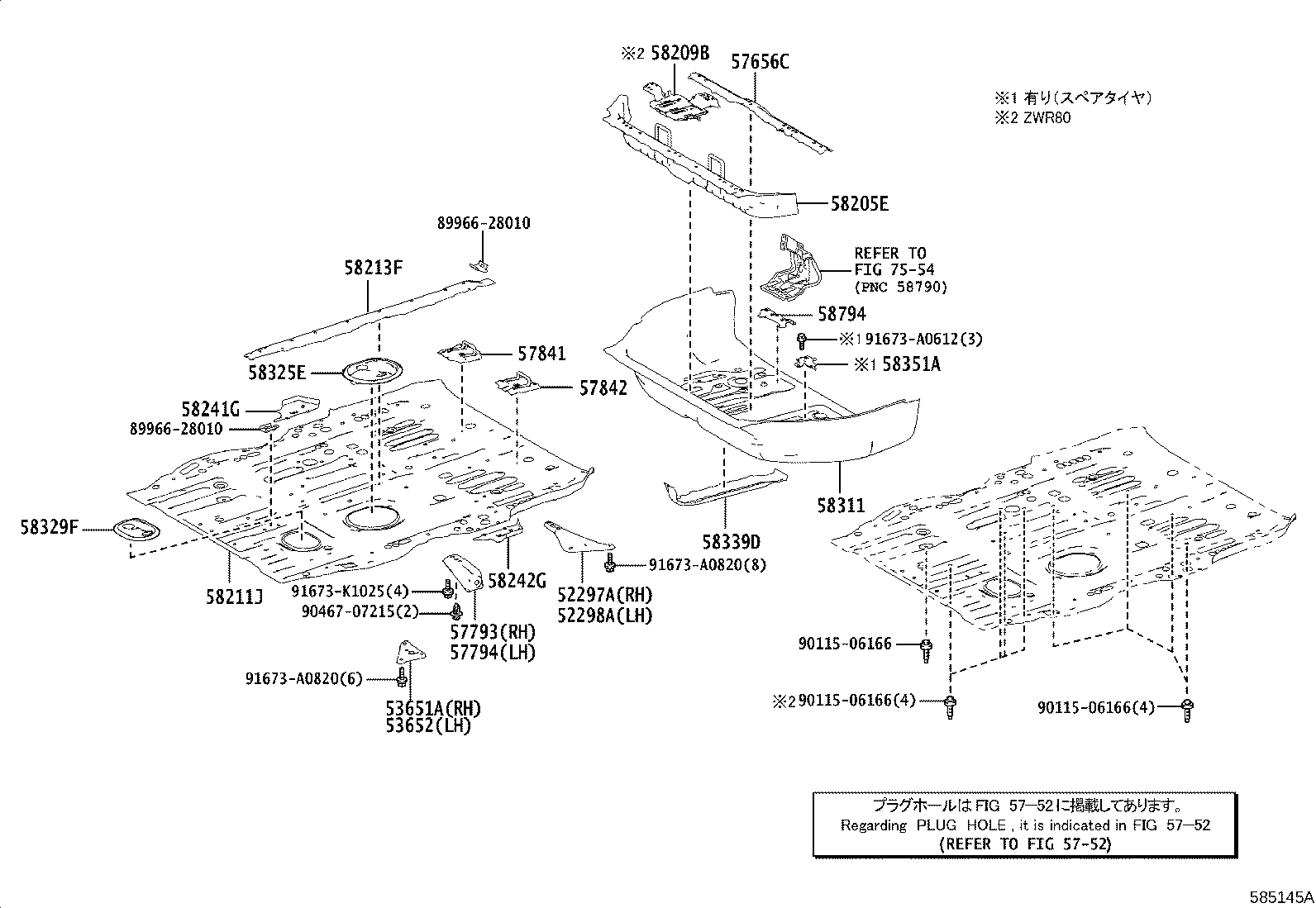

ILLUST NO. 2 OF 2(1401- )CBU
ﾌﾛｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52297A - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-28020 |
ZRR8#,ZWR80..CBU |
1 | ||
| 52298A - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-28020 |
ZRR8#,ZWR80..CBU |
1 | ||
| 53651A - BRACE, REAR SUSPENSION, UPPER RH | ||||
| 53651-28020 |
ZRR8#,ZWR80 |
1 | ||
| 53652 - BRACE, REAR SUSPENSION, UPPER LH | ||||
| 53652-28020 |
ZRR8#,ZWR80 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-28080 |
ZRR8#,ZWR80..CBU |
1 | ||
| 57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1 | ||||
| 57793-28050 |
ZRR8#,ZWR80 |
1 | ||
| 57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1 | ||||
| 57794-28060 |
ZRR8#,ZWR80 |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-28130 |
ZRR8#,ZWR80..CBU |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-28070 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58205E - REINFORCE SUB-ASSY, REAR SEAT HINGE | ||||
| 58205-28050 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58211J - PAN, CENTER FLOOR | ||||
| 58211-28360 |
ZRR8#..08S..CBU |
1 | ||
| 58213F - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58213-28020 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58241G - PANEL, FLOOR SIDE, RH | ||||
| 58241-28030 |
ZRR8#,ZWR80 |
1 | ||
| 58242G - PANEL, FLOOR SIDE, LH | ||||
| 58242-28030 |
ZRR8#,ZWR80 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-28A50 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-28110 |
ZRR8#,ZWR80 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-28030 |
ZRR8#,ZWR80 |
1 | ||
| 58339D - BRACKET, JACK UP | ||||
| 58339-28060 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58351A - BRACKET, SPARE WHEEL CARRIER | ||||
| 58351-28070 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-28070 |
ZRR8#,ZWR80..CBU |
1 | ||
| Common parts | ||||
| 89966-28010 | ||||
| 90115-06166 | ||||
| 90467-07215 | ||||
| 91673-A0612 | ||||
| 91673-A0820 | ||||
| 91673-K1025 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7554 | ||||

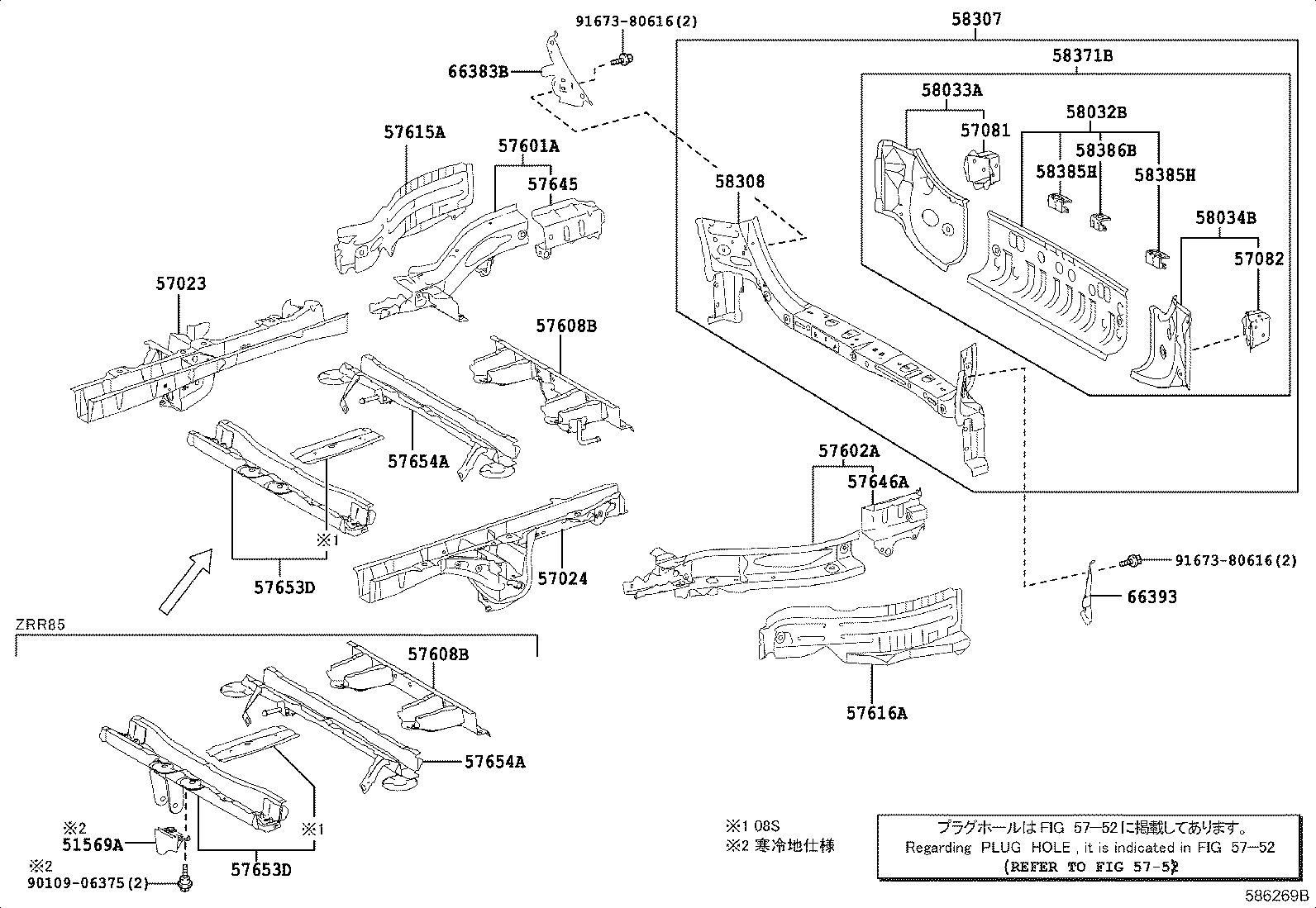

ILLUST NO. 1 OF 2(1401- )CBU
ﾌﾛｱｻｲﾄﾞﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51448-28060 |
ZRR85 寒冷地仕様−有り |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-28470 |
ZRR8#,ZWR80 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-28530 |
ZRR8#,ZWR80 |
1 | ||
| 57081 - BRACKET SUB-ASSY, REAR BUMPER MOUNTING | ||||
| 57081-28020 |
ZRR8#,ZWR80 |
1 | ||
| 57082 - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 57082-28020 |
ZRR8#,ZWR80 |
1 | ||
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-28200 |
ZRR8#,ZWR80..CBU |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-28170 |
ZRR8#,ZWR80..CBU |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-28300 |
ZRR85..CBU |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-28300 |
ZRR85..CBU |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-28100 |
ZRR8#,ZWR80 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-28070 |
ZRR8#,ZWR80 |
1 | ||
| 57645 - REINFORCEMENT, REAR SIDE MEMBER, RH | ||||
| 57645-28080 |
ZRR8#,ZWR80 |
1 | ||
| 57646A - REINFORCEMENT, REAR SIDE MEMBER, LH | ||||
| 57646-28070 |
ZRR8#,ZWR80 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57005-28250 |
ZRR85..08S..CBU |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57005-28250 |
ZRR85..08S..CBU |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57063-28050 |
ZRR8#..08S..CBU |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57063-28050 |
ZRR8#..08S..CBU |
1 | ||
| 58032B - PANEL SUB-ASSY, REAR FLOOR, CENTER | ||||
| 58032-28010 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58033A - REINFORCE SUB-ASSY, BODY LOWER BACK, RH | ||||
| 58033-28020 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58034B - REINFORCE SUB-ASSY, BODY LOWER BACK, LH | ||||
| 58034-28021 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58034-28020 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-28161 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58307-28160 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-28050 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58302-28121 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58302-28120 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58386-12020 |
ZRR8#,ZWR80..CBU |
2 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58386-12020 |
ZRR8#,ZWR80..CBU |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-28050 |
ZRR8#,ZWR80..CBU |
1 | ||
| 66383B - BRACKET, ROPE HOOK, NO.1 RH | ||||
| 66383-28020 |
ZRR8#,ZWR80 |
1 | ||
| 66393 - BRACKET, ROPE HOOK, NO.1 LH | ||||
| 66393-28030 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
