ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401- )

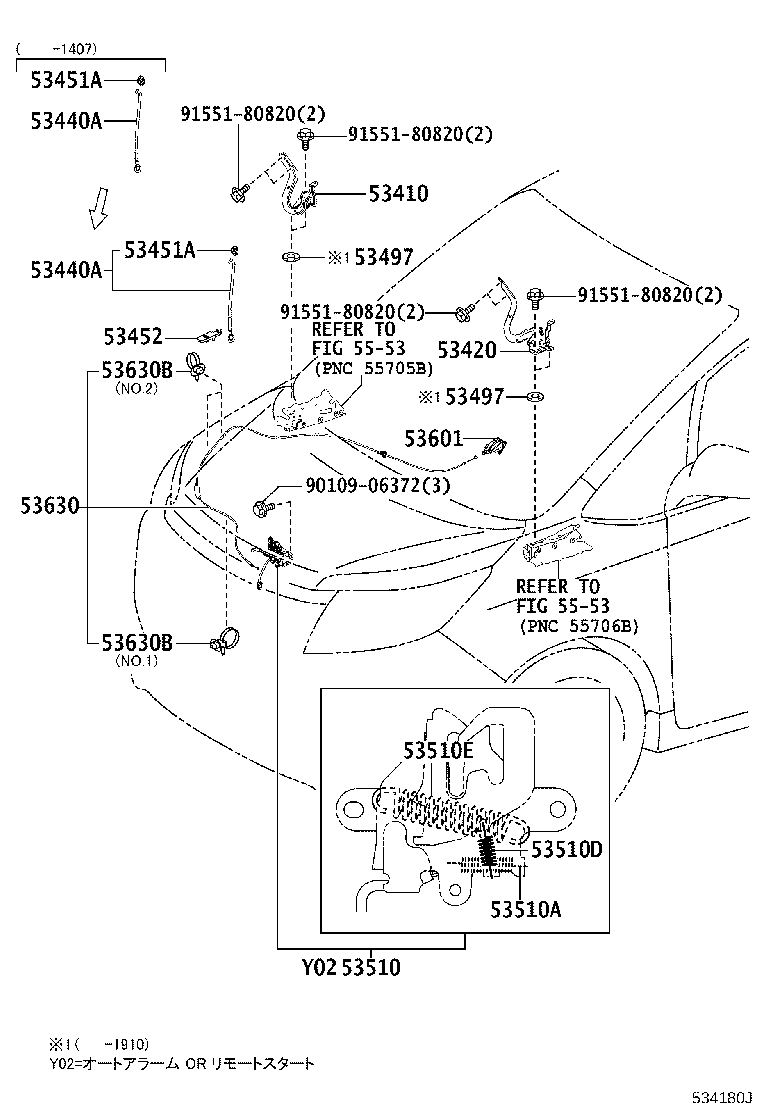

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-28100 |
ZRR8#,ZWR80 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-28100 |
ZRR8#,ZWR80 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-28031 |
ZRR8#,ZWR80 |
1 | ||
| 53440-28030 |
ZRR8#,ZWR80 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-28031 |
ZRR8#,ZWR80 |
1 | ||
| 53440-28030 |
ZRR8#,ZWR80 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15025 |
ZRR8#,ZWR80 |
1 | ||
| 90480-15034 |
ZRR8#,ZWR80 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15025 |
ZRR8#,ZWR80 |
1 | ||
| 90480-15034 |
ZRR8#,ZWR80 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-28010 |
ZRR8#,ZWR80 |
1 | ||
| 53452-28011 |
ZRR8#,ZWR80 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZRR8#,ZWR80 厚さ=0.5 |
4 | ||
| 53497-20070 |
ZRR8#,ZWR80 厚さ=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-42010 |
ZRR8#,ZWR80 厚さ=0.5 |
4 | ||
| 53497-20070 |
ZRR8#,ZWR80 厚さ=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-28160 |
ZRR80..NOAH..X;ZRR85..NOAH..X..CBU X“V Package” *(E) OR “C Package” *(E) |
1 | ||
| 53510-28171 |
ZRR8#..ESQIR,NOAH |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
ZRR8#,ZWR80 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ZRR8#,ZWR80 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18067 |
ZRR8#,ZWR80 線径=1.8,ｺｲﾙ巻数=13 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 53601-52010C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 53601-52010C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 53601-52010C1 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-28140 |
ZRR8#,ZWR80 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 82711-52070 |
ZRR8#,ZWR80 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 82711-3F440 |
ZRR8#,ZWR80 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 82711-52070 |
ZRR8#,ZWR80 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 82711-3F440 |
ZRR8#,ZWR80 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 90109-06372 | ||||
| 91551-80820 | ||||
| Linked diagrams | ||||
| 5553 | ||||
