ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

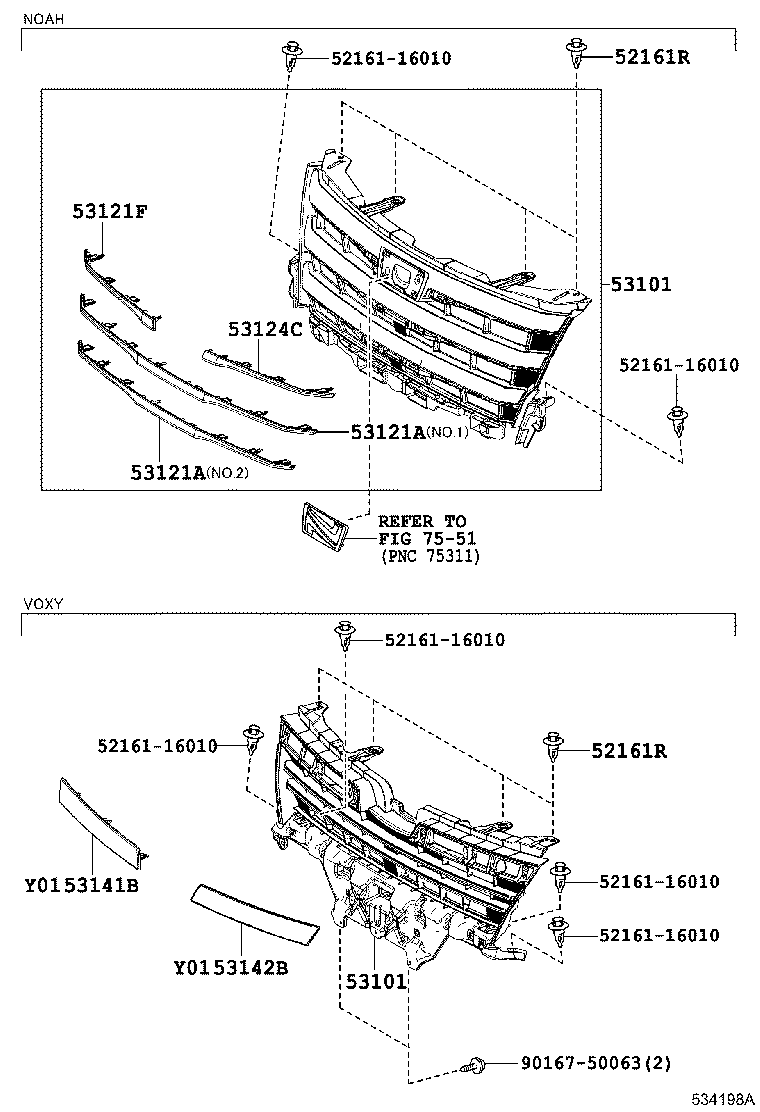

(1401-1706)NOAH,VOXY

Click highlighted areas on diagram

diagram 5216116010 5216116010 5216116010 5216116010 5216116010 5216116010 52161R 52161R 53101 53101 53121A 53121A 53121F 53124C 53141B 53142B 7551 9016750063
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 4
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28390

ZRR8#,ZWR80..NOAH..(G,X)

ﾒｯｷ

 1
53101-28590

ZRR8#,ZWR80..SI..CBU

ﾒｯｷ,Si“WxB”*(C)

 1
53101-28570

ZRR8#,ZWR80..SI

ﾒｯｷ

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28390

ZRR8#,ZWR80..NOAH..(G,X)

ﾒｯｷ

 1
53101-28590

ZRR8#,ZWR80..SI..CBU

ﾒｯｷ,Si“WxB”*(C)

 1
53101-28570

ZRR8#,ZWR80..SI

ﾒｯｷ

 1
53121A - MOULDING, RADIATOR GRILLE
53123-28030

ZRR8#,ZWR80..NOAH

NO.1:ｲﾗｽﾄ参照

 1
53124-28030

ZRR8#,ZWR80..NOAH

NO.2:ｲﾗｽﾄ参照

 1
53124-28130

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C),NO.2:ｲﾗｽﾄ参照

 1
53123-28130

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C),NO.1:ｲﾗｽﾄ参照

 1
53121A - MOULDING, RADIATOR GRILLE
53123-28030

ZRR8#,ZWR80..NOAH

NO.1:ｲﾗｽﾄ参照

 1
53124-28030

ZRR8#,ZWR80..NOAH

NO.2:ｲﾗｽﾄ参照

 1
53124-28130

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C),NO.2:ｲﾗｽﾄ参照

 1
53123-28130

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C),NO.1:ｲﾗｽﾄ参照

 1
53121F - MOULDING, RADIATOR GRILLE, UPPER RH
53121-28100

ZRR8#,ZWR80..NOAH

 1
53121-28200

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C)

 1
53124C - MOULDING, RADIATOR GRILLE, UPPER LH
53122-28020

ZRR8#,ZWR80..NOAH

 1
53122-28030

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C)

 1
Common parts
52161-16010
90167-50063
Linked diagrams
7551

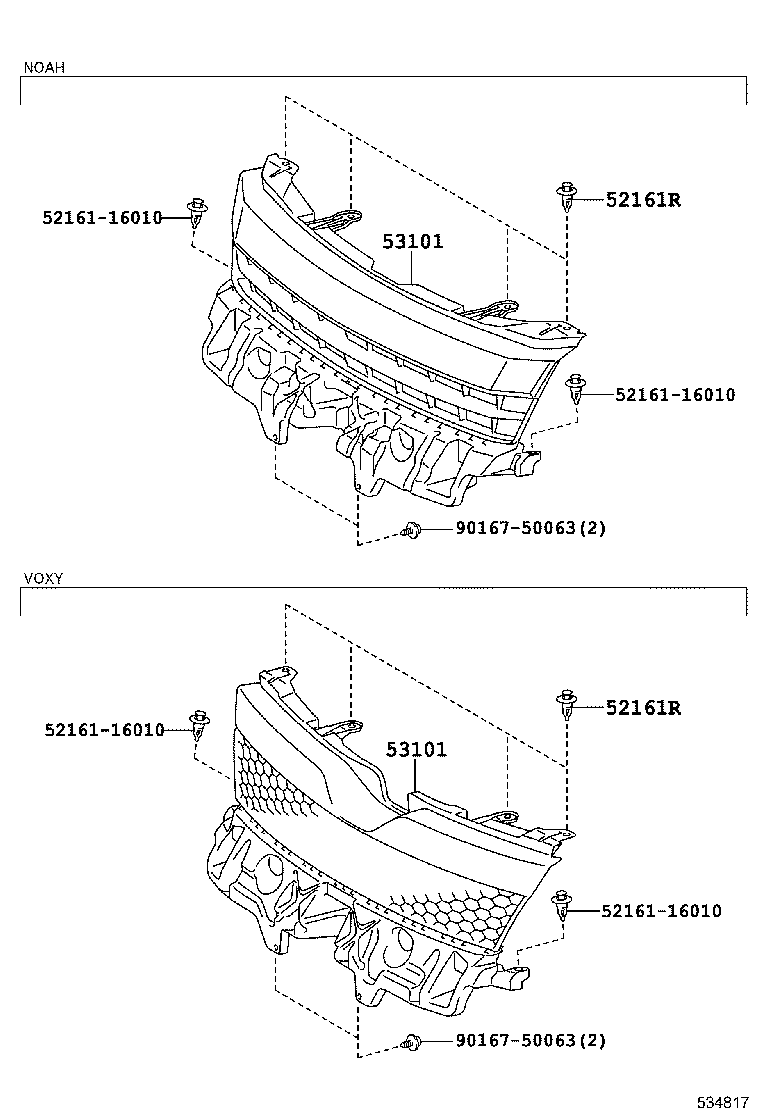

(1605- )NOAH,VOXY

Click highlighted areas on diagram

G'S OR GR-SPORT

diagram 5216116010 5216116010 5216116010 5216116010 52161R 52161R 53101 53101 9016750063 9016750063
Part # Description Qty Price
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 4
52161R - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28390

ZRR8#,ZWR80..NOAH..(G,X)

ﾒｯｷ

 1
53101-28590

ZRR8#,ZWR80..SI..CBU

ﾒｯｷ,Si“WxB”*(C)

 1
53101-28570

ZRR8#,ZWR80..SI

ﾒｯｷ

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-28390

ZRR8#,ZWR80..NOAH..(G,X)

ﾒｯｷ

 1
53101-28590

ZRR8#,ZWR80..SI..CBU

ﾒｯｷ,Si“WxB”*(C)

 1
53101-28570

ZRR8#,ZWR80..SI

ﾒｯｷ

 1
Common parts
52161-16010
90167-50063
