ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

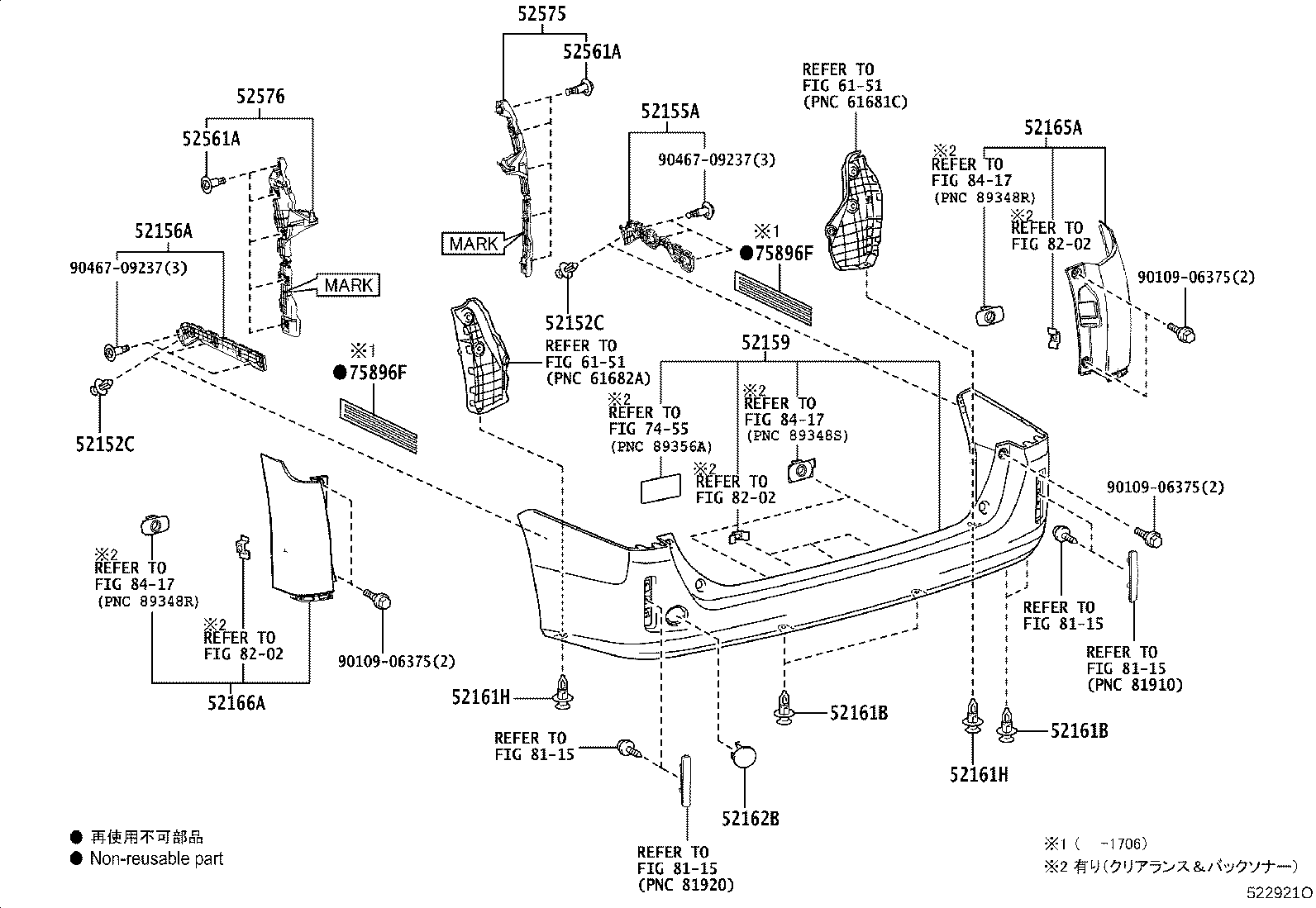

(1401- )G,GI,V,X,XI..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ZRR8#,ZWR80 |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ZRR8#,ZWR80 |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-28130 |
ZRR8#,ZWR80 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28100 |
ZRR8#,ZWR80 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28620B0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU SILVER ME.,1F7 |
1 | ||
| 52159-28620H0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU OCEAN MINT ME.,789 |
1 | ||
| 52159-28630B0 |
ZRR8#,ZWR80..(SI,ZS)..CBU SILVER ME.,1F7 |
1 | ||
| 52159-28620A0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-28620D0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52159-28620E0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU;ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI)..CBU ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52159-28630A0 |
ZRR8#,ZWR80..(SI,ZS)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-28630C0 |
ZRR8#,ZWR80..(SI,ZS)..CBU BLACK,202 |
1 | ||
| 52159-28630D0 |
ZRR8#,ZWR80..(SI,ZS)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52159-28630K0 |
ZRR8#,ZWR80..SI..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52159-28620B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52159-28620C0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU BLACK,202 |
1 | ||
| 52159-28630B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..CBU |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..CBU |
4 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-28060C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI BLACK,202 |
1 | ||
| 52162-28060D0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI DEEP RED M.M.,3R9 |
1 | ||
| 52162-28060A0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI WHITE PEARL CS.,070 |
1 | ||
| 52162-28090B0 |
ZRR8#,ZWR80..(SI,ZS)..CBU SILVER ME.,1F7 |
1 | ||
| 52162-28060E0 |
ZRR80..07S..GI;ZRR80..(ESQIR,NOAH)..(G,X,XI);ZRR85..(ESQIR,NOAH)..08S..(G,X,XI);ZRR85,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52162-28090K0 |
ZRR8#,ZWR80..SI..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52162-28090C0 |
ZRR8#,ZWR80..(SI,ZS)..CBU BLACK,202 |
1 | ||
| 52162-28060B0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI SILVER ME.,1F7 |
1 | ||
| 52162-28090B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52162-28060H0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 52162-28090A0 |
ZRR8#,ZWR80..(SI,ZS)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52162-28090D0 |
ZRR8#,ZWR80..(SI,ZS)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52162-28060B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-28010B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52165-28010K0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI DK.VIOLET M.M.,9AF |
1 | ||
| 52165-28010D0 |
ZRR8#,ZWR80 DEEP RED M.M.,3R9 |
1 | ||
| 52165-28010E0 |
ZRR80..07S..GI;ZRR80..(ESQIR,NOAH)..(G,X,XI);ZRR85..(ESQIR,NOAH)..08S..(G,X,XI);ZRR85,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52165-28010B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52165-28010C0 |
ZRR8#,ZWR80 BLACK,202 |
1 | ||
| 52165-28010A0 |
ZRR8#,ZWR80 WHITE PEARL CS.,070 |
1 | ||
| 52165-28010H0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 52165-28010B0 |
ZRR8#,ZWR80 SILVER ME.,1F7 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-28010B0 |
ZRR8#,ZWR80 SILVER ME.,1F7 |
1 | ||
| 52166-28010C0 |
ZRR8#,ZWR80 BLACK,202 |
1 | ||
| 52166-28010D0 |
ZRR8#,ZWR80 DEEP RED M.M.,3R9 |
1 | ||
| 52166-28010E0 |
ZRR80..07S..GI;ZRR80..(ESQIR,NOAH)..(G,X,XI);ZRR85..(ESQIR,NOAH)..08S..(G,X,XI);ZRR85,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52166-28010A0 |
ZRR8#,ZWR80 WHITE PEARL CS.,070 |
1 | ||
| 52166-28010B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52166-28010H0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 52166-28010K0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI DK.VIOLET M.M.,9AF |
1 | ||
| 52166-28010B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZRR8#,ZWR80 |
10 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZRR8#,ZWR80 |
10 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-28020 |
ZRR8#,ZWR80 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-28010 |
ZRR8#,ZWR80 |
1 | ||
| 75896F - TAPE, MOULDING | ||||
| 75895-28010 |
ZRR8#,ZWR80..CBU |
2 | ||
| 75896F - TAPE, MOULDING | ||||
| 75895-28010 |
ZRR8#,ZWR80..CBU |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90467-09237 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 7455 | ||||
| 8115 | ||||
| 8202 | ||||
| 8417 | ||||

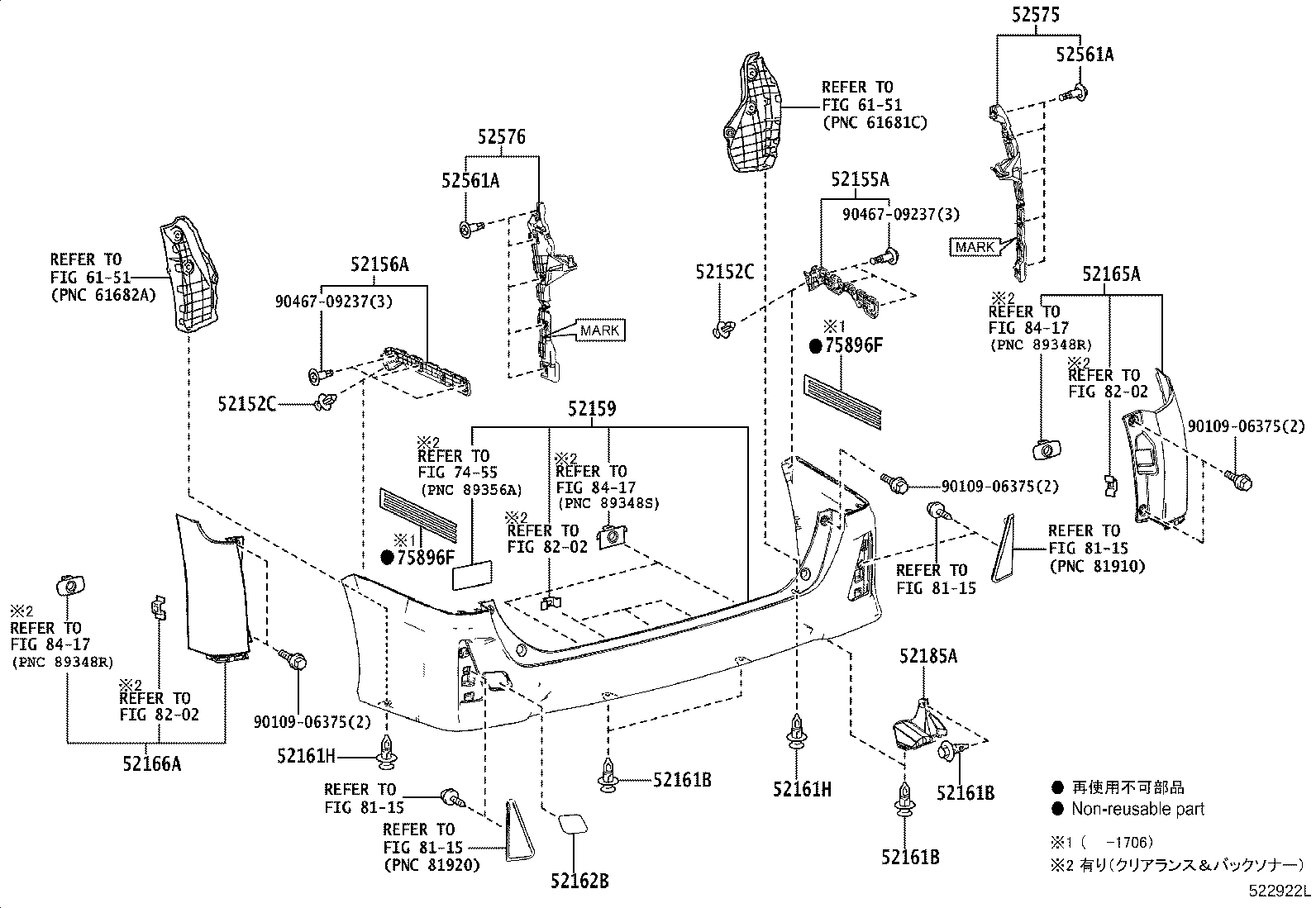

(1401- )SI,ZS..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ZRR8#,ZWR80 |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ZRR8#,ZWR80 |
2 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-28130 |
ZRR8#,ZWR80 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28100 |
ZRR8#,ZWR80 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28620B0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU SILVER ME.,1F7 |
1 | ||
| 52159-28620H0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU OCEAN MINT ME.,789 |
1 | ||
| 52159-28630B0 |
ZRR8#,ZWR80..(SI,ZS)..CBU SILVER ME.,1F7 |
1 | ||
| 52159-28620A0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-28620D0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52159-28620E0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)..CBU;ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI)..CBU ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52159-28630A0 |
ZRR8#,ZWR80..(SI,ZS)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52159-28630C0 |
ZRR8#,ZWR80..(SI,ZS)..CBU BLACK,202 |
1 | ||
| 52159-28630D0 |
ZRR8#,ZWR80..(SI,ZS)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52159-28630K0 |
ZRR8#,ZWR80..SI..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52159-28620B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52159-28620C0 |
ZRR8#,ZWR80..(G,GI,V,X,XI)..CBU BLACK,202 |
1 | ||
| 52159-28630B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..CBU |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..CBU |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80..CBU |
4 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52161H - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-28060C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI BLACK,202 |
1 | ||
| 52162-28060D0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI DEEP RED M.M.,3R9 |
1 | ||
| 52162-28060A0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI WHITE PEARL CS.,070 |
1 | ||
| 52162-28090B0 |
ZRR8#,ZWR80..(SI,ZS)..CBU SILVER ME.,1F7 |
1 | ||
| 52162-28060E0 |
ZRR80..07S..GI;ZRR80..(ESQIR,NOAH)..(G,X,XI);ZRR85..(ESQIR,NOAH)..08S..(G,X,XI);ZRR85,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52162-28090K0 |
ZRR8#,ZWR80..SI..CBU DK.VIOLET M.M.,9AF |
1 | ||
| 52162-28090C0 |
ZRR8#,ZWR80..(SI,ZS)..CBU BLACK,202 |
1 | ||
| 52162-28060B0 |
ZRR80..(SI,ZS)..IV5;ZRR8#,ZWR80..G,GI,V,X,XI SILVER ME.,1F7 |
1 | ||
| 52162-28090B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52162-28060H0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 52162-28090A0 |
ZRR8#,ZWR80..(SI,ZS)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52162-28090D0 |
ZRR8#,ZWR80..(SI,ZS)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52162-28060B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-28010B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52165-28010K0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI DK.VIOLET M.M.,9AF |
1 | ||
| 52165-28010D0 |
ZRR8#,ZWR80 DEEP RED M.M.,3R9 |
1 | ||
| 52165-28010E0 |
ZRR80..07S..GI;ZRR80..(ESQIR,NOAH)..(G,X,XI);ZRR85..(ESQIR,NOAH)..08S..(G,X,XI);ZRR85,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52165-28010B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52165-28010C0 |
ZRR8#,ZWR80 BLACK,202 |
1 | ||
| 52165-28010A0 |
ZRR8#,ZWR80 WHITE PEARL CS.,070 |
1 | ||
| 52165-28010H0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 52165-28010B0 |
ZRR8#,ZWR80 SILVER ME.,1F7 |
1 | ||
| 52166A - COVER, REAR BUMPER, UPR LH | ||||
| 52166-28010B0 |
ZRR8#,ZWR80 SILVER ME.,1F7 |
1 | ||
| 52166-28010C0 |
ZRR8#,ZWR80 BLACK,202 |
1 | ||
| 52166-28010D0 |
ZRR8#,ZWR80 DEEP RED M.M.,3R9 |
1 | ||
| 52166-28010E0 |
ZRR80..07S..GI;ZRR80..(ESQIR,NOAH)..(G,X,XI);ZRR85..(ESQIR,NOAH)..08S..(G,X,XI);ZRR85,ZWR80..(ESQIR,NOAH)..07S..(G,GI,X,XI) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52166-28010A0 |
ZRR8#,ZWR80 WHITE PEARL CS.,070 |
1 | ||
| 52166-28010B2 |
ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52166-28010H0 |
ZRR80..SI..IV5;ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 52166-28010K0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI DK.VIOLET M.M.,9AF |
1 | ||
| 52166-28010B2 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(GI,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52185A - BRACKET, REAR BUMPER SIDE, RH | ||||
| 52185-28040 |
ZRR8#,ZWR80..(SI,ZS)..CBU |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZRR8#,ZWR80 |
10 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-09237 |
ZRR8#,ZWR80 |
10 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-28020 |
ZRR8#,ZWR80 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-28010 |
ZRR8#,ZWR80 |
1 | ||
| 75896F - TAPE, MOULDING | ||||
| 75895-28010 |
ZRR8#,ZWR80..CBU |
2 | ||
| 75896F - TAPE, MOULDING | ||||
| 75895-28010 |
ZRR8#,ZWR80..CBU |
2 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 90467-09237 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 7455 | ||||
| 8115 | ||||
| 8202 | ||||
| 8417 | ||||
