ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

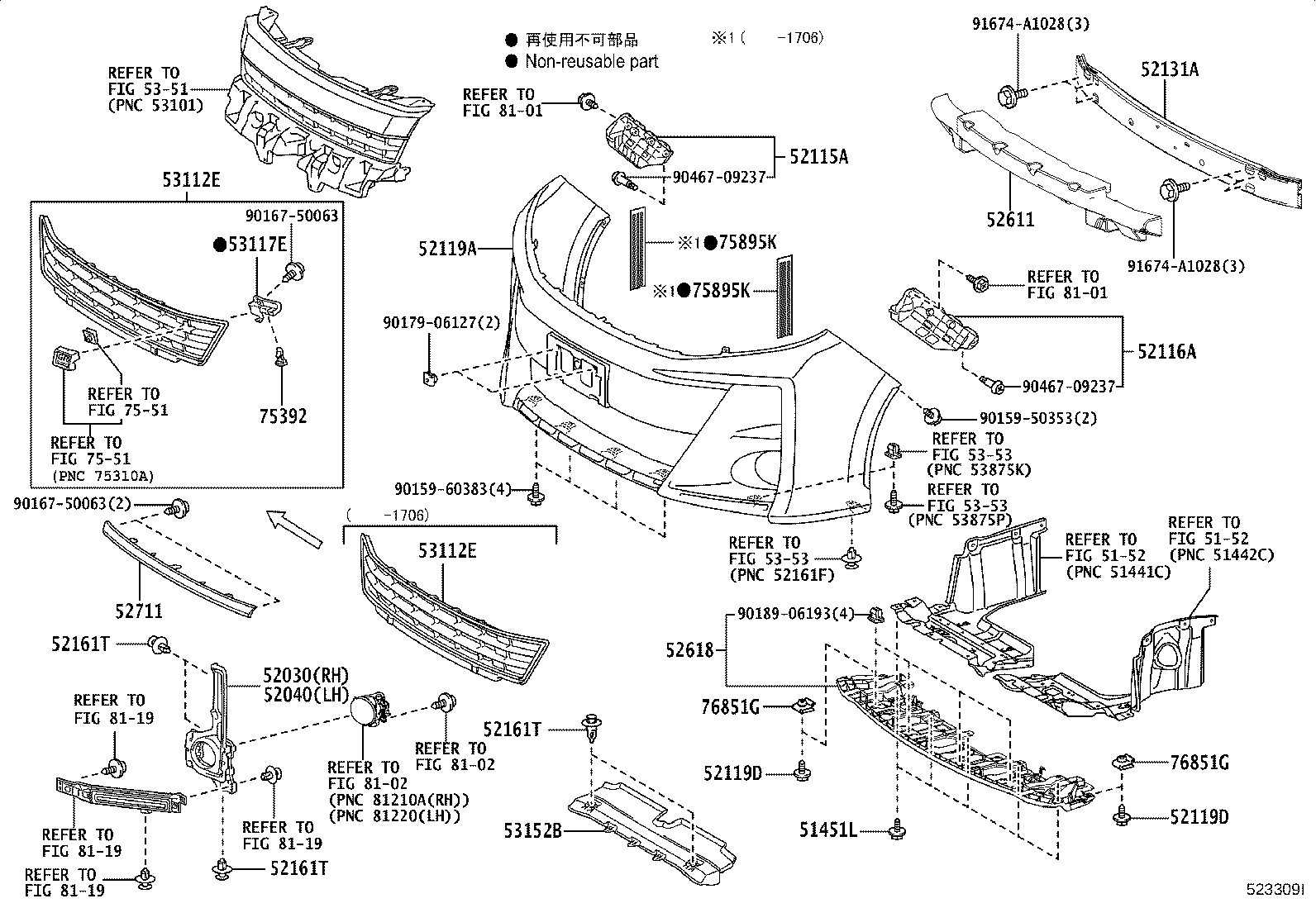

(1401-1706)NOAH..G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52030-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52030-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52030-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52030-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52030-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52030-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52040-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52040-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52040-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52040-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28230 |
ZRR8#..SI |
1 | ||
| 52115-28220 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52115-28231 |
ZRR8#,ZWR80..SI |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28090 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116-28120 |
ZRR8#..SI |
1 | ||
| 52116-28121 |
ZRR8#,ZWR80..SI |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28G70B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) SILVER ME.,1F7 |
1 | ||
| 52119-28G70B2 |
ZRR8#,ZWR80..NOAH..X..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G70C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) BLACK,202 |
1 | ||
| 52119-28G70A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) WHITE PEARL CS.,070 |
1 | ||
| 52119-28G80B0 |
ZRR8#,ZWR80..SI SILVER ME.,1F7 |
1 | ||
| 52119-28G80D0 |
ZRR8#,ZWR80..SI DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G80C0 |
ZRR8#,ZWR80..SI BLACK,202 |
1 | ||
| 52119-28G70H0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) OCEAN MINT ME.,789 |
1 | ||
| 52119-28G70D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G80K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28G70E0 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52119-28G80A0 |
ZRR8#,ZWR80..SI WHITE PEARL CS.,070 |
1 | ||
| 52119-28G80B1 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-28070 |
ZRR8#,ZWR80..NOAH..X |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-28050 |
ZRR8#,ZWR80..NOAH..X |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28110 |
ZRR8#,ZWR80 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 53105-28030 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 53105-28040 |
ZRR8#,ZWR80..SI |
1 | ||
| 53105-28070 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28230 |
ZRR8#,ZWR80..SI 塗装不要 |
1 | ||
| 53112-28220 |
ZRR8#,ZWR80..NOAH..(G,X) 塗装不要 |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28060 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ZRR8#,ZWR80 |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ZRR8#,ZWR80 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90179-06349 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8101 | ||||
| 8102 | ||||

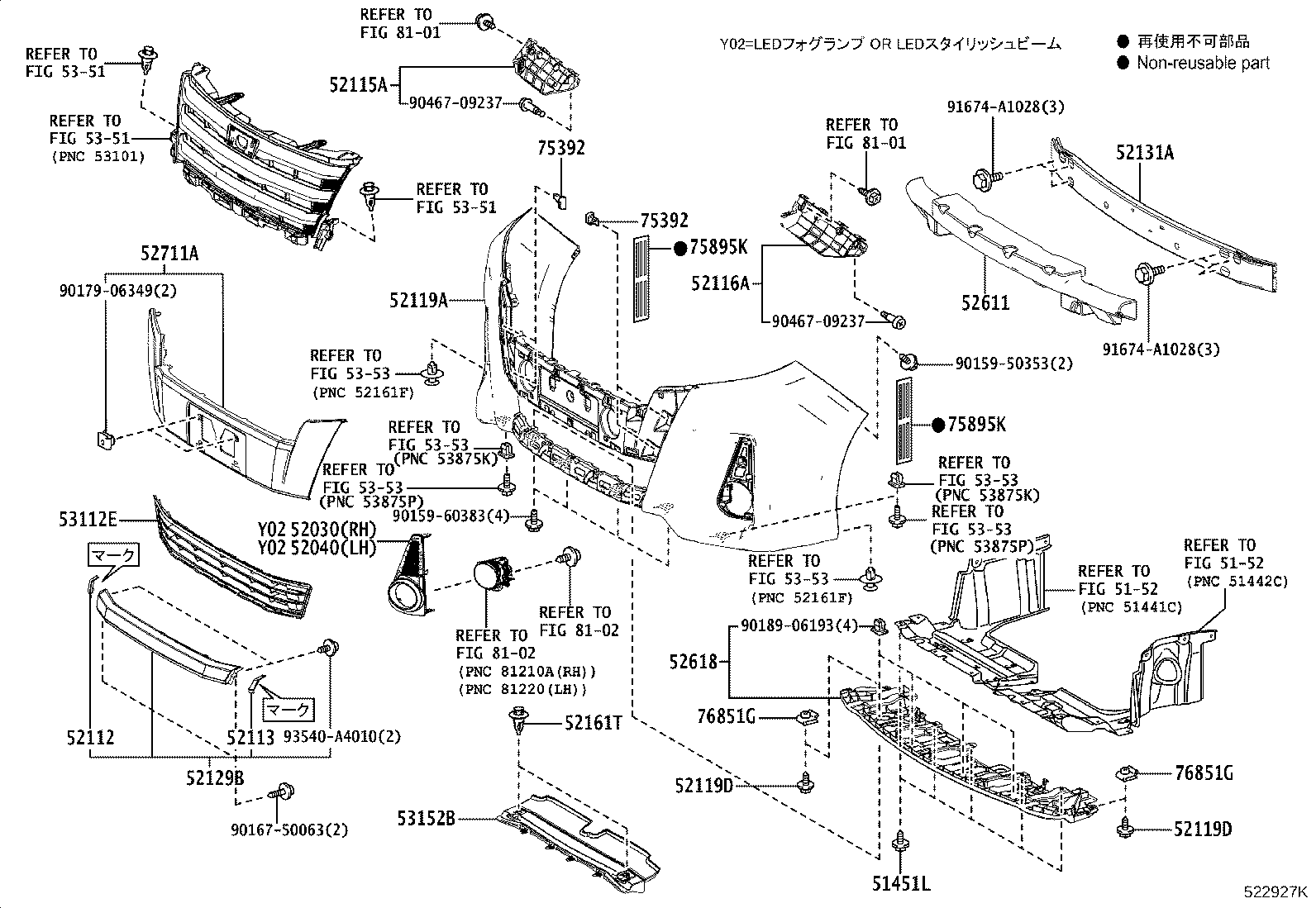

(1401-1706)SI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52030-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52030-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52030-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52040-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52040-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52112 - BAR, FRONT BUMPER, RH | ||||
| 52112-28100 |
ZRR8#..SI ﾏｰｸ=52112−28100 |
1 | ||
| 52112-28101 |
ZRR8#,ZWR80..SI ﾏｰｸ=52112−28101 |
1 | ||
| 52113 - BAR, FRONT BUMPER, LH | ||||
| 52113-28081 |
ZRR8#,ZWR80..SI ﾏｰｸ=52113−28081 |
1 | ||
| 52113-28080 |
ZRR8#..SI ﾏｰｸ=52113−28080 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28231 |
ZRR8#,ZWR80..SI |
1 | ||
| 52115-28230 |
ZRR8#..SI |
1 | ||
| 52115-28220 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28090 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116-28120 |
ZRR8#..SI |
1 | ||
| 52116-28121 |
ZRR8#,ZWR80..SI |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28G70B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) SILVER ME.,1F7 |
1 | ||
| 52119-28G70B2 |
ZRR8#,ZWR80..NOAH..X..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G70C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) BLACK,202 |
1 | ||
| 52119-28G70A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) WHITE PEARL CS.,070 |
1 | ||
| 52119-28G80B0 |
ZRR8#,ZWR80..SI SILVER ME.,1F7 |
1 | ||
| 52119-28G80D0 |
ZRR8#,ZWR80..SI DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G80C0 |
ZRR8#,ZWR80..SI BLACK,202 |
1 | ||
| 52119-28G70H0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) OCEAN MINT ME.,789 |
1 | ||
| 52119-28G70D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G80K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28G70E0 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52119-28G80A0 |
ZRR8#,ZWR80..SI WHITE PEARL CS.,070 |
1 | ||
| 52119-28G80B1 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52104-28090 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 52104-28040 |
ZRR8#,ZWR80..SI |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28110 |
ZRR8#,ZWR80 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 53105-28030 |
ZRR8#,ZWR80..NOAH..(G,X) |
1 | ||
| 53105-28040 |
ZRR8#,ZWR80..SI |
1 | ||
| 53105-28070 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C) |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28230 |
ZRR8#,ZWR80..SI 塗装不要 |
1 | ||
| 53112-28220 |
ZRR8#,ZWR80..NOAH..(G,X) 塗装不要 |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28060 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ZRR8#,ZWR80 |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ZRR8#,ZWR80 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| 93540-A4010 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 8101 | ||||
| 8102 | ||||

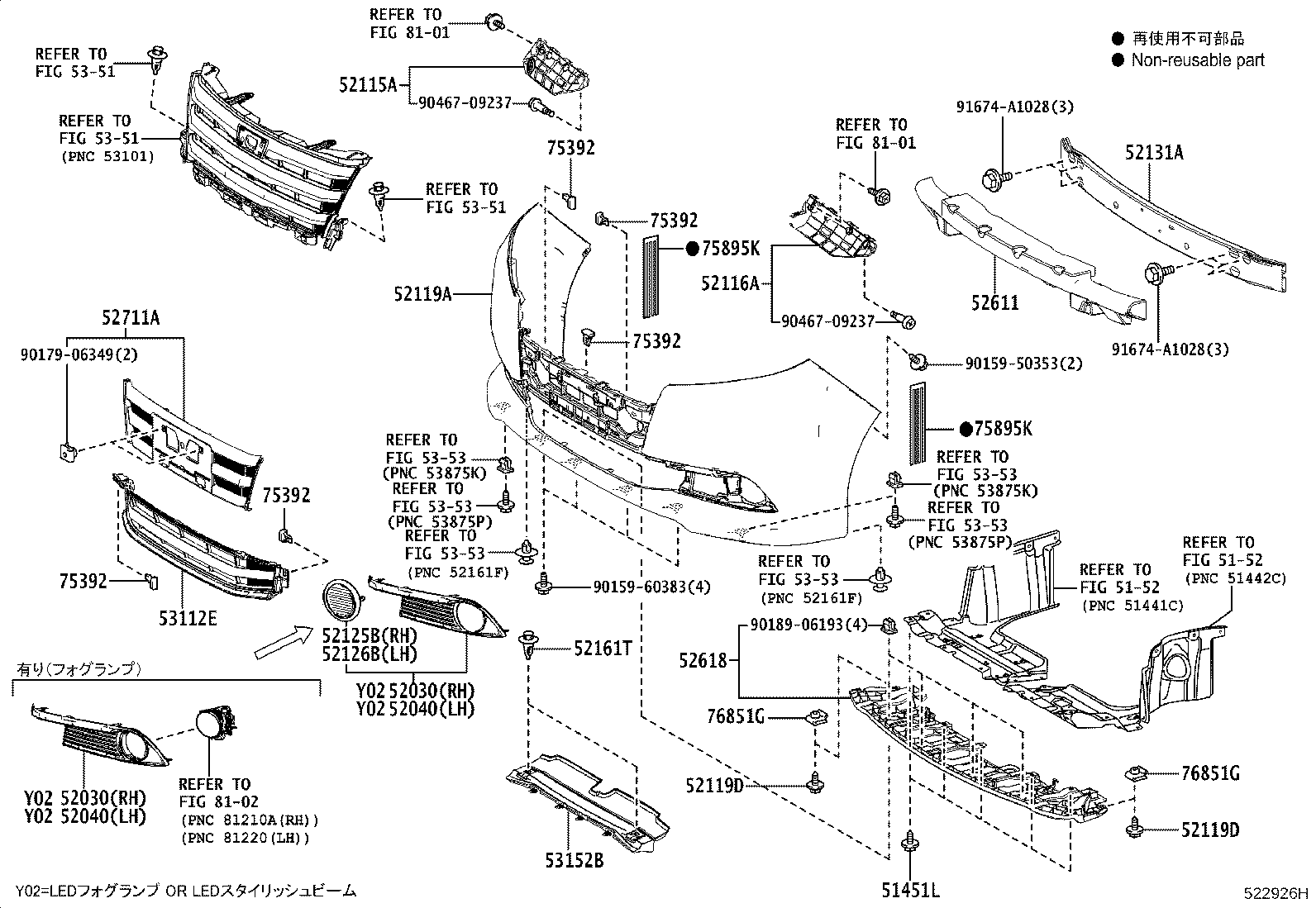

(1605- )NOAH
G'S OR GR SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-06767 |
ZRR8#,ZWR80 |
5 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52030-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52030-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52030-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28030 |
ZRR8#,ZWR80..NOAH..X ﾒｯｷ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52040-28060 |
ZRR8#,ZWR80..NOAH..X 塗装不要 |
1 | ||
| 52040-28040 |
ZRR8#,ZWR80..SI ﾒｯｷ |
1 | ||
| 52040-28100 |
ZRR8#,ZWR80..SI..CBU ﾒｯｷ,Si“WxB”*(C) |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28231 |
ZRR8#,ZWR80..SI |
1 | ||
| 52115-28230 |
ZRR8#..SI |
1 | ||
| 52115-28220 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28090 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) |
1 | ||
| 52116-28120 |
ZRR8#..SI |
1 | ||
| 52116-28121 |
ZRR8#,ZWR80..SI |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28G70B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) SILVER ME.,1F7 |
1 | ||
| 52119-28G70B2 |
ZRR8#,ZWR80..NOAH..X..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G70C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) BLACK,202 |
1 | ||
| 52119-28G70A0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) WHITE PEARL CS.,070 |
1 | ||
| 52119-28G80B0 |
ZRR8#,ZWR80..SI SILVER ME.,1F7 |
1 | ||
| 52119-28G80D0 |
ZRR8#,ZWR80..SI DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G80C0 |
ZRR8#,ZWR80..SI BLACK,202 |
1 | ||
| 52119-28G70H0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) OCEAN MINT ME.,789 |
1 | ||
| 52119-28G70D0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,GI,X,XI) DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G80K0 |
ZRR8#,ZWR80..SI DK.VIOLET M.M.,9AF |
1 | ||
| 52119-28G70E0 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 52119-28G80A0 |
ZRR8#,ZWR80..SI WHITE PEARL CS.,070 |
1 | ||
| 52119-28G80B1 |
ZRR8#,ZWR80..SI..CBU Si“WxB”*(C),ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60383 |
ZRR8#,ZWR80 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-28170 |
ZRR8#,ZWR80 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ZRR8#,ZWR80 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28110 |
ZRR8#,ZWR80 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-28030 |
ZRR8#,ZWR80 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28230 |
ZRR8#,ZWR80..SI 塗装不要 |
1 | ||
| 53112-28220 |
ZRR8#,ZWR80..NOAH..(G,X) 塗装不要 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28230 |
ZRR8#,ZWR80..SI 塗装不要 |
1 | ||
| 53112-28220 |
ZRR8#,ZWR80..NOAH..(G,X) 塗装不要 |
1 | ||
| 53152B - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-28060 |
ZRR8#,ZWR80..SI,ZS |
1 | ||
| 53152-28040 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
ZRR8#,ZWR80..SI |
4 | ||
| 75392-35200 |
ZRR8#,ZWR80..NOAH..(G,X) |
5 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ZRR8#,ZWR80 |
2 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-28010 |
ZRR8#,ZWR80 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06131 |
ZRR8#,ZWR80 |
2 | ||
| Common parts | ||||
| 90159-50353 | ||||
| 90159-60383 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90189-06193 | ||||
| 90467-09237 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5351 | ||||
| 5353 | ||||
| 7551 | ||||
| 8101 | ||||
| 8102 | ||||
| 8119 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
