ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )CBU

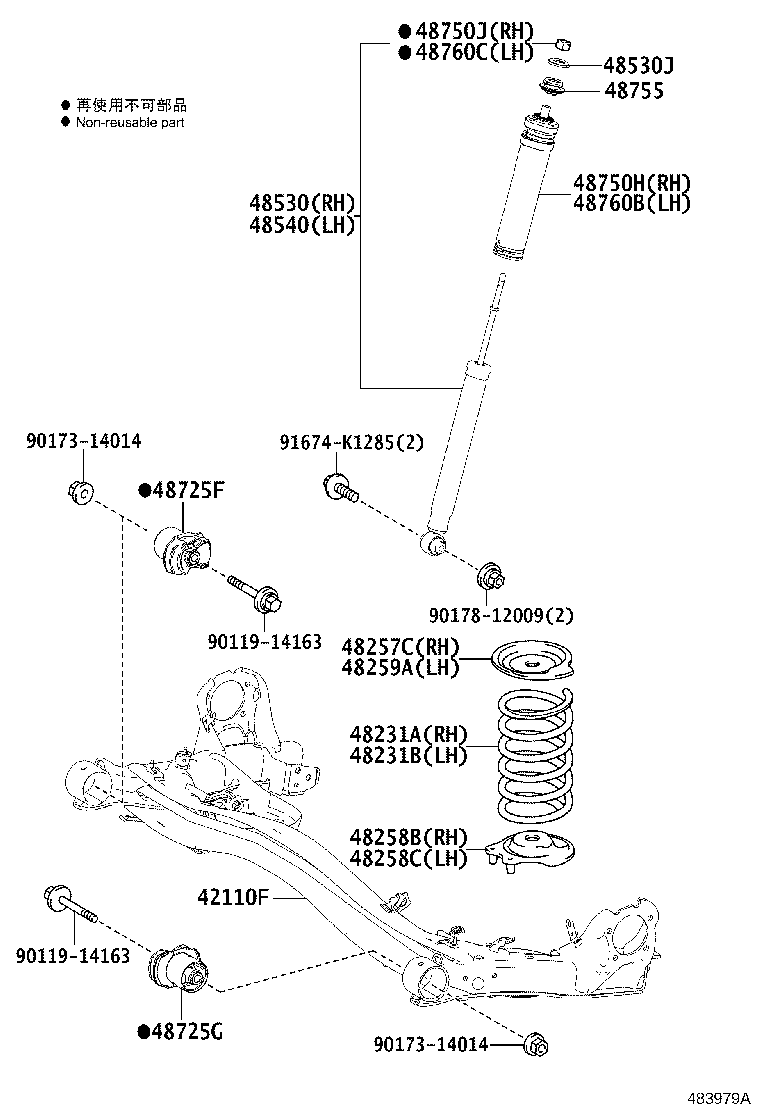

Click highlighted areas on diagram

diagram 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48530 48530J 48540 48725F 48725G 48750H 48750J 48755 48760B 48760C 9011914163 9011914163 9017314014 9017314014 9017812009 91674K1285
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42101-28470

ZRR8#,ZWR80

 1
48231A - SPRING, COIL, REAR RH
48231-28C70

ZRR85..CBU

 1
48231B - SPRING, COIL, REAR LH
48231-28C70

ZRR85..CBU

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-28070

ZRR8#,ZWR80..CBU

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-28050

ZRR8#,ZWR80..CBU

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-28050

ZRR8#,ZWR80..CBU

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-28070

ZRR8#,ZWR80..CBU

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80786

ZRR85..(G,GI,V,X,XI)..CBU

ﾏｰｸ 48531−28790

 1
48531-80787

ZRR85..SI,ZS

ﾏｰｸ 48531−28800

 1
48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
90948-02192

ZRR8#,ZWR80

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80787

ZRR85..SI,ZS

ﾏｰｸ 48531−28800

 1
48531-80786

ZRR85..(G,GI,V,X,XI)..CBU

ﾏｰｸ 48531−28790

 1
48725F - BUSH, REAR AXLE CARRIER, RH
48725-28080

ZRR8#,ZWR80

 1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-28080

ZRR8#,ZWR80

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-28021

ZRR8#,ZWR80..CBU

 1
48750-28020

ZRR8#,ZWR80..CBU

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
90177-12002

ZRR8#,ZWR80

 1
48755 - SUPPORT, REAR SUSPENSION
48755-28020

ZRR8#,ZWR80

 2
90905-40019

ZRR8#,ZWR80

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-28020

ZRR8#,ZWR80..CBU

 1
48750-28021

ZRR8#,ZWR80..CBU

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
90177-12002

ZRR8#,ZWR80

 1
Common parts
90119-14163
90173-14014
90178-12009
91674-K1285
