ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

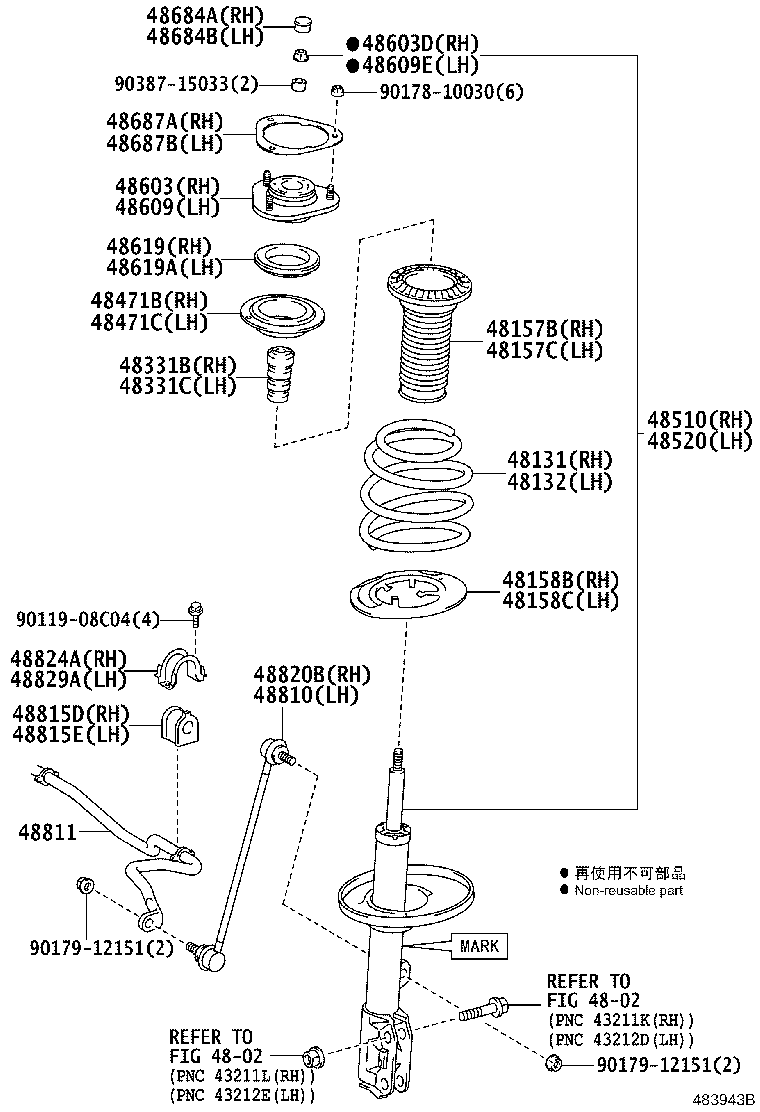

(1401-1504)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-28C70 |
ZRR85..SI,ZS |
1 | ||
| 48131-28C60 |
ZRR85..(G,GI,V,X,XI)..CBU |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-28C60 |
ZRR85..(G,GI,V,X,XI)..CBU |
1 | ||
| 48131-28C70 |
ZRR85..SI,ZS |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-28030 |
ZRR8#,ZWR80 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-28030 |
ZRR8#,ZWR80 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48158-58010 |
ZRR8#,ZWR80 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48158-58010 |
ZRR8#,ZWR80 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42030 |
ZRR8#,ZWR80 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42030 |
ZRR8#,ZWR80 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80658 |
ZRR85..G,V,X ﾏｰｸ 48510−28480 |
1 | ||
| 48510-80655 |
ZRR85..G,V,X ﾏｰｸ 48510−28460 |
1 | ||
| 48510-80799 |
ZRR8#..G,GI,V,X,XI ﾏｰｸ 48510−28461 |
1 | ||
| 48510-80659 |
ZRR85..SI,ZS ﾏｰｸ 48510−28490 |
1 | ||
| 48510-80800 |
ZRR8#..(SI,ZS)..CBU ﾏｰｸ 48510−28471 |
1 | ||
| 48510-80656 |
ZRR85..SI,ZS ﾏｰｸ 48510−28470 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80356 |
ZRR85..G,V,X ﾏｰｸ 48520−28460 |
1 | ||
| 48520-80475 |
ZRR8#..G,GI,V,X,XI ﾏｰｸ 48520−28461 |
1 | ||
| 48520-80359 |
ZRR85..G,V,X ﾏｰｸ 48520−28480 |
1 | ||
| 48520-80476 |
ZRR8#..(SI,ZS)..CBU ﾏｰｸ 48520−28471 |
1 | ||
| 48520-80360 |
ZRR85..SI,ZS ﾏｰｸ 48520−28490 |
1 | ||
| 48520-80357 |
ZRR85..SI,ZS ﾏｰｸ 48520−28470 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-28050 |
ZRR8#,ZWR80 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14005 |
ZRR8#,ZWR80 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-28050 |
ZRR8#,ZWR80 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14005 |
ZRR8#,ZWR80 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
ZRR8#,ZWR80 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
ZRR8#,ZWR80 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-28020 |
ZRR8#,ZWR80 |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-28020 |
ZRR8#,ZWR80 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47010 |
ZRR85 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-28260 |
ZRR85 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-28170 |
ZRR8#,ZWR80 |
1 | ||
| 48815-28171 |
ZRR8#,ZWR80 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-28170 |
ZRR8#,ZWR80 |
1 | ||
| 48815-28171 |
ZRR8#,ZWR80 |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47010 |
ZRR85 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-44041 |
ZRR8#,ZWR80 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-44041 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-10030 | ||||
| 90179-12151 | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||

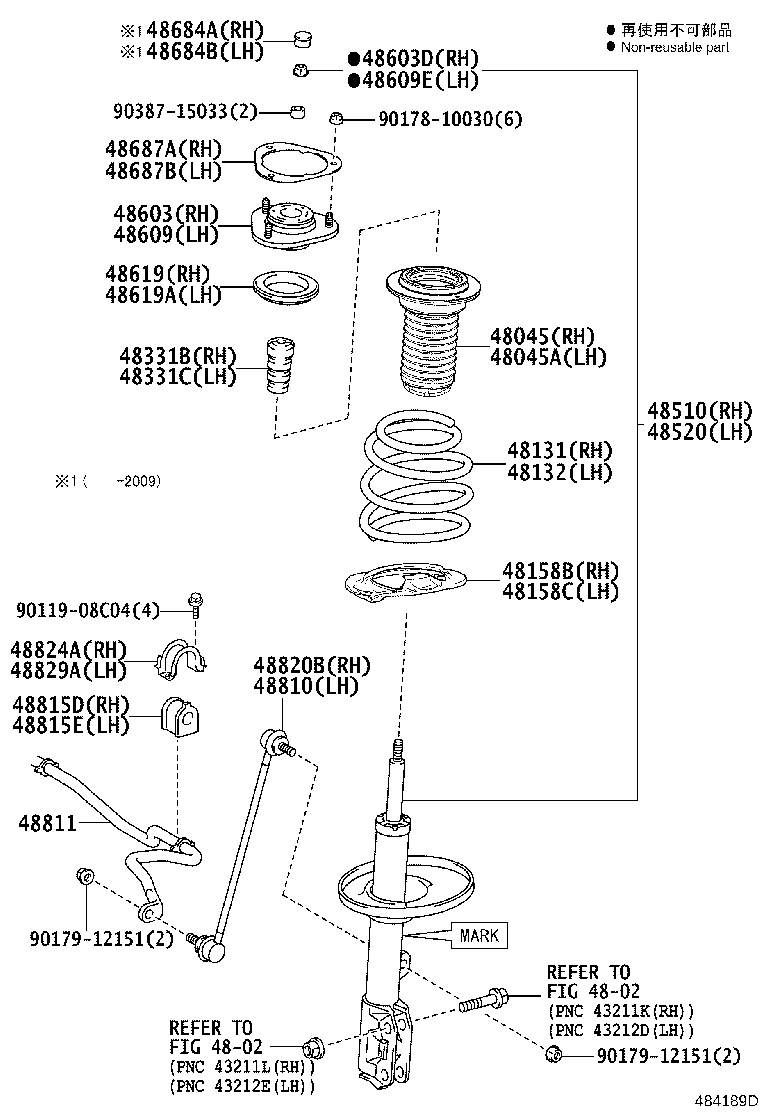

(1504- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48045 - SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR | ||||
| 48045-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48045A - SEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR | ||||
| 48045-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-28C70 |
ZRR85..SI,ZS |
1 | ||
| 48131-28C60 |
ZRR85..(G,GI,V,X,XI)..CBU |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-28C60 |
ZRR85..(G,GI,V,X,XI)..CBU |
1 | ||
| 48131-28C70 |
ZRR85..SI,ZS |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48158-58010 |
ZRR8#,ZWR80 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48158-58010 |
ZRR8#,ZWR80 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-42030 |
ZRR8#,ZWR80 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-42030 |
ZRR8#,ZWR80 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80658 |
ZRR85..G,V,X ﾏｰｸ 48510−28480 |
1 | ||
| 48510-80655 |
ZRR85..G,V,X ﾏｰｸ 48510−28460 |
1 | ||
| 48510-80799 |
ZRR8#..G,GI,V,X,XI ﾏｰｸ 48510−28461 |
1 | ||
| 48510-80659 |
ZRR85..SI,ZS ﾏｰｸ 48510−28490 |
1 | ||
| 48510-80800 |
ZRR8#..(SI,ZS)..CBU ﾏｰｸ 48510−28471 |
1 | ||
| 48510-80656 |
ZRR85..SI,ZS ﾏｰｸ 48510−28470 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80356 |
ZRR85..G,V,X ﾏｰｸ 48520−28460 |
1 | ||
| 48520-80475 |
ZRR8#..G,GI,V,X,XI ﾏｰｸ 48520−28461 |
1 | ||
| 48520-80359 |
ZRR85..G,V,X ﾏｰｸ 48520−28480 |
1 | ||
| 48520-80476 |
ZRR8#..(SI,ZS)..CBU ﾏｰｸ 48520−28471 |
1 | ||
| 48520-80360 |
ZRR85..SI,ZS ﾏｰｸ 48520−28490 |
1 | ||
| 48520-80357 |
ZRR85..SI,ZS ﾏｰｸ 48520−28470 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-28050 |
ZRR8#,ZWR80 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90177-14005 |
ZRR8#,ZWR80 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-28050 |
ZRR8#,ZWR80 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90177-14005 |
ZRR8#,ZWR80 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-28010 |
ZRR8#,ZWR80 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-28010 |
ZRR8#,ZWR80 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-42010 |
ZRR8#,ZWR80 |
1 | ||
| 48687A - PLATE, FRONT SUSPENSION SUPPORT, RH | ||||
| 48687-28020 |
ZRR8#,ZWR80 |
1 | ||
| 48687B - PLATE, FRONT SUSPENSION SUPPORT, LH | ||||
| 48687-28020 |
ZRR8#,ZWR80 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47010 |
ZRR85 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-28260 |
ZRR85 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-28170 |
ZRR8#,ZWR80 |
1 | ||
| 48815-28171 |
ZRR8#,ZWR80 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-28170 |
ZRR8#,ZWR80 |
1 | ||
| 48815-28171 |
ZRR8#,ZWR80 |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47010 |
ZRR85 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-44041 |
ZRR8#,ZWR80 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-44041 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-10030 | ||||
| 90179-12151 | ||||
| 90387-15033 | ||||
| Linked diagrams | ||||
| 4802 | ||||
