ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1401- )ZRR8#

Click highlighted areas on diagram

ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ

diagram 44510 44590 9167480820 9167480820 9167480820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-28411

ZRR8#..(G,GI,SI,V,XI,ZS)..CBU

 1
44050-28410

ZRR8#..CBU

 1
44050-28411

ZRR8#..X..CBU

 1
44050-28530

ZRR8#..X..CBU

ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り

 1
44050-28530

ZRR8#..(G,GI,SI,V,XI,ZS)..CBU

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-28200

ZRR8#

 1
Common parts
91674-80820

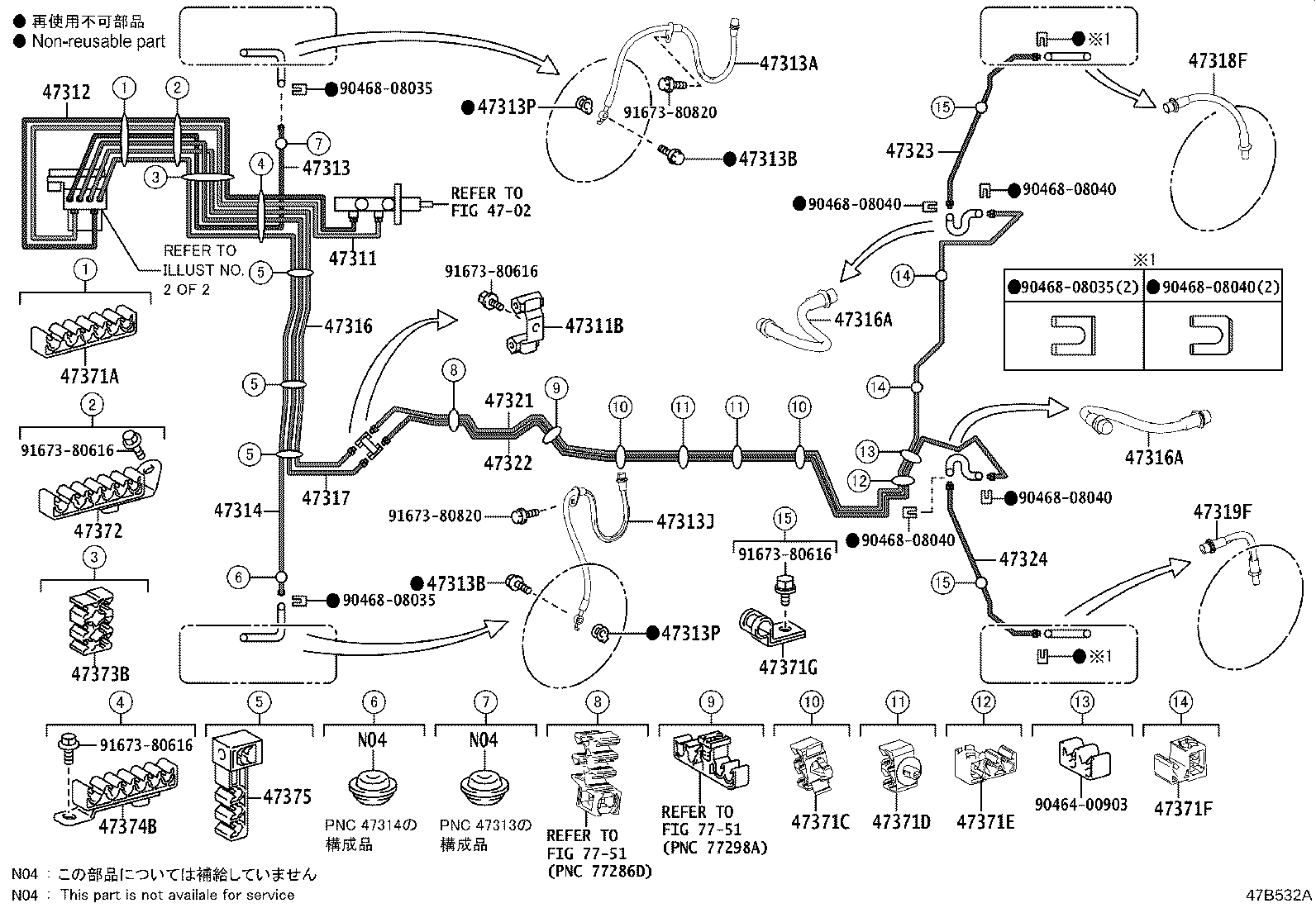

ILLUST NO. 1 OF 2(1401- )ZRR85..CBU ; (1401- )ZRR80..SI,ZS..CBU

Click highlighted areas on diagram

ﾌﾞﾚｰｷﾁｭｰﾌﾞ(ﾃﾞｨｽｸﾌﾞﾚｰｷ)

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316 47316A 47316A 47317 47318F 47319F 47321 47322 47323 47324 47371A 47371C 47371D 47371E 47371F 47371G 47372 47373B 47374B 47375 7751 7751 9046400903 9046808035 9046808035 9046808035 9046808040 9046808040 9046808040 9046808040 9046808040 9167380616 9167380616 9167380616 9167380616 9167380820 9167380820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-28760

ZRR8#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

ZRR8#,ZWR80

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-28570

ZRR8#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-28500

ZRR8#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H13

ZRR8#,ZWR80..SI,ZS

 1
90947-02H11

ZRR8#,ZWR80..G,GI,V,X,XI

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZRR8#,ZWR80

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ZRR8#,ZWR80

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H14

ZRR8#,ZWR80..SI,ZS

 1
90947-02H12

ZRR8#,ZWR80..G,GI,V,X,XI

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRR8#,ZWR80

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ZRR8#,ZWR80

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-28420

ZRR8#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-28260

ZRR8#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H15

ZRR8#,ZWR80

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02H15

ZRR8#,ZWR80

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-28300

ZRR8#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G39

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G39

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-28580

ZRR8#,ZWR80..CBU

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-28410

ZRR8#,ZWR80..CBU

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-28400

ZRR85,ZWR80..CBU;ZRR80..(SI,ZS)..CBU

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-28300

ZRR85,ZWR80..CBU;ZRR80..(SI,ZS)..CBU

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00958

ZRR8#

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90469-07019

ZRR8#,ZWR80

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07020

ZRR8#,ZWR80

 2
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01E05

ZRR8#,ZWR80

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01C82

ZRR8#,ZWR80..CBU

 2
47371G - CLAMP, BRAKE TUBE, NO.11
90461-10781

ZRR8#,ZWR80..CBU

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-04061

ZRR8#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00956

ZRR8#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-04062

ZRR8#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00955

ZRR8#

 3
Common parts
90464-00903
90468-08035
90468-08040
91673-80616
91673-80820
Linked diagrams
4702
7751
