ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ;(1401- )ZRR80..SI,ZS..CBU

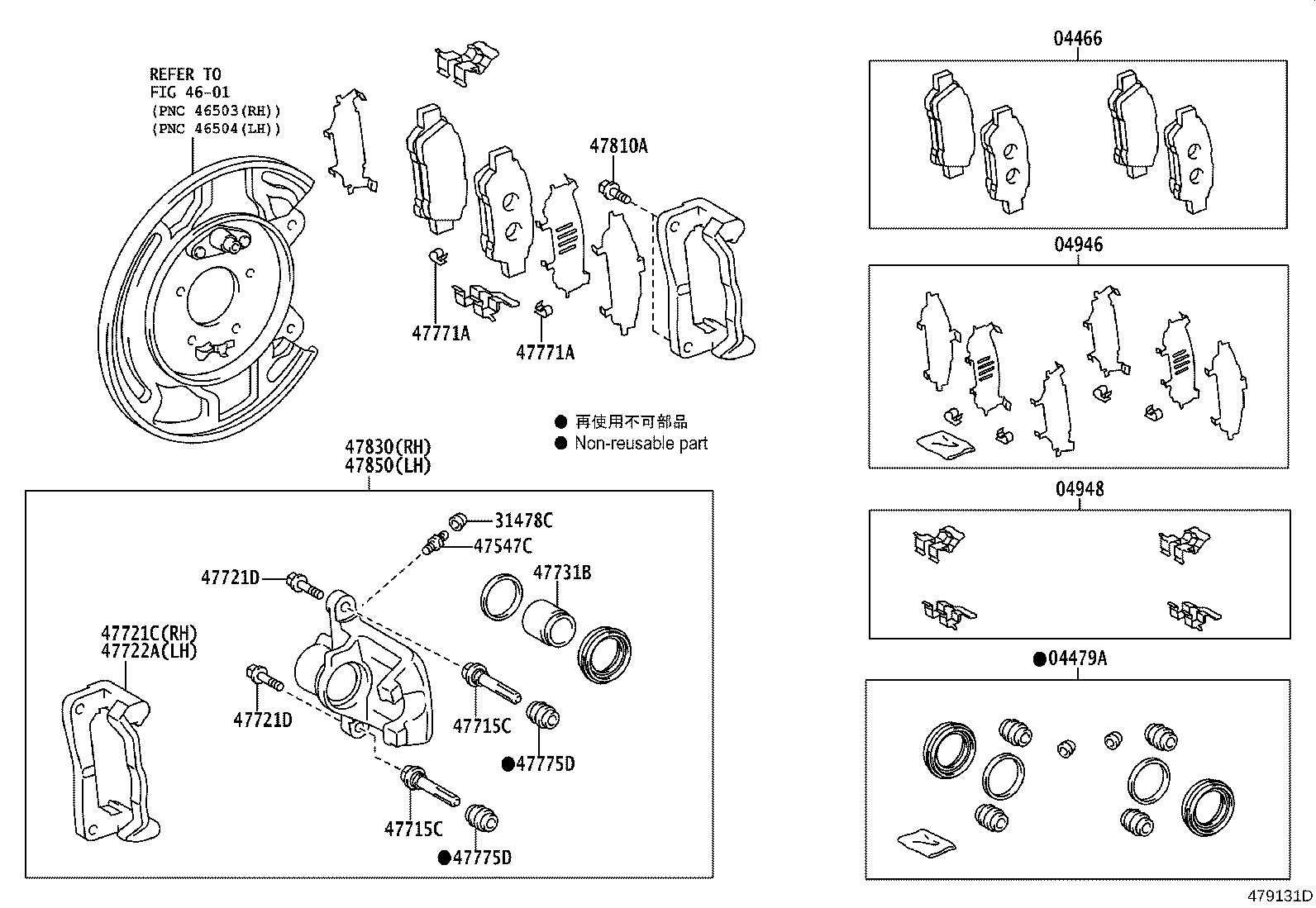

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47715C 47715C 47721C 47721D 47721D 47722A 47731B 47771A 47771A 47775D 47775D 47810A 47830 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-28120

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

ﾏｰｸ AK PA561

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-28200

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-28030

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-28030

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-52010

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 4
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-52010

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-28020

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

*8−1.00PX23−15

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

*8−1.00PX23−15

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-28010

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
47731B - PISTON, REAR DISC BRAKE
47731-28090

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-02130

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-02130

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-12185

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-28080

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-28080

ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU

 1
Linked diagrams
4601
