ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )

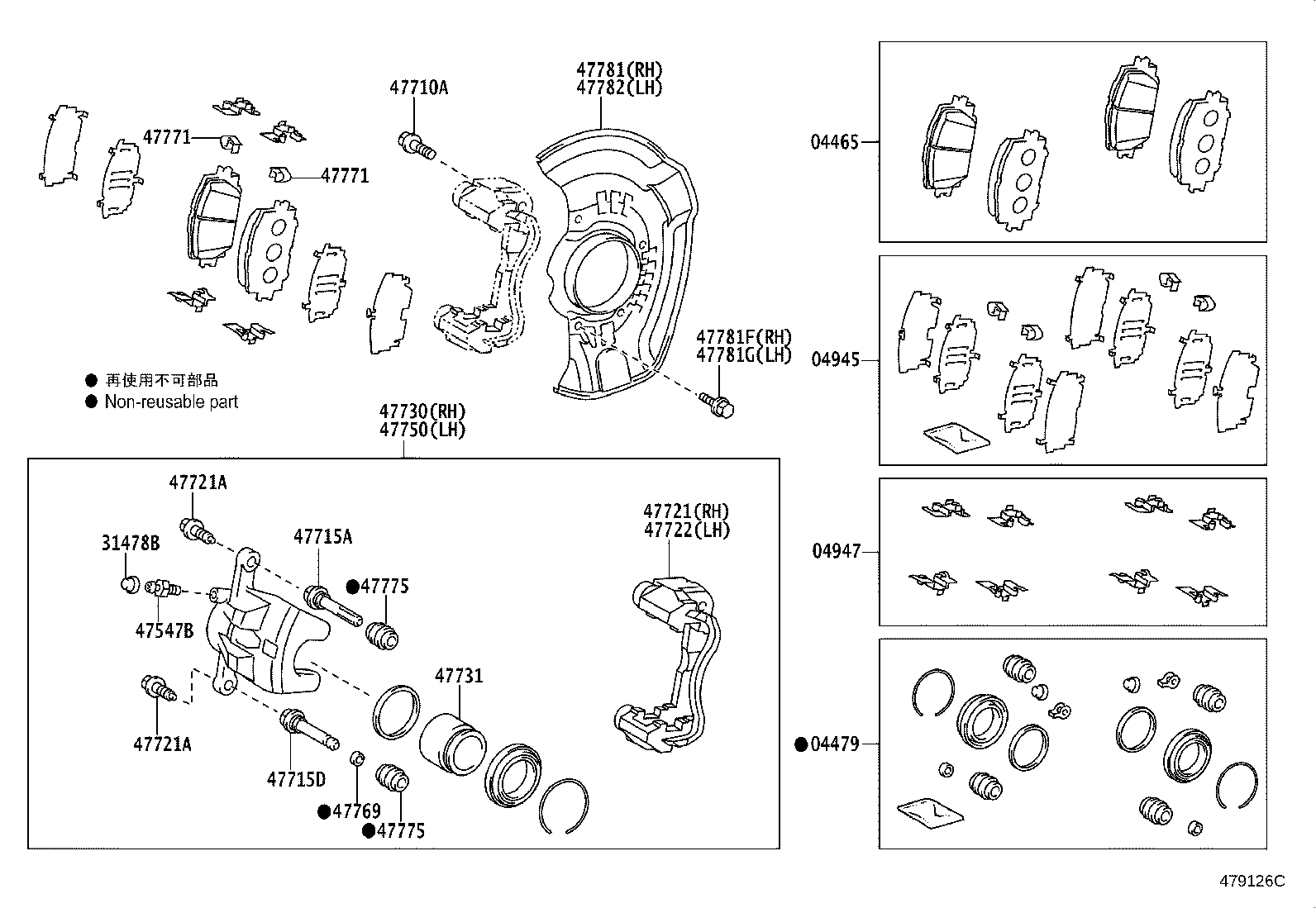

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-42200 |
ZRR8#,ZWR80 ﾏｰｸ ADVICS PV565H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-33100 |
ZRR8#,ZWR80 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-12111 |
ZRR8#,ZWR80 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-42050 |
ZRR8#,ZWR80 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
ZRR8#,ZWR80 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
ZRR8#,ZWR80 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
ZRR8#,ZWR80 *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52190 |
ZRR8#,ZWR80 |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-12A10 |
ZRR8#,ZWR80 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-28580 |
ZRR8#,ZWR80 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
ZRR8#,ZWR80 *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
ZRR8#,ZWR80 *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-28580 |
ZRR8#,ZWR80 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-28580 |
ZRR8#,ZWR80 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-12A70 |
ZRR8#,ZWR80 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-28580 |
ZRR8#,ZWR80 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
ZRR8#,ZWR80 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52191 |
ZRR8#,ZWR80 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52191 |
ZRR8#,ZWR80 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-52190 |
ZRR8#,ZWR80 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-52190 |
ZRR8#,ZWR80 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-28240 |
ZRR8#,ZWR80 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-06227 |
ZRR8#,ZWR80 |
4 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-06227 |
ZRR8#,ZWR80 |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-28230 |
ZRR8#,ZWR80 |
1 | ||
