ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR8#

Click highlighted areas on diagram

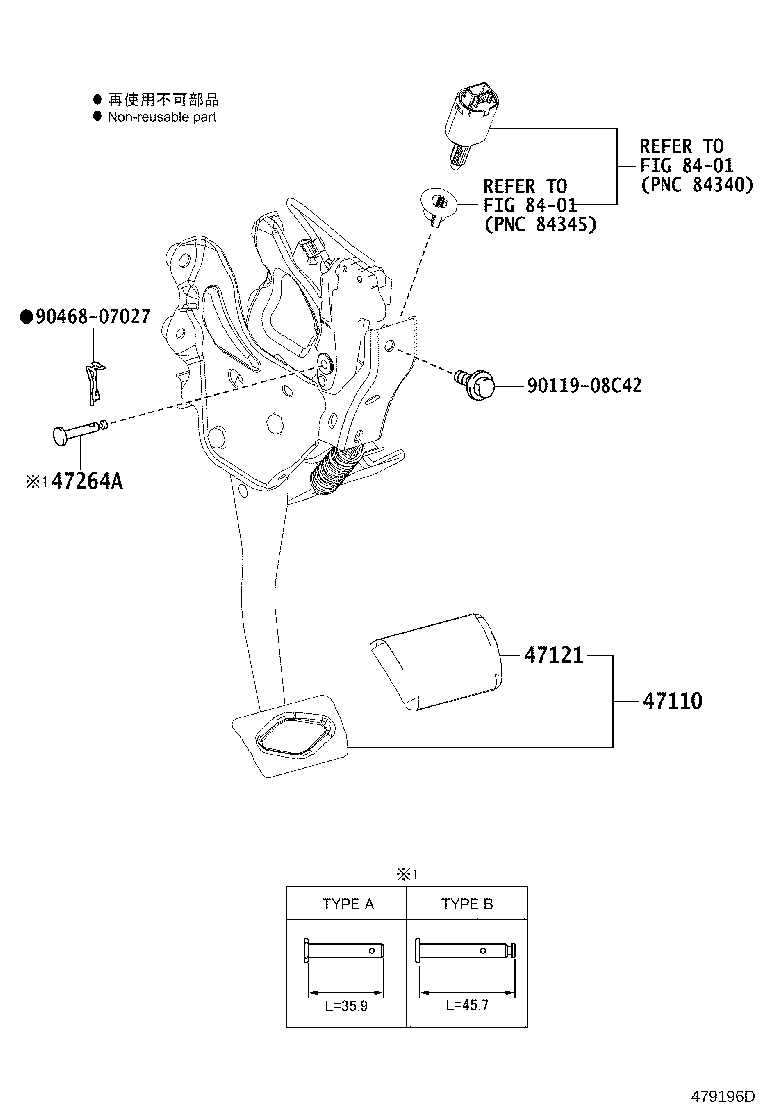

diagram 47110 47121 47264A 8401 8401 9011908C42 9046807027
Part # Description Qty Price
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-28110

ZRR8#

 1
47110-28111

ZRR8#

 1
47121 - PAD, BRAKE PEDAL
47121-42010

ZRR8#,ZWR80

 1
47121-42020

ZRR8#,ZWR80

 1
47264A - PIN(FOR PUSH ROD)
90240-06028

ZRR8#

TYPE A:ｲﾗｽﾄ参照

 1
90249-06180

ZRR8#

TYPE B:ｲﾗｽﾄ参照

 1
Common parts
90119-08C42
90468-07027
Linked diagrams
8401
