ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

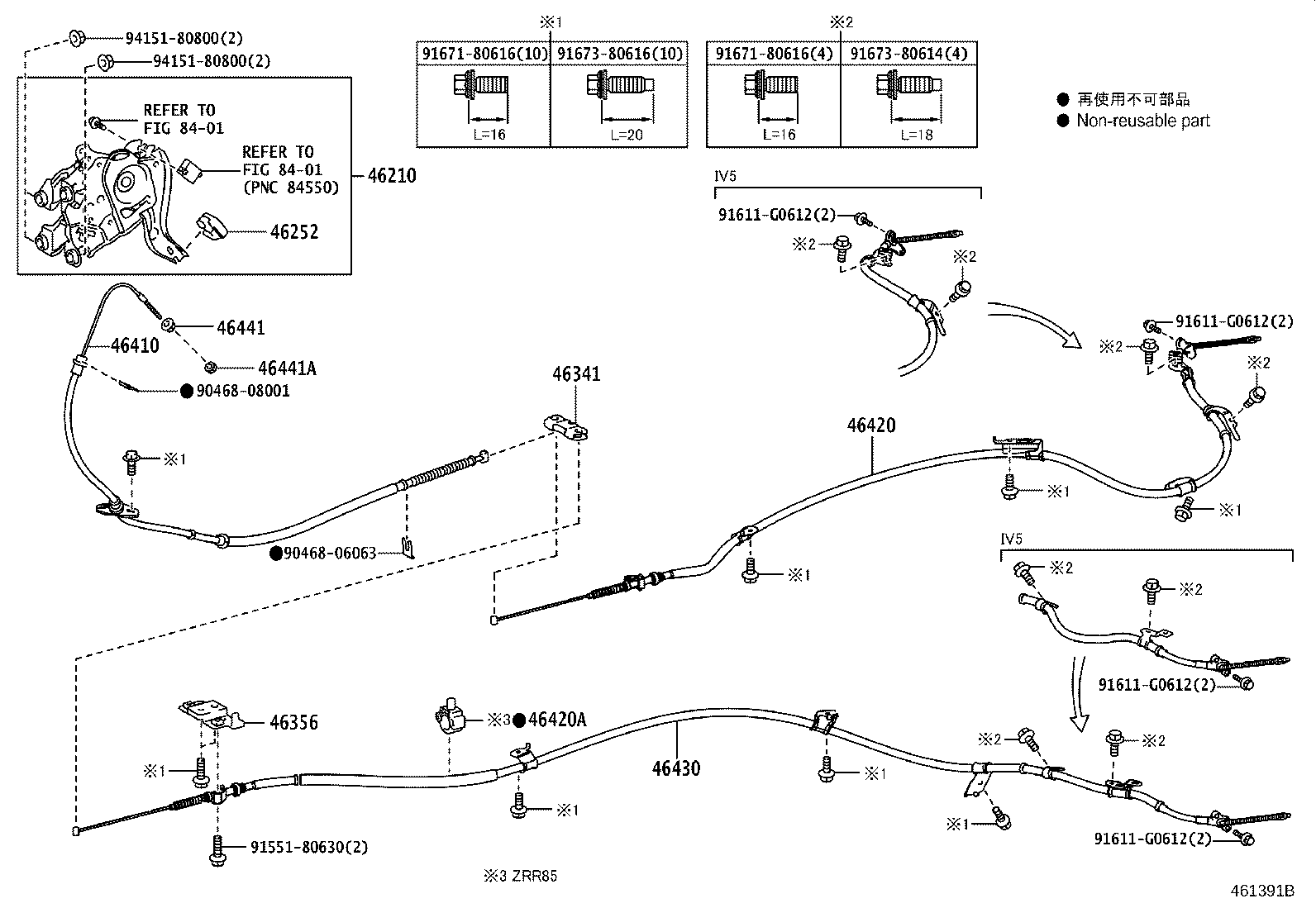

ILLUST NO. 1 OF 2(1401- )
ｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-28351 |
ZRR8#,ZWR80 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-52020 |
ZRR8#,ZWR80 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-20070 |
ZRR8#,ZWR80 |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-28090 |
ZRR8#,ZWR80 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28300 |
ZRR8#,ZWR80 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28510 |
ZRR85,ZWR80..CBU;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46402-28010 |
ZRR85 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28510 |
ZRR85,ZWR80..CBU;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90182-06008 |
ZRR8#,ZWR80 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 94151-80600 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90468-06063 | ||||
| 90468-08001 | ||||
| 91551-80630 | ||||
| 91611-G0612 | ||||
| 91671-80616 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

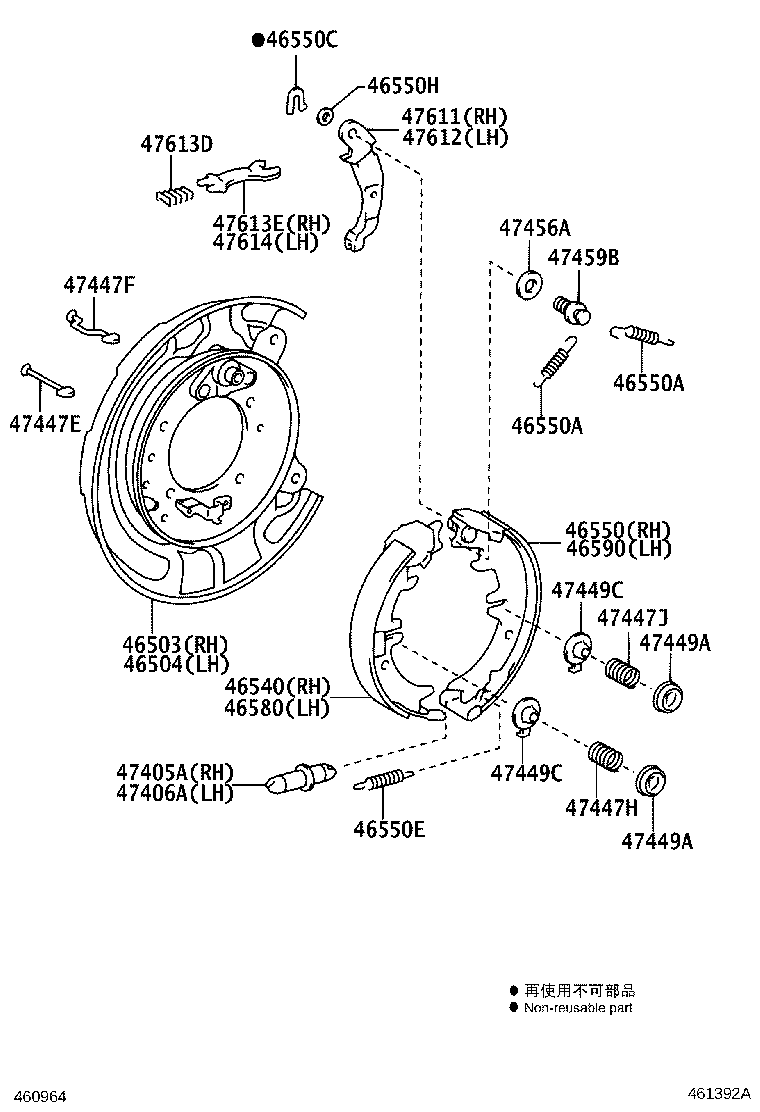

ILLUST NO. 2 OF 2(1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ;(1401- )ZRR80..SI,ZS..CBU
ﾌﾞﾚｰｷｼｭｰ & ﾚﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-28210 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-28170 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-48010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-48010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
4 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09002 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU 厚さ=0.4 |
2 | ||
| 90564-09184 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU 厚さ=0.3 |
2 | ||
| 90564-09185 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU 厚さ=0.6 |
2 | ||
| 90564-09186 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU 厚さ=0.9 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-48010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-48010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-30020 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-50010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46611-28180 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46621-28140 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-28010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-28010 |
ZRR80..IV5;ZRR85,ZWR80;ZRR80..(SI,ZS)..CBU |
1 | ||
