ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )

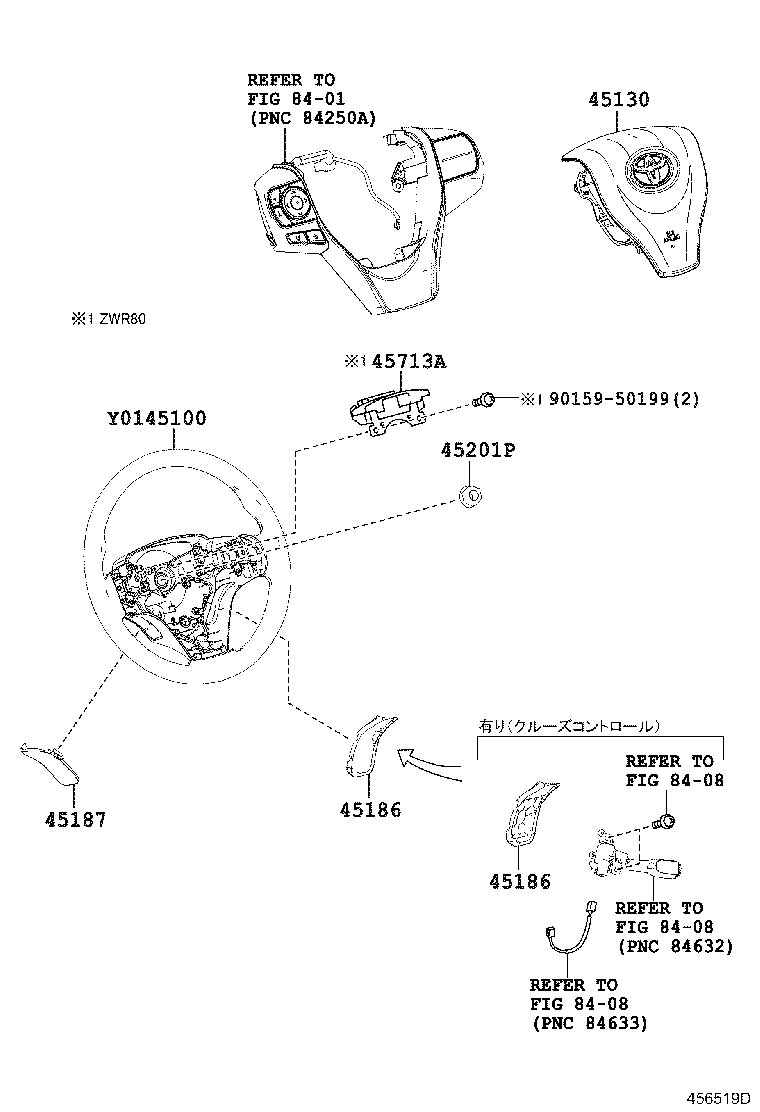

Click highlighted areas on diagram

diagram 45100 45130 45186 45186 45187 45201P 45713A 8401 8408 8408 8408 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-28490C0

ZRR8#,ZWR80..NOAH..X

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM0#,2#

 1
45100-28510C0

ZRR8#,ZWR80..SI,V,ZS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-28601C0

ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)

BLACK,TRIM0#,2#

 1
45130-28602C0

ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS

BLACK,TRIM2#

 1
45130-28602C0

ZRR8#,ZWR80..NOAH..(G,X)

BLACK,TRIM0#,2#

 1
45130-28601C0

ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-48040C0

ZRR8#,ZWR80..GI,V

BLACK,TRIM2#

 1
45186-48050C0

ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)

BLACK,TRIM0#,2#

 1
45186-48040C0

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C),BLACK,TRIM2#

 1
45186-48050C0

ZRR8#,ZWR80..SI,ZS;ZRR8#,ZWR80..VOXY..X

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-48040C0

ZRR8#,ZWR80..GI,V

BLACK,TRIM2#

 1
45186-48050C0

ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI)

BLACK,TRIM0#,2#

 1
45186-48040C0

ZRR8#,ZWR80..SI..CBU

Si“WxB”*(C),BLACK,TRIM2#

 1
45186-48050C0

ZRR8#,ZWR80..SI,ZS;ZRR8#,ZWR80..VOXY..X

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-48040C0

ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS

BLACK,TRIM2#

 1
45187-48040C0

ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

ZRR8#,ZWR80

 1
Common parts
90159-50199
Linked diagrams
8401
8408
