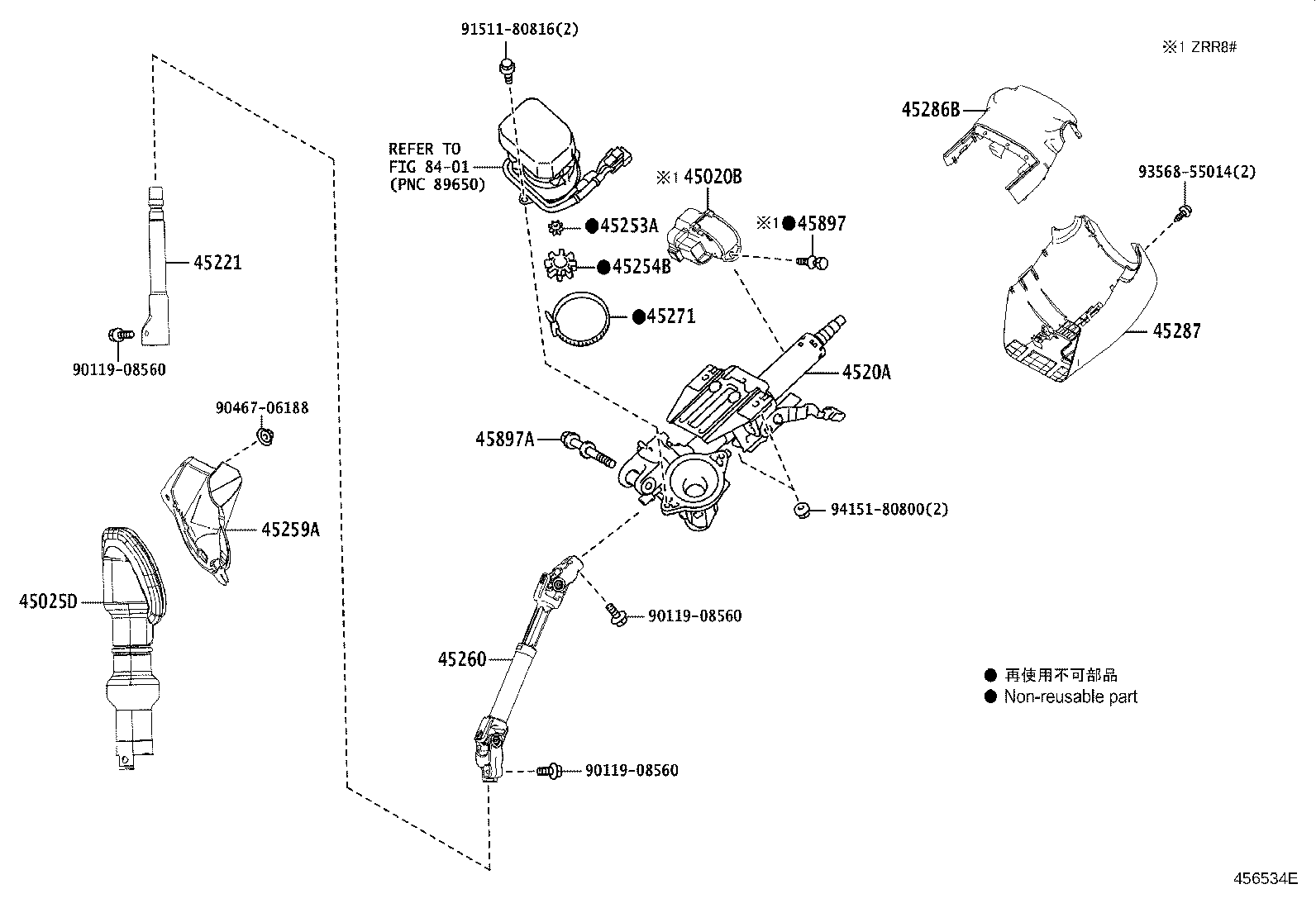

ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401- )SI,ZS ; (1402- )ZWR80..G,GI,V,X,XI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 45020-30B20 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 45280-12410 |
ZRR8#..X,XI |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-28120 |
ZRR85 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-28121 |
ZRR85..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 4520A-28121 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS |
1 | ||
| 4520A-28111 |
ZRR85..X,XI |
1 | ||
| 4520A-28122 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS |
1 | ||
| 4520A-28122 |
ZRR85..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 4520A-28112 |
ZRR85..X,XI |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-28150 |
ZRR8#,ZWR80 |
1 | ||
| 45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45253-28130 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-28050 |
ZRR8#,ZWR80 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28170 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45260-28161 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28381C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 45286-28380C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 45286-28380C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 45286-28381C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28491C0 |
ZRR8#..GI,SI,V,ZS;ZWR80..ESQIR,VOXY BLACK,TRIM2# |
1 | ||
| 45287-28480C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI) BLACK,TRIM0#,2# |
1 | ||
| 45287-28481C0 |
ZRR8#..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 45287-28491C0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45287-28490C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45287-28490C0 |
ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 45024-28010C0 |
ZRR8#..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZWR80..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRR8# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91511-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

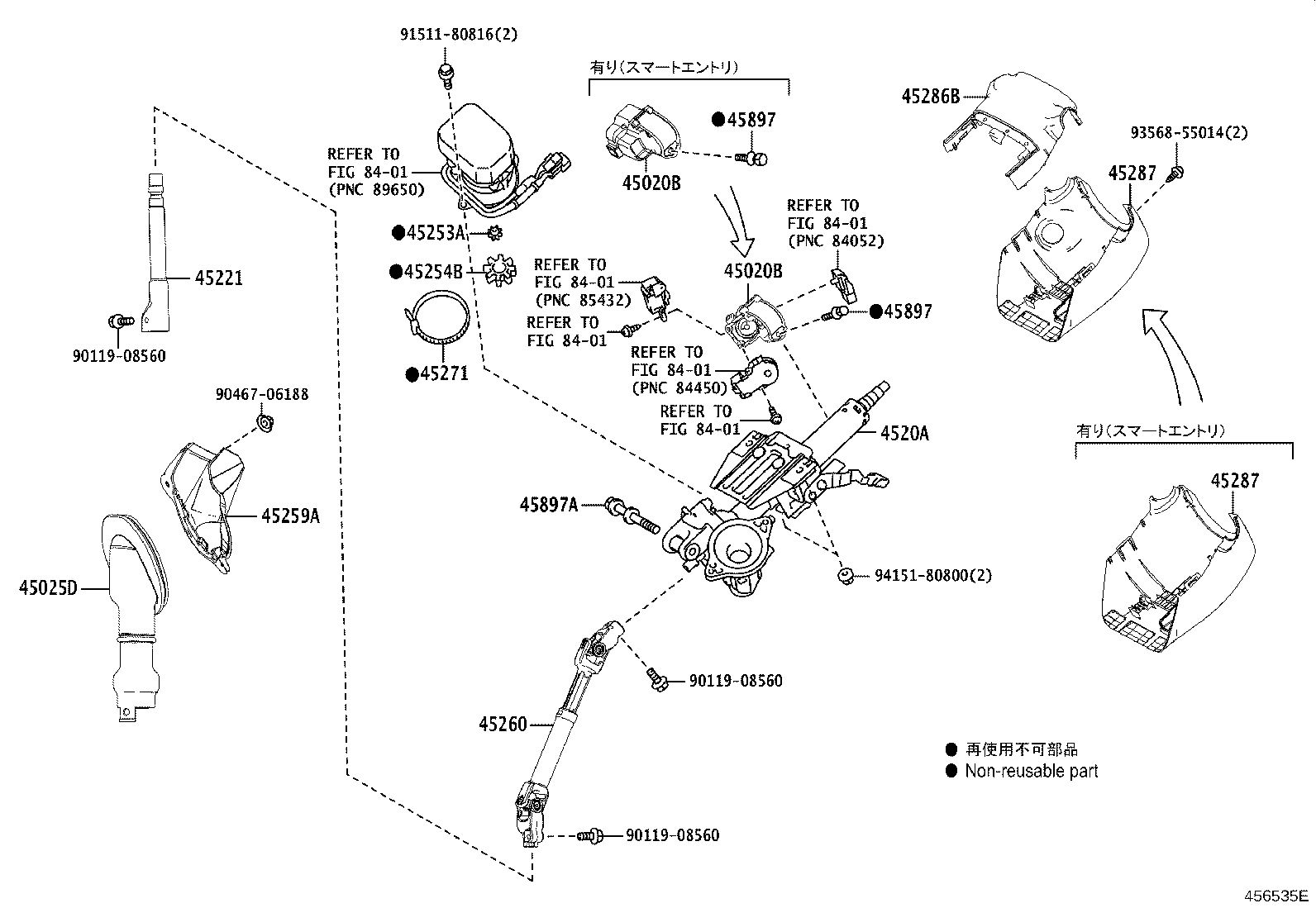

(1401- )ZRR85
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 45020-30B20 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 45280-12410 |
ZRR8#..X,XI |
1 | ||
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZRR8#..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 45020-30B20 |
ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 45280-12410 |
ZRR8#..X,XI |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-28120 |
ZRR85 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-28121 |
ZRR85..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 4520A-28121 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS |
1 | ||
| 4520A-28111 |
ZRR85..X,XI |
1 | ||
| 4520A-28122 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS |
1 | ||
| 4520A-28122 |
ZRR85..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 4520A-28112 |
ZRR85..X,XI |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-28150 |
ZRR8#,ZWR80 |
1 | ||
| 45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45253-28130 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-28050 |
ZRR8#,ZWR80 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28170 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45260-28161 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
ZRR85,ZWR80;ZRR80..SI,ZS |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28381C0 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 45286-28380C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 45286-28380C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 45286-28381C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28491C0 |
ZRR8#..GI,SI,V,ZS;ZWR80..ESQIR,VOXY BLACK,TRIM2# |
1 | ||
| 45287-28480C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI) BLACK,TRIM0#,2# |
1 | ||
| 45287-28481C0 |
ZRR8#..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 45287-28491C0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45287-28490C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45287-28490C0 |
ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 45024-28010C0 |
ZRR8#..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZWR80..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28491C0 |
ZRR8#..GI,SI,V,ZS;ZWR80..ESQIR,VOXY BLACK,TRIM2# |
1 | ||
| 45287-28480C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI) BLACK,TRIM0#,2# |
1 | ||
| 45287-28481C0 |
ZRR8#..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 45287-28491C0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45287-28490C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45287-28490C0 |
ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 45024-28010C0 |
ZRR8#..NOAH..X BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZRR8#..NOAH..X..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZWR80..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRR8# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRR8# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
ZRR8#,ZWR80 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91511-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
