ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire

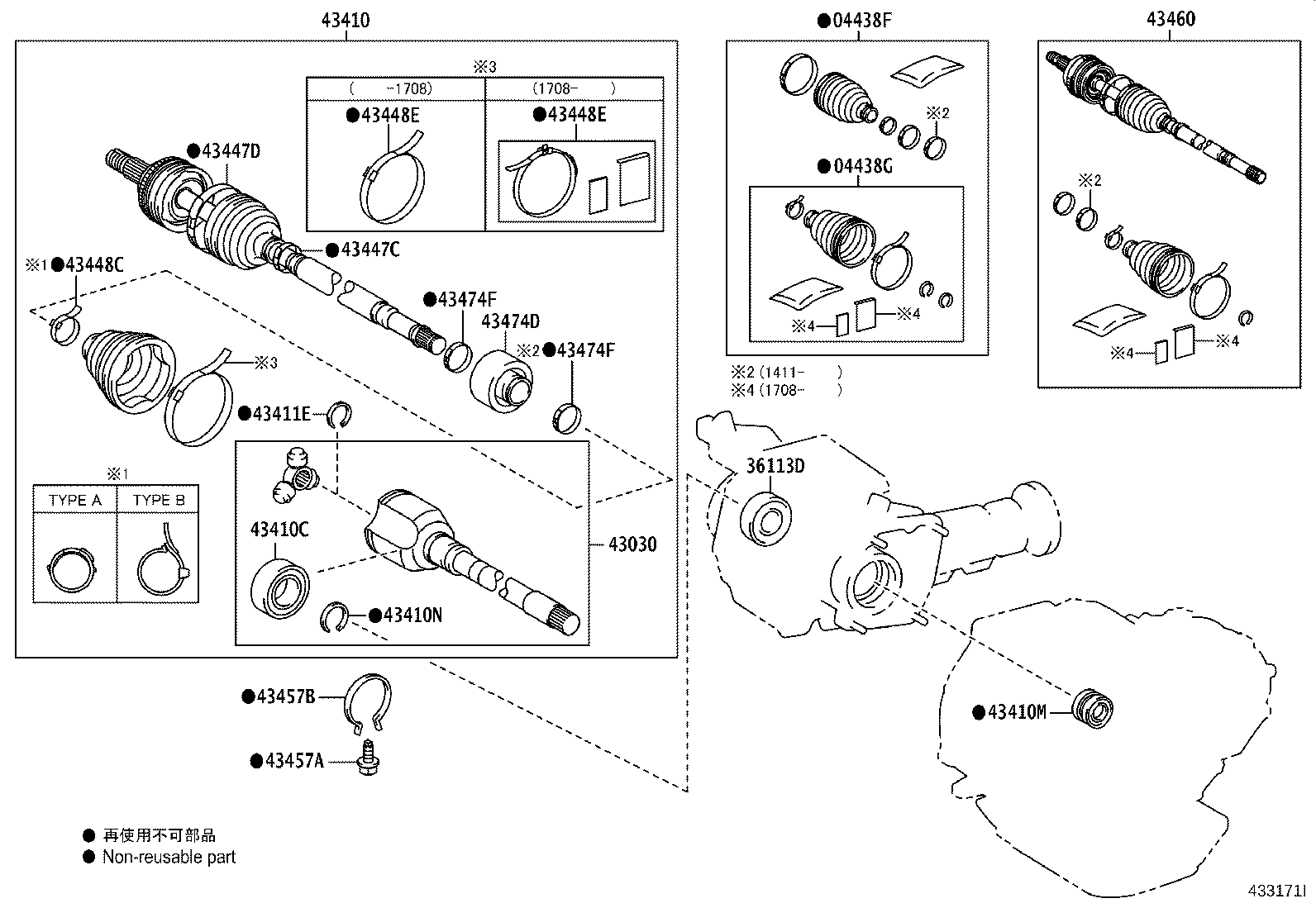

ILLUST NO. 1 OF 2(1401- )ZRR85
ﾐｷﾞｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-44040 |
ZRR85;ZRR80..G,GI,V,X,XI |
1 | ||
| 04427-44041 |
ZRR85;ZRR80..G,GI,V,X,XI |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-42180 |
ZRR8# |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-36006 |
ZRR85 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-28050 |
ZRR85 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-28150 |
ZRR85..G,GI,V,X,XI |
1 | ||
| 43410-28160 |
ZRR85..SI,ZS |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
ZRR85 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-34001 |
ZRR85 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
ZRR85 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
ZRR8# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42100 |
ZRR8# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-42090 |
ZRR8# |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
ZRR8# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42345-42010 |
ZRR8# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ZRR8# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
ZRR8# |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90901-19060 |
ZRR85 *10−1.25PX28.5−14.8 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
ZRR85 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-29755 |
ZRR85..SI,ZS |
1 | ||
| 43460-29756 |
ZRR85..SI,ZS |
1 | ||
| 43470-80171 |
ZRR85..G,GI,V,X,XI |
1 | ||
| 43470-80357 |
ZRR85..G,GI,V,X,XI |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-44010 |
ZRR85;ZRR80..ESQIR |
1 | ||
| 43474-44020 |
ZRR85;ZRR80..G,GI,V,X,XI |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-14010 |
ZRR8# |
2 | ||
| 42345-14010 |
ZRR8#,ZWR80 |
1 | ||
| 43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) | ||||
| 42345-14010 |
ZRR8# |
2 | ||
| 42345-14010 |
ZRR8#,ZWR80 |
1 | ||

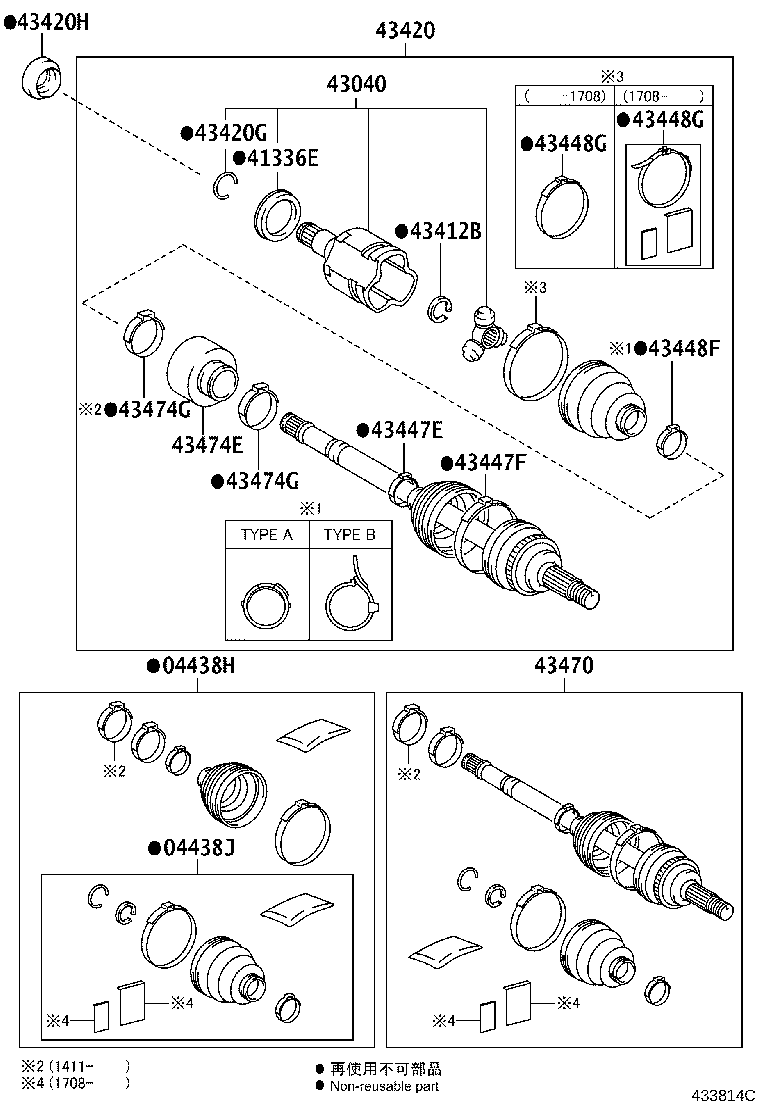

ILLUST NO. 2 OF 2(1401- )ZRR8#
ﾋﾀﾞﾘｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-42111 |
ZRR8# |
1 | ||
| 04428-42110 |
ZRR8# |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-42180 |
ZRR8# |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-28020 |
ZRR8#,ZWR80 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-28011 |
ZRR8# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
ZRR8# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-68010 |
ZRR8#..G,GI,V,X,XI |
1 | ||
| 43420-44040 |
ZRR8#..SI,ZS |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-33002 |
ZRR8#,ZWR80 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-50050 |
ZRR8# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-42100 |
ZRR8# |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-42090 |
ZRR8# |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-42010 |
ZRR8# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 90949-01559 |
ZRR8# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ZRR8# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
ZRR8# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-80167 |
ZRR8#..G,GI,V,X,XI |
1 | ||
| 43470-80350 |
ZRR8#..SI,ZS |
1 | ||
| 43470-80064 |
ZRR8#..SI,ZS |
1 | ||
| 43470-80358 |
ZRR8#..G,GI,V,X,XI |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-44010 |
ZRR8#..G,V,X |
1 | ||
| 43474-44010 |
ZRR8#..GI,SI,XI,ZS |
1 | ||
| 43474-44020 |
ZRR8# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-14010 |
ZRR8# |
2 | ||
| 42345-14010 |
ZRR8# |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-14010 |
ZRR8# |
2 | ||
| 42345-14010 |
ZRR8# |
1 | ||
