ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR85

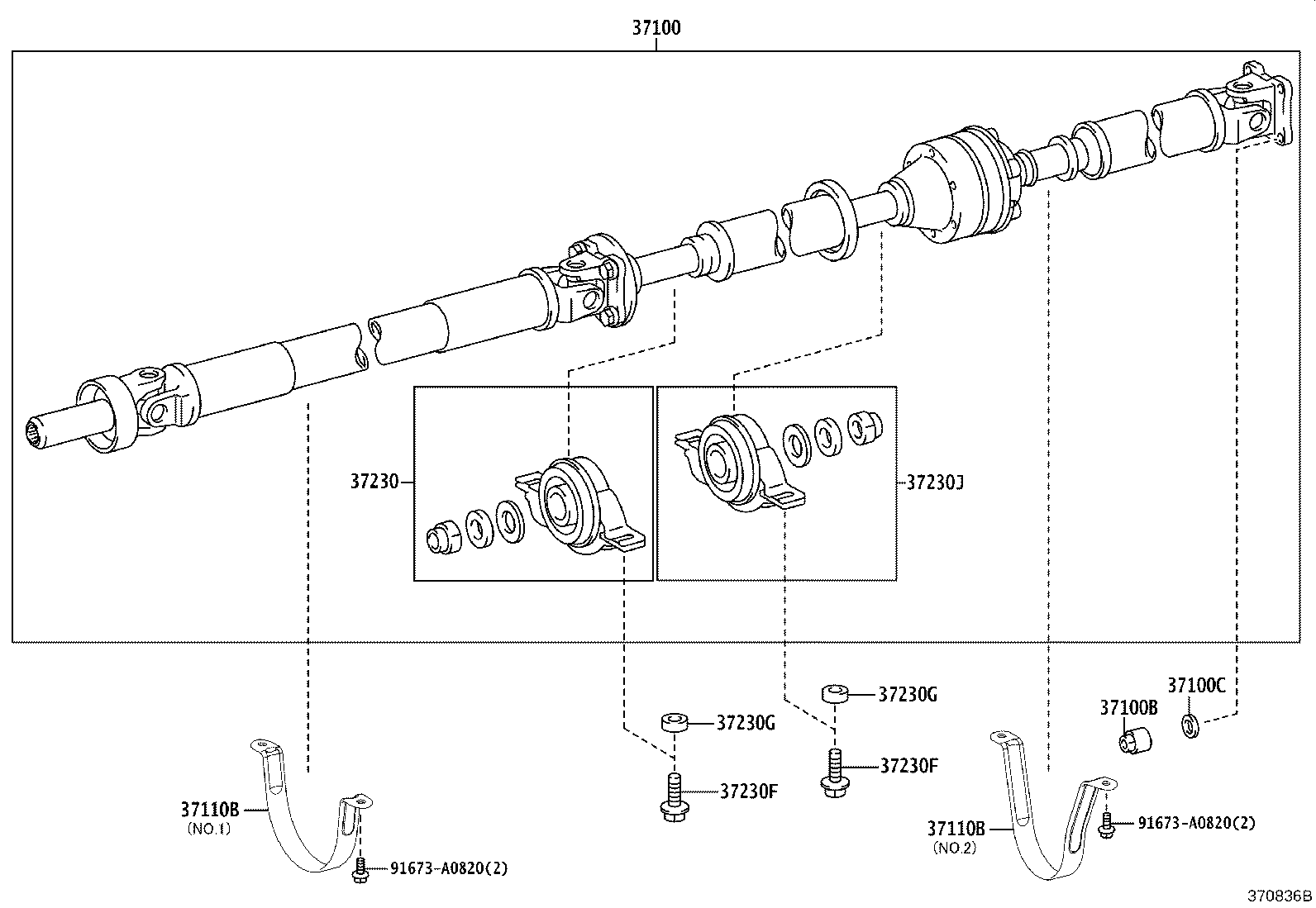

Click highlighted areas on diagram

diagram 37100 37100B 37100C 37110B 37110B 37230 37230F 37230F 37230G 37230G 37230J 91673A0820 91673A0820
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-28150

ZRR85

 1
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-08268

ZRR85

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-10102

ZRR85

 4
37110B - GUARD, PROPELLER SHAFT
51569-28010

ZRR85

NO.1:ｲﾗｽﾄ参照

 1
51569-28020

ZRR85

NO.2:ｲﾗｽﾄ参照

 1
37110B - GUARD, PROPELLER SHAFT
51569-28010

ZRR85

NO.1:ｲﾗｽﾄ参照

 1
51569-28020

ZRR85

NO.2:ｲﾗｽﾄ参照

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-49015

ZRR85

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444

ZRR85

 4
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444

ZRR85

 4
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

ZRR85

厚さ=4.5

 4
90201-10095

ZRR85

厚さ=3.2

 4
90201-10083

ZRR85

厚さ=6.5

 4
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081

ZRR85

厚さ=4.5

 4
90201-10095

ZRR85

厚さ=3.2

 4
90201-10083

ZRR85

厚さ=6.5

 4
37230J - BEARING ASSY, CENTER SUPPORT, NO.2
37230-29015

ZRR85

 1
Common parts
91673-A0820
