ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR8#

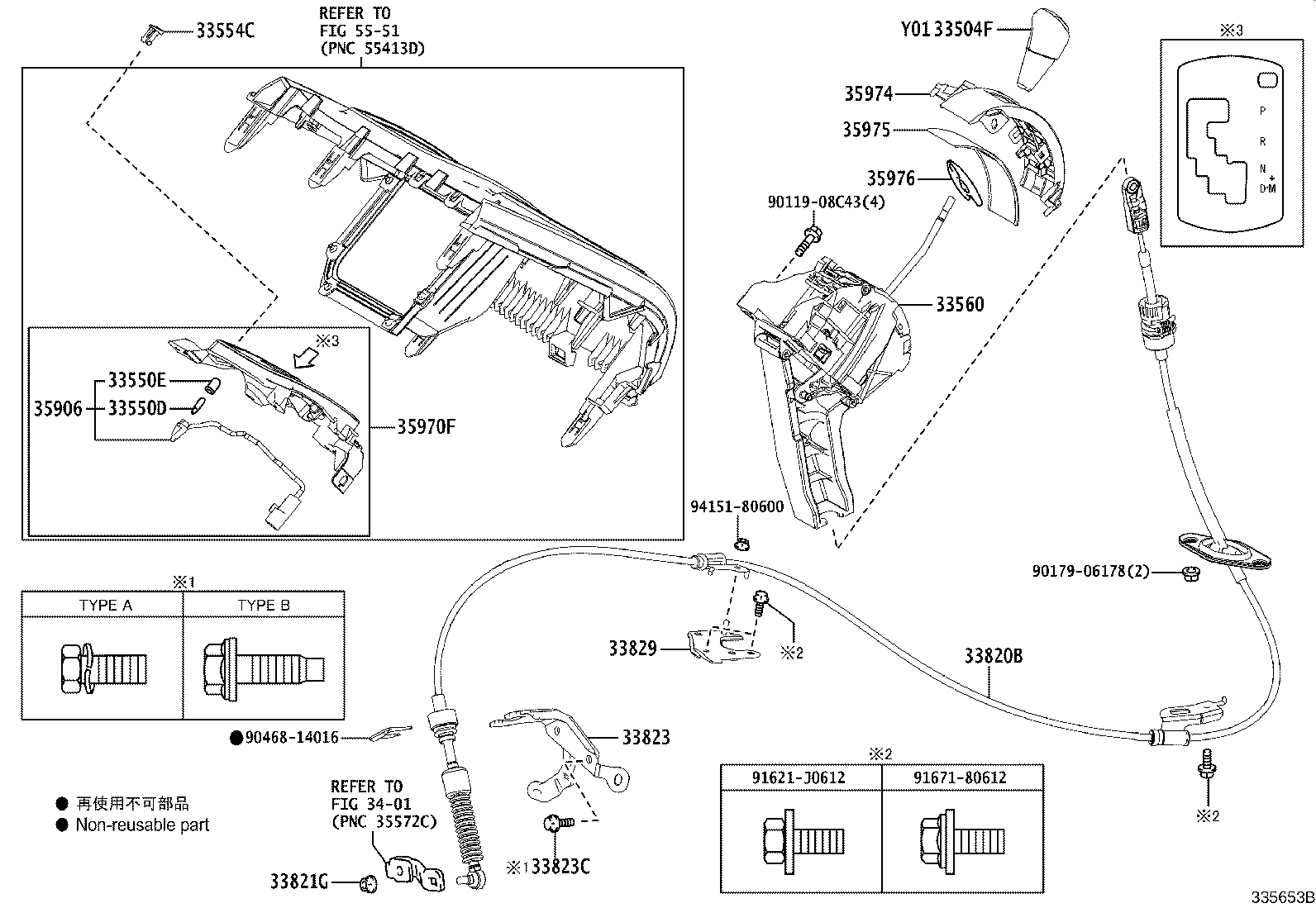

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33560 33820B 33821G 33823 33823C 33829 3401 35906 35970F 35974 35975 35976 5551 9011908C43 9017906178 9046814016 91621J0612 9167180612 9415180600
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-74020C0

ZRR8#..SI,V,ZS

BLACK,TRIM2#

 1
33504-28060C0

ZRR8#..NOAH..X

BLACK,TRIM0#,2#

 1
33504-74020C5

ZRR8#..SI,V,XI,ZS

BLACK,TRIM2#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

ZRR8#

12V 1.2W ｿｹｯﾄ無し

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-64020

ZRR8#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-28080

ZRR8#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-28100

ZRR8#..X,XI

 1
33560-28110

ZRR8#..(X,XI)..CBU

ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ)

 1
33560-28110

ZRR8#..G,GI,SI,V,ZS

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-28420

ZRR8#

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08040

ZRR8#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28300

ZRR8#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

ZRR8#

TYPE A:ｲﾗｽﾄ参照

 2
91673-80820

ZRR8#

TYPE B:ｲﾗｽﾄ参照

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-28110

ZRR8#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-28050

ZRR8#

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-28180

ZRR8#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-28080

ZRR8#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-28040

ZRR8#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-28010

ZRR8#

 1
Common parts
90119-08C43
90179-06178
90468-14016
91621-J0612
91671-80612
94151-80600
Linked diagrams
3401
5551
