ZRR85W-ARXSP (2014)
Toyota Noah/Voxy/Esquire
(1401- )3ZRFAE..ZRR80..X ; (1401- )3ZRFAE..ZRR85..X..CBU
12V 1.0KW

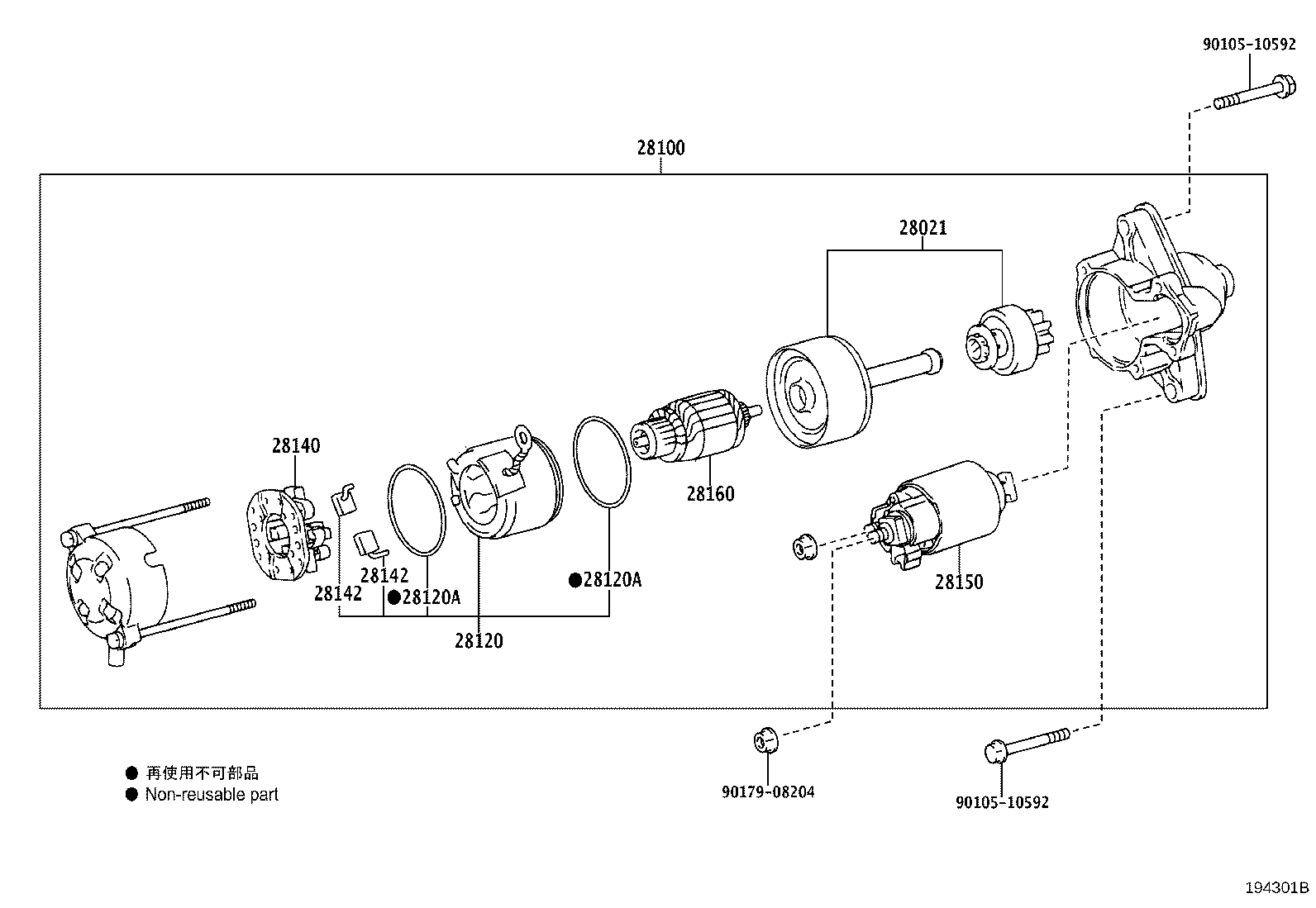

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-70020 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28021-21100 |
3ZRFAE..ZRR8# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-37100 |
3ZRFAE..ZRR8# 12V 1.7KW |
1 | ||
| 28100-37101 |
3ZRFAE..ZRR8# 12V 1.7KW |
1 | ||
| 28100-37031 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU 12V 1.0KW,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28100-37032 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU 12V 1.0KW,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-37100 |
3ZRFAE..ZRR8# |
1 | ||
| 28120-40130 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
2 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-21100 |
3ZRFAE..ZRR8# |
1 | ||
| 28140-70020 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-70020 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
2 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-70020 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
2 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22100 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-38070 |
3ZRFAE..ZRR8# |
1 | ||
| 28160-37100 |
3ZRFAE..ZRR8# |
1 | ||
| 28160-70050 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28160-36110 |
3ZRFAE..ZRR8# |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90179-08204 | ||||
(1401- )3ZRFAE
12V 1.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-70020 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28021-21100 |
3ZRFAE..ZRR8# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-37100 |
3ZRFAE..ZRR8# 12V 1.7KW |
1 | ||
| 28100-37101 |
3ZRFAE..ZRR8# 12V 1.7KW |
1 | ||
| 28100-37031 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU 12V 1.0KW,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28100-37032 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU 12V 1.0KW,ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-37100 |
3ZRFAE..ZRR8# |
1 | ||
| 28120-40130 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-21100 |
3ZRFAE..ZRR8# |
1 | ||
| 28140-70020 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-38070 |
3ZRFAE..ZRR8# |
1 | ||
| 28160-37100 |
3ZRFAE..ZRR8# |
1 | ||
| 28160-70050 |
3ZRFAE..ZRR80..X;3ZRFAE..ZRR85..X..CBU ｱｲﾄﾞﾘﾝｸﾞｽﾄｯﾌﾟ機能−無し |
1 | ||
| 28160-36110 |
3ZRFAE..ZRR8# |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-37100 |
3ZRFAE..ZRR8# |
1 | ||
| 28249 - RELAY, STARTER INRUSH CURRENT REDUCTION | ||||
| 28249-37100 |
3ZRFAE..ZRR8# |
1 | ||
| Common parts | ||||
| 90105-10592 | ||||
| 90179-08204 | ||||
| 94151-80800 | ||||
