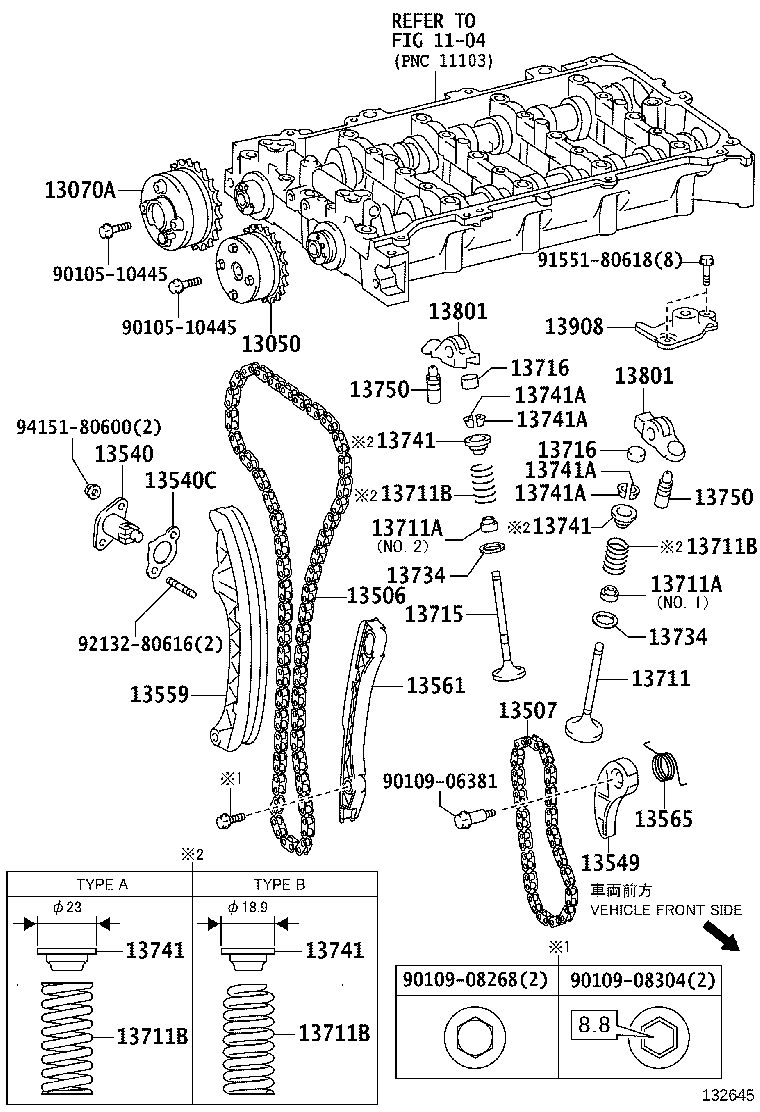

Toyota Noah/voxy/esquire ZRR85 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-37050	3ZRFAE..ZRR8#	01/2014 - 06/2017	1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-37020	3ZRFAE..ZRR8#	01/2014 - 06/2017	1
13506 - CHAIN SUB-ASSY
13506-37060	3ZRFAE..ZRR8#	01/2014 - 06/2017	1
13507 - CHAIN SUB-ASSY, NO.2
13507-28010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-37030	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-37010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	1
13549 - PLATE, CHAIN TENSIONER
13549-37020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	04/2015 - 06/2017	1
13549-37010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 03/2015	1
13559 - SLIPPER, CHAIN TENSIONER
13559-37030	3ZRFAE..ZRR8#	01/2014 - 06/2017	1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-37040	3ZRFAE..ZRR8#	01/2014 - 06/2017	1
13565 - SPRING, CHAIN DAMPER
13565-37010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	1
13711 - VALVE, INTAKE
13711-37020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02112	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 NO.2	01/2014 - 06/2017	8
90913-02101	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 NO.1	01/2014 - 06/2017	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02112	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 NO.2	01/2014 - 06/2017	8
90913-02101	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 NO.1	01/2014 - 06/2017	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-31027	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
90501-32071	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-32072	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 長さ=51.88	08/2014 - 06/2017	16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-31027	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
90501-32071	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-32072	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 長さ=51.88	08/2014 - 06/2017	16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-31027	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
90501-32071	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-32072	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 長さ=51.88	08/2014 - 06/2017	16
13711B - SPRING, COMPRESSION(FOR INNER)
90501-31028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-31027	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
90501-32071	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
90501-32072	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 長さ=51.88	08/2014 - 06/2017	16
13715 - VALVE, EXHAUST
13715-37030	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	8
13716 - CAP, VALVE STEM
13716-75020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	16
13716 - CAP, VALVE STEM
13716-75020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	16
13734 - SEAT, VALVE SPRING
13734-62020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	16
13734 - SEAT, VALVE SPRING
13734-62020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	16
13741 - RETAINER, VALVE SPRING
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	08/2014 - 06/2017	16
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741 - RETAINER, VALVE SPRING
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	08/2014 - 06/2017	16
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741 - RETAINER, VALVE SPRING
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	08/2014 - 06/2017	16
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741 - RETAINER, VALVE SPRING
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 05/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE B:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741-36010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	08/2014 - 06/2017	16
13741-20021	2ZRFXE,3ZRFAE..ZRR8#,ZWR80 TYPE A:ｲﾗｽﾄ参照	05/2014 - 08/2014	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 06/2017	32
13750 - ADJUSTER ASSY, VALVE LASH
13750-21010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	08/2014 - 06/2017	16
13750-75020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 08/2014	16
13750 - ADJUSTER ASSY, VALVE LASH
13750-21010	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	08/2014 - 06/2017	16
13750-75020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 08/2014	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-23011	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 04/2014	16
13801-36020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	05/2014 - 06/2017	16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-23011	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	01/2014 - 04/2014	16
13801-36020	2ZRFXE,3ZRFAE..ZRR8#,ZWR80	05/2014 - 06/2017	16
13908 - DAMPER SUB-ASSY, VALVE ROCKER ARM LOST MOTION
13908-37012	3ZRFAE..ZRR8#	01/2014 - 06/2017	4
Common parts
90105-10445
90109-06381
90109-08268
90109-08304
91551-80618
92132-80616
94151-80600
Linked diagrams
1104

ZRR85W-ARXSP (2014)

(1401- )3ZRFAE
