ZRR85W-ARXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )

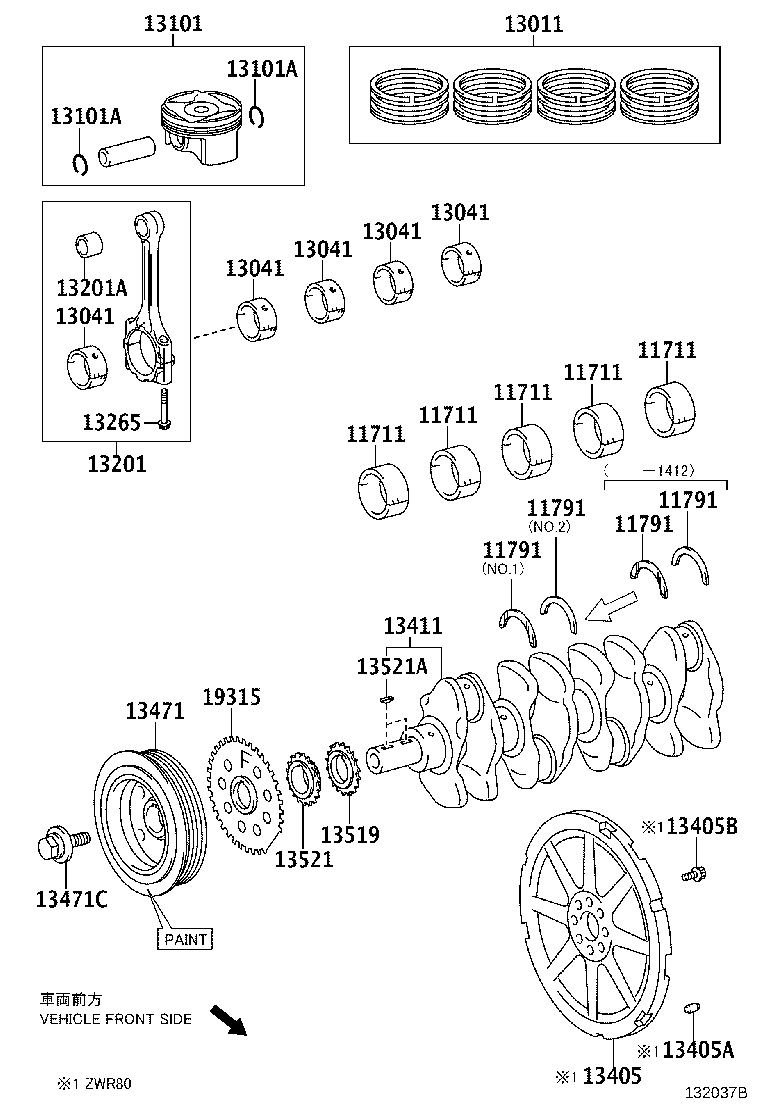

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 11791 11791 13011 13041 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13405 13405A 13405B 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3704002

3ZRFAE..ZRR8#

MARK2,修理書参照

 5
11701-3704001

3ZRFAE..ZRR8#

MARK1,修理書参照

 5
11701-3704003

3ZRFAE..ZRR8#

MARK3,修理書参照

 5
11701-3704004

3ZRFAE..ZRR8#

MARK4,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3704002

3ZRFAE..ZRR8#

MARK2,修理書参照

 5
11701-3704001

3ZRFAE..ZRR8#

MARK1,修理書参照

 5
11701-3704003

3ZRFAE..ZRR8#

MARK3,修理書参照

 5
11701-3704004

3ZRFAE..ZRR8#

MARK4,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3704002

3ZRFAE..ZRR8#

MARK2,修理書参照

 5
11701-3704001

3ZRFAE..ZRR8#

MARK1,修理書参照

 5
11701-3704003

3ZRFAE..ZRR8#

MARK3,修理書参照

 5
11701-3704004

3ZRFAE..ZRR8#

MARK4,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3704002

3ZRFAE..ZRR8#

MARK2,修理書参照

 5
11701-3704001

3ZRFAE..ZRR8#

MARK1,修理書参照

 5
11701-3704003

3ZRFAE..ZRR8#

MARK3,修理書参照

 5
11701-3704004

3ZRFAE..ZRR8#

MARK4,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-3704002

3ZRFAE..ZRR8#

MARK2,修理書参照

 5
11701-3704001

3ZRFAE..ZRR8#

MARK1,修理書参照

 5
11701-3704003

3ZRFAE..ZRR8#

MARK3,修理書参照

 5
11701-3704004

3ZRFAE..ZRR8#

MARK4,修理書参照

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD

 2
11791-22020

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.1

 1
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.2

 1
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD

 2
11791-22020

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.1

 1
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.2

 1
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD

 2
11791-22020

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.1

 1
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.2

 1
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD

 2
11791-22020

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.1

 1
11791-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

STD,NO.2

 1
13011 - RING SET, PISTON
13011-37120

3ZRFAE..ZRR8#

STD

 1
13011-37320

3ZRFAE..ZRR8#

STD

 1
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFAE..ZRR8#

MARK1,修理書参照

 4
13041-3703002

3ZRFAE..ZRR8#

MARK2,修理書参照

 4
13041-3703003

3ZRFAE..ZRR8#

MARK3,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFAE..ZRR8#

MARK1,修理書参照

 4
13041-3703002

3ZRFAE..ZRR8#

MARK2,修理書参照

 4
13041-3703003

3ZRFAE..ZRR8#

MARK3,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFAE..ZRR8#

MARK1,修理書参照

 4
13041-3703002

3ZRFAE..ZRR8#

MARK2,修理書参照

 4
13041-3703003

3ZRFAE..ZRR8#

MARK3,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFAE..ZRR8#

MARK1,修理書参照

 4
13041-3703002

3ZRFAE..ZRR8#

MARK2,修理書参照

 4
13041-3703003

3ZRFAE..ZRR8#

MARK3,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-3703001

3ZRFAE..ZRR8#

MARK1,修理書参照

 4
13041-3703002

3ZRFAE..ZRR8#

MARK2,修理書参照

 4
13041-3703003

3ZRFAE..ZRR8#

MARK3,修理書参照

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-37330

3ZRFAE..ZRR8#

STD

 4
13101-37150

3ZRFAE..ZRR8#

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39205

3ZRFAE..ZRR8#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 4
13265 - BOLT, CONNECTING ROD
13265-22020

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 8
13411 - CRANKSHAFT
13401-37032

3ZRFAE..ZRR8#

 1
13471 - PULLEY, CRANKSHAFT
13470-37041

3ZRFAE..ZRR8#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14175

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 1
90119-14106

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-37020

3ZRFAE..ZRR8#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

2ZRFXE,3ZRFAE..ZRR8#,ZWR80

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37030

3ZRFAE..ZRR8#

 1
