ZRR85W-APXSP (2014)
Toyota Noah/Voxy/Esquire
(1401- )

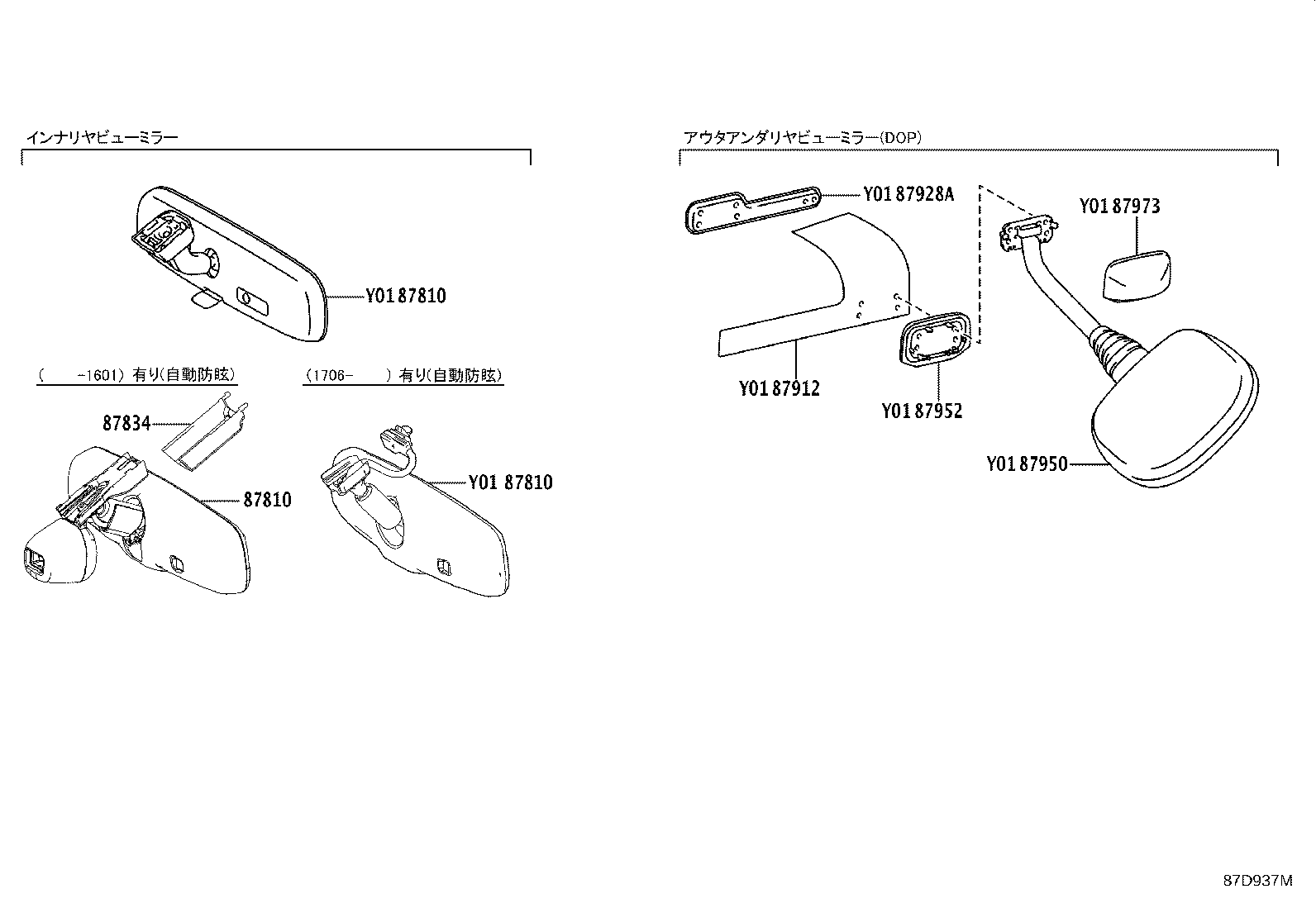

ｲﾝﾅﾘﾔ & ｱｳﾀｱﾝﾀﾞﾘﾔﾋﾞｭﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ZRR8#..X |
1 | ||
| 87810-52041 |
ZWR80;ZRR8#..SI,XI,ZS |
1 | ||
| 87810-28130 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 87810-0W520 |
ZRR8#..G,GI,V |
1 | ||
| 87810-28130 |
ZRR8#..X ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ZRR8#..X |
1 | ||
| 87810-52041 |
ZWR80;ZRR8#..SI,XI,ZS |
1 | ||
| 87810-28130 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 87810-0W520 |
ZRR8#..G,GI,V |
1 | ||
| 87810-28130 |
ZRR8#..X ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
ZRR8#..X |
1 | ||
| 87810-52041 |
ZWR80;ZRR8#..SI,XI,ZS |
1 | ||
| 87810-28130 |
ZWR80;ZRR8#..G,GI,SI,V,XI,ZS |
1 | ||
| 87810-0W520 |
ZRR8#..G,GI,V |
1 | ||
| 87810-28130 |
ZRR8#..X ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-04010 |
ZRR8#..G,GI,V |
1 | ||
| 87912 - PROTECTOR, OUTER MIRROR | ||||
| 87912-28100 |
ZRR8#,ZWR80..G,GI,V,X,XI ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87928A - RETAINER, OUTER REAR VIEW MIRROR | ||||
| 87928-28010 |
ZRR8#,ZWR80..G,GI,V,X,XI ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-28190 |
ZRR8#,ZWR80..G,GI,V,X,XI ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87952 - GASKET, OUTER UNDER VIEW MIRROR BASE | ||||
| 87952-28030 |
ZRR8#,ZWR80..G,GI,V,X,XI ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87973 - COVER, OUTER UNDER RR VIEW MIRROR | ||||
| 87973-28100 |
ZRR8#,ZWR80..G,GI,V,X,XI ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||

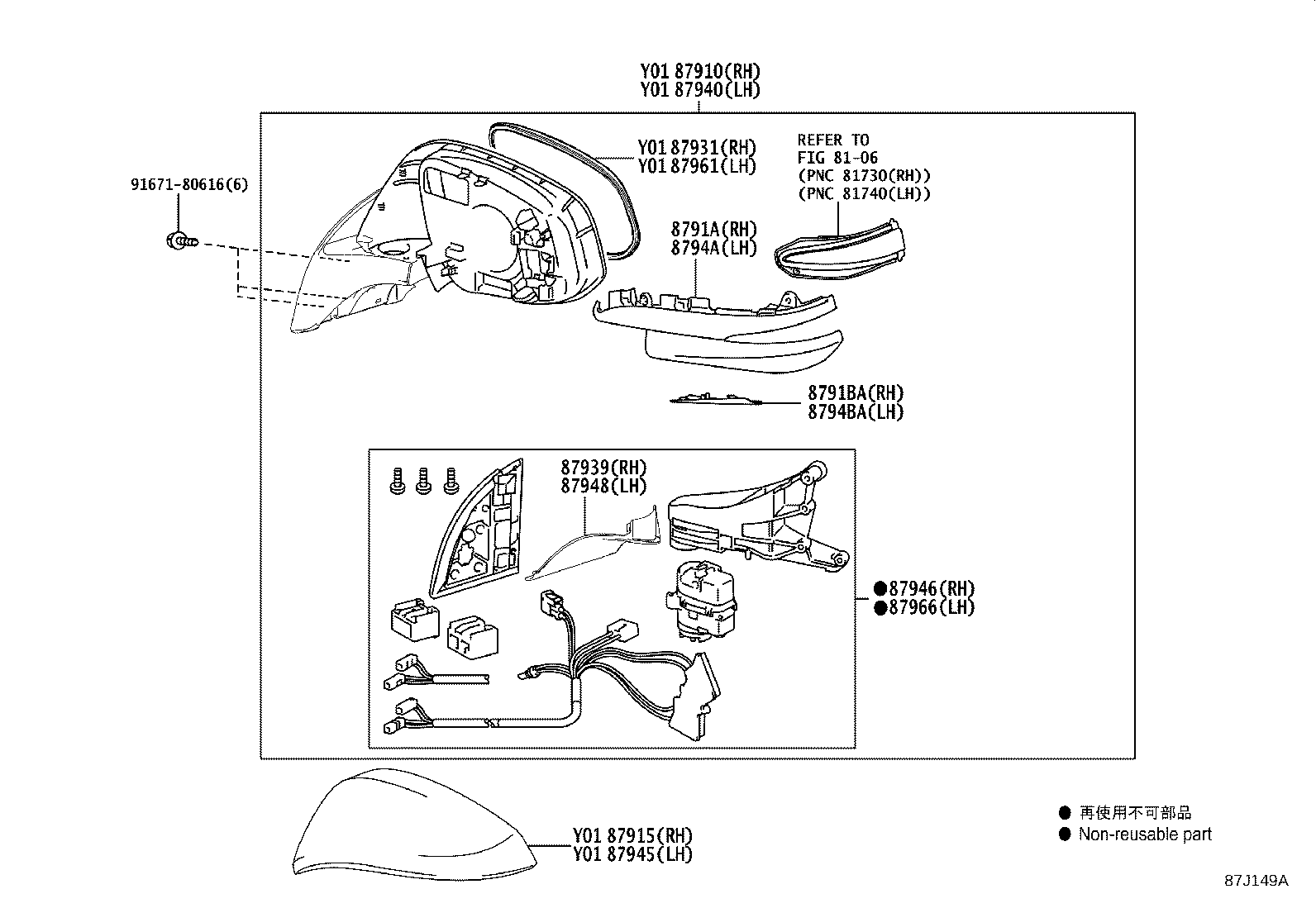

(1401- )
ｱｳﾀﾘﾔﾋﾞｭｰﾐﾗｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-28B60 |
ZRR8#,ZWR80 塗装不要,寒冷地仕様−有り |
1 | ||
| 87910-28B50 |
ZRR8#,ZWR80 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-48040A0 |
ZRR8#,ZWR80 WHITE PEARL CS.,070 |
1 | ||
| 87915-48040C0 |
ZRR8#,ZWR80 BLACK,202 |
1 | ||
| 87915-48040D1 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,XI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 87915-48040B3 |
ZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(GI,SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 87915-48040H0 |
ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 87915-48040K0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI DK.VIOLET M.M.,9AF |
1 | ||
| 87915-48040B0 |
ZRR8#,ZWR80 SILVER ME.,1F7 |
1 | ||
| 87915-48040E1 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 8791A - COVER, OUTER MIRROR, RH NO.2 | ||||
| 8791B-42C10 |
ZRR8#,ZWR80 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-28B60 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 87931-28B50 |
ZRR8#,ZWR80 |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-28B50 |
ZRR8#,ZWR80 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-28B70 |
ZRR8#,ZWR80 塗装不要 |
1 | ||
| 87940-28B80 |
ZRR8#,ZWR80 塗装不要,寒冷地仕様−有り |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-48040B0 |
ZRR8#,ZWR80 SILVER ME.,1F7 |
1 | ||
| 87945-48040K0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI DK.VIOLET M.M.,9AF |
1 | ||
| 87945-48040H0 |
ZRR8#,ZWR80..G,GI,V,X,XI OCEAN MINT ME.,789 |
1 | ||
| 87945-48040E1 |
ZRR8#,ZWR80..NOAH..(G,X) ROSE CHAMPAGNE M.M.,4W4 |
1 | ||
| 87945-48040A0 |
ZRR8#,ZWR80 WHITE PEARL CS.,070 |
1 | ||
| 87945-48040C0 |
ZRR8#,ZWR80 BLACK,202 |
1 | ||
| 87945-48040B3 |
ZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(GI,SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 87945-48040D1 |
ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,XI,ZS DEEP RED M.M.,3R9 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-28B50 |
ZRR8#,ZWR80 |
1 | ||
| 87946-28B60 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-28B70 |
ZRR8#,ZWR80 |
1 | ||
| 8794A - COVER, OUTER MIRROR, LH NO.2 | ||||
| 8794B-42B80 |
ZRR8#,ZWR80 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-28B70 |
ZRR8#,ZWR80 |
1 | ||
| 87961-28B80 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-28B70 |
ZRR8#,ZWR80 |
1 | ||
| 87966-28B80 |
ZRR8#,ZWR80 寒冷地仕様−有り |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
