ZRR85W-APXSP (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR8#

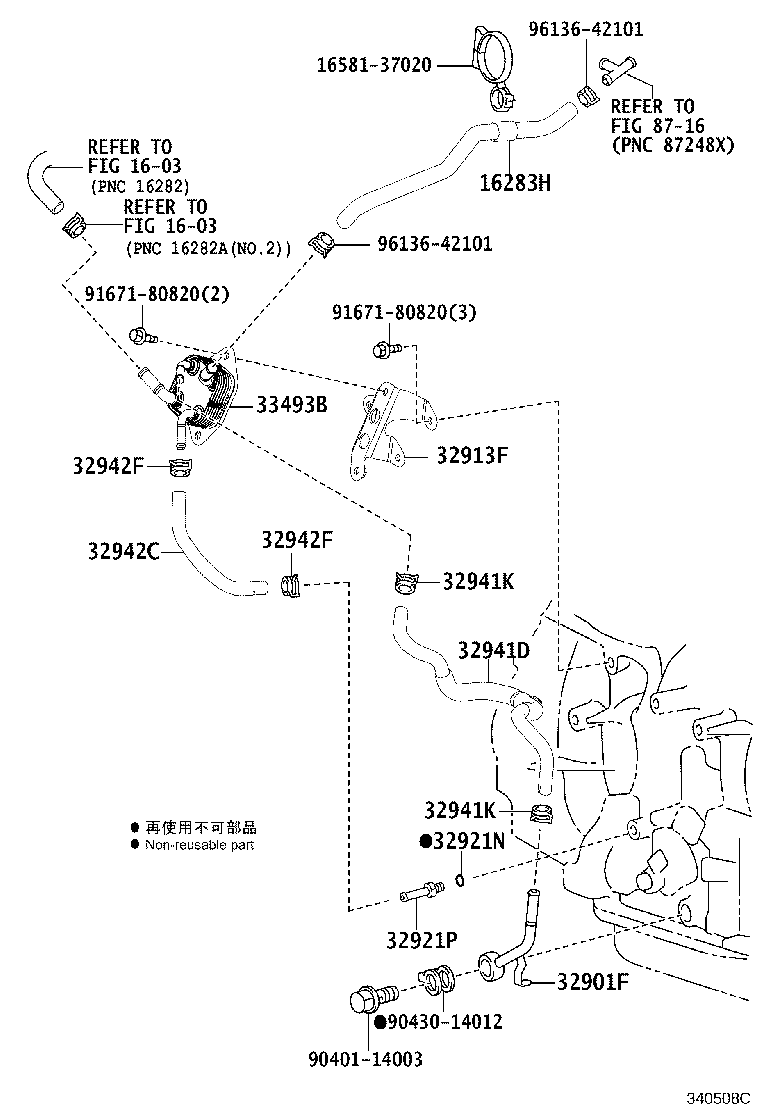

Click highlighted areas on diagram

diagram 1603 1603 16283H 1658137020 32901F 32913F 32921N 32921P 32941D 32941K 32941K 32942C 32942F 32942F 33493B 8716 9040114003 9043014012 9167180820 9167180820 9613642101 9613642101
Part # Description Qty Price
16283H - HOSE, WATER BY-PASS, NO.6
16261-37130

3ZRFAE..ZRR8#

 1
32901F - ELBOW SUB-ASSY, OIL COOLER
32901-28010

ZRR8#

 1
32913F - BRACKET, TRANSMISSION OIL COOLER
32913-28060

ZRR8#

 1
32921N - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018

ZRR8#

 1
32921P - UNION(FOR OIL COOLER TUBE)
90404-13009

ZRR8#

 1
32941D - HOSE, OIL COOLER INLET
32943-28110

ZRR8#

 1
32941K - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZRR8#

 2
32941K - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ZRR8#

 2
32942C - HOSE, OIL COOLER OUTLET, NO.1
90445-17100

ZRR8#

 1
32942F - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

ZRR8#

 2
32942F - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

ZRR8#

 2
33493B - COOLER, OIL
33493-28050

ZRR8#

 1
Common parts
16581-37020
90401-14003
90430-14012
91671-80820
96136-42101
Linked diagrams
1603
8716
