ZRR85G-CRXEP5 (2017)
Toyota Noah/Voxy/Esquire

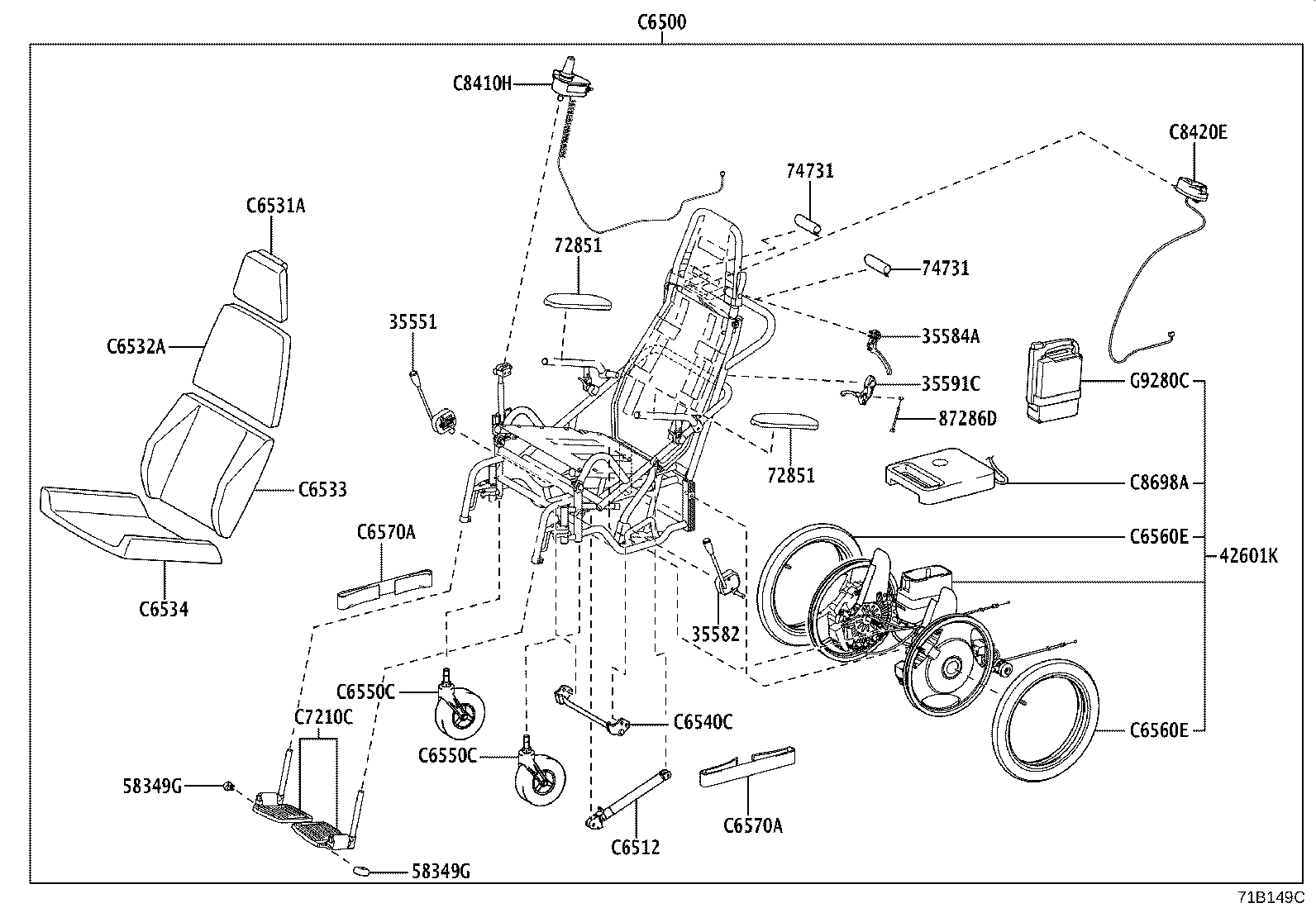

ILLUST NO. 5 OF 6(1712- )IV5
ｸﾙﾏｲｽ(ﾃﾞﾝﾄﾞｳｳｪﾙﾁｪｱ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35551 - LEVER, PARKING LOCK, NO.1 | ||||
| 35551-28050 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| 35582 - LEVER, PARKING LOCK, NO.2 | ||||
| 35582-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| 35584A - LEVER, PARKING LOCK, NO.3 | ||||
| 35584-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| 35591C - LEVER, TOGGLE | ||||
| 35591-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| 42601K - WHEEL SUB-ASSY, DISC | ||||
| 42601-28060 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| 58349G - PROTECTOR, FOOTREST | ||||
| 58349-28040 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| 58349G - PROTECTOR, FOOTREST | ||||
| 58349-28040 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| 72851 - PAD, ARM SUPPORT | ||||
| 72851-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| 72851 - PAD, ARM SUPPORT | ||||
| 72851-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| 74731 - PIPE, HAND GRIP, NO.1 | ||||
| 74731-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| 74731 - PIPE, HAND GRIP, NO.1 | ||||
| 74731-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| 87286D - CABLE, CONTROL | ||||
| 87286-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6500 - WHEEL CHAIR ASSY | ||||
| C6500-28080 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6500-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−手動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6512 - STAY, WHEEL CHAIR HOLDER,REAR | ||||
| C6512-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−手動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6512-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6531A - CUSHION, HEADREST | ||||
| C6531-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6532A - CUSHION, SHOULDER | ||||
| C6532-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6533 - CUSHION, LUMBER | ||||
| C6533-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6534 - CUSHION, WHEEL CHAIR SEAT | ||||
| C6534-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT | ||||
| C6550-28080 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6550-28040 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−手動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT | ||||
| C6550-28080 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C6550-28040 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−手動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR | ||||
| C6560-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−手動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6560-28050 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR | ||||
| C6560-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−手動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6560-28050 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6570A - BELT ASSY, WHEEL CHAIR SET, NO.3 | ||||
| C6570-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C6570A - BELT ASSY, WHEEL CHAIR SET, NO.3 | ||||
| C6570-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
2 | ||
| C7210C - FOOTREST ASSY, WELCAB SEAT | ||||
| C7210-28030 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C8410H - SWITCH ASSY, CONTROL, NO.1 | ||||
| C8410-28020 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C8420E - SWITCH ASSY, CONTROL, NO.2 | ||||
| C8420-28020 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| C8698A - CHARGER, BATTERY | ||||
| C8698-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||
| G9280C - BATTERY ASSY, WHEEL CHAIR | ||||
| G9280-28080 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 ｸﾙﾏｲｽ−電動ｳｪﾙﾁｪｱ(DOP) |
1 | ||

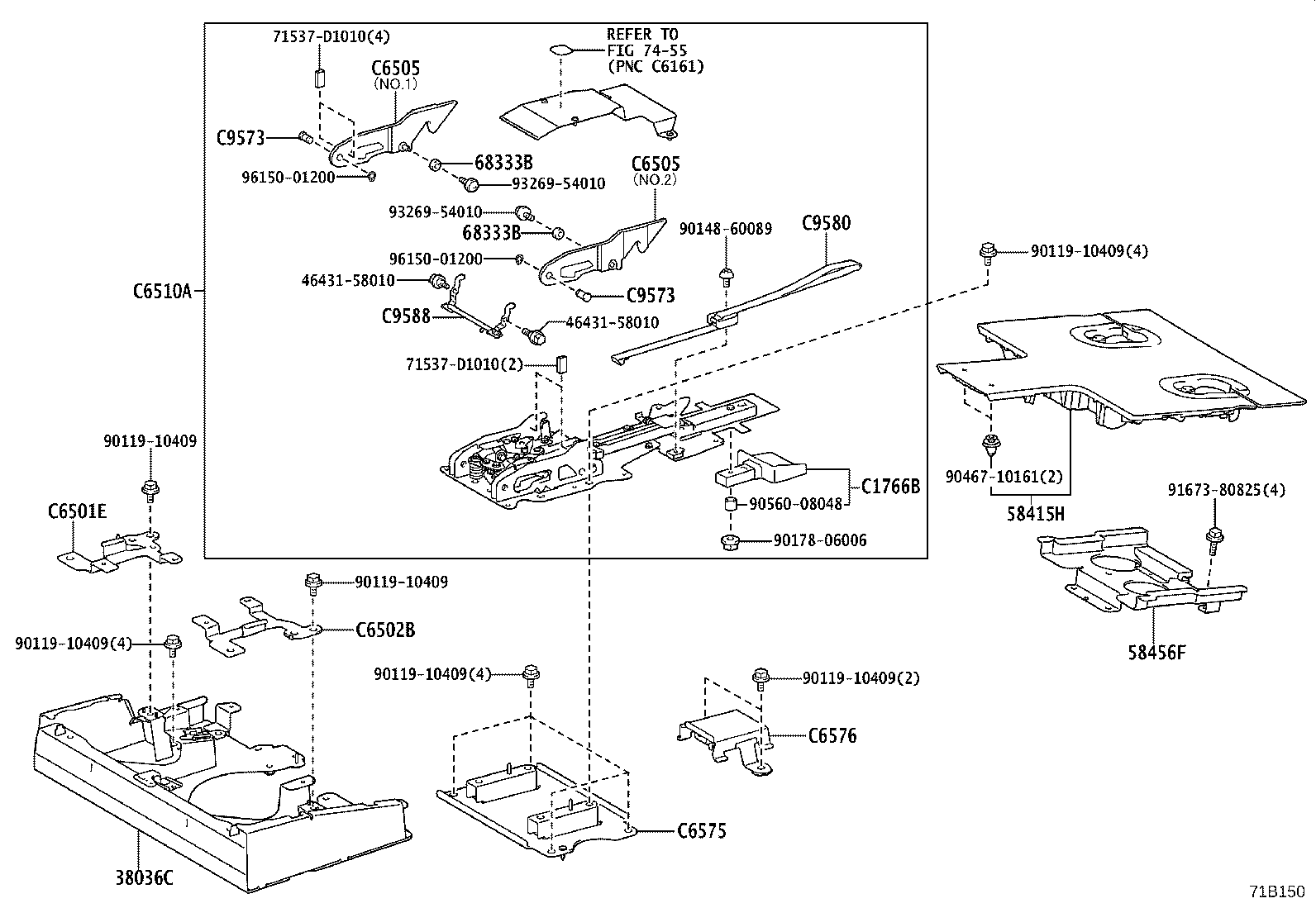

ILLUST NO. 4 OF 6(1712- )IV5
ｸﾙﾏｲｽｺﾃｲｿｳﾁ(ﾜﾝﾀｯﾁｺﾃｲｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58415H - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-28120 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 |
1 | ||
| C9580 - HANDLE ASSY, PLATFORM LOCK | ||||
| C9580-28010 |
ZRR8#..(ESQIR,VOXY)..(X,XI)..IV5 |
1 | ||
| Common parts | ||||
| 46431-58010 | ||||
| 71537-D1010 | ||||
| 90119-10409 | ||||
| 90148-60089 | ||||
| 90178-06006 | ||||
| 90467-10161 | ||||
| 90560-08048 | ||||
| 91673-80825 | ||||
| 93269-54010 | ||||
| 96150-01200 | ||||
| Linked diagrams | ||||
| 7455 | ||||
