ZRR85G-BPXGP (2017)

Toyota Noah/Voxy/Esquire

Production Jun 2017 - Apr 2020
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

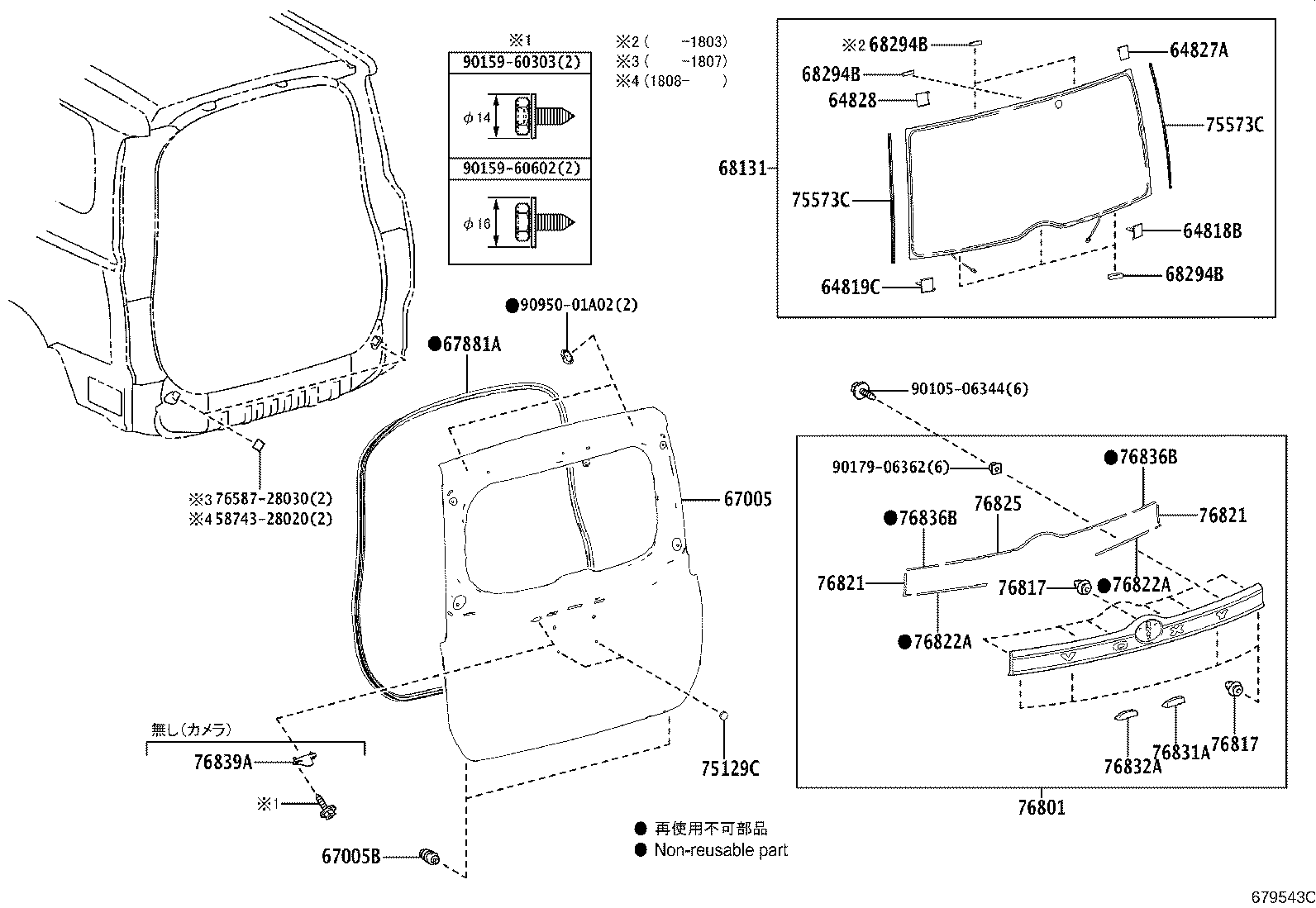

ILLUST NO. 1 OF 2(1706- )VOXY

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 5874328020 64818B 64819C 64827A 64828 67005 67005B 67881A 68131 68294B 68294B 68294B 75129C 75573C 75573C 7658728030 76801 76817 76817 76821 76821 76822A 76822A 76825 76831A 76832A 76836B 76836B 76839A 9010506344 9015960303 9015960602 9017906362 9095001A02
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-28040

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
64818-28040

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
64819C - SPACER, BACK DOOR GLASS, NO.2
64819-28040

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
64819-28040

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
64827A - CLIP, BACK WINDOW GLASS, RH
64827-28060

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
64827-28060

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
64828 - CLIP, BACK WINDOW GLASS, LH
64828-28050

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
64828-28050

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-28E50

ZRR8#,ZWR80..VOXY..(V,X)

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-10042

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 2
90541-10042

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-28140

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)..CBU

 1
67881-28140

ZRR8#,ZWR80..NOAH..X..CBU;ZRR8#,ZWR80..(G,GI,SI,ZS)..CBU

 1
68131 - GLASS, BACK DOOR
68105-28700

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
68105-28700

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 4
68294-26030

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 4
68294-26030

ZRR8#,ZWR80

 6
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 4
68294-26030

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 4
68294-26030

ZRR8#,ZWR80

 6
68294B - DAM, BACK DOOR GLASS ADHESIVE
68294-26030

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 4
68294-26030

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 4
68294-26030

ZRR8#,ZWR80

 6
75129C - CUSHION, REAR LICENCE PLATE
75129-26010

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 2
75129-26010

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-28050

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 2
75573-28050

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 2
75573C - MOULDING, BACK WINDOW, OUTSIDE
75573-28050

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 2
75573-28050

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 2
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-28620

ZRR8#,ZWR80..VOXY..(V,X)

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
90467-09206

ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X

 11
90467-09206

ZRR8#,ZWR80..VOXY..(V,X)

 11
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
90467-09206

ZRR8#,ZWR80..G,SI,ZS;ZRR8#,ZWR80..NOAH..X

 11
90467-09206

ZRR8#,ZWR80..VOXY..(V,X)

 11
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-28090

ZRR8#,ZWR80..VOXY..(V,X)

右側

 1
76822-28090

ZRR8#,ZWR80..VOXY..(V,X)

左側

 1
76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821-28090

ZRR8#,ZWR80..VOXY..(V,X)

右側

 1
76822-28090

ZRR8#,ZWR80..VOXY..(V,X)

左側

 1
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76836-28070

ZRR8#,ZWR80..VOXY..(V,X)

 2
76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR
76836-28070

ZRR8#,ZWR80..VOXY..(V,X)

 2
76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH
76835-28080

ZRR8#,ZWR80..VOXY..(V,X)

 1
76831A - COVER, BACK DOOR FINISH PANEL, RH
76831-28010

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
76831-28010

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
76832A - COVER, BACK DOOR FINISH PANEL, LH
76832-28010

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
76832-28010

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
76836B - PROTECTOR, BACK DOOR FINISH PANEL, NO.2
76836-28040

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 2
76836-28040

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 2
76836B - PROTECTOR, BACK DOOR FINISH PANEL, NO.2
76836-28040

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 2
76836-28040

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 2
76839A - COVER, BACK DOOR GARNISH
76839-28060

ZRR8#..NOAH..X;ZRR8#..G,GI,SI,ZS

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
76839-28060

ZRR8#,ZWR80..(ESQIR,VOXY)..(V,X,XI)

 1
76839-28060

ZRR8#..(ESQIR,VOXY)..(V,X,XI)

ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ)

 1
76839-28060

ZRR8#,ZWR80..NOAH..X;ZRR8#,ZWR80..G,GI,SI,ZS

 1
Common parts
58743-28020
76587-28030
90105-06344
90159-60303
90159-60602
90179-06362
90950-01A02
