ZRR85G-BPXEP5 (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )IV5

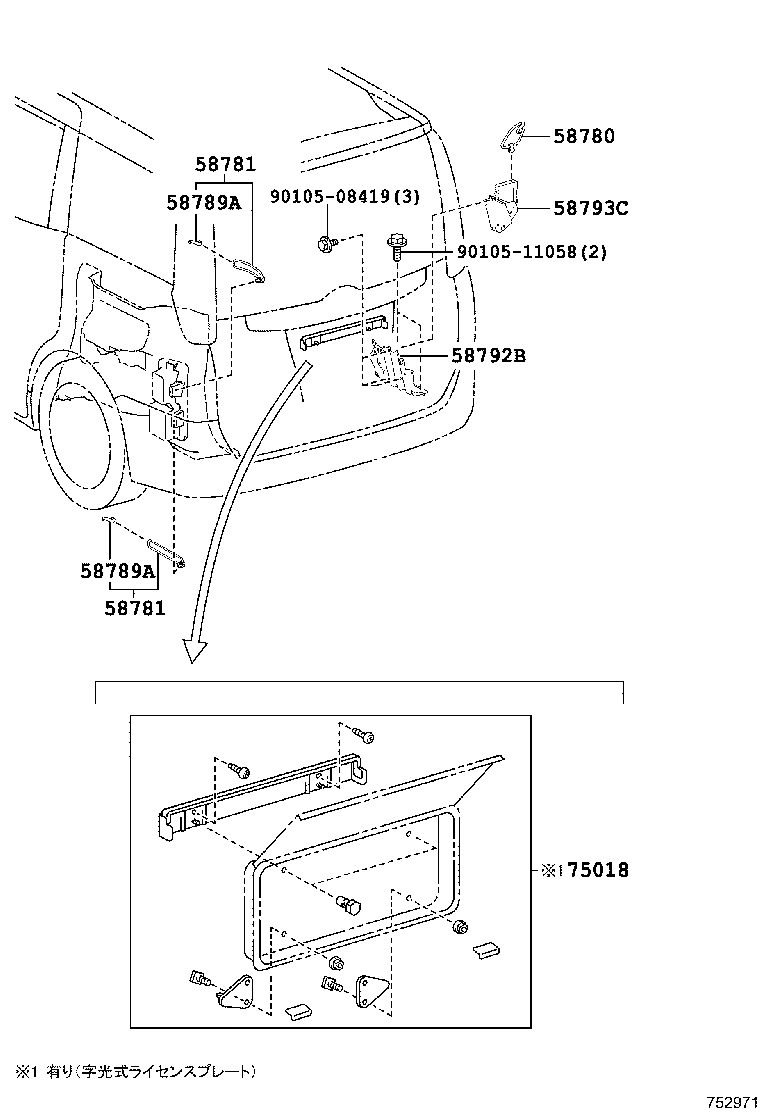

Click highlighted areas on diagram

diagram 58780 58781 58781 58789A 58789A 58792B 58793C 75018 9010508419 9010511058
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-95J01

ZRR8#..IV5

 1
58781 - BAND, TOOL BAG
58424-28020

ZRR8#,ZWR80

 2
58781 - BAND, TOOL BAG
58424-28020

ZRR8#,ZWR80

 2
58789A - HOOK, TOOL BOX BAND, NO.2
58788-28030

ZRR8#,ZWR80

 2
58789A - HOOK, TOOL BOX BAND, NO.2
58788-28030

ZRR8#,ZWR80

 2
58792B - SUPPORT, JACK CARRIER
58792-28060

ZRR8#..IV5

 1
58793C - BRACKET, JACK CARRIER, NO.1
58793-28060

ZRR8#..IV5

 1
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-44010

ZRR8#,ZWR80

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応

 1
Common parts
90105-08419
90105-11058
