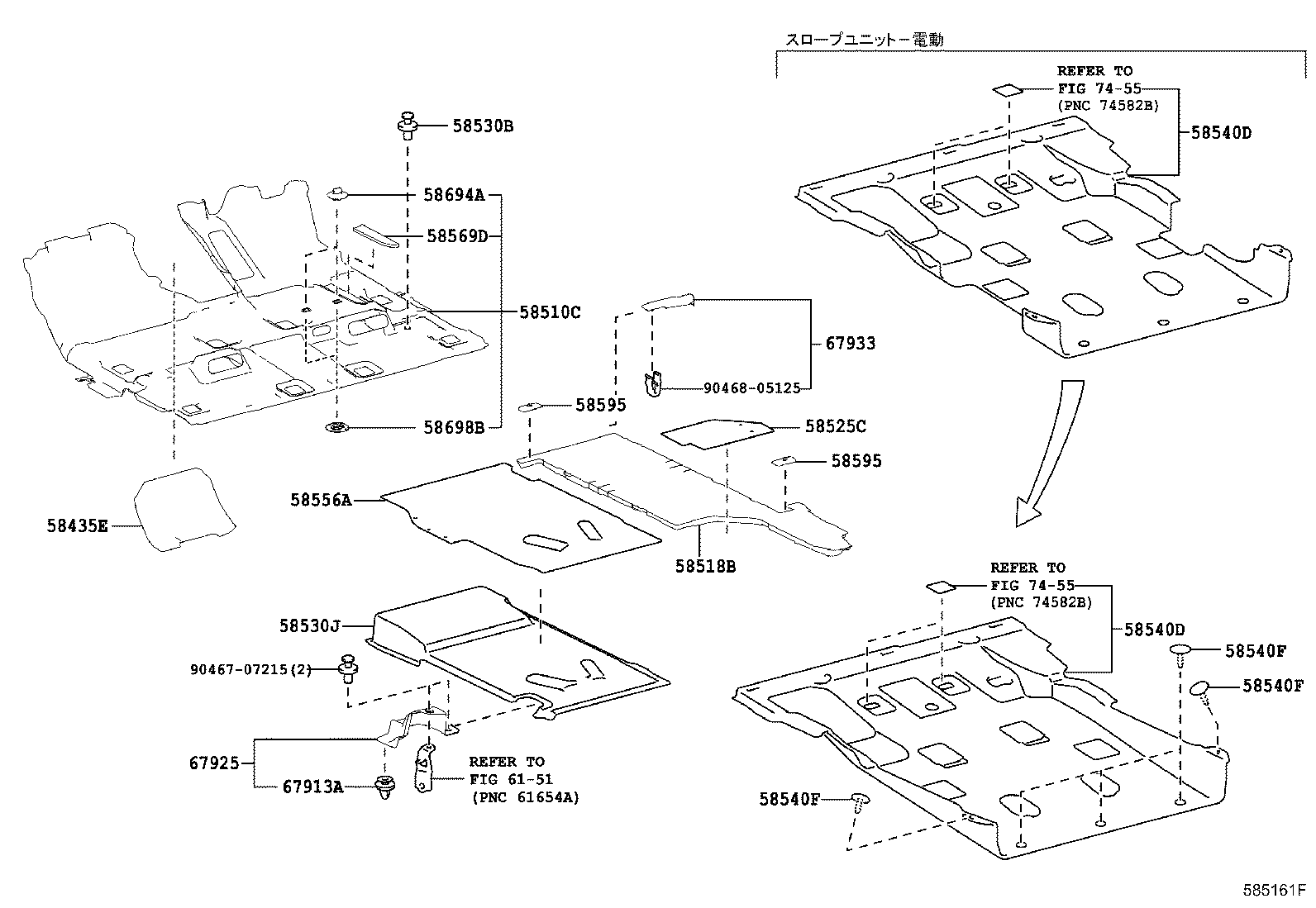

ZRR85G-BPXEP5 (2014)
Toyota Noah/Voxy/Esquire
(1401- )07S..IV5
ｸﾙﾏｲｽｼﾖｳｼｬ ｽﾛｰﾌﾟﾀｲﾌﾟ1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-28090 |
ZRR8#,ZWR80 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-28F40B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28F30C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..07S..G FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28G40C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28G30C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),FLOOR CARPET,TRIM2# |
1 | ||
| 58525C - MAT, REAR FLOOR, REAR NO.1 LH | ||||
| 58525-28010C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 ﾘﾔNO.1ｼｰﾄ−ｷｬﾌﾟﾃﾝｼｰﾄ(左側後付け仕様),ｽﾛｰﾌﾟ車用(DOP),BLACK,TRIM2# |
1 | ||
| 58525-28010C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07215 |
ZRR8#,ZWR80 |
1 | ||
| 58530J - CARPET ASSY, FLOOR, CENTER | ||||
| 58530-28450C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 FLOOR CARPET,TRIM2# |
1 | ||
| 58540D - CARPET ASSY, FLOOR, REAR | ||||
| 58540-28E20C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E50C0 |
ZRR8#..VOXY..07S..X..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E40C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E10C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28F20C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F10C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E41C0 |
ZRR80..VOXY..07S..X..IV5;ZRR80..07S..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..07S..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E11C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28E51C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F11C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E21C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F21C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540D - CARPET ASSY, FLOOR, REAR | ||||
| 58540-28E20C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E50C0 |
ZRR8#..VOXY..07S..X..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E40C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E10C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28F20C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F10C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E41C0 |
ZRR80..VOXY..07S..X..IV5;ZRR80..07S..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..07S..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E11C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28E51C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F11C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E21C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F21C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#..VOXY..X..IV5 BLACK,TRIM2# |
5 | ||
| 90467-05164C7 |
ZRR80..VOXY..X..IV5;ZRR80..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..IV5 BLACK,TRIM2# |
5 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#..VOXY..X..IV5 BLACK,TRIM2# |
5 | ||
| 90467-05164C7 |
ZRR80..VOXY..X..IV5;ZRR80..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..IV5 BLACK,TRIM2# |
5 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#..VOXY..X..IV5 BLACK,TRIM2# |
5 | ||
| 90467-05164C7 |
ZRR80..VOXY..X..IV5;ZRR80..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..IV5 BLACK,TRIM2# |
5 | ||
| 58556A - MAT, FRONT, LH | ||||
| 58556-28020C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-28020B0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
2 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
4 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
2 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
4 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ZRR8#,ZWR80 |
2 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ZRR8#,ZWR80 |
2 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 62217-13010 |
ZRR8#..07S..IV5 |
1 | ||
| 62217-13010 |
ZRR85..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き) |
1 | ||
| 67925 - COVER, DOOR SCUFF PLATE | ||||
| 67925-28040C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 67925-28040C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 67933 - PLATE, QUARTER SCUFF, INNER RH | ||||
| 67933-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-07215 | ||||
| 90468-05125 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 7455 | ||||

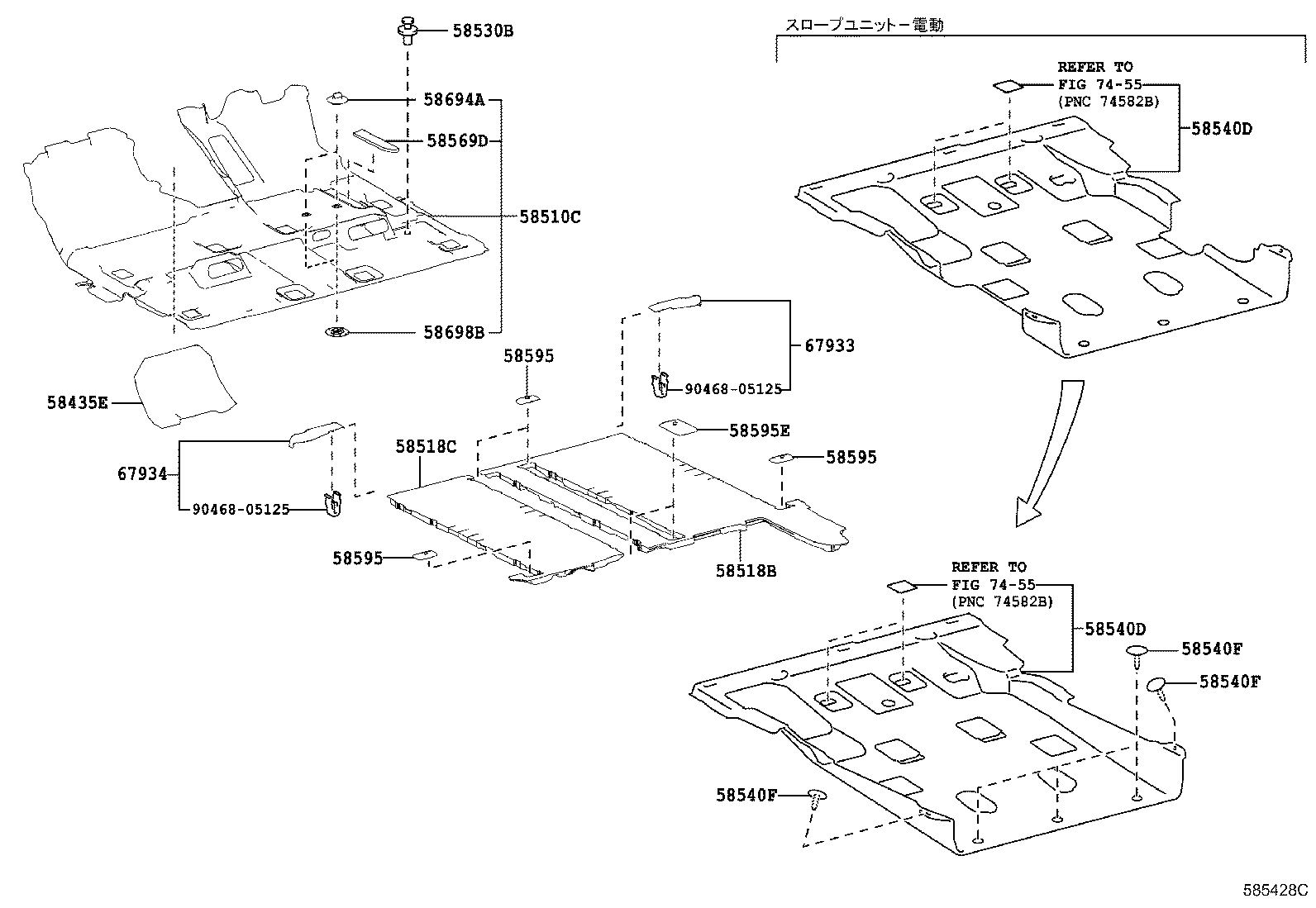

(1410- )ZRR85..07S..IV5
ｸﾙﾏｲｽｼﾖｳｼｬ ｽﾛｰﾌﾟﾀｲﾌﾟ2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-28090 |
ZRR8#,ZWR80 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-28F40B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28F30C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..07S..G FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28G40C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28G30C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),FLOOR CARPET,TRIM2# |
1 | ||
| 58518C - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28G50C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28G50C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),FLOOR CARPET,TRIM2# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07215 |
ZRR8#,ZWR80 |
1 | ||
| 58540D - CARPET ASSY, FLOOR, REAR | ||||
| 58540-28E20C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E50C0 |
ZRR8#..VOXY..07S..X..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E40C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E10C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28F20C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F10C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E41C0 |
ZRR80..VOXY..07S..X..IV5;ZRR80..07S..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..07S..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E11C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28E51C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F11C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E21C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F21C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540D - CARPET ASSY, FLOOR, REAR | ||||
| 58540-28E20C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E50C0 |
ZRR8#..VOXY..07S..X..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28E40C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E10C0 |
ZRR8#..VOXY..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28F20C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F10C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E41C0 |
ZRR80..VOXY..07S..X..IV5;ZRR80..07S..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..07S..IV5 BLACK,TRIM2# |
1 | ||
| 58540-28E11C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様),BLACK,TRIM2# |
1 | ||
| 58540-28E51C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F11C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| 58540-28E21C0 |
ZRR8#..(ESQIR,VOXY)..07S..(X,XI)..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟT(2脚仕様)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540-28F21C0 |
ZRR85..(ESQIR,VOXY)..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾛｰﾌﾟﾕﾆｯﾄ−電動,BLACK,TRIM2# |
1 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#..VOXY..X..IV5 BLACK,TRIM2# |
5 | ||
| 90467-05164C7 |
ZRR80..VOXY..X..IV5;ZRR80..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..IV5 BLACK,TRIM2# |
5 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#..VOXY..X..IV5 BLACK,TRIM2# |
5 | ||
| 90467-05164C7 |
ZRR80..VOXY..X..IV5;ZRR80..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..IV5 BLACK,TRIM2# |
5 | ||
| 58540F - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-05164C0 |
ZRR80..(SI,ZS)..IV5;ZRR8#..VOXY..X..IV5 BLACK,TRIM2# |
5 | ||
| 90467-05164C7 |
ZRR80..VOXY..X..IV5;ZRR80..(SI,XI,ZS)..IV5;ZRR85..(ESQIR,VOXY)..IV5 BLACK,TRIM2# |
5 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-28020B0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
2 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
4 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
2 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
4 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR80..07S..(SI,ZS)..IV5;ZRR8#..VOXY..07S..X..IV5 BLACK,TRIM2# |
2 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),BLACK,TRIM2# |
4 | ||
| 58595-28100C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
4 | ||
| 58595E - MOULDING, FLOOR CARPET, NO.4 | ||||
| 58595-28120C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
2 | ||
| 58595-28120C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き)&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),BLACK,TRIM2# |
2 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ZRR8#,ZWR80 |
2 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ZRR8#,ZWR80 |
2 | ||
| 67933 - PLATE, QUARTER SCUFF, INNER RH | ||||
| 67933-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67934 - PLATE, QUARTER SCUFF, INSIDE LH | ||||
| 67934-28050C0 |
ZRR85..VOXY..07S..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90468-05125 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
