ZRR85G-BPXEP5 (2014)
Toyota Noah/Voxy/Esquire

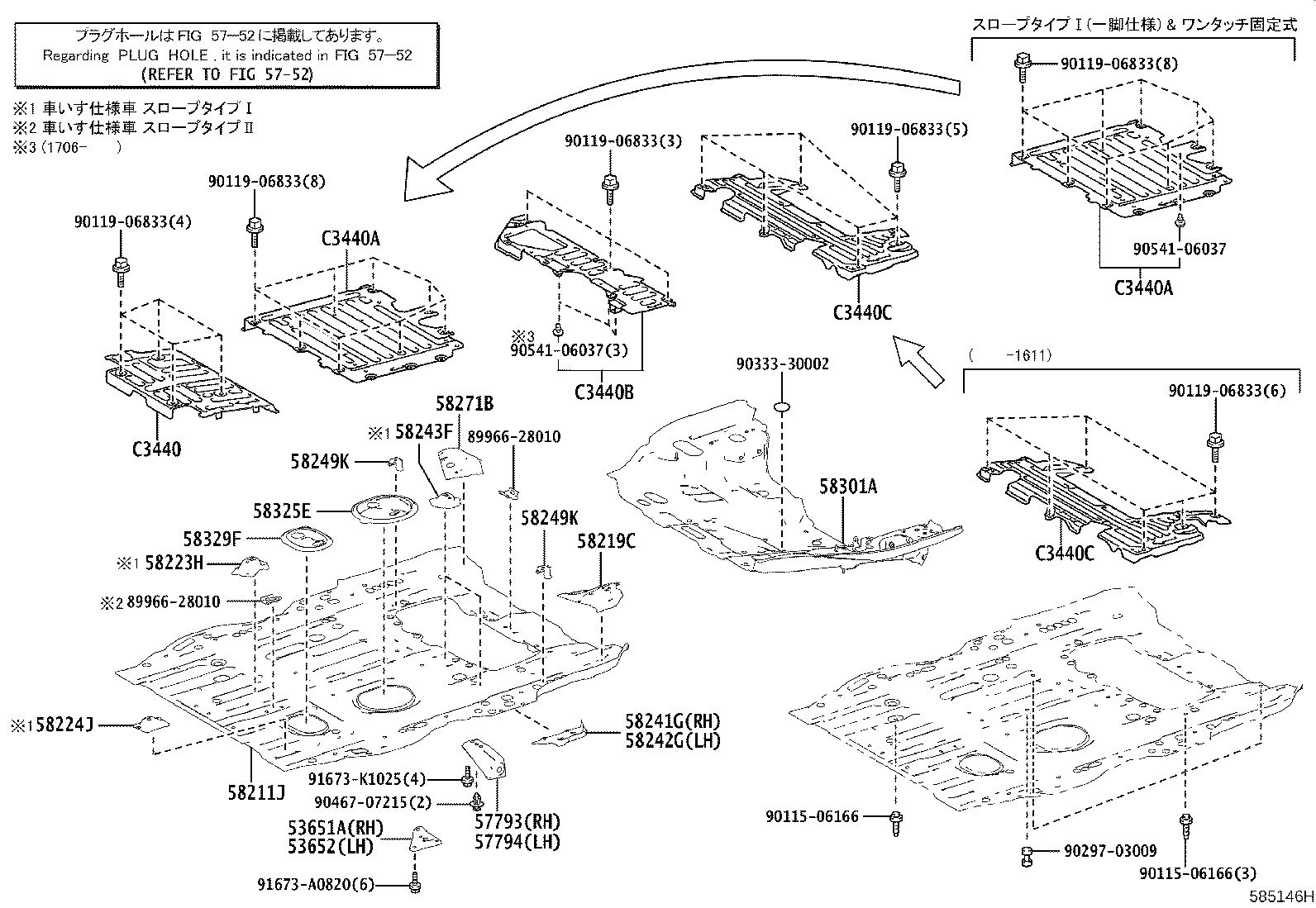

ILLUST NO. 2 OF 2(1401- )IV5
ﾌﾛｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53651A - BRACE, REAR SUSPENSION, UPPER RH | ||||
| 53651-28020 |
ZRR8#,ZWR80 |
1 | ||
| 53652 - BRACE, REAR SUSPENSION, UPPER LH | ||||
| 53652-28020 |
ZRR8#,ZWR80 |
1 | ||
| 57793 - BRACKET, REAR SUSPENSION ARM, REAR RH NO.1 | ||||
| 57793-28050 |
ZRR8#,ZWR80 |
1 | ||
| 57794 - BRACKET, REAR SUSPENSION ARM, REAR LH NO.1 | ||||
| 57794-28060 |
ZRR8#,ZWR80 |
1 | ||
| 58211J - PAN, CENTER FLOOR | ||||
| 58211-28340 |
ZRR8#..07S..IV5 |
1 | ||
| 58211-28300 |
ZRR85..07S..X..IV5 車いす仕様車 ｽﾛｰﾌﾟﾀｲﾌﾟU(ﾘﾔNO.2ｼｰﾄ付き) |
1 | ||
| 58219C - PLATE, CENTER FLOOR REAR END | ||||
| 58219-28030 |
ZRR8#..IV5 |
1 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58221-28200 |
ZRR8#..07S..IV5 |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58222-28010 |
ZRR8#..07S..IV5 |
1 | ||
| 58241G - PANEL, FLOOR SIDE, RH | ||||
| 58241-28030 |
ZRR8#,ZWR80 |
1 | ||
| 58242G - PANEL, FLOOR SIDE, LH | ||||
| 58242-28030 |
ZRR8#,ZWR80 |
1 | ||
| 58243F - PANEL, FLOOR SIDE, REAR RH | ||||
| 58243-28020 |
ZRR8#..07S..IV5 |
2 | ||
| 58249K - BRACKET, CENTER FLOOR BOARD SUPPORT | ||||
| 58249-28030 |
ZRR8#..IV5 |
2 | ||
| 58249K - BRACKET, CENTER FLOOR BOARD SUPPORT | ||||
| 58249-28030 |
ZRR8#..IV5 |
2 | ||
| 58271B - PLATE, FLOOR SIDE, REAR, RH | ||||
| 58271-28020 |
ZRR8#..IV5 |
1 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-28D10 |
ZRR8#..IV5 |
1 | ||
| 58301-28D11 |
ZRR8#..IV5 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-28110 |
ZRR8#,ZWR80 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-28030 |
ZRR8#,ZWR80 |
1 | ||
| C3440 - COVER ASSY,TECS REAR FLOOR SERVICE NO.1 | ||||
| C3440-28010 |
ZRR8#..07S..IV5 |
1 | ||
| C3440A - COVER ASSY,TECS REAR FLOOR SERVICE NO.2 | ||||
| C3440-28020 |
ZRR8#..07S..IV5 |
1 | ||
| C3440A - COVER ASSY,TECS REAR FLOOR SERVICE NO.2 | ||||
| C3440-28020 |
ZRR8#..07S..IV5 |
1 | ||
| C3440B - COVER ASSY,TECS REAR FLOOR SERVICE NO.3 | ||||
| C3440-28050 |
ZRR8#..07S..IV5 |
1 | ||
| C3440C - COVER ASSY,TECS REAR FLOOR SERVICE NO.4 | ||||
| C3440-28031 |
ZRR8#..IV5 |
1 | ||
| C3440-28030 |
ZRR8#..IV5 |
1 | ||
| C3440C - COVER ASSY,TECS REAR FLOOR SERVICE NO.4 | ||||
| C3440-28031 |
ZRR8#..IV5 |
1 | ||
| C3440-28030 |
ZRR8#..IV5 |
1 | ||
| Common parts | ||||
| 89966-28010 | ||||
| 90115-06166 | ||||
| 90119-06833 | ||||
| 90297-03009 | ||||
| 90333-30002 | ||||
| 90467-07215 | ||||
| 90541-06037 | ||||
| 91673-A0820 | ||||
| 91673-K1025 | ||||
| Linked diagrams | ||||
| 5752 | ||||

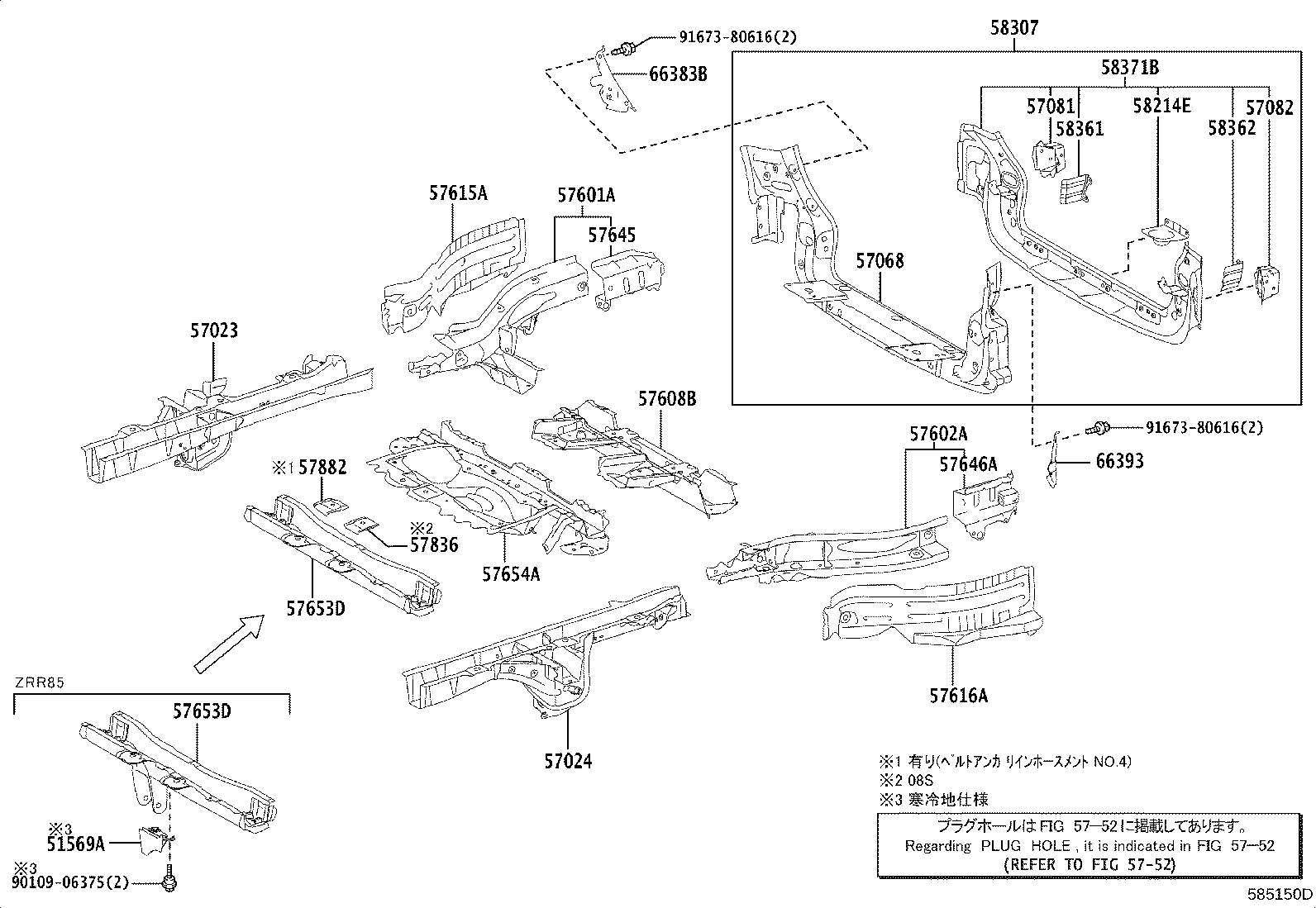

ILLUST NO. 1 OF 2(1401- )IV5
ﾌﾛｱｻｲﾄﾞﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51448-28060 |
ZRR85 寒冷地仕様−有り |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-28470 |
ZRR8#,ZWR80 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-28530 |
ZRR8#,ZWR80 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-28291 |
ZRR8#..IV5 |
1 | ||
| 57068-28290 |
ZRR8#..IV5 |
1 | ||
| 57081 - BRACKET SUB-ASSY, REAR BUMPER MOUNTING | ||||
| 57081-28020 |
ZRR8#,ZWR80 |
1 | ||
| 57082 - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 57082-28020 |
ZRR8#,ZWR80 |
1 | ||
| 57601A - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-28190 |
ZRR8#..IV5 |
1 | ||
| 57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-28160 |
ZRR8#..IV5 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-28270 |
ZRR8#..IV5 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-28100 |
ZRR8#,ZWR80 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-28070 |
ZRR8#,ZWR80 |
1 | ||
| 57645 - REINFORCEMENT, REAR SIDE MEMBER, RH | ||||
| 57645-28080 |
ZRR8#,ZWR80 |
1 | ||
| 57646A - REINFORCEMENT, REAR SIDE MEMBER, LH | ||||
| 57646-28070 |
ZRR8#,ZWR80 |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57005-28240 |
ZRR85..07S |
1 | ||
| 57653D - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57005-28240 |
ZRR85..07S |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-28490 |
ZRR8#..IV5 |
1 | ||
| 57882 - REINFORCEMENT, BELT ANCHOR, NO.4 | ||||
| 57882-28010 |
ZRR8#..07S..IV5 |
1 | ||
| 58214E - BRACKET, JACK SUPPORT | ||||
| 58214-28010 |
ZRR8#..IV5 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58308-28040 |
ZRR8#..IV5 |
1 | ||
| 58308-28041 |
ZRR8#..IV5 |
1 | ||
| 58361 - REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH | ||||
| 58361-28030 |
ZRR8#..IV5 |
1 | ||
| 58362 - REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH | ||||
| 58362-28050 |
ZRR8#..IV5 |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58307-28150 |
ZRR8#..IV5 |
1 | ||
| 66383B - BRACKET, ROPE HOOK, NO.1 RH | ||||
| 66383-28020 |
ZRR8#,ZWR80 |
1 | ||
| 66393 - BRACKET, ROPE HOOK, NO.1 LH | ||||
| 66393-28030 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90109-06375 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
