ZRR85G-BPXEP5 (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

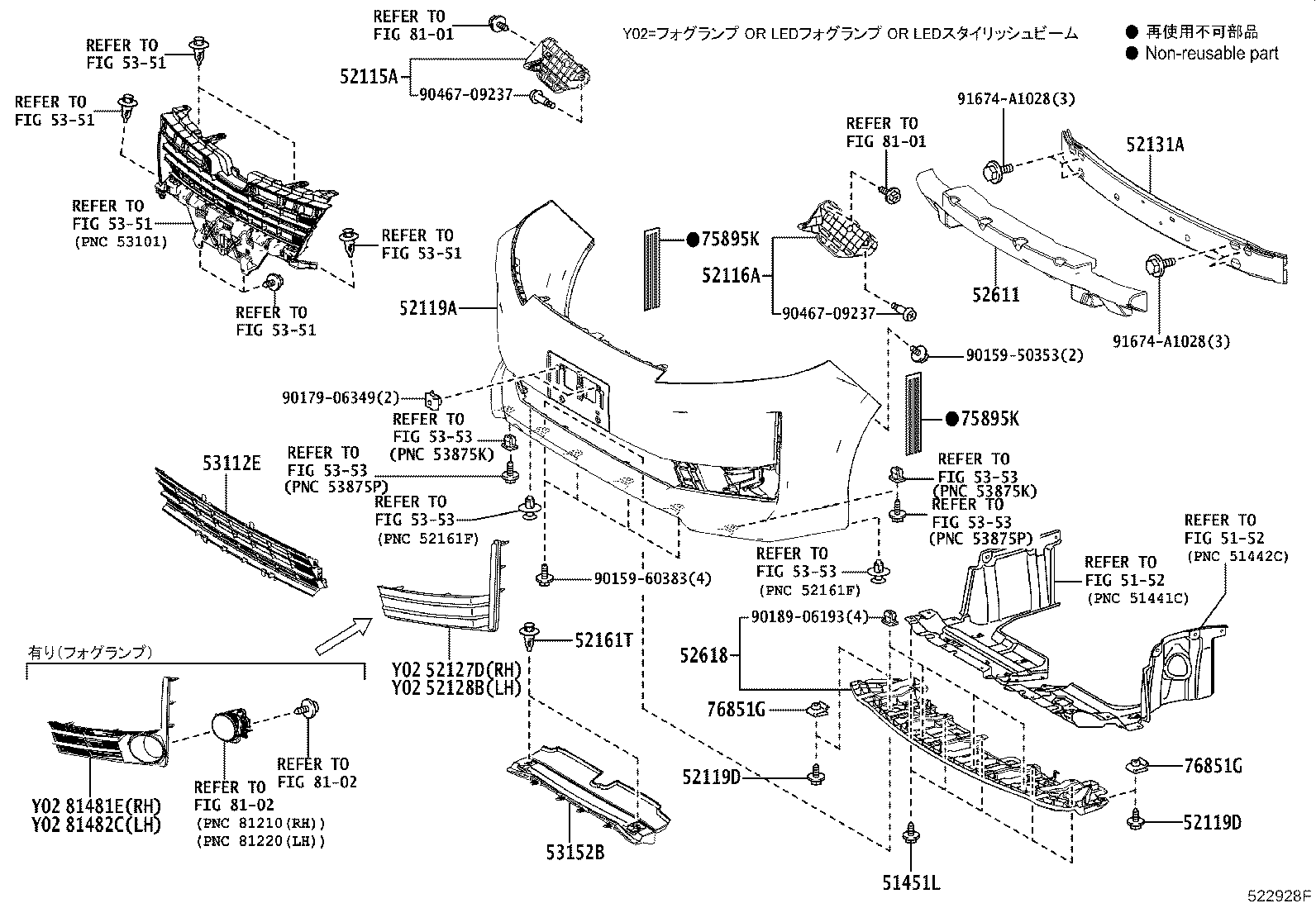

(1401-1706)VOXY..V,X

Click highlighted areas on diagram

diagram 51451L 5152 5152 52115A 52116A 52119A 52119D 52119D 52127D 52128B 52131A 52161T 52611 52618 53112E 53152B 5351 5351 5351 5351 5351 5353 5353 5353 5353 5353 5353 75895K 75895K 76851G 76851G 8101 8101 8102 8102 81481E 81482C 9015950353 9015960383 9017906349 9018906193 9046709237 9046709237 91674A1028 91674A1028
Part # Description Qty Price
51451L - BOLT, NO.1
90119-06767

ZRR8#,ZWR80

 5
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-28240

ZRR8#,ZWR80..VOXY..(V,X)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-28220

ZRR8#,ZWR80..VOXY..(V,X)

 1
52119A - COVER, FRONT BUMPER
52119-28G90A0

ZRR8#,ZWR80..VOXY..(V,X)

WHITE PEARL CS.,070

 1
52119-28G90K0

ZRR8#,ZWR80..VOXY..(V,X)

DK.VIOLET M.M.,9AF

 1
52119-28G90C0

ZRR8#,ZWR80..VOXY..(V,X)

BLACKISH AGEHA M.M.,221

 1
52119-28G90H0

ZRR8#,ZWR80..VOXY..(V,X)

OCEAN MINT ME.,789

 1
52119-28G90B0

ZRR8#,ZWR80..VOXY..(V,X)

SILVER ME.,1F7

 1
52119-28G90C1

ZRR8#,ZWR80..VOXY..(V,X)

BLACK,202

 1
52119D - SCREW, NO.1
90159-60383

ZRR8#,ZWR80

 2
52119D - SCREW, NO.1
90159-60383

ZRR8#,ZWR80

 2
52127D - COVER, FRONT BUMPER HOLE, RH
52127-28500

ZRR8#,ZWR80..VOXY..X

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-28250

ZRR8#,ZWR80..VOXY..X

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-28170

ZRR8#,ZWR80

 1
52161T - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28110

ZRR8#,ZWR80

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-28030

ZRR8#,ZWR80

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-28240

ZRR8#,ZWR80..VOXY..(V,X)

塗装不要

 1
53152B - GUIDE, RADIATOR GRILLE AIR
53152-28040

ZRR8#,ZWR80..G,GI,V,X,XI

 1
75895K - TAPE, MOULDING, NO.1
75895-28010

ZRR8#,ZWR80

 2
75895K - TAPE, MOULDING, NO.1
75895-28010

ZRR8#,ZWR80

 2
76851G - GROMMET, SCREW, NO.1
90189-06131

ZRR8#,ZWR80

 2
76851G - GROMMET, SCREW, NO.1
90189-06131

ZRR8#,ZWR80

 2
81481E - COVER, FOG LAMP, RH
52127-28490

ZRR8#,ZWR80..V

 1
52127-28490

ZRR8#,ZWR80..VOXY..X

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
81482C - COVER, FOG LAMP, LH
52128-28240

ZRR8#,ZWR80..V

 1
52128-28240

ZRR8#,ZWR80..VOXY..X

ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)

 1
Common parts
90159-50353
90159-60383
90179-06349
90189-06193
90467-09237
91674-A1028
Linked diagrams
5152
5351
5353
8101
8102

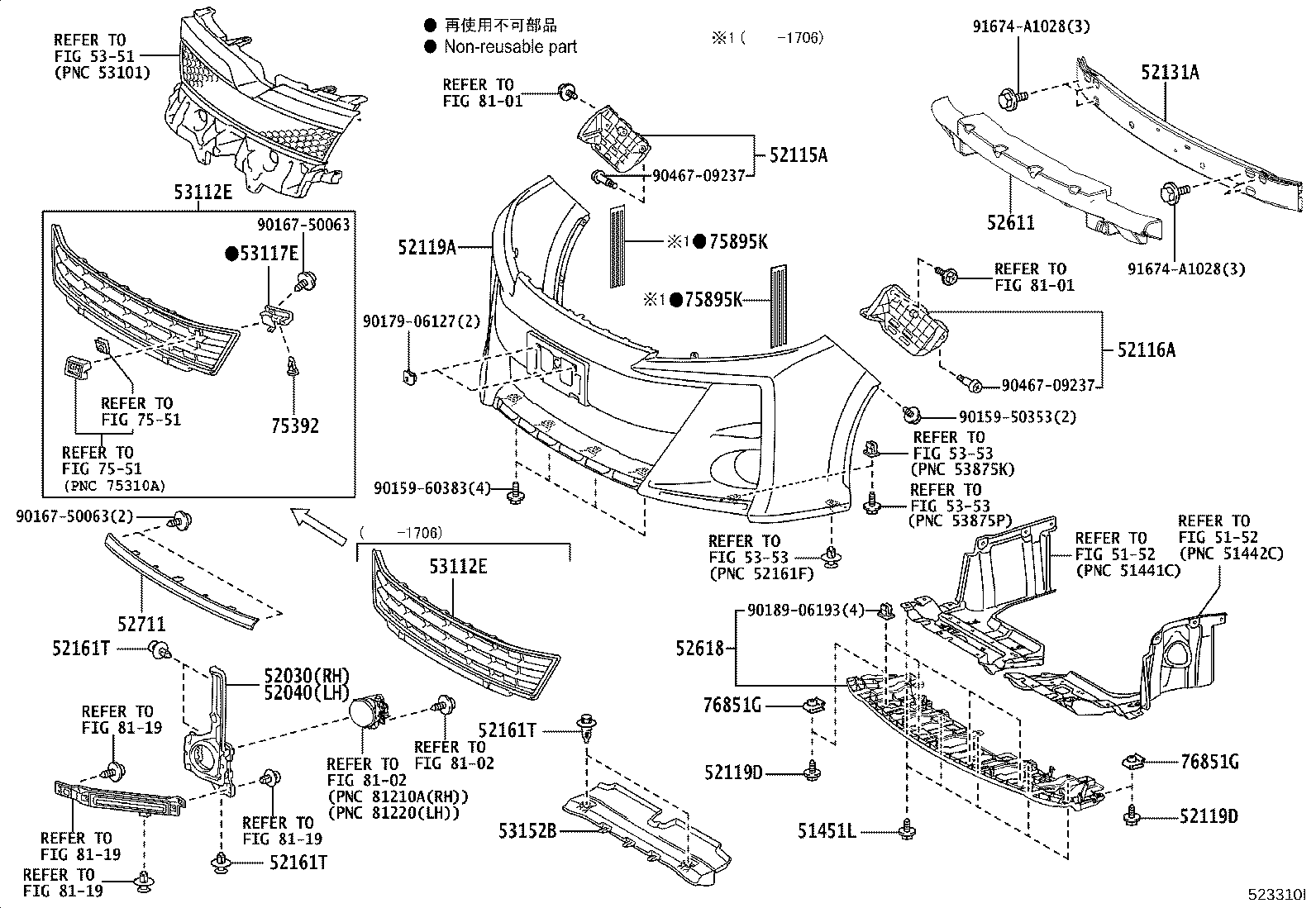

(1605- )VOXY

Click highlighted areas on diagram

G'S OR GR SPORT

diagram 51451L 5152 5152 52030 52040 52115A 52116A 52119A 52119D 52119D 52131A 52161T 52161T 52161T 52611 52618 52711 53112E 53112E 53117E 53152B 5351 5353 5353 5353 75392 7551 7551 75895K 75895K 76851G 76851G 8101 8101 8102 8102 8119 8119 8119 8119 9015950353 9015960383 9016750063 9016750063 9017906127 9018906193 9046709237 9046709237 91674A1028 91674A1028
Part # Description Qty Price
51451L - BOLT, NO.1
90119-06767

ZRR8#,ZWR80

 5
52030 - COVER ASSY, FRONT BUMPER HOLE, RH
52030-28030

ZRR8#,ZWR80..G

ﾒｯｷ

 1
52040 - COVER ASSY, FRONT BUMPER HOLE, LH
52040-28030

ZRR8#,ZWR80..G

ﾒｯｷ

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-28240

ZRR8#,ZWR80..VOXY..(V,X)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-28220

ZRR8#,ZWR80..VOXY..(V,X)

 1
52119A - COVER, FRONT BUMPER
52119-28G90A0

ZRR8#,ZWR80..VOXY..(V,X)

WHITE PEARL CS.,070

 1
52119-28G90K0

ZRR8#,ZWR80..VOXY..(V,X)

DK.VIOLET M.M.,9AF

 1
52119-28G90C0

ZRR8#,ZWR80..VOXY..(V,X)

BLACKISH AGEHA M.M.,221

 1
52119-28G90H0

ZRR8#,ZWR80..VOXY..(V,X)

OCEAN MINT ME.,789

 1
52119-28G90B0

ZRR8#,ZWR80..VOXY..(V,X)

SILVER ME.,1F7

 1
52119-28G90C1

ZRR8#,ZWR80..VOXY..(V,X)

BLACK,202

 1
52119D - SCREW, NO.1
90159-60383

ZRR8#,ZWR80

 2
52119D - SCREW, NO.1
90159-60383

ZRR8#,ZWR80

 2
52131A - REINFORCEMENT, FRONT BUMPER
52131-28170

ZRR8#,ZWR80

 1
52161T - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 2
52161T - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 2
52161T - PIECE, FRONT BUMPER
52161-16010

ZRR8#,ZWR80

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28110

ZRR8#,ZWR80

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-28030

ZRR8#,ZWR80

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-28240

ZRR8#,ZWR80..VOXY..(V,X)

塗装不要

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-28240

ZRR8#,ZWR80..VOXY..(V,X)

塗装不要

 1
53152B - GUIDE, RADIATOR GRILLE AIR
53152-28040

ZRR8#,ZWR80..G,GI,V,X,XI

 1
75895K - TAPE, MOULDING, NO.1
75895-28010

ZRR8#,ZWR80

 2
75895K - TAPE, MOULDING, NO.1
75895-28010

ZRR8#,ZWR80

 2
76851G - GROMMET, SCREW, NO.1
90189-06131

ZRR8#,ZWR80

 2
76851G - GROMMET, SCREW, NO.1
90189-06131

ZRR8#,ZWR80

 2
Common parts
90159-50353
90159-60383
90167-50063
90179-06127
90189-06193
90467-09237
91674-A1028
Linked diagrams
5152
5351
5353
7551
8101
8102
8119
