ZRR85G-ARXEP5 (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

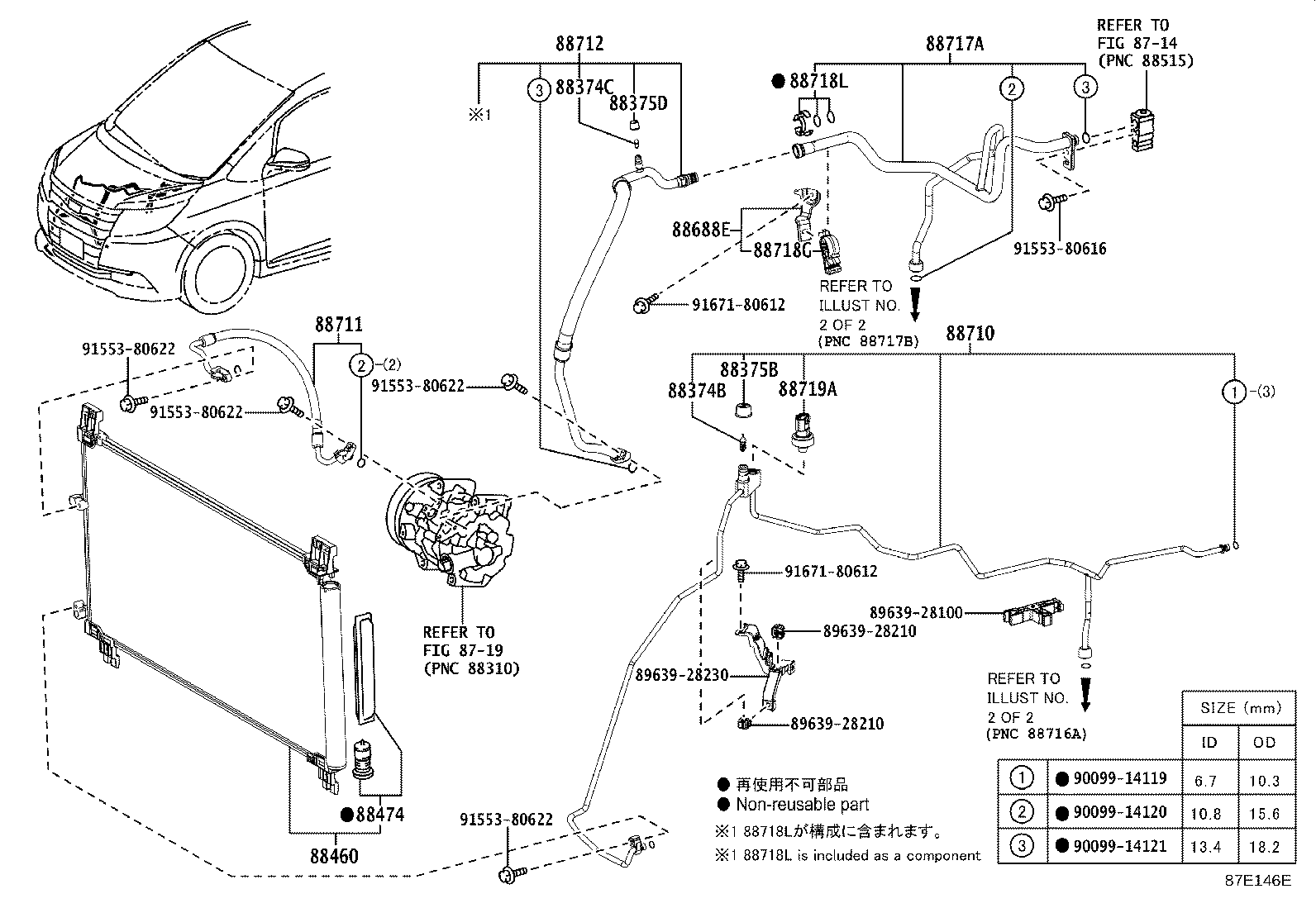

ILLUST NO. 1 OF 2(1401- )ZRR8#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88688E 88710 88711 88712 88717A 88718G 88718L 88719A 8963928100 8963928210 8963928210 8963928230 9009914119 9009914120 9009914121 9155380616 9155380622 9155380622 9155380622 9155380622 9167180612 9167180612
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZRR8#,ZWR80

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRR8#,ZWR80

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

ZRR8#,ZWR80

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

ZRR8#,ZWR80

 1
88460 - CONDENSER ASSY, COOLER
88460-28650

ZRR8#

 1
88474 - DRYER, COOLER
88474-12010

ZRR8#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-28890

ZRR8#,ZWR80

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-28A00

ZRR8#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-28A00

ZRR8#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28A00

ZRR8#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-28A00

ZRR8#

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-58101

ZRR8#,ZWR80

 1
88718L - CLAMP, PIPING
88718-52280

ZRR8#,ZWR80

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZRR8#,ZWR80

 1
Common parts
89639-28100
89639-28210
89639-28230
90099-14119
90099-14120
90099-14121
91553-80616
91553-80622
91671-80612
Linked diagrams
8714
8719

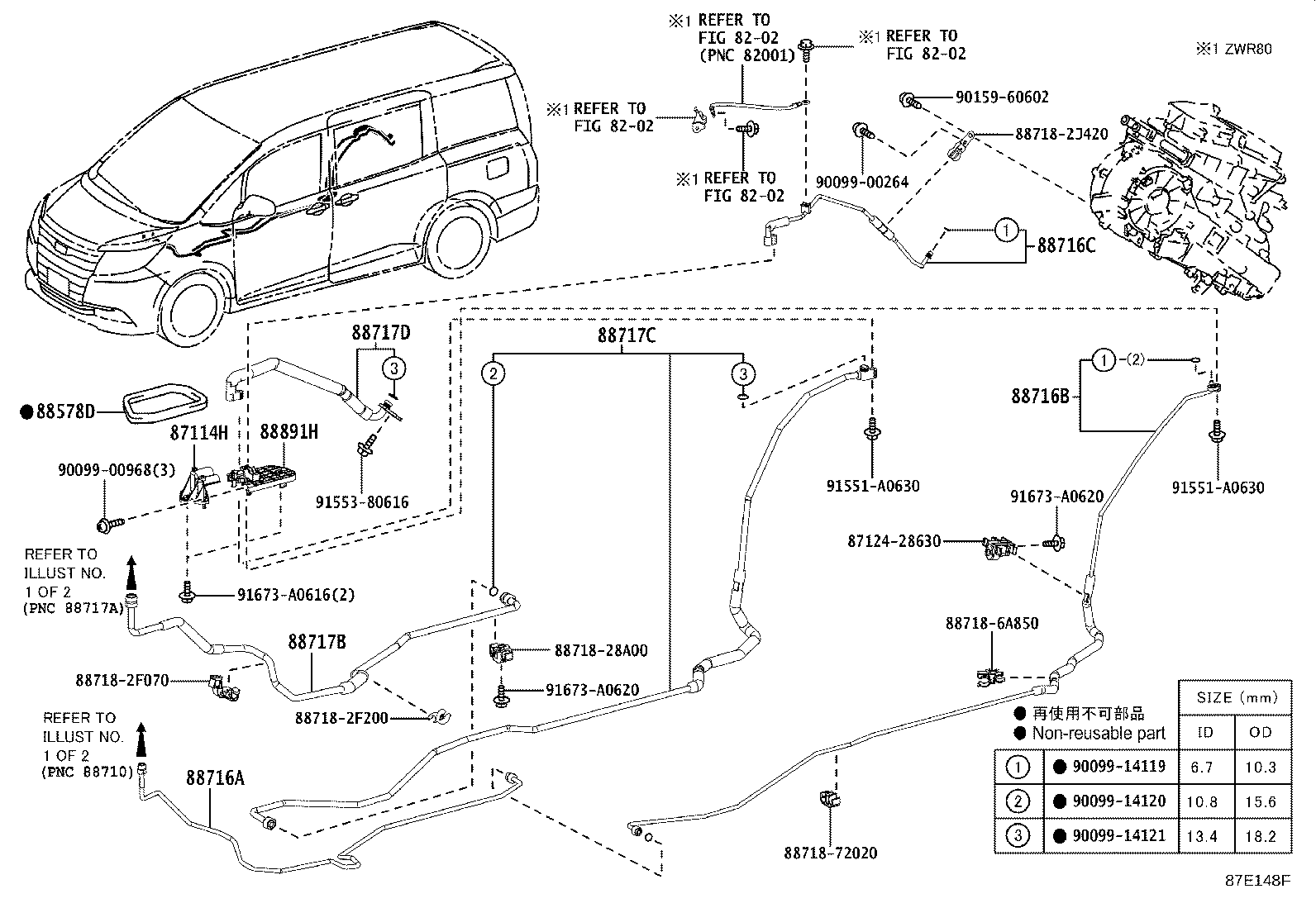

ILLUST NO. 2 OF 2(1401- )

Click highlighted areas on diagram

ﾘﾔ,ﾅｼ(ﾘﾔﾋｰﾀ)

diagram 8202 8202 8202 8202 87114H 8712428630 88578D 88716A 88716B 88716C 88717B 88717C 88717D 8871828A00 887182F070 887182F200 887182J420 887186A850 8871872020 88891H 9009900264 9009900968 9009914119 9009914120 9009914121 9015960602 91551A0630 91551A0630 9155380616 91673A0616 91673A0620 91673A0620
Part # Description Qty Price
87114H - COVER, HEATER
87114-28160

ZRR8#,ZWR80

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-28560

ZRR8#,ZWR80

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28A30

ZRR85

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28A50

ZRR8#..IV5;ZWR80..G,GI,V

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28A60

ZRR8#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-28A30

ZRR85

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-28A50

ZRR8#..IV5;ZWR80..G,GI,V

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-28A60

ZRR8#,ZWR80

 1
88891H - COVER, COOLER, NO.1
87114-28170

ZRR8#..IV5;ZWR80..G,GI,V

 1
Common parts
87124-28630
88718-28A00
88718-2F070
88718-2F200
88718-2J420
88718-6A850
88718-72020
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60602
91551-A0630
91553-80616
91673-A0616
91673-A0620
Linked diagrams
8202

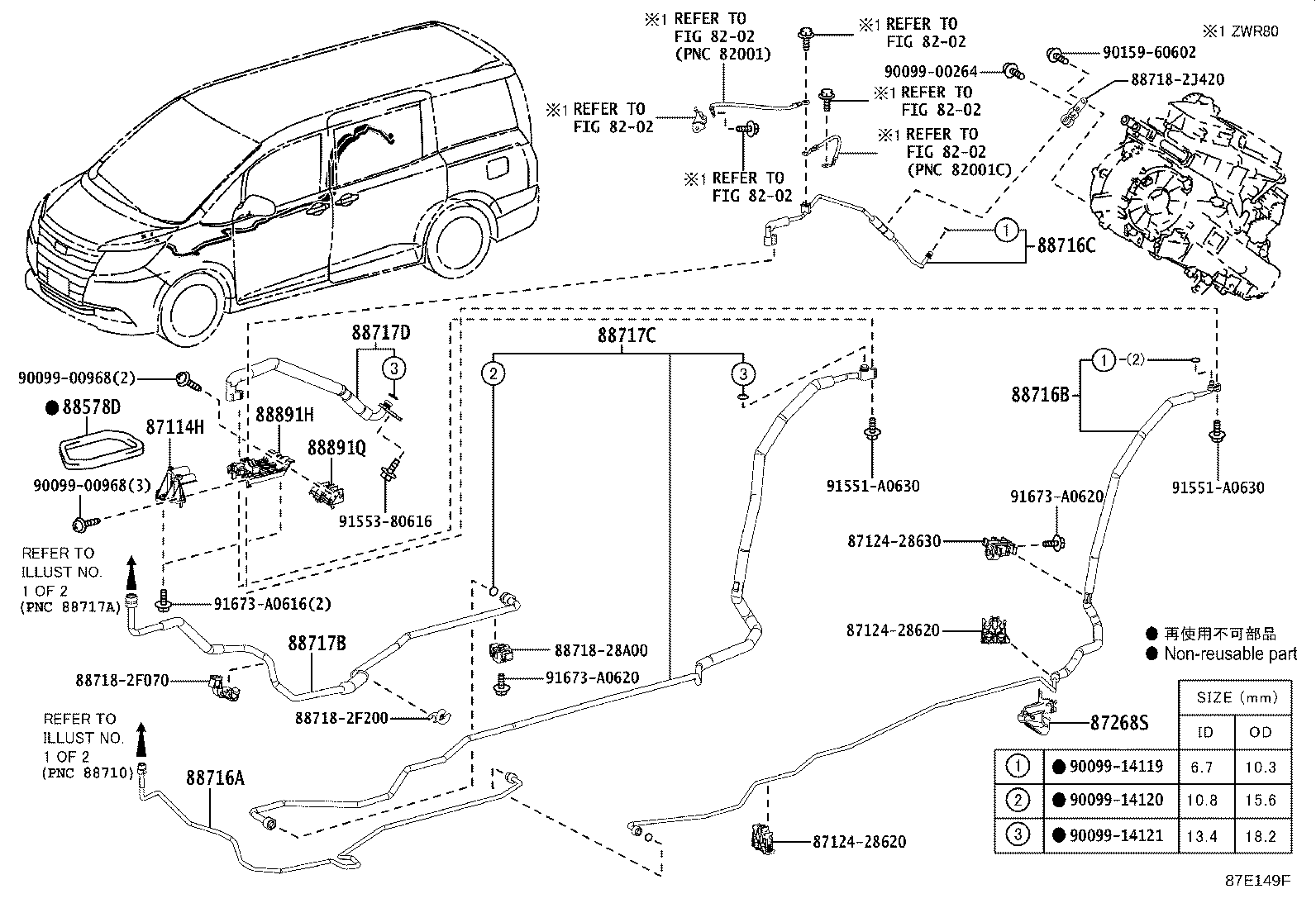

ILLUST NO. 2 OF 2(1401- )

Click highlighted areas on diagram

ﾘﾔ,ｱﾘ(ﾘﾔﾋｰﾀ)

diagram 8202 8202 8202 8202 8202 8202 87114H 8712428620 8712428620 8712428630 87268S 88578D 88716A 88716B 88716C 88717B 88717C 88717D 8871828A00 887182F070 887182F200 887182J420 88891H 88891Q 9009900264 9009900968 9009900968 9009914119 9009914120 9009914121 9015960602 91551A0630 91551A0630 9155380616 91673A0616 91673A0620 91673A0620
Part # Description Qty Price
87114H - COVER, HEATER
87114-28160

ZRR8#,ZWR80

 1
87268S - PROTECTOR, COOLER TUBE
87268-28130

ZRR8#..IV5;ZWR80..G,GI,V

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-28560

ZRR8#,ZWR80

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28A30

ZRR85

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28A50

ZRR8#..IV5;ZWR80..G,GI,V

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28A60

ZRR8#

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-28A30

ZRR85

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-28A50

ZRR8#..IV5;ZWR80..G,GI,V

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-28A60

ZRR8#,ZWR80

 1
88891H - COVER, COOLER, NO.1
87114-28170

ZRR8#..IV5;ZWR80..G,GI,V

 1
88891Q - COVER, COOLER, NO.2
87114-28180

ZRR8#..IV5;ZWR80..G,GI,V

 1
Common parts
87124-28620
87124-28630
88718-28A00
88718-2F070
88718-2F200
88718-2J420
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60602
91551-A0630
91553-80616
91673-A0616
91673-A0620
Linked diagrams
8202
