ZRR85G-ARXEP5 (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )ZRR8#

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ﾅｼ(ﾘﾔﾋｰﾀ)

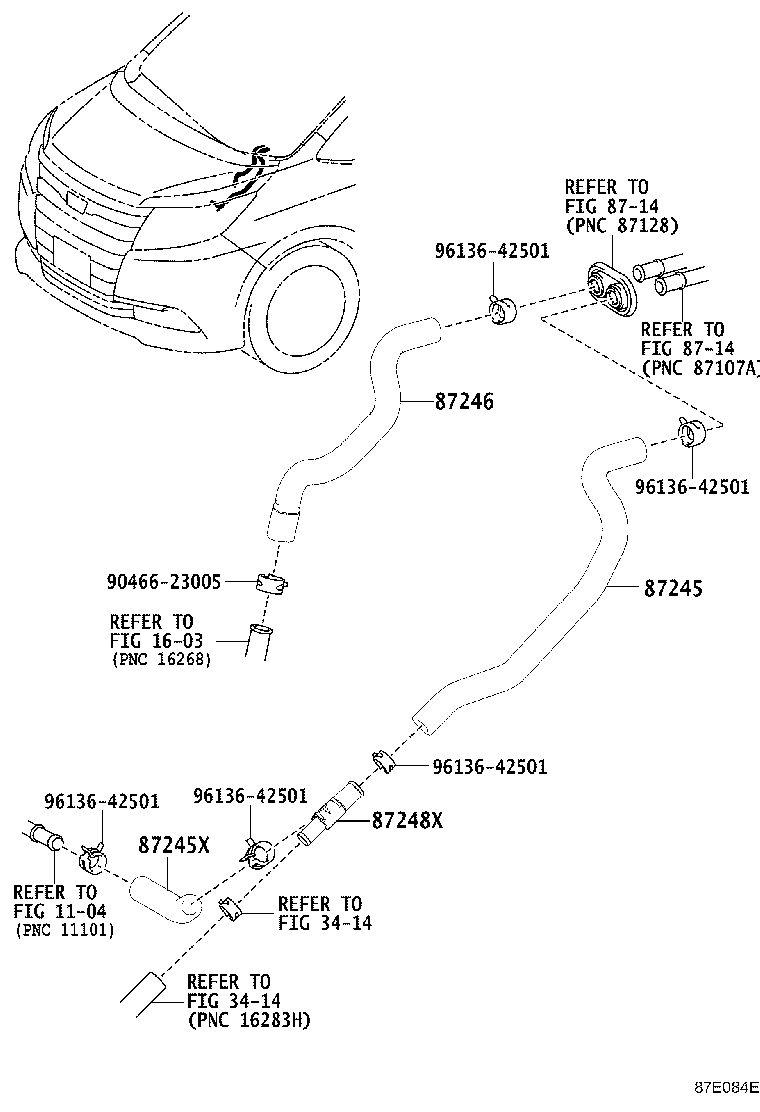

diagram 1104 1603 3414 3414 8714 8714 87245 87245X 87246 87248X 9046623005 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-28A60

ZRR8#..IV5

 1
87245X - HOSE, HEATER WATER
87245-28D00

ZRR8#

 1
87248X - PIPE, HEATER WATER
87248-33030

ZRR8#

 1
Common parts
90466-23005
96136-42501
Linked diagrams
1104
1603
3414
8714

ILLUST NO. 1 OF 2(1401- )ZRR8#

Click highlighted areas on diagram

ﾌﾛﾝﾄ,ｱﾘ(ﾘﾔﾋｰﾀ)

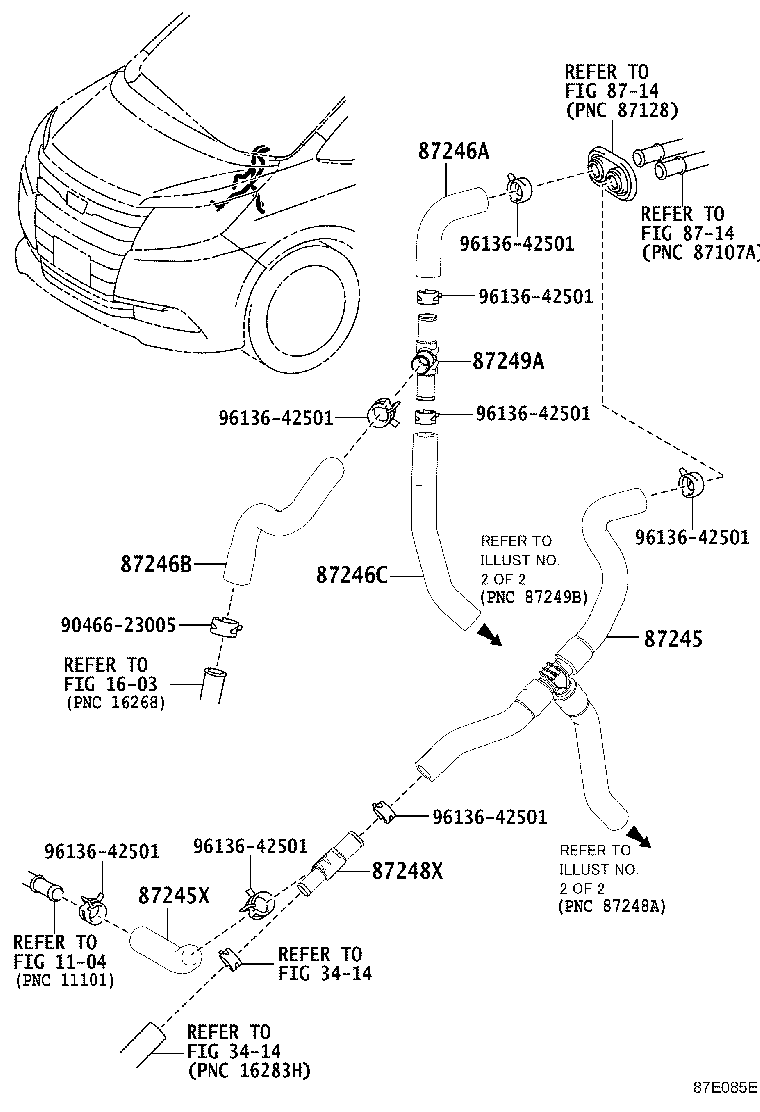

diagram 1104 1603 3414 3414 8714 8714 87245 87245X 87246A 87246B 87246C 87248X 87249A 9046623005 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-28A60

ZRR8#..IV5

 1
87245X - HOSE, HEATER WATER
87245-28D00

ZRR8#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-28E10

ZRR8#..IV5

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-28E00

ZRR8#..IV5

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-28E20

ZRR8#..IV5

 1
87248X - PIPE, HEATER WATER
87248-33030

ZRR8#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12300

ZRR8#..IV5

 1
Common parts
90466-23005
96136-42501
Linked diagrams
1104
1603
3414
8714

ILLUST NO. 2 OF 2(1401- )ZRR8#

Click highlighted areas on diagram

ﾘﾔ

diagram 8712428590 8712428600 8712428610 8712428640 8712428640 8712428650 8712428660 87245B 87245C 87245H 87246D 87246E 87246G 87248A 87248B 87248J 87249B 87249C 87249D 9009900264 9009900264 9015960602 9046626003 9046626003 9046626003 9046626003 91551A0618 91551A0618 9613642501 9613642501 9613652501 9613652501 9613652501 9613652501 9613652501 9613652501 9613842501 9613842501
Part # Description Qty Price
87245B - HOSE, HEATER WATER, INLET B
87245-28E40

ZRR8#..IV5;ZWR80..G,GI,V

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-28E80

ZRR8#..IV5;ZWR80..G,GI,V

 1
87245H - HOSE, HEATER WATER, INLET H
87245-28F00

ZRR8#..IV5;ZWR80..G,GI,V

 1
87245-28F20

ZRR8#..IV5;ZWR80..G,GI,V

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-28E50

ZRR8#..IV5;ZWR80..G,GI,V

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-28E90

ZRR8#..IV5;ZWR80..G,GI,V

 1
87246G - HOSE, HEATER WATER, OUTLET G
87245-28F00

ZRR8#..IV5;ZWR80..G,GI,V

 1
87248A - PIPE, HEATER WATER INLET, A
87248-28640

ZRR8#..IV5

 1
87248B - PIPE, HEATER WATER INLET, B
87248-28680

ZRR8#..IV5;ZWR80..G,GI,V

 1
87248J - PIPE, HEATER WATER INLET, J
87248-28700

ZRR8#..IV5

 1
87248-28701

ZRR8#..IV5

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-28650

ZRR8#..IV5

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-28690

ZRR8#..IV5;ZWR80..G,GI,V

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-28710

ZRR8#..IV5

 1
Common parts
87124-28590
87124-28600
87124-28610
87124-28640
87124-28650
87124-28660
90099-00264
90159-60602
90466-26003
91551-A0618
96136-42501
96136-52501
96138-42501
