ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire
ILLUST NO. 1 OF11(1401- )ZRR8#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28R20 |
ZRR85..G,GI,SI,V,ZS;ZRR80..(SI,ZS)..IV5 |
1 | ||
| 82111-28R20 |
ZRR85..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82111-28R30 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS 寒冷地仕様−有り |
1 | ||
| 82111-28S10 |
ZRR85..X,XI 寒冷地仕様−有り |
1 | ||
| 82111-28R60 |
ZRR85..X,XI |
1 | ||
| 82111-28R30 |
ZRR85..IV5 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82111-28R31 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS 寒冷地仕様−有り |
1 | ||
| 82111-28R31 |
ZRR85..IV5 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82111-28R21 |
ZRR85..G,GI,SI,V,ZS;ZRR80..(SI,ZS)..IV5 |
1 | ||
| 82111-28R21 |
ZRR85..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82111-28S11 |
ZRR85..X,XI 寒冷地仕様−有り |
1 | ||
| 82111-28R61 |
ZRR85..X,XI |
1 | ||
| 82111-28R33 |
ZRR80..SI,ZS;ZRR85..G,GI,SI,V,ZS 寒冷地仕様−有り |
1 | ||
| 82111-28R33 |
ZRR85..IV5 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82111-28S13 |
ZRR85..X,XI 寒冷地仕様−有り |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28460 |
ZRR8#,ZWR80..G,GI,XI |
1 | ||
| 82113-28460 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 82113-28480 |
ZRR8#,ZWR80..V |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-28710 |
ZRR8#,ZWR80 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28E60 |
ZRR8#,ZWR80 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28E70 |
ZRR8#,ZWR80 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-28J50 |
ZRR8#,ZWR80 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28Q90 |
ZRR8#,ZWR80 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-28R00 |
ZRR8#,ZWR80 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-28U10 |
ZRR8#,ZWR80 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28U20 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 82817-28U20 |
ZRR8#,ZWR80..G,GI,SI,XI |
1 | ||
| 82817-28U30 |
ZRR8#,ZWR80..V,ZS |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-28U20 |
ZRR8#,ZWR80..NOAH..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 82817-28U20 |
ZRR8#,ZWR80..G,GI,SI,XI |
1 | ||
| 82817-28U30 |
ZRR8#,ZWR80..V,ZS |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-28310 |
ZRR8#,ZWR80..X |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-28010 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 82715-28N10 | ||||
| 82715-28N20 | ||||
| 90119-06915 | ||||
| 90119-06951 | ||||
| 90179-06018 | ||||
| 90467-06192 | ||||
| 91621-J0612 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(1401- )ZRR8#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28B40 |
ZRR8# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28500 |
ZRR8# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZRR8# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-28E30 |
ZRR8# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-28E40 |
ZRR8#,ZWR80 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-28E50 |
ZRR8# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-28R10 |
ZRR8# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-28R20 |
ZRR8# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-28R30 |
ZRR8#,ZWR80 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-28R40 |
ZRR8# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-28T80 |
ZRR8# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
ZRR8# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZRR8# |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90119-06915 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF11(1401- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28871 |
ZRR8# ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82133-28870 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-28T90 |
ZRR8#..X..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82141-28S70 |
ZRR8#..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28S80 |
ZRR8#..X..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ)&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28S90 |
ZRR8#..G,V 寒冷地仕様−有り&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28S90 |
ZRR8#..G,V ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28T30 |
ZRR8#..(X,XI)..IV5 |
1 | ||
| 82141-28U10 |
ZRR8#..G,GI,V 寒冷地仕様−有り |
1 | ||
| 82141-28U00 |
ZRR8#..G,GI,V |
1 | ||
| 82141-28T91 |
ZRR8#..(X,XI)..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82141-28S81 |
ZRR8#..X..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ)&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28S71 |
ZRR8#..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28S91 |
ZRR8#..G,GI,V 寒冷地仕様−有り&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28S91 |
ZRR8#..G,GI,V ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28U11 |
ZRR8#..G,GI,V 寒冷地仕様−有り |
1 | ||
| 82141-28U01 |
ZRR8#..G,GI,V |
1 | ||
| 82141-28W70 |
ZRR8#..X..IV5 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 82141-28W80 |
ZRR8#..X ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28X00 |
ZRR8#..X..IV5 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82141-28X30 |
ZRR8#..X..IV5 |
1 | ||
| 82141-28X10 |
ZRR8#..X..IV5 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ)&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82141-28X40 |
ZRR8#..X..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28110 |
ZRR8#,ZWR80..SI,X,XI,ZS |
1 | ||
| 82142-28131 |
ZRR8#,ZWR80..G,GI,V |
1 | ||
| 82142-28120 |
ZRR8#..SI,X,ZS ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82142-28130 |
ZRR8#,ZWR80..G,GI,V |
1 | ||
| 82142-28140 |
ZRR8#..G,V ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82142-28140 |
ZRR8#..G,V ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82142-28120 |
ZRR8#..SI,X,ZS ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82142-28111 |
ZRR8#,ZWR80..SI,X,XI,ZS |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82143-28040 |
ZRR8#,ZWR80 |
1 | ||
| 82212A - HARNESS, AIR CONDITIONER | ||||
| 82212-28060 |
ZRR8#,ZWR80..G,GI,V |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-28B00 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| 91673-80622 | ||||
ILLUST NO. 4 OF11(1401- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28C60 |
ZRR8#..X,XI |
1 | ||
| 82151-28C90 |
ZRR8#..(X,XI)..IV5 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82151-28C80 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 82151-28C80 |
ZRR8#..(X,XI)..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82151-28C70 |
ZRR8#..X,XI 寒冷地仕様−有り |
1 | ||
| 82151-28C90 |
ZWR80;ZRR8#..G,GI,SI,V,ZS 寒冷地仕様−有り |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28C70 |
ZRR8#..X,XI |
1 | ||
| 82152-28D00 |
ZWR80;ZRR8#..G,GI,SI,V,ZS 寒冷地仕様−有り |
1 | ||
| 82152-28D00 |
ZRR8#..(X,XI)..IV5 寒冷地仕様−有り&ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82152-28C90 |
ZRR8#..(X,XI)..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82152-28C80 |
ZRR8#..X,XI 寒冷地仕様−有り |
1 | ||
| 82152-28C90 |
ZWR80;ZRR8#..G,GI,SI,V,ZS |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-28410 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 82153-28430 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 82153-28411 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS |
1 | ||
| 82153-28431 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-28040 |
ZRR8#,ZWR80..G,SI,V,X,XI,ZS ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-28390 |
ZRR8#,ZWR80 |
1 | ||
| 82154-28391 |
ZRR8#,ZWR80 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82158-28110 |
ZRR8#,ZWR80 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28670 |
ZRR8#,ZWR80 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-28720 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82185-28720 |
ZRR8#..NOAH,VOXY ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82185-28730 |
ZRR8#,ZWR80 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-60220 |
ZRR8#,ZWR80 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-28Q10 |
ZRR8#,ZWR80 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-28Q20 |
ZRR8#,ZWR80 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-28S80 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-06049 | ||||
| 90119-06915 | ||||
| 90119-06951 | ||||
| 90467-09206 | ||||
| 91553-80612 | ||||
| 91553-80620 | ||||

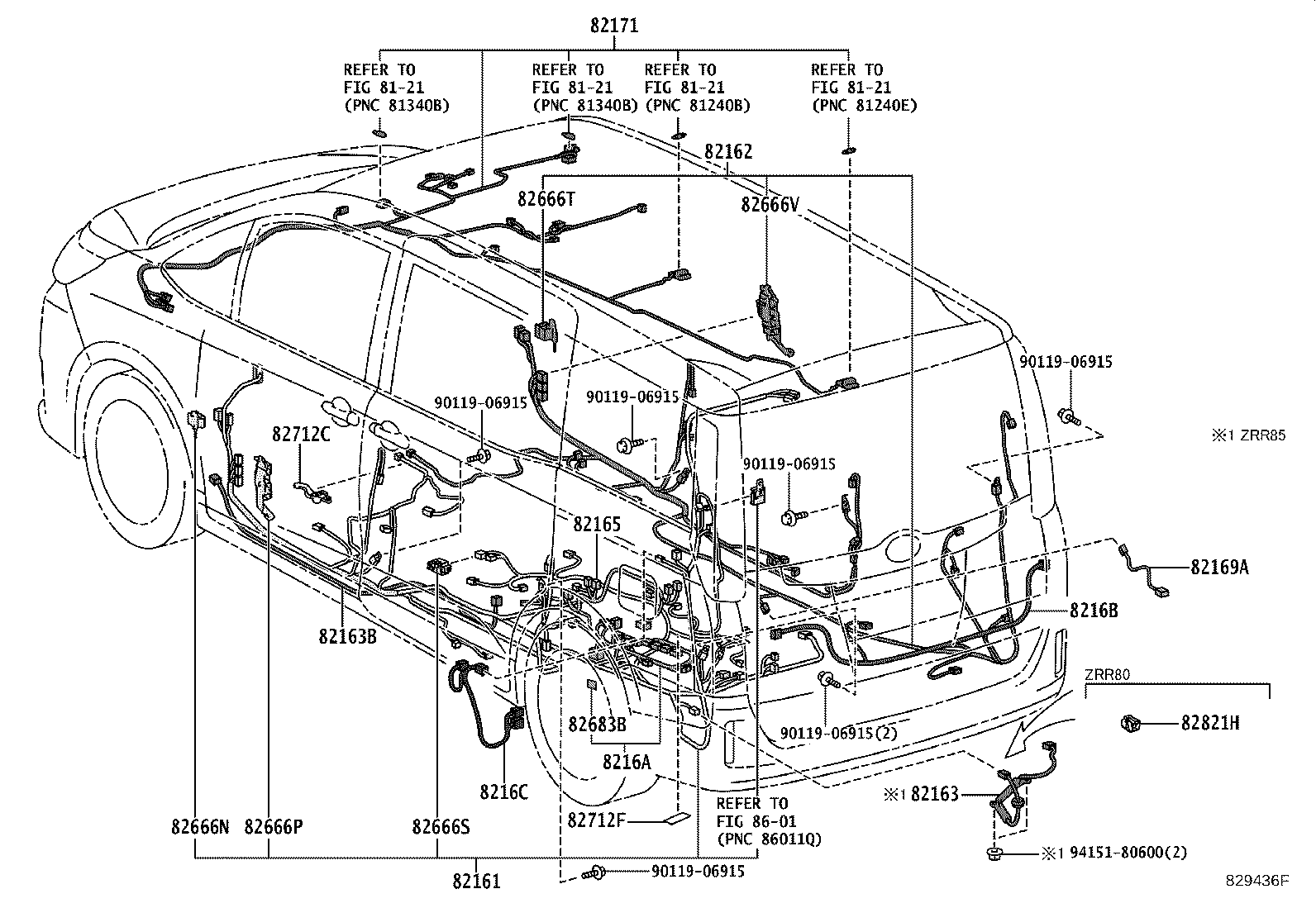

ILLUST NO. 5 OF11(1401- )IV5
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-28R60 |
ZRR8#..08S..(X,XI)..IV5 |
1 | ||
| 82161-28S00 |
ZRR8#..08S..(X,XI)..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82161-28R61 |
ZRR8#..08S..(X,XI)..IV5 |
1 | ||
| 82161-28S01 |
ZRR8#..08S..(X,XI)..IV5 ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-28P00 |
ZRR8#..IV5 ﾊﾟﾜｰｽﾗｲﾄﾞﾄﾞｱ−有り(両側) |
1 | ||
| 82162-28N60 |
ZRR8#..IV5 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-28200 |
ZRR85..IV5 |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-28160 |
ZRR8#..08S..IV5 |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-28040 |
ZRR8#,ZWR80 |
1 | ||
| 8216A - WIRE, FLOOR NO.7 | ||||
| 8216A-28010 |
ZRR8#..IV5 |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-28010 |
ZRR8#..IV5 |
1 | ||
| 8216C - WIRE, FLOOR, NO.9 | ||||
| 88649-28010 |
ZRR8#..IV5;ZWR80..G,GI,V |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28N20 |
ZRR8#..(NOAH,VOXY)..IV5 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82171-28N10 |
ZRR8#..IV5 |
1 | ||
| 82171-28P10 |
ZRR8#..G,GI,V |
1 | ||
| 82171-28P20 |
ZRR8#..G,GI,V 寒冷地仕様−有り |
1 | ||
| 82171-28N21 |
ZRR8#..(NOAH,VOXY)..IV5 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82171-28N11 |
ZRR8#..X..IV5 |
1 | ||
| 82171-28N22 |
ZRR8#..X..IV5 ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82171-28P11 |
ZRR8#..G,GI,V |
1 | ||
| 82171-28P21 |
ZRR8#..G,GI,V 寒冷地仕様−有り |
1 | ||
| 82171-28P21 |
ZRR8#..X..IV5 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ) |
1 | ||
| 82171-28R00 |
ZRR8#..X..IV5 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-28A20 |
ZRR8#,ZWR80 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-28A30 |
ZRR8#,ZWR80 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-28B20 |
ZRR8#..IV5 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-28A00 |
ZRR8#,ZWR80 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-28A10 |
ZRR8#,ZWR80 |
1 | ||
| 82683B - LABEL, FUSE BLOCK NOTICE | ||||
| 82683-28220 |
ZRR8#..IV5 |
1 | ||
| 82712C - SUPPORT, WIRING HARNESS, NO.1 | ||||
| 82712-28410 |
ZRR8#,ZWR80 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||
ILLUST NO. 7 OF11(1401- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| C8737-22030 | ||||
ILLUST NO. 8 OF11(1401- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-47010 | ||||
| 82711-1E340 | ||||
| 82711-3F230 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-28L90 | ||||
| 82715-28M70 | ||||
| 82715-28M80 | ||||
| 82715-28M90 | ||||
| 82715-28N00 | ||||
| 82715-28N10 | ||||
| 82715-28N20 | ||||
| 82715-28N30 | ||||
| 82715-28N40 | ||||
| 82715-28N70 | ||||
| 82715-28N80 | ||||
| 82715-28N90 | ||||
| 82715-28P10 | ||||
| 82715-28P20 | ||||
| 82715-28P60 | ||||
| 82715-28P90 | ||||
| 82715-47420 | ||||
| 82715-47480 | ||||
| 82715-47540 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90463-13003 | ||||
| 90464-00620 | ||||
| 90467-06192 | ||||
| 91621-J0612 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 8401 | ||||
| 8431 | ||||
ILLUST NO.10 OF11(1401- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10928 | ||||
| 90980-11155 | ||||
| 90980-11194 | ||||
| 90980-11237 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
ILLUST NO.11 OF11(1401- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10860 | ||||
| 90980-10997 | ||||
| 90980-11728 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
