ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire

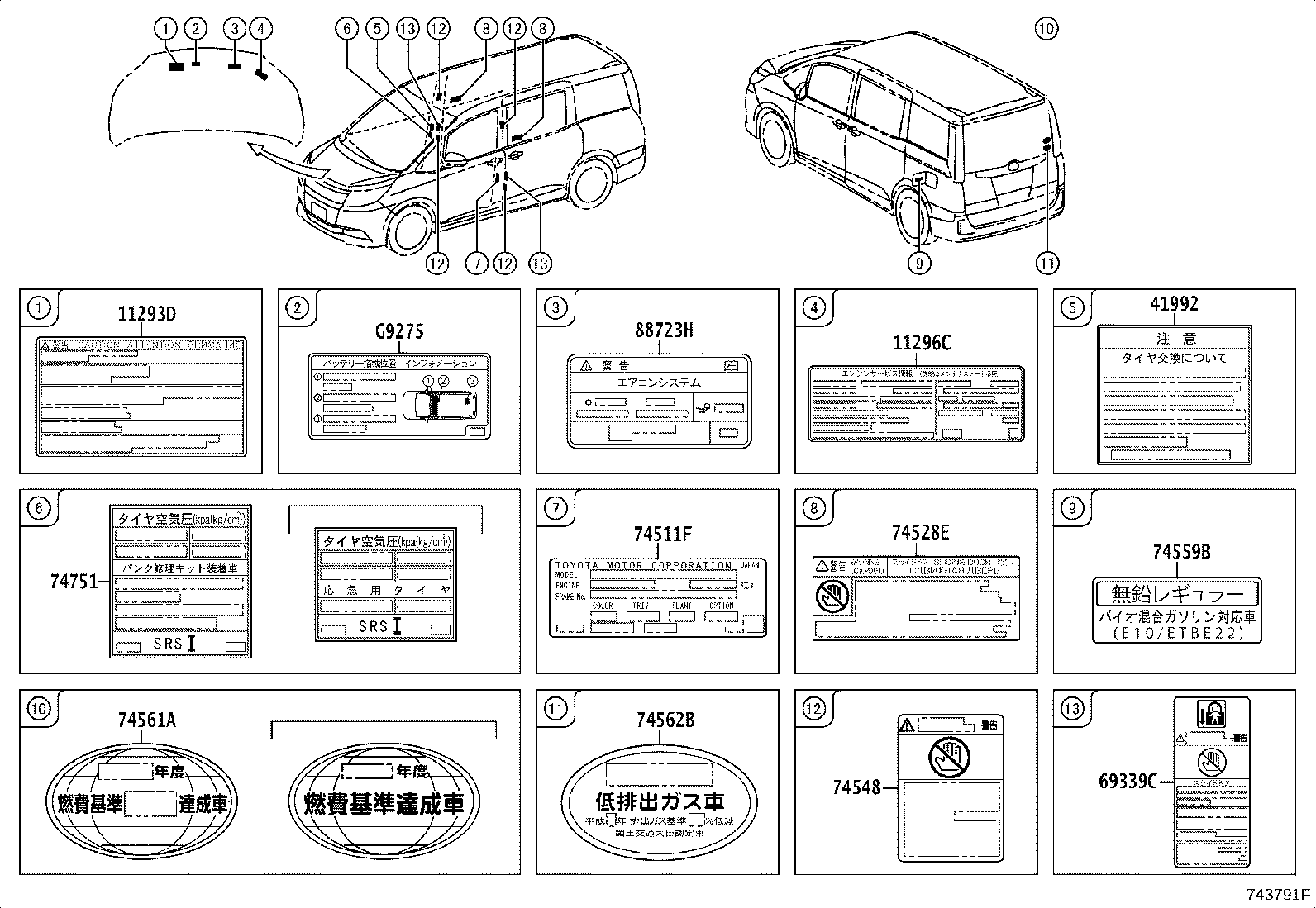

ILLUST NO. 1 OF 6(1401- )
ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳﾊﾟﾈﾙ(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-37080 |
3ZRFAE..ZRR8# |
1 | ||
| 41992 - LABEL, DIFFERENTIAL NOTICE | ||||
| 41992-33010 |
ZRR85 |
1 | ||
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-28030 |
ZRR8#,ZWR80 |
2 | ||
| 69339-28020 |
ZRR8#,ZWR80 |
2 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
ZRR8#,ZWR80 *111 |
1 | ||
| 74528E - LABEL, POWER SLIDE DOOR NOTICE | ||||
| 74528-28240 |
ZRR8#,ZWR80 |
2 | ||
| 74548 - PLATE, BODY CAUTION | ||||
| 74541-28140 |
ZRR8#,ZWR80 |
4 | ||
| 74541-26080 |
ZRR8#,ZWR80 |
4 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-48060 |
ZRR8#,ZWR80 |
1 | ||
| 74561A - LABEL, FUEL CONSUMPTION INFORMATION | ||||
| 74561-48110 |
ZRR80,ZWR80..CBU;ZRR85..G,SI,V,ZS 平成27年度 燃費基準+20%達成車 |
1 | ||
| 74561-48110 |
ZRR80,ZWR80..CBU;ZRR85..G,SI,V,ZS 平成27年度 燃費基準+20%達成車,指定自動車適合−排ｶﾞｽ検査証 |
1 | ||
| 74561-13030 |
ZRR80..CBU;ZRR85..G,GI,SI,V,ZS 平成27年度 燃費基準+20%達成車,指定自動車適合−排ｶﾞｽ検査証 |
1 | ||
| 74561-13030 |
ZRR80..CBU;ZRR85..G,GI,SI,V,ZS 平成27年度 燃費基準+20%達成車 |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-47010 |
ZRR8#,ZWR80 H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-28B70 |
ZRR8#,ZWR80..G,GI,V,X,XI |
1 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28280 |
ZRR8# |
1 | ||
| 88723-28281 |
ZRR8# |
1 | ||

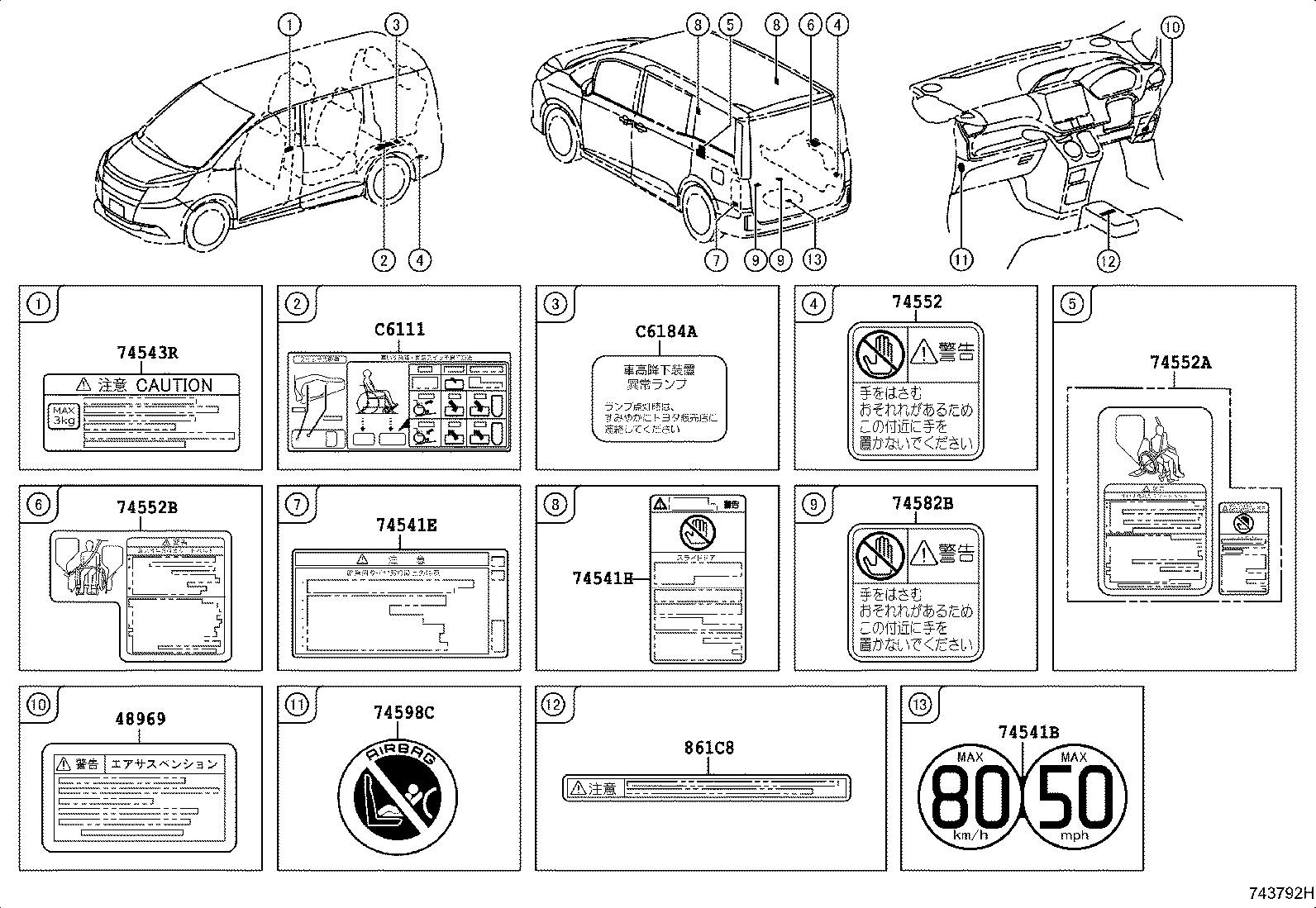

ILLUST NO. 3 OF 6(1401- )
ﾅｲｿｳ(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48969 - LABEL, JACK UP CAUTION | ||||
| 48969-28010 |
ZRR8#..IV5 |
1 | ||
| 48969-52020 |
ZRR8#..IV5 |
1 | ||
| 74541H - PLATE, BODY CAUTION | ||||
| 74541-28130 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU |
2 | ||
| 74552 - PLATE, SAFETY CAUTION | ||||
| C6112-28020 |
ZRR8#..IV5 |
1 | ||
| 74552B - LABEL, SAFETY CAUTION | ||||
| 74552-28540 |
ZRR8#..08S..IV5 |
1 | ||
| 74582B - PLATE, SAFETY CAUTION | ||||
| C6112-28020 |
ZRR8#..IV5 |
2 | ||
| 74598C - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
ZRR8#,ZWR80 |
1 | ||
| C6111 - PLATE, SAFETY CAUTION | ||||
| C6111-28020 |
ZRR8#..IV5 車ｲｽ固定装置−車いす固定ﾍﾞﾙﾄ(DOP) |
1 | ||
| C6111-28020 |
ZRR8#..IV5 |
1 | ||
| C6184A - PLATE, WHEEL CHAIR HOLDER CAUTION, NO.3 | ||||
| C6184-52030 |
ZRR8#..IV5 |
1 | ||

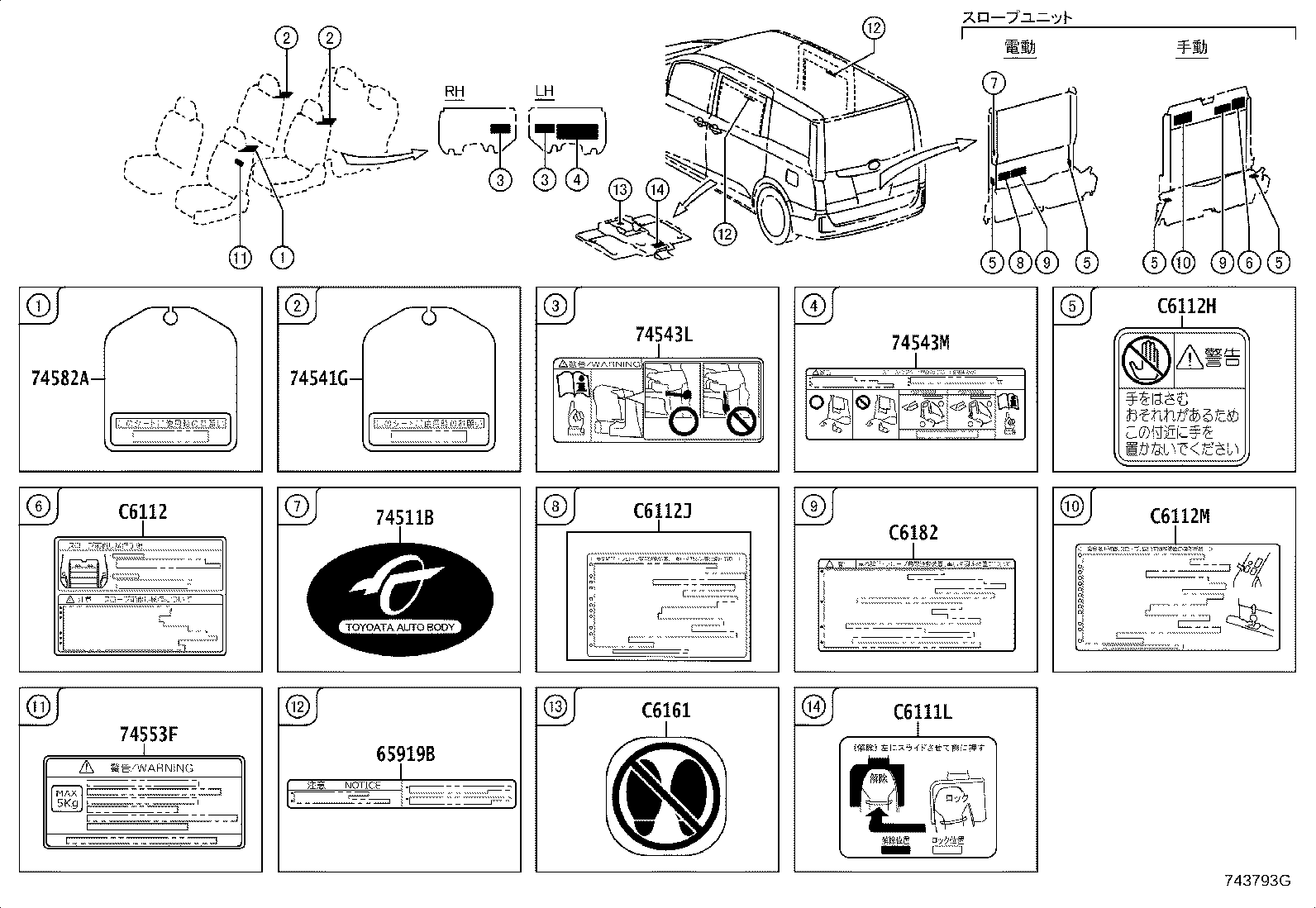

ILLUST NO. 4 OF 6(1401- )
ﾅｲｿｳ(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74582A - PLATE, SAFETY CAUTION | ||||
| C6111-D1280 |
ZRR8#..IV5 |
1 | ||
| C6112M - LABEL, SAFETY INFORMATION, NO.12 | ||||
| C6112-28030 |
ZRR8#..IV5 |
1 | ||
| C6182 - PLATE, WHEEL CHAIR HOLDER CAUTION, NO.1 | ||||
| C6185-28060 |
ZRR8#..IV5 |
1 | ||
ILLUST NO. 6 OF 6(1404-1706)
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ = ﾀﾞｯﾁｬｸﾀｲﾌﾟ
| Part # | Description | Qty | Price |
|---|

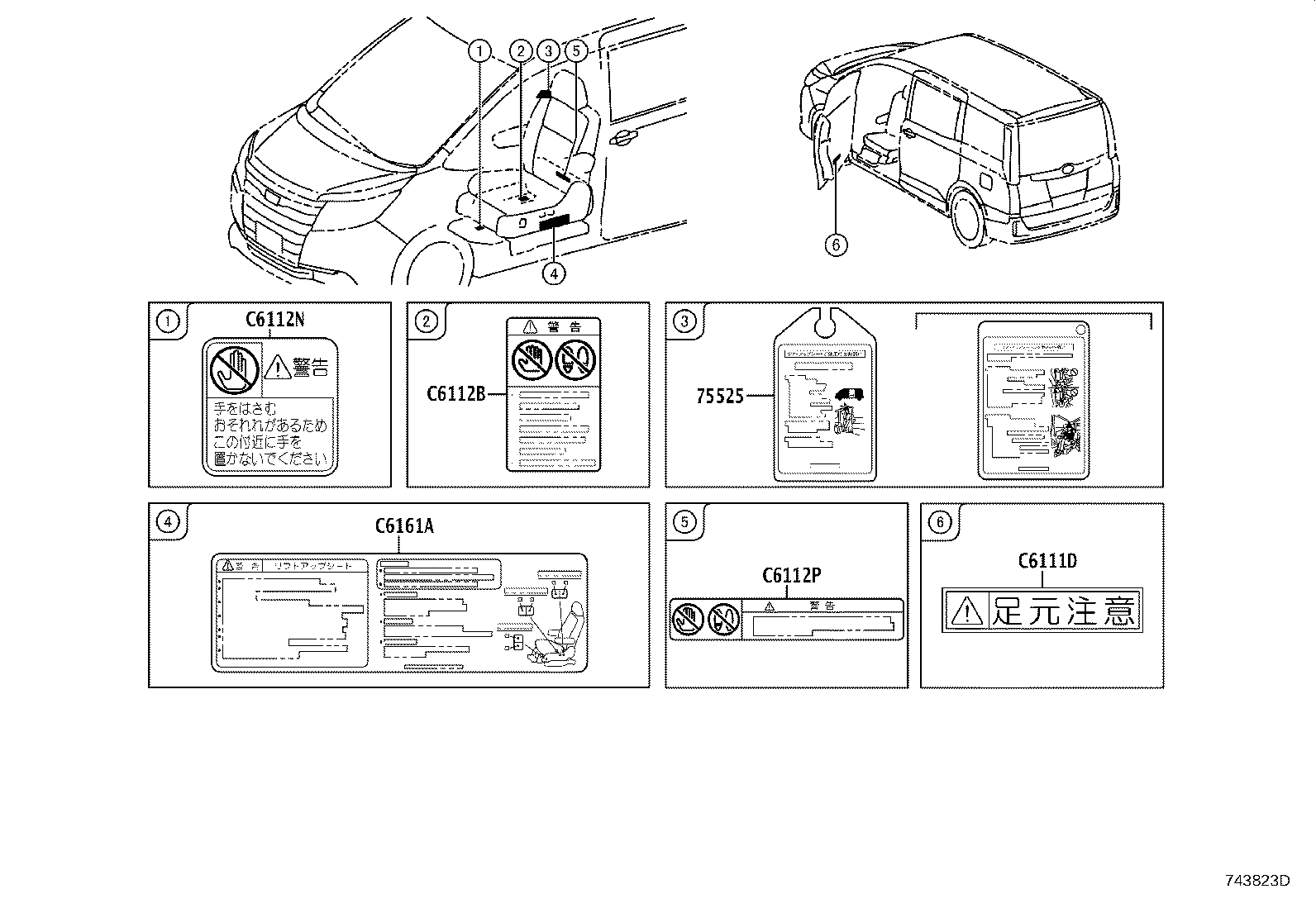

ILLUST NO. 5 OF 6(1404- )
ｼﾞｮｼｭｾｷﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 6 OF 6(1401-1706)
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ = ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ
| Part # | Description | Qty | Price |
|---|

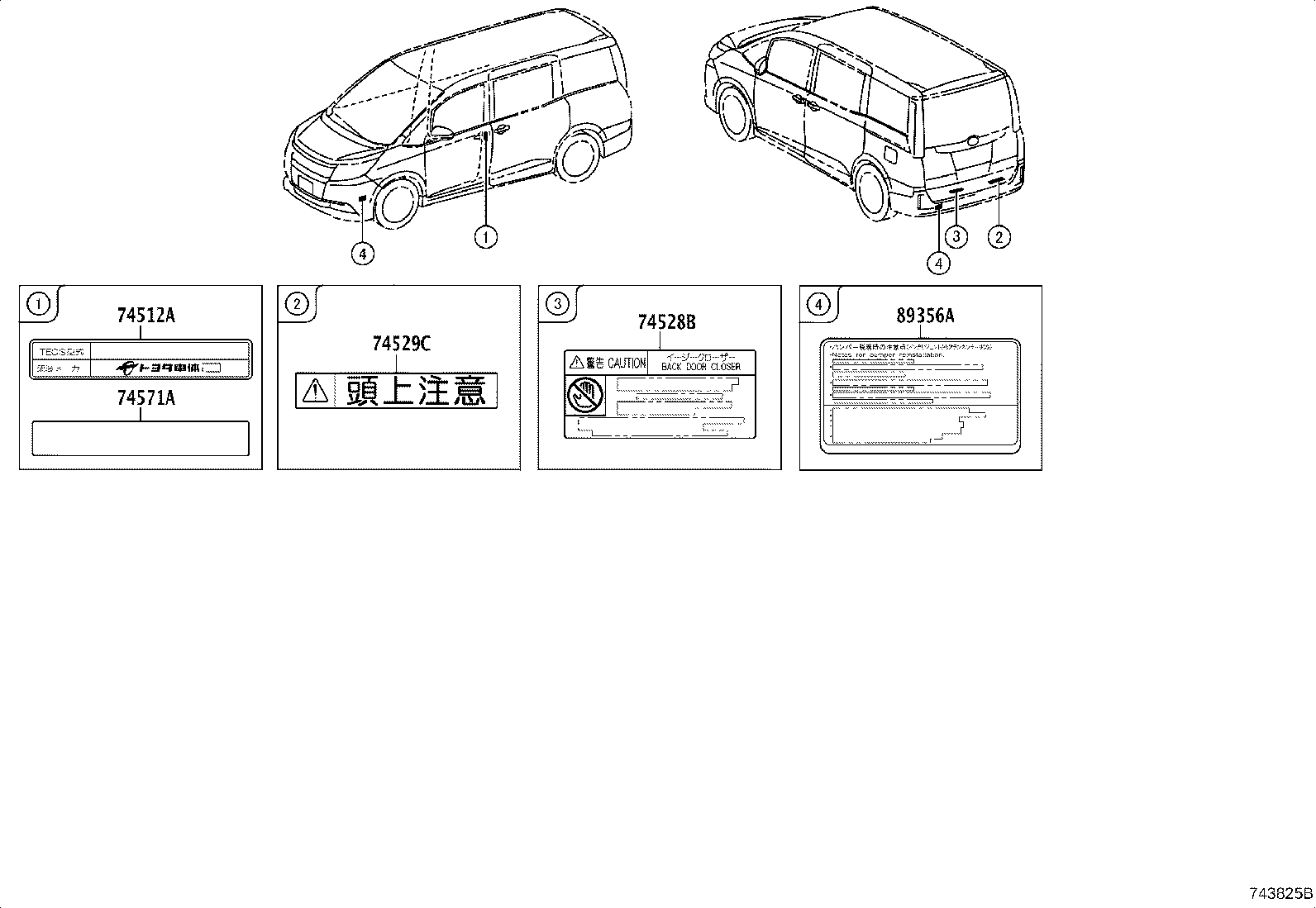

ILLUST NO. 2 OF 6(1401- )
ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳﾊﾟﾈﾙ(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74512A - PLATE, IDENTIFICATION NUMBER | ||||
| 74512-28710 |
ZRR8#..IV5 |
1 | ||
| 74529C - PLATE, BACK DOOR CAUTION | ||||
| C6142-28010 |
ZRR8#..IV5 |
1 | ||
| 74571A - FILM, LABEL COVER | ||||
| C6259-41010 |
ZRR8#..IV5 |
1 | ||
