ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire
(1401- )
ｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

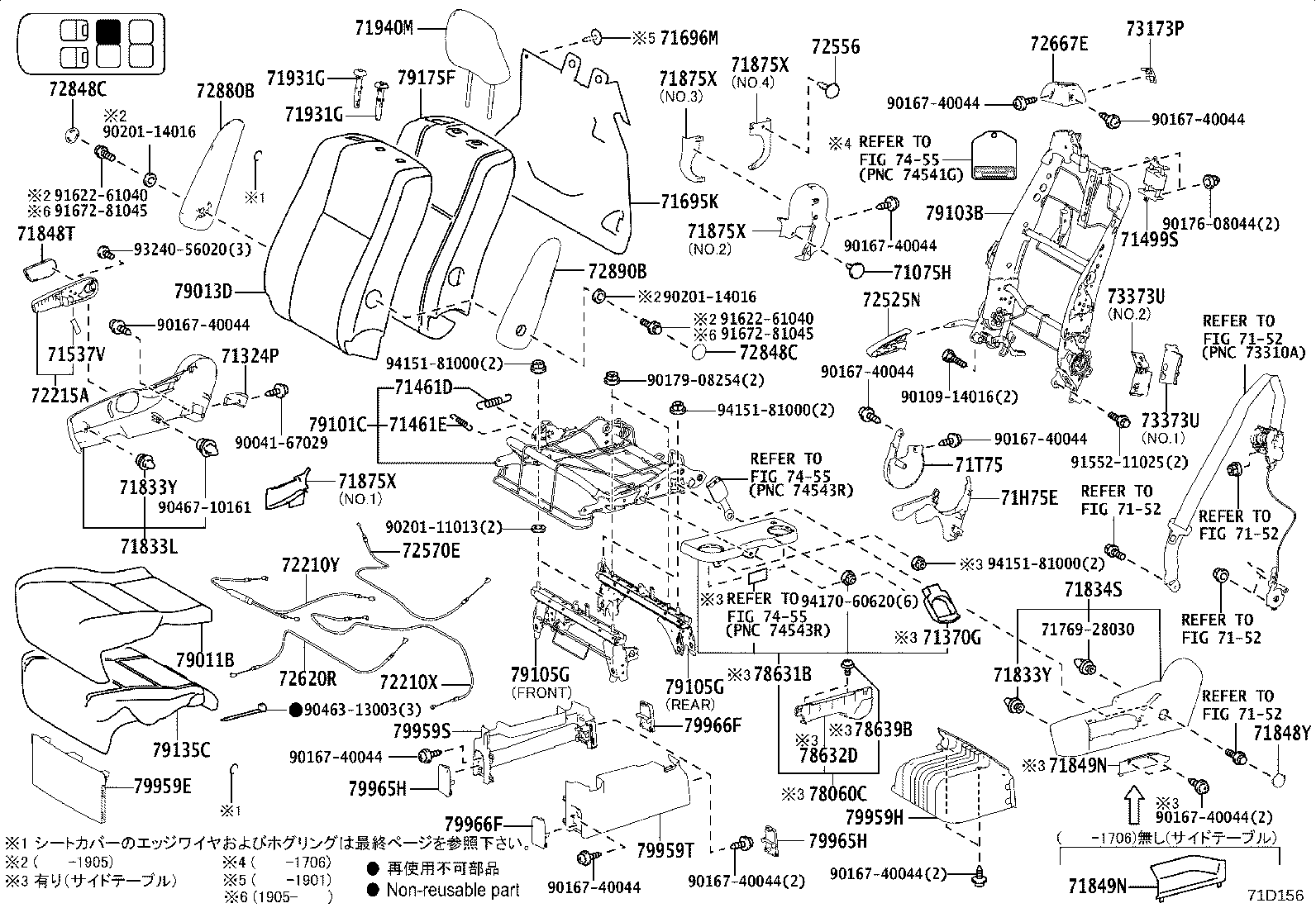

(1401- )
ﾘﾔNO.1ｼｰﾄ(RH),ｷｬﾌﾟﾃﾝｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71499S - DAMPER, SEAT CUSHION SPRING | ||||
| 71499-28080 |
ZRR8#..08S |
1 | ||
| 71695K - PROTECTOR, NO.1 SEAT BACK, RH | ||||
| 71695-28260 |
ZRR8#..08S |
1 | ||
| 71833L - COVER, REAR SEAT RECLINING, RH | ||||
| 71833-28241C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 71833-28240C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71833-28240C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 71833-28241C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,XI,ZS) BLACK,TRIM2# |
1 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-47020 |
ZRR8#,ZWR80 |
2 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-47020 |
ZRR8#,ZWR80 |
2 | ||
| 71848Y - CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT) | ||||
| 71848-28040C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71848-28040C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28350C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28350C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28350C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28350C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28350C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28350C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28350C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28350C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28E80C1 |
ZRR8#..08S..X BLACK,TRIM2# |
2 | ||
| 71940-28E80A2 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
2 | ||
| 71940-28F00A2 |
ZRR8#..08S..G IVORY,TRIM0# |
2 | ||
| 71940-28F00C2 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
2 | ||
| 71T75 - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28360 |
ZRR8#..08S |
2 | ||
| 72215A - LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH | ||||
| 72215-28010C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72215-28010C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28140C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72525-28140C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72570E - CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH | ||||
| 72570-28090 |
ZRR8#..08S |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28150 |
ZRR8#..08S |
1 | ||
| 73373U - COVER, NO.1 SEAT SHOULDER BELT, RH NO.1 | ||||
| 73375-28020C0 |
ZRR8#..08S BLACK,TRIM2# |
1 | ||
| 73375-28020A3 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) IVORY,TRIM0# |
1 | ||
| 73373U - COVER, NO.1 SEAT SHOULDER BELT, RH NO.1 | ||||
| 73375-28020C0 |
ZRR8#..08S BLACK,TRIM2# |
1 | ||
| 73375-28020A3 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) IVORY,TRIM0# |
1 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28K50A3 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79011-28K30A5 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79011-28K50C4 |
ZRR8#..08S..V BLACK,TRIM2# |
1 | ||
| 79011-28K30A4 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79011-28K50C6 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79011-28K50A4 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79011-28K30C4 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79011-28K30C5 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79011-28K51C8 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79011-28K51A5 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79011-28K30A6 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79011-28K30C6 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28L20A3 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79013-28L40A2 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79013-28L20C2 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79013-28L40C2 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79013-28L20C3 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79013-28L41C4 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79013-28L41A3 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79013-28L20A4 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79101C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-28200 |
ZRR8#..08S |
1 | ||
| 79103B - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-28370 |
ZRR8#..08S |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28440 |
ZRR8#..08S |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28440 |
ZRR8#..08S |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28510 |
ZRR8#..08S |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28520 |
ZRR8#..08S |
1 | ||
| 79959S - COVER, REAR SEAT LEG, RH | ||||
| 73315-28080C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73315-28080C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 79959T - COVER, REAR SEAT LEG, LH | ||||
| 73316-28040C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73316-28040C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 71769-28030 | ||||
| 90041-67029 | ||||
| 90109-14016 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90179-08254 | ||||
| 90201-11013 | ||||
| 90201-14016 | ||||
| 90463-13003 | ||||
| 90467-10161 | ||||
| 91552-11025 | ||||
| 91622-61040 | ||||
| 91672-81045 | ||||
| 93240-56020 | ||||
| 94151-81000 | ||||
| 94170-60620 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

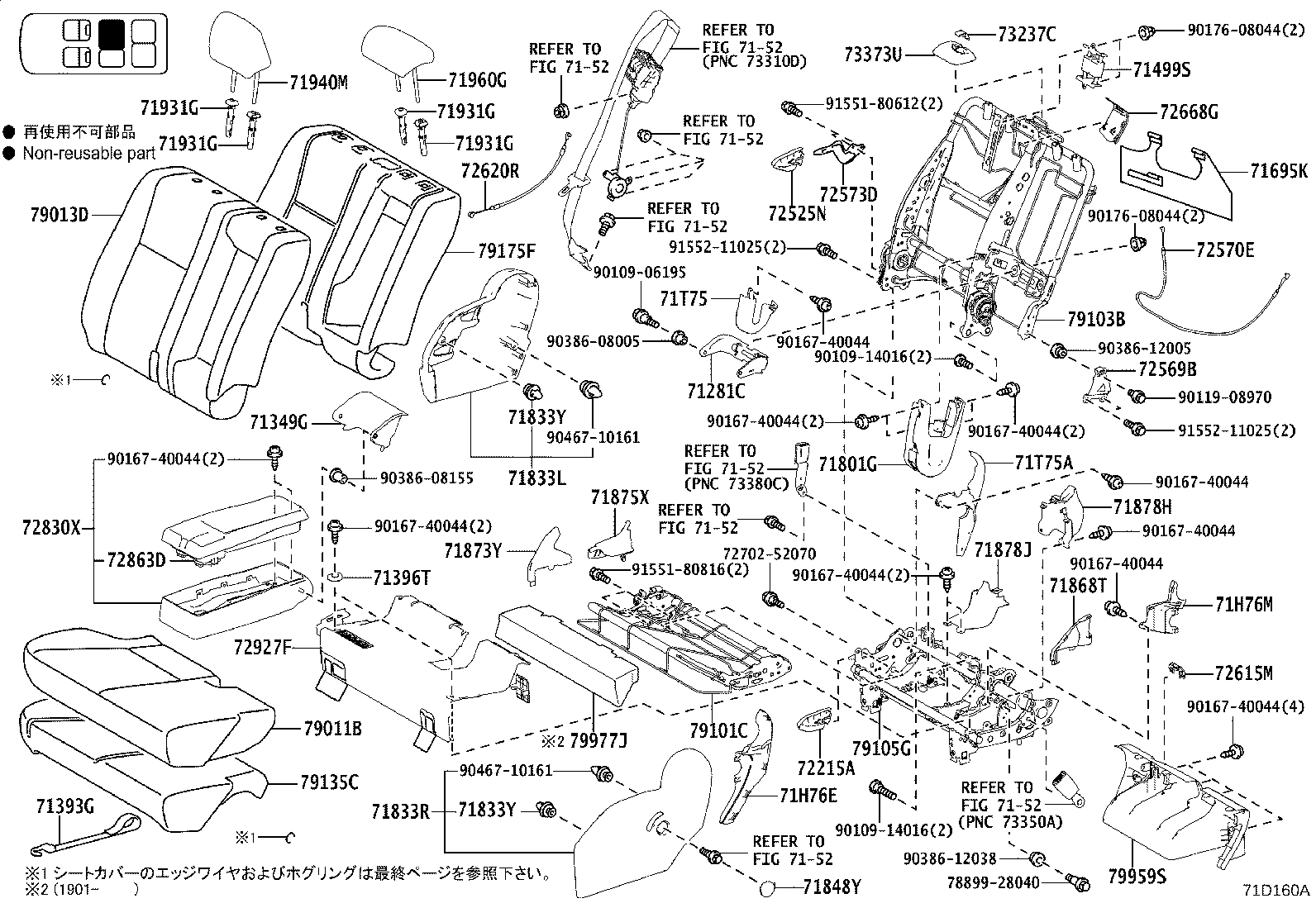

(1401- )08S
ﾘﾔNO.1ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71281C - HINGE, NO.1 SEAT CENTER ARMREST | ||||
| 71281-28060 |
ZRR8#..08S |
1 | ||
| 71349G - COVER, REAR SEAT BACK HINGE | ||||
| 71349-28060C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM00,03,2# |
1 | ||
| 71349-28060C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71349-28060A0 |
ZRR8#..NOAH..08S..(G,X) IVORY,TRIM00 |
1 | ||
| 71393G - BAND, NO.1 SEAT CUSHION(FOR RH SEAT) | ||||
| 71393-28080C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71393-28080C1 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71396T - CUSHION, NO.1 SEAT SUPPORT, REAR | ||||
| 71396-28030B0 |
ZRR8#..08S DK.GRAY |
4 | ||
| 71499S - DAMPER, SEAT CUSHION SPRING | ||||
| 71499-28080 |
ZRR8#..08S |
1 | ||
| 71695K - PROTECTOR, NO.1 SEAT BACK, RH | ||||
| 71695-28260 |
ZRR8#..08S |
1 | ||
| 71801G - COVER SUB-ASSY, RECLINING ADJUSTER, RH INNER | ||||
| 71801-28030C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71801-28030C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71833L - COVER, REAR SEAT RECLINING, RH | ||||
| 71833-28241C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 71833-28240C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71833-28240C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 71833-28241C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,XI,ZS) BLACK,TRIM2# |
1 | ||
| 71833R - COVER, REAR SEAT RECLINING, RH | ||||
| 71834-28280C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71834-28280C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-47020 |
ZRR8#,ZWR80 |
2 | ||
| 71833Y - CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT) | ||||
| 71769-47020 |
ZRR8#,ZWR80 |
2 | ||
| 71848Y - CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT) | ||||
| 71848-28040C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71848-28040C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71868T - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-28050C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71868-28050C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71873Y - SHIELD, REAR SEAT CUSHION, LOWER | ||||
| 71867-28060C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71867-28060C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28350C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28350C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71878H - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-28070C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71878-28070C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71878J - COVER, REAR NO.1 SEAT RECLINING, INNER RH | ||||
| 71879-28080C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71879-28080C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28E80C1 |
ZRR8#..08S..X BLACK,TRIM2# |
2 | ||
| 71940-28E80A2 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
2 | ||
| 71940-28F00A2 |
ZRR8#..08S..G IVORY,TRIM0# |
2 | ||
| 71940-28F00C2 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
2 | ||
| 71960G - HEADREST ASSY, REAR NO.1 SEAT, CENTER | ||||
| 71960-28390A1 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 71960-28370C1 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 71960-28390C1 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 71960-28370A2 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 71H76E - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH S | ||||
| 71876-28350C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71876-28350C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71H76M - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT) | ||||
| 71876-28340C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71876-28340C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71T75 - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28360 |
ZRR8#..08S |
2 | ||
| 71T75A - COVER, RECLINING ADJUSTER INSIDE, RH NO.2 | ||||
| 71875-28370C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28370C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72215A - LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH | ||||
| 72215-28010C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72215-28010C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28140C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72525-28140C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72569B - PLATE, SEAT BACK STOPPER | ||||
| 72569-28040 |
ZRR8#..08S |
1 | ||
| 72570E - CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH | ||||
| 72570-28090 |
ZRR8#..08S |
1 | ||
| 72573D - LEVER, NO.1 SEAT RECLINING CONTROL, RH | ||||
| 72573-28010 |
ZRR8#..08S |
1 | ||
| 72615M - COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT) | ||||
| 72615-28020C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72615-28020C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28150 |
ZRR8#..08S |
1 | ||
| 72668G - BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT) | ||||
| 72668-28020 |
ZRR8#..08S |
1 | ||
| 72830X - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-28C60A2 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 72830-28C80A1 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 72830-28C60C0 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 72830-28C80C0 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 72863D - BOX, REAR SEAT CENTER ARMREST | ||||
| 72863-28010A0 |
ZRR8#..NOAH..08S..(G,X) IVORY,TRIM00 |
1 | ||
| 72863-28010C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,XI,ZS) BLACK,TRIM2# |
1 | ||
| 72863-28010C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM00,03,2# |
1 | ||
| 72927F - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-28100C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72927-28100C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 73237C - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-28020C0 |
ZRR8#..08S BLACK,TRIM2# |
1 | ||
| 73237-28020A3 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) IVORY,TRIM0# |
1 | ||
| 73373U - COVER, NO.1 SEAT SHOULDER BELT, RH NO.1 | ||||
| 73375-28020C0 |
ZRR8#..08S BLACK,TRIM2# |
1 | ||
| 73375-28020A3 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) IVORY,TRIM0# |
1 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28K50A3 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79011-28K30A5 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79011-28K50C4 |
ZRR8#..08S..V BLACK,TRIM2# |
1 | ||
| 79011-28K30A4 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79011-28K50C6 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79011-28K50A4 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79011-28K30C4 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79011-28K30C5 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79011-28K51C8 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79011-28K51A5 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79011-28K30A6 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79011-28K30C6 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28L20A3 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79013-28L40A2 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79013-28L20C2 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79013-28L40C2 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79013-28L20C3 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79013-28L41C4 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79013-28L41A3 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79013-28L20A4 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79101C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-28200 |
ZRR8#..08S |
1 | ||
| 79103B - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-28370 |
ZRR8#..08S |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28440 |
ZRR8#..08S |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28510 |
ZRR8#..08S |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28520 |
ZRR8#..08S |
1 | ||
| 79959S - COVER, REAR SEAT LEG, RH | ||||
| 73315-28080C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73315-28080C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-52070 | ||||
| 78899-28040 | ||||
| 90109-06195 | ||||
| 90109-14016 | ||||
| 90119-08970 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90386-08005 | ||||
| 90386-08155 | ||||
| 90386-12005 | ||||
| 90386-12038 | ||||
| 90467-10161 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91552-11025 | ||||
| Linked diagrams | ||||
| 7152 | ||||

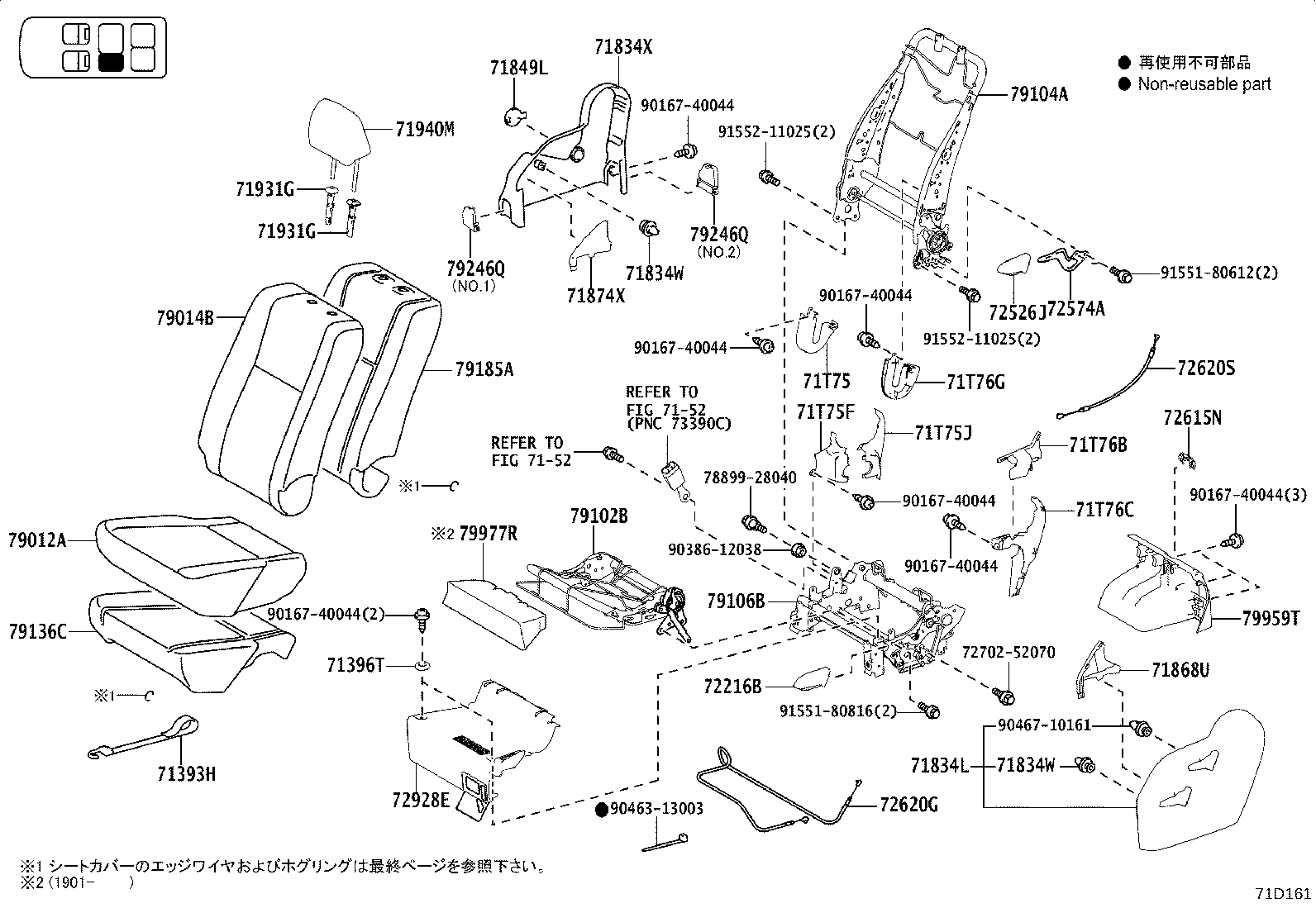

(1401- )08S
ﾘﾔNO.1ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71393H - BAND, NO.1 SEAT CUSHION(FOR LH SEAT) | ||||
| 71393-28080C1 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71393-28080C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71396T - CUSHION, NO.1 SEAT SUPPORT, REAR | ||||
| 71396-28030B0 |
ZRR8#..08S DK.GRAY |
4 | ||
| 71834L - COVER, REAR SEAT RECLINING, LH | ||||
| 71834-28310C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71834-28311C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 71834-28311C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,XI,ZS) BLACK,TRIM2# |
1 | ||
| 71834-28310C0 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 71834W - CLIP, NO.1 SEAT RECLINING COVER(FOR LH SEAT) | ||||
| 71769-47020 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU |
2 | ||
| 71834W - CLIP, NO.1 SEAT RECLINING COVER(FOR LH SEAT) | ||||
| 71769-47020 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU |
2 | ||
| 71834X - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71833-28270C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71833-28270C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71849L - CAP, NO.1 SEAT ADJUSTER COVER, LH | ||||
| 71848-28040C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 71868U - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT) | ||||
| 71868-28060C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71868-28060C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71874X - SHIELD, REAR SEAT CUSHION, LOWER LH | ||||
| 71867-28070C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71867-28070C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931G - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
ZRR8#..08S ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-44020A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ付,IVORY,TRIM0# |
3 | ||
| 71931-47010A0 |
ZRR8#..NOAH..08S..(G,X) ﾛｯｸ無,IVORY,TRIM0# |
3 | ||
| 71930-44020C0 |
ZRR8#..08S ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28E80C1 |
ZRR8#..08S..X BLACK,TRIM2# |
2 | ||
| 71940-28E80A2 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
2 | ||
| 71940-28F00A2 |
ZRR8#..08S..G IVORY,TRIM0# |
2 | ||
| 71940-28F00C2 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
2 | ||
| 71T75 - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28360 |
ZRR8#..08S |
2 | ||
| 71T75F - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28450C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28450C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71T75J - COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR LH SEAT) | ||||
| 71875-28460C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71875-28460C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28410C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71876-28410C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71T76C - COVER, RECLINING ADJUSTER INSIDE, LH NO.2 | ||||
| 71876-28430C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 71876-28430C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 71T76G - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28420 |
ZRR8#..08S |
1 | ||
| 72216B - LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH | ||||
| 72216-28010C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72216-28010C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-28140C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72526-28140C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72574A - LEVER, RECLINING CONTROL, LH | ||||
| 72574-28010 |
ZRR8#..08S |
1 | ||
| 72615N - COVER, NO.1 SEAT BACK LOCK STRIKER(FOR LH SEAT) | ||||
| 72615-28020C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 72615-28020C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72620G - CABLE ASSY, REAR SEAT LOCK, LH | ||||
| 72620-28190 |
ZRR8#..08S |
1 | ||
| 72620S - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT) | ||||
| 72620-28150 |
ZRR8#..08S |
1 | ||
| 72928E - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-28100C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 72928-28100C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-28B50A4 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79012-28B50C4 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79012-28B70C6 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79012-28B70A3 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79012-28B70C4 |
ZRR8#..08S..V BLACK,TRIM2# |
1 | ||
| 79012-28B70A4 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79012-28B50A5 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79012-28B50C6 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79012-28B50A6 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79012-28B71C8 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79012-28B50C5 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79012-28B71A5 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28G00A2 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79014-28F80C2 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79014-28G00C2 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79014-28F80A3 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79014-28F80A4 |
ZRR8#..NOAH..08S..X IVORY,TRIM0# |
1 | ||
| 79014-28F80C3 |
ZRR8#..08S..X BLACK,TRIM2# |
1 | ||
| 79014-28G01A3 |
ZRR8#..08S..G IVORY,TRIM0# |
1 | ||
| 79014-28G01C4 |
ZRR8#..08S..(G,V) BLACK,TRIM2# |
1 | ||
| 79102B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-28120 |
ZRR8#..08S |
1 | ||
| 79104A - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-28240 |
ZRR8#..08S |
1 | ||
| 79106B - LEG SUB-ASSY, NO.1 SEAT, LH | ||||
| 79106-28250 |
ZRR8#..08S |
1 | ||
| 79136C - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-28220 |
ZRR8#..08S |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-28190 |
ZRR8#..08S |
1 | ||
| 79246Q - COVER, REAR SEAT LEG, RH (FOR LH SEAT) | ||||
| 79236-28180C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 79236-28190C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 79236-28180C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 79236-28190C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 79246Q - COVER, REAR SEAT LEG, RH (FOR LH SEAT) | ||||
| 79236-28180C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 79236-28190C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 79236-28180C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 79236-28190C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 79959T - COVER, REAR SEAT LEG, LH | ||||
| 73316-28040C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73316-28040C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 72702-52070 | ||||
| 78899-28040 | ||||
| 90167-40044 | ||||
| 90386-12038 | ||||
| 90463-13003 | ||||
| 90467-10161 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91552-11025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
(1401- )

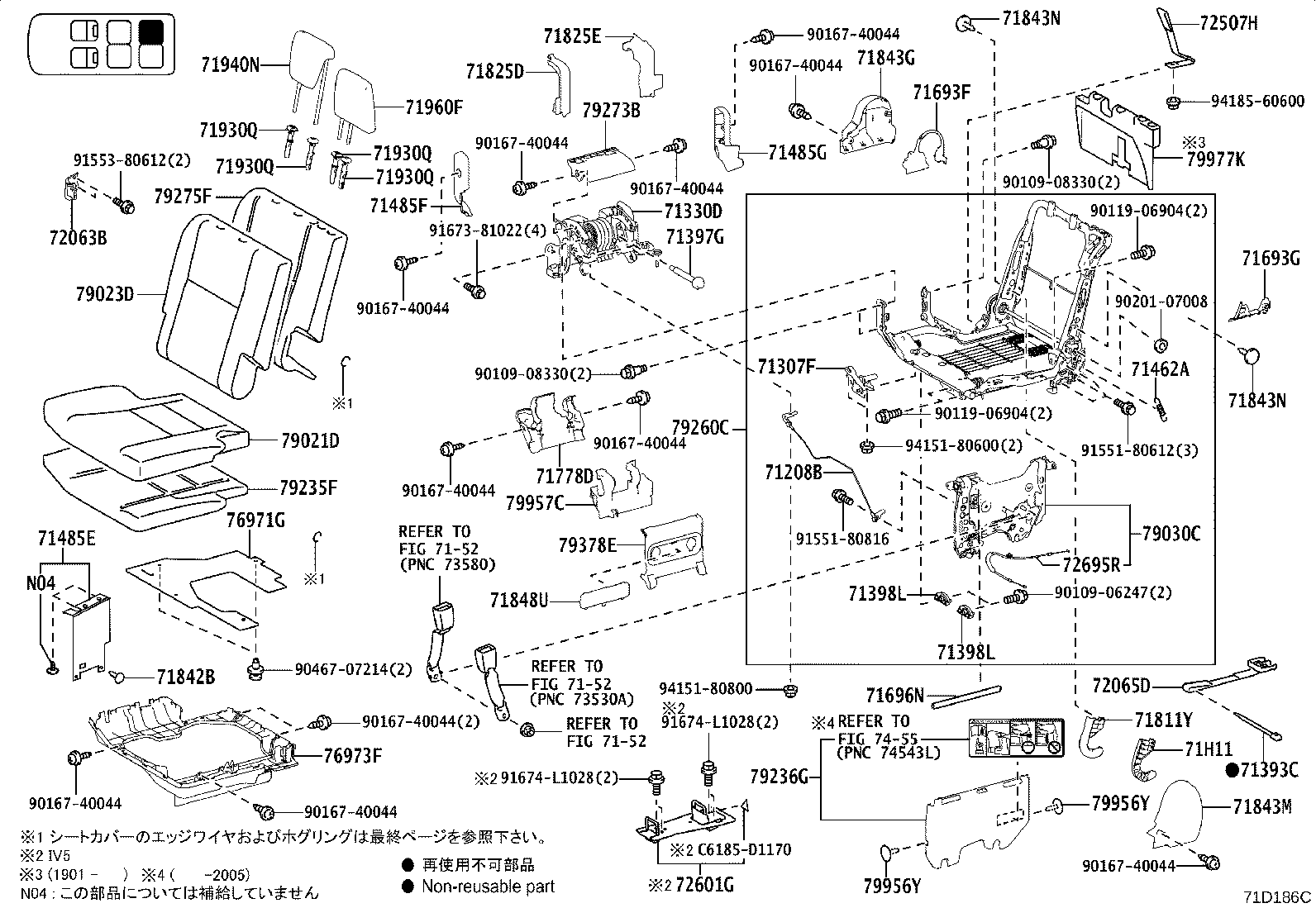

ﾘﾔNO.2ｼｰﾄ(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71485F - COVER, REAR SEAT HINGE, NO.1 RH | ||||
| 71485-28040C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71485G - COVER, REAR SEAT HINGE, NO.2 RH | ||||
| 71485-28050C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71693F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1 | ||||
| 71693-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71693G - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2 | ||||
| 71694-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71778D - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71811Y - COVER, RECLINING ADJUSTER, RH | ||||
| 71875-28520C0 |
ZWR80..VOXY;ZRR80..VOXY..X;ZRR85..SI,V,ZS;ZRR85..VOXY..07S..X;ZRR80..07S..(SI,V,ZS);ZRR80..08S..(GI,SI,V,ZS);ZRR85..(ESQIR,VOXY)..08S..(GI,X)..CBU BLACK,TRIM2# |
1 | ||
| 71825D - MOULDING, REAR NO.1 SEAT CUSHION, RH | ||||
| 71827-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71825E - MOULDING, REAR NO.2 SEAT CUSHION, RH | ||||
| 71828-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71843G - COVER, NO.2 SEAT RECLINING, NO.2 RH OUTER | ||||
| 71843-28100C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71843M - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71844-28120C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71843N - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-07049C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 71843N - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-07049C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 71848U - CAP, NO.2 SEAT ADJUSTER COVER, RH | ||||
| 71848-28050C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71940N - HEADREST ASSY, REAR SEAT, NO.2 | ||||
| 71940-28F80C3 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
2 | ||
| 71940-28F80A1 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
2 | ||
| 71960F - HEADREST ASSY, REAR NO.2 SEAT, CENTER | ||||
| 71960-28350A0 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 71960-28350C1 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 71H11 - COVER, RECLINING ADJUSTER, RH | ||||
| 71876-28520C0 |
ZWR80..VOXY;ZRR80..VOXY..X;ZRR85..SI,V,ZS;ZRR85..VOXY..07S..X;ZRR80..07S..(SI,V,ZS);ZRR80..08S..(GI,SI,V,ZS);ZRR85..(ESQIR,VOXY)..08S..(GI,X)..CBU BLACK,TRIM2# |
1 | ||
| 72063B - HOOK SUB-ASSY, REAR SEAT, RH | ||||
| 72063-28020B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 72063-28021B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 72063-28020B0 |
ZRR8#,ZWR80..SI,V,ZS;ZRR8#,ZWR80..VOXY..X LT.GRAY,TRIM2# |
1 | ||
| 72065D - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH | ||||
| 72065-28180C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 72507H - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-28140C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 72601G - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-28041 |
ZRR8#..IV5 |
2 | ||
| 72601-28040 |
ZRR8#..IV5 |
2 | ||
| 76973F - COVER, REAR UNDER SIDE, RH | ||||
| 76973-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-28G20C2 |
ZRR8#..V BLACK,TRIM2# |
1 | ||
| 79021-28G20A1 |
ZRR8#..G IVORY,TRIM0# |
1 | ||
| 79021-28G20A2 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79021-28G20C4 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79021-28G21A2 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79021-28G21C4 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79021-28G21A3 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79021-28G21C6 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-28G00A2 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79023-28G00C4 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79236G - COVER, NO.2 SEAT LEG, RH | ||||
| 79236-28200C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 79273B - COVER, NO.2 SEAT HINGE, NO.3 | ||||
| 79273-28090C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 79378E - COVER, NO.3 SEAT CUSHION HINGE, RH | ||||
| 79378-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 79957C - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-28020C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90109-08330 | ||||
| 90119-06904 | ||||
| 90167-40044 | ||||
| 90201-07008 | ||||
| 90467-07214 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91553-80612 | ||||
| 91673-81022 | ||||
| 91674-L1028 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| C6185-D1170 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
(1401- )

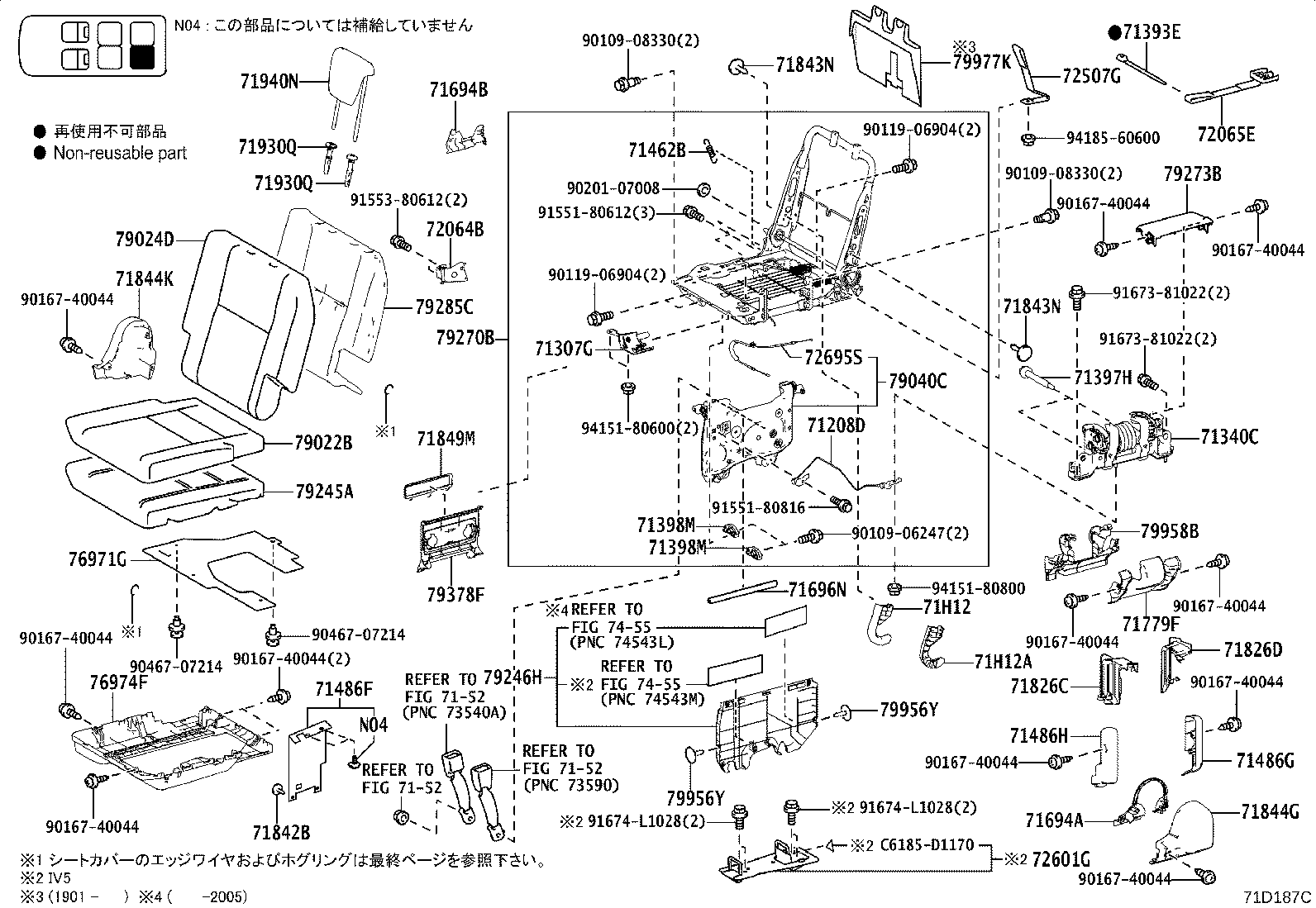

ﾘﾔNO.2ｼｰﾄ(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71486G - COVER, REAR SEAT HINGE, NO.2 LH | ||||
| 71486-28040C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71486H - COVER, REAR SEAT HINGE, NO.1 LH | ||||
| 71486-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71694A - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1 | ||||
| 71693-28040C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71694B - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2 | ||||
| 71694-28040C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71779F - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71778-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71826C - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71837-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71826D - MOULDING, REAR NO.2 SEAT CUSHION, LH | ||||
| 71829-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71843N - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-07049C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 71843N - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-07049C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 71844G - COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER | ||||
| 71843-28110C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71844K - COVER, REAR NO.2 SEAT RECLINING, NO.2 LH | ||||
| 71844-28130C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71849M - CAP, NO.2 SEAT ADJUSTER COVER, LH | ||||
| 71848-28050C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 71940N - HEADREST ASSY, REAR SEAT, NO.2 | ||||
| 71940-28F80C3 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
2 | ||
| 71940-28F80A1 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
2 | ||
| 71H12 - COVER, RECLINING ADJUSTER, LH | ||||
| 71875-28520C0 |
ZWR80..VOXY;ZRR80..VOXY..X;ZRR85..SI,V,ZS;ZRR85..VOXY..07S..X;ZRR80..07S..(SI,V,ZS);ZRR80..08S..(GI,SI,V,ZS);ZRR85..(ESQIR,VOXY)..08S..(GI,X)..CBU BLACK,TRIM2# |
1 | ||
| 71H12A - COVER, RECLINING ADJUSTER, LH | ||||
| 71876-28520C0 |
ZWR80..VOXY;ZRR80..VOXY..X;ZRR85..SI,V,ZS;ZRR85..VOXY..07S..X;ZRR80..07S..(SI,V,ZS);ZRR80..08S..(GI,SI,V,ZS);ZRR85..(ESQIR,VOXY)..08S..(GI,X)..CBU BLACK,TRIM2# |
1 | ||
| 72064B - HOOK SUB-ASSY, REAR SEAT, LH | ||||
| 72064-28030B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 72064-28031B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 72064-28030B0 |
ZRR8#,ZWR80..SI,V,ZS;ZRR8#,ZWR80..VOXY..X LT.GRAY,TRIM2# |
1 | ||
| 72065E - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH | ||||
| 72065-28180C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 72507G - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-28140C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 72601G - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-28041 |
ZRR8#..IV5 |
2 | ||
| 72601-28040 |
ZRR8#..IV5 |
2 | ||
| 76974F - COVER, REAR UNDER SIDE, LH | ||||
| 76974-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-28B20C2 |
ZRR8#..V BLACK,TRIM2# |
1 | ||
| 79022-28B20A1 |
ZRR8#..G IVORY,TRIM0# |
1 | ||
| 79022-28B20C4 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79022-28B20A2 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79022-28B21C4 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79022-28B21A2 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79022-28B21A3 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79022-28B21C6 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-28B80C2 |
ZRR8#,ZWR80..G,V BLACK,TRIM2# |
1 | ||
| 79024-28B80A2 |
ZRR8#,ZWR80..G IVORY,TRIM0# |
1 | ||
| 79273B - COVER, NO.2 SEAT HINGE, NO.3 | ||||
| 79273-28090C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 79378F - COVER, NO.2 SEAT CUSHION HINGE, LH | ||||
| 79378-28030C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 79956Y - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05162C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
4 | ||
| 79958B - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90109-06247 | ||||
| 90109-08330 | ||||
| 90119-06904 | ||||
| 90167-40044 | ||||
| 90201-07008 | ||||
| 90467-07214 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 91553-80612 | ||||
| 91673-81022 | ||||
| 91674-L1028 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| C6185-D1170 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
