ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire

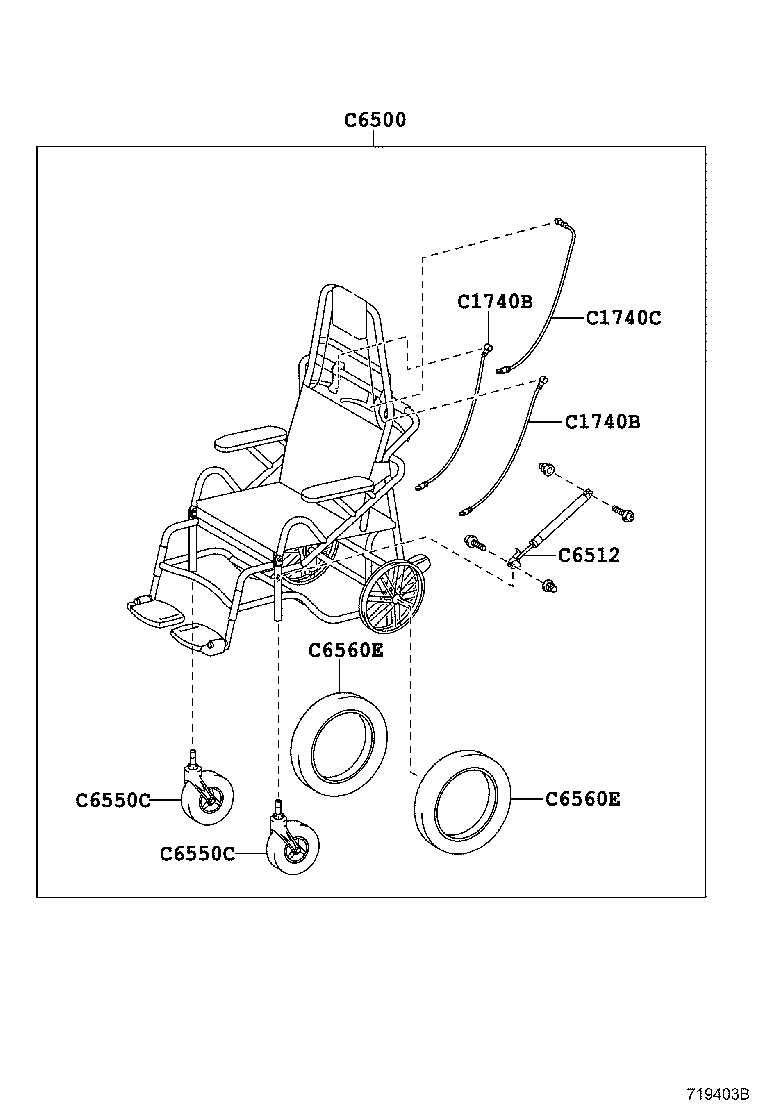

ILLUST NO. 5 OF 6(1401- )ZRR8# ; (1401- )ZWR80..G,GI,V,X,XI
ｸﾙﾏｲｽ(ｼｭﾄﾞｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C6500 - WHEEL CHAIR ASSY | ||||
| C6500-22340 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
1 | ||
| C6500-28030 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
1 | ||
| C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT | ||||
| C6550-26010 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
2 | ||
| C6550-28040 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR | ||||
| C6560-28040 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
2 | ||
| C6560-28030 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C6590A - HEADREST ASSY, WHEEL CHAIR | ||||
| C6590-18020 |
ZRR8#..08S..(X,XI)..IV5 車いす用ﾍｯﾄﾞﾚｽﾄ−有り |
1 | ||
| C7604 - CUSHION SET, SEAT FLAT | ||||
| C7604-22010 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
1 | ||
ILLUST NO. 6 OF 6(1401- )ZRR8# ; (1401- )ZWR80..G,GI,V,X,XI
ｸﾙﾏｲｽｺﾃｲﾍﾞﾙﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64008 - BELT SET, WHEEL CHAIR | ||||
| 64008-28030 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| 64008-28020 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| 64008 - BELT SET, WHEEL CHAIR | ||||
| 64008-28030 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| 64008-28020 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| C6521 - PLATE, WHEEL CHAIR LOCK HOLDER | ||||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲﾗｽﾄ参照 |
2 | ||
| C6521 - PLATE, WHEEL CHAIR LOCK HOLDER | ||||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲﾗｽﾄ参照 |
2 | ||
| C6521 - PLATE, WHEEL CHAIR LOCK HOLDER | ||||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲﾗｽﾄ参照 |
2 | ||
| C6521 - PLATE, WHEEL CHAIR LOCK HOLDER | ||||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲﾗｽﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1050 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP),NO.1:ｲ宴Xﾄ参照 |
2 | ||
| C6521-D1200 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP),NO.2:ｲﾗｽﾄ参照 |
2 | ||
| C6550B - BELT ASSY, WHEEL CHAIR SET, NO.1 | ||||
| C6570-28010 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| C6570-D1040 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| C6550B - BELT ASSY, WHEEL CHAIR SET, NO.1 | ||||
| C6570-28010 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| C6570-D1040 |
ZRR8#..IV5 車ｲｽ−有り(ﾘｸﾗｲﾆﾝｸﾞ&ﾁﾙﾄ),車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| C6550G - BELT ASSY, WHEEL CHAIR SET, NO.1 | ||||
| C6580-28010 |
ZRR8#..IV5 車ｲｽ−有り(電動)､車いす固定ﾍﾞﾙﾄ付(DOP) |
1 | ||
| Common parts | ||||
| C9913-22003 | ||||

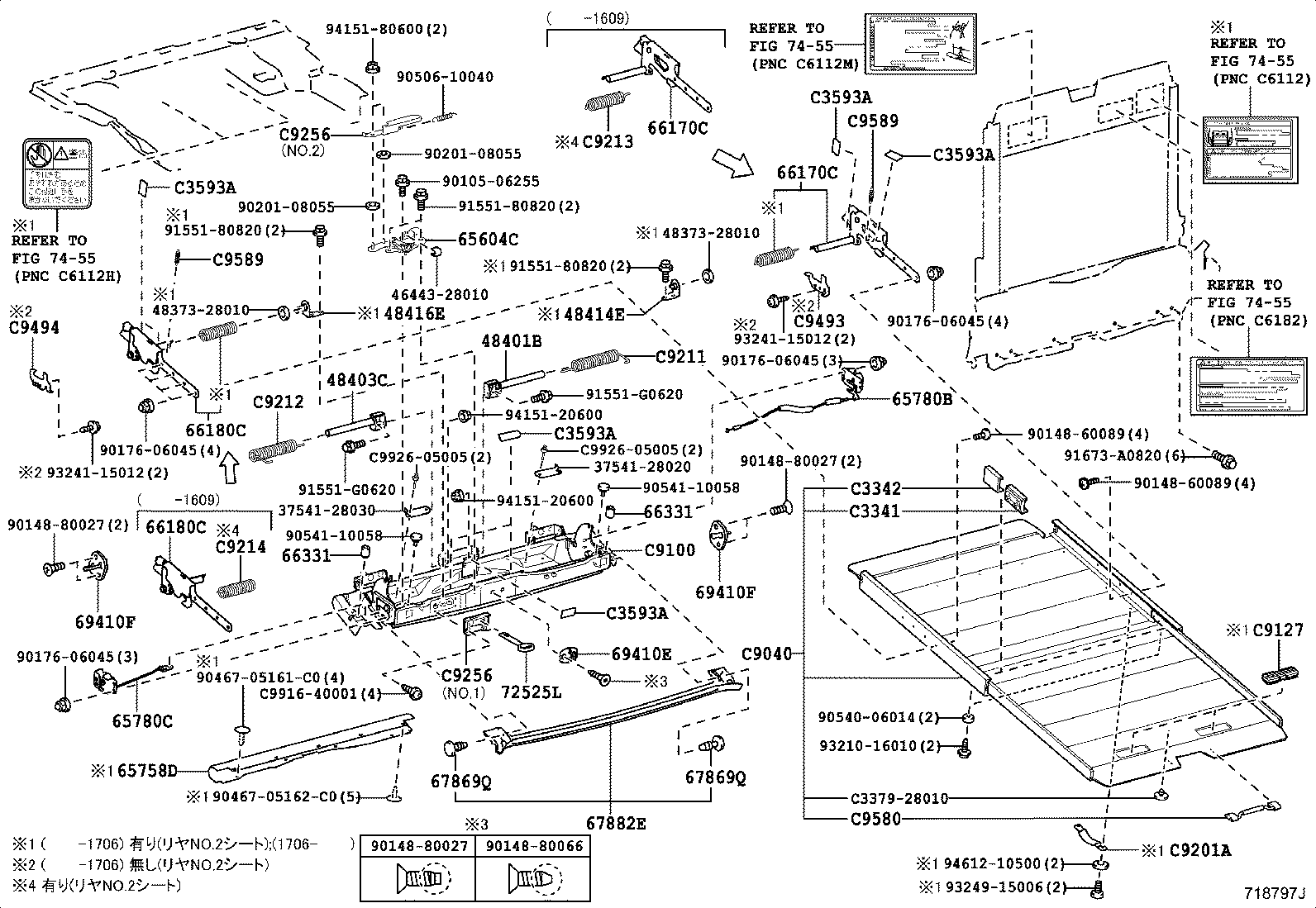

ILLUST NO. 1 OF 6(1401- )IV5
ﾘﾔｽﾛｰﾌﾟ(ｼｭﾄﾞｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48401B - BRACKET SUB-ASSY, SPRING, RH | ||||
| 48401-28010 |
ZRR8#..IV5 |
1 | ||
| 48403C - BRACKET SUB-ASSY, SPRING, LH | ||||
| 48403-28010 |
ZRR8#..IV5 |
1 | ||
| 65604C - LINK SUB-ASSY, TAIL GATE LOCK CONNECTING | ||||
| 65604-28010 |
ZRR8#..IV5 |
1 | ||
| 65780B - LOCK ASSY, TAIL GATE, RH | ||||
| 65780-28010 |
ZRR8#..IV5 |
1 | ||
| 65780-28011 |
ZRR8#..IV5 |
1 | ||
| 65780C - LOCK ASSY, TAIL GATE, LH | ||||
| 65790-28011 |
ZRR8#..IV5 |
1 | ||
| 65790-28010 |
ZRR8#..IV5 |
1 | ||
| 66170C - LATCH ASSY, TAIL GATE, RH | ||||
| 66170-28021 |
ZRR85..08S..IV5 |
1 | ||
| 66170-28020 |
ZRR85..08S..IV5 |
1 | ||
| 66170C - LATCH ASSY, TAIL GATE, RH | ||||
| 66170-28021 |
ZRR85..08S..IV5 |
1 | ||
| 66170-28020 |
ZRR85..08S..IV5 |
1 | ||
| 66180C - LATCH ASSY, TAIL GATE, LH | ||||
| 66180-28021 |
ZRR85..08S..IV5 |
1 | ||
| 66180-28020 |
ZRR85..08S..IV5 |
1 | ||
| 66180C - LATCH ASSY, TAIL GATE, LH | ||||
| 66180-28021 |
ZRR85..08S..IV5 |
1 | ||
| 66180-28020 |
ZRR85..08S..IV5 |
1 | ||
| 66331 - CUSHION, GATE | ||||
| 69425-28020 |
ZRR8#..IV5 |
2 | ||
| 66331 - CUSHION, GATE | ||||
| 69425-28020 |
ZRR8#..IV5 |
2 | ||
| 67869Q - CLIP | ||||
| 67869-22010 |
ZRR8#..IV5 |
2 | ||
| 67869Q - CLIP | ||||
| 67869-22010 |
ZRR8#..IV5 |
2 | ||
| 67882E - WEATHERSTRIP, TAIL GATE | ||||
| 67882-28010 |
ZRR8#..IV5 |
1 | ||
| 69410E - PLATE ASSY, DOOR LOCK STRIKER | ||||
| 69410-60030 |
ZRR8#..IV5 |
1 | ||
| 69410F - PLATE ASSY, LOCK STRIKER | ||||
| 69410-20110 |
ZRR8#..IV5 |
2 | ||
| 69410F - PLATE ASSY, LOCK STRIKER | ||||
| 69410-20110 |
ZRR8#..IV5 |
2 | ||
| 72525L - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-68010E0 |
ZRR8#..IV5 GREGE |
1 | ||
| C3341 - SUPPORT, SLIDE FLOOR PANEL, NO.1 | ||||
| C3341-28010 |
ZRR8#..IV5 |
2 | ||
| C3342 - SUPPORT, SLIDE FLOOR PANEL, NO.2 | ||||
| C3342-28010 |
ZRR8#..IV5 |
2 | ||
| C3593A - SILENCER, REAR FLOOR, NO.3 | ||||
| C3593-22020 |
ZRR85..08S..IV5 |
4 | ||
| C3593A - SILENCER, REAR FLOOR, NO.3 | ||||
| C3593-22020 |
ZRR85..08S..IV5 |
4 | ||
| C3593A - SILENCER, REAR FLOOR, NO.3 | ||||
| C3593-22020 |
ZRR85..08S..IV5 |
4 | ||
| C3593A - SILENCER, REAR FLOOR, NO.3 | ||||
| C3593-22020 |
ZRR85..08S..IV5 |
4 | ||
| C3593A - SILENCER, REAR FLOOR, NO.3 | ||||
| C3593-22020 |
ZRR85..08S..IV5 |
4 | ||
| C9040 - SLOPE ASSY, REAR GATE | ||||
| C9040-28040 |
ZRR85..08S..IV5 |
1 | ||
| C9100 - GATE ASSY, TAIL | ||||
| C9001-28040 |
ZRR8#..IV5 |
1 | ||
| C9211 - SPRING, TAIL GATE NO.1 | ||||
| C9211-28020 |
ZRR8#..IV5 |
1 | ||
| C9212 - SPRING, TAIL GATE NO.2 | ||||
| C9212-28010 |
ZRR8#..IV5 |
1 | ||
| C9256 - COVER, TAIL GATE LOCK | ||||
| C9256-28080 |
ZRR8#..IV5 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| C9256-28040 |
ZRR8#..IV5 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| C9256 - COVER, TAIL GATE LOCK | ||||
| C9256-28080 |
ZRR8#..IV5 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| C9256-28040 |
ZRR8#..IV5 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| C9493 - STOPPER, REAR SLOPE, RH | ||||
| C9493-28020 |
ZRR85..08S..IV5 |
1 | ||
| C9494 - STOPPER, REAR SLOPE, LH | ||||
| C9494-28010 |
ZRR85..08S..IV5 |
1 | ||
| C9580 - HANDLE ASSY, PLATFORM LOCK | ||||
| C9580-28010 |
ZRR8#..IV5 |
1 | ||
| C9589 - SPRING, PLATFORM LOCK HANDLE | ||||
| C9589-28010 |
ZRR8#..IV5 |
2 | ||
| C9589 - SPRING, PLATFORM LOCK HANDLE | ||||
| C9589-28010 |
ZRR8#..IV5 |
2 | ||
| Common parts | ||||
| 37541-28020 | ||||
| 37541-28030 | ||||
| 46443-28010 | ||||
| 48373-28010 | ||||
| 90105-06255 | ||||
| 90148-60089 | ||||
| 90148-80027 | ||||
| 90148-80066 | ||||
| 90176-06045 | ||||
| 90201-08055 | ||||
| 90467-05161C0 | ||||
| 90467-05162C0 | ||||
| 90506-10040 | ||||
| 90540-06014 | ||||
| 90541-10058 | ||||
| 91551-80820 | ||||
| 91551-G0620 | ||||
| 91673-A0820 | ||||
| 93210-16010 | ||||
| 93241-15012 | ||||
| 93249-15006 | ||||
| 94151-20600 | ||||
| 94151-80600 | ||||
| 94612-10500 | ||||
| C3379-28010 | ||||
| C9916-40001 | ||||
| C9926-05005 | ||||
| Linked diagrams | ||||
| 7455 | ||||

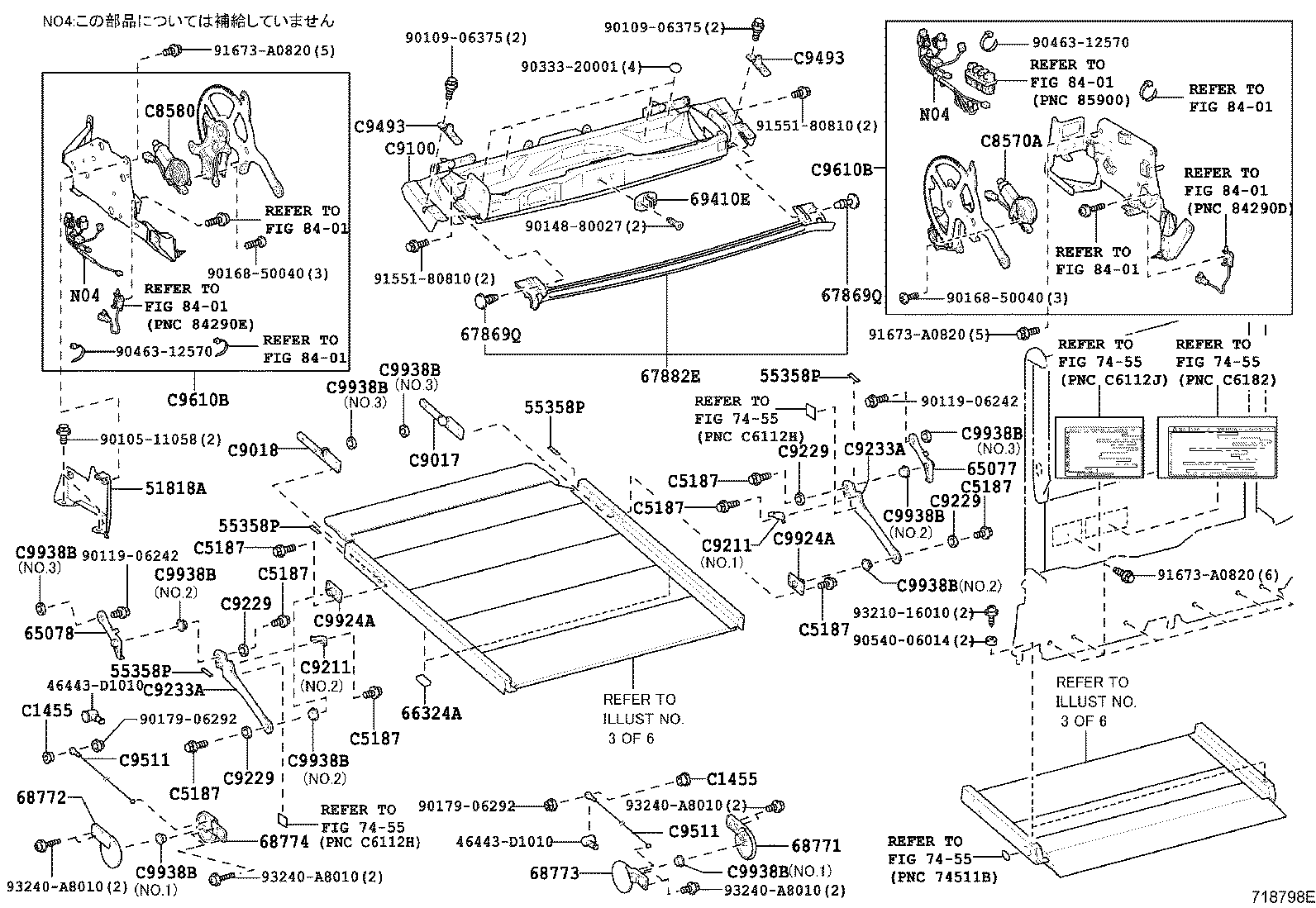

ILLUST NO. 2 OF 6(1401- )IV5
ﾘﾔｽﾛｰﾌﾟ(ﾃﾞﾝﾄﾞｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67869Q - CLIP | ||||
| 67869-22010 |
ZRR8#..IV5 |
2 | ||
| 67869Q - CLIP | ||||
| 67869-22010 |
ZRR8#..IV5 |
2 | ||
| 67882E - WEATHERSTRIP, TAIL GATE | ||||
| 67882-28010 |
ZRR8#..IV5 |
1 | ||
| 69410E - PLATE ASSY, DOOR LOCK STRIKER | ||||
| 69410-60030 |
ZRR8#..IV5 |
1 | ||
| C9100 - GATE ASSY, TAIL | ||||
| C9001-28040 |
ZRR8#..IV5 |
1 | ||
| C9211 - SPRING, TAIL GATE NO.1 | ||||
| C9211-28020 |
ZRR8#..IV5 |
1 | ||
| C9211 - SPRING, TAIL GATE NO.1 | ||||
| C9211-28020 |
ZRR8#..IV5 |
1 | ||
| C9493 - STOPPER, REAR SLOPE, RH | ||||
| C9493-28020 |
ZRR85..08S..IV5 |
1 | ||
| C9493 - STOPPER, REAR SLOPE, RH | ||||
| C9493-28020 |
ZRR85..08S..IV5 |
1 | ||
| Common parts | ||||
| 46443-D1010 | ||||
| 90105-11058 | ||||
| 90109-06375 | ||||
| 90119-06242 | ||||
| 90148-80027 | ||||
| 90168-50040 | ||||
| 90179-06292 | ||||
| 90333-20001 | ||||
| 90463-12570 | ||||
| 90540-06014 | ||||
| 91551-80810 | ||||
| 91673-A0820 | ||||
| 93210-16010 | ||||
| 93240-A8010 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||

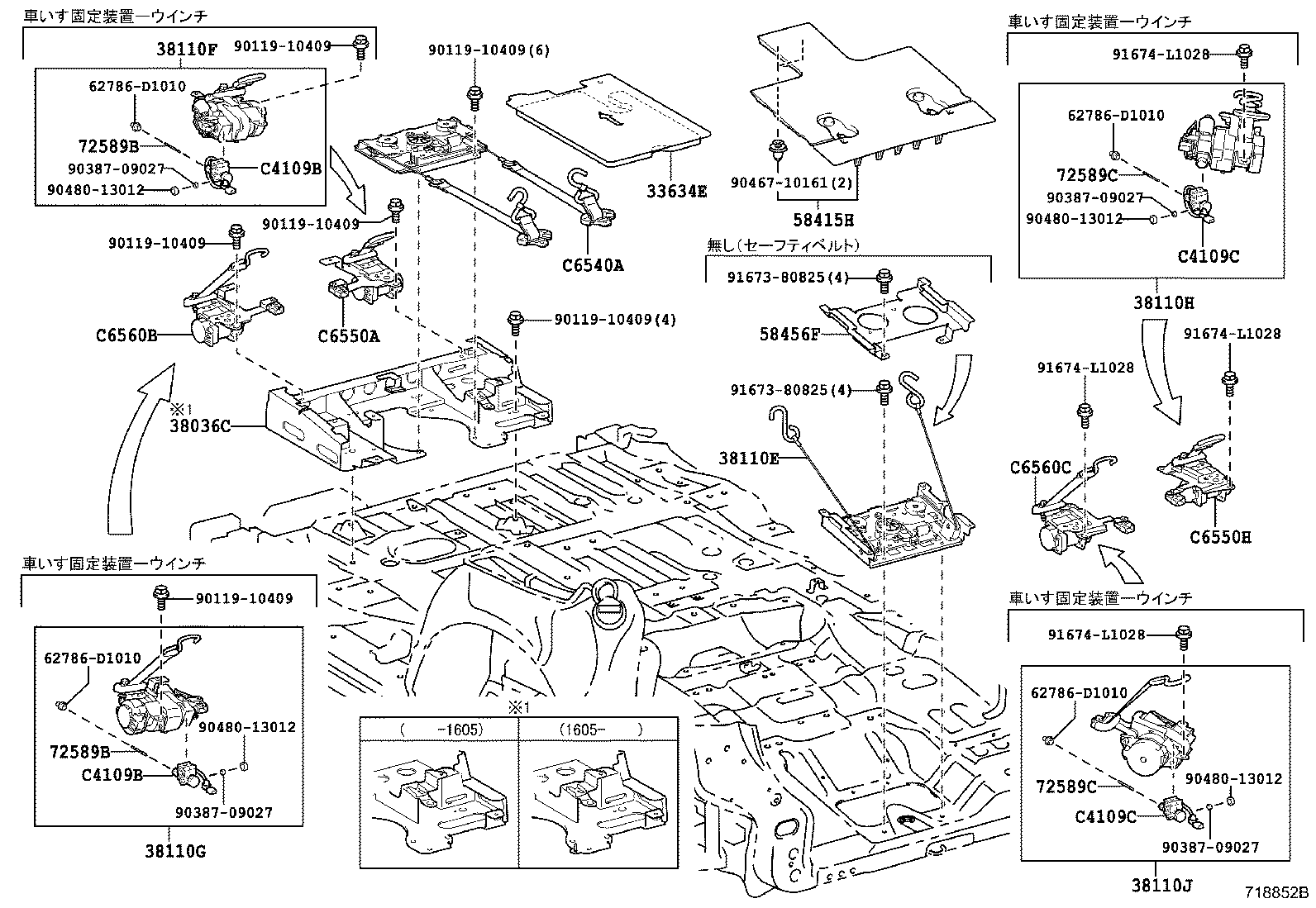

ILLUST NO. 4 OF 6(1401- )IV5
ｸﾙﾏｲｽｺﾃｲｿｳﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110E - WINCH ASSY, W/BASE | ||||
| 38100-28010 |
ZRR8#..08S..IV5 |
1 | ||
| 38110H - WINCH ASSY NO.3 | ||||
| 38110-28030 |
ZRR8#..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28031 |
ZRR85..XI..IV5;ZRR80..08S..IV5;ZRR85..08S..X..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28033 |
ZRR85..IV5;ZRR80..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28034 |
ZRR85..IV5;ZRR80..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28032 |
ZRR85..IV5;ZRR80..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110J - WINCH ASSY NO.4 | ||||
| 38110-28041 |
ZRR85..XI..IV5;ZRR80..08S..IV5;ZRR85..08S..X..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28042 |
ZRR85..IV5;ZRR80..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28040 |
ZRR8#..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28044 |
ZRR85..IV5;ZRR80..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 38110-28043 |
ZRR85..IV5;ZRR80..08S..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
1 | ||
| 58415H - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-28120 |
ZRR8#..IV5 |
1 | ||
| 72589C - CABLE, RECLINING REMOTE CONTROL, NO.2 | ||||
| 72589-D1010 |
ZRR85..XI..IV5;ZRR80..08S..IV5;ZRR85..08S..X..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
2 | ||
| 72589C - CABLE, RECLINING REMOTE CONTROL, NO.2 | ||||
| 72589-D1010 |
ZRR85..XI..IV5;ZRR80..08S..IV5;ZRR85..08S..X..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
2 | ||
| C4109C - HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR NO.2 | ||||
| C4109-D1020 |
ZRR85..XI..IV5;ZRR80..08S..IV5;ZRR85..08S..X..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
2 | ||
| C4109C - HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR NO.2 | ||||
| C4109-D1020 |
ZRR85..XI..IV5;ZRR80..08S..IV5;ZRR85..08S..X..IV5 車ｲｽ固定装置−ｳｲﾝﾁ(ﾘﾔのみ) |
2 | ||
| C6550H - BELT ASSY, WHEEL CHAIR SET, NO.1 | ||||
| C6550-28030 |
ZRR8#..08S..IV5 |
1 | ||
| C6560C - BELT ASSY, WHEEL CHAIR SET, NO.2 | ||||
| C6560-28020 |
ZRR8#..08S..IV5 |
1 | ||
| Common parts | ||||
| 62786-D1010 | ||||
| 90119-10409 | ||||
| 90387-09027 | ||||
| 90467-10161 | ||||
| 90480-13012 | ||||
| 91673-80825 | ||||
| 91674-L1028 | ||||

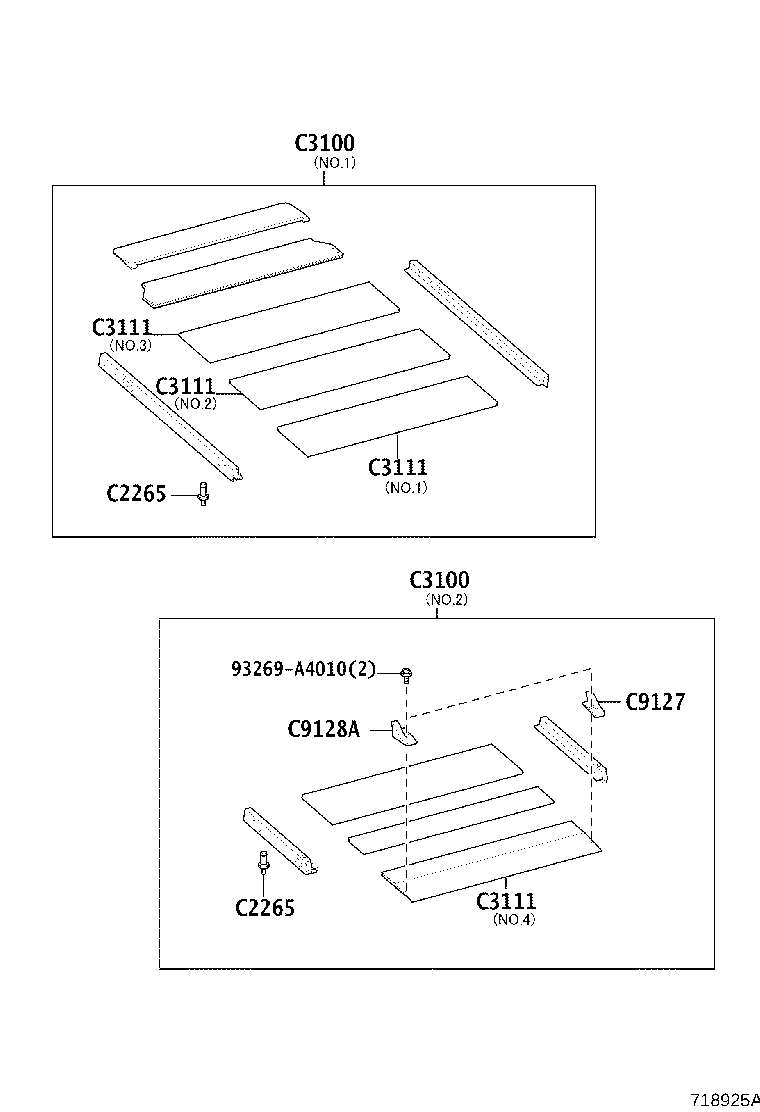

ILLUST NO. 3 OF 6(1401- )IV5
ﾘﾔｽﾛｰﾌﾟ(ﾃﾞﾝﾄﾞｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93269-A4010 | ||||
ILLUST NO. 5 OF 6(1411- )IV5
ｸﾙﾏｲｽ(ｳｪﾙﾁｪｱ,DOP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C1740B - CABLE ASSY, BRAKE CONTROL, NO.1 | ||||
| C1740-28010 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C1740B - CABLE ASSY, BRAKE CONTROL, NO.1 | ||||
| C1740-28010 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C1740C - CABLE ASSY, BRAKE CONTROL, NO.2 | ||||
| C1740-28020 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
1 | ||
| C6500 - WHEEL CHAIR ASSY | ||||
| C6500-22340 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
1 | ||
| C6500-28030 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
1 | ||
| C6512 - STAY, WHEEL CHAIR HOLDER,REAR | ||||
| C6512-28010 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
1 | ||
| C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT | ||||
| C6550-26010 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
2 | ||
| C6550-28040 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT | ||||
| C6550-26010 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
2 | ||
| C6550-28040 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR | ||||
| C6560-28040 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
2 | ||
| C6560-28030 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
| C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR | ||||
| C6560-28040 |
ZRR8#..IV5 車ｲｽ−有り(手動､DOP) |
2 | ||
| C6560-28030 |
ZRR8#..IV5 車ｲｽ−有り(ｳｪﾙﾁｪｱ､DOP) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
