ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire

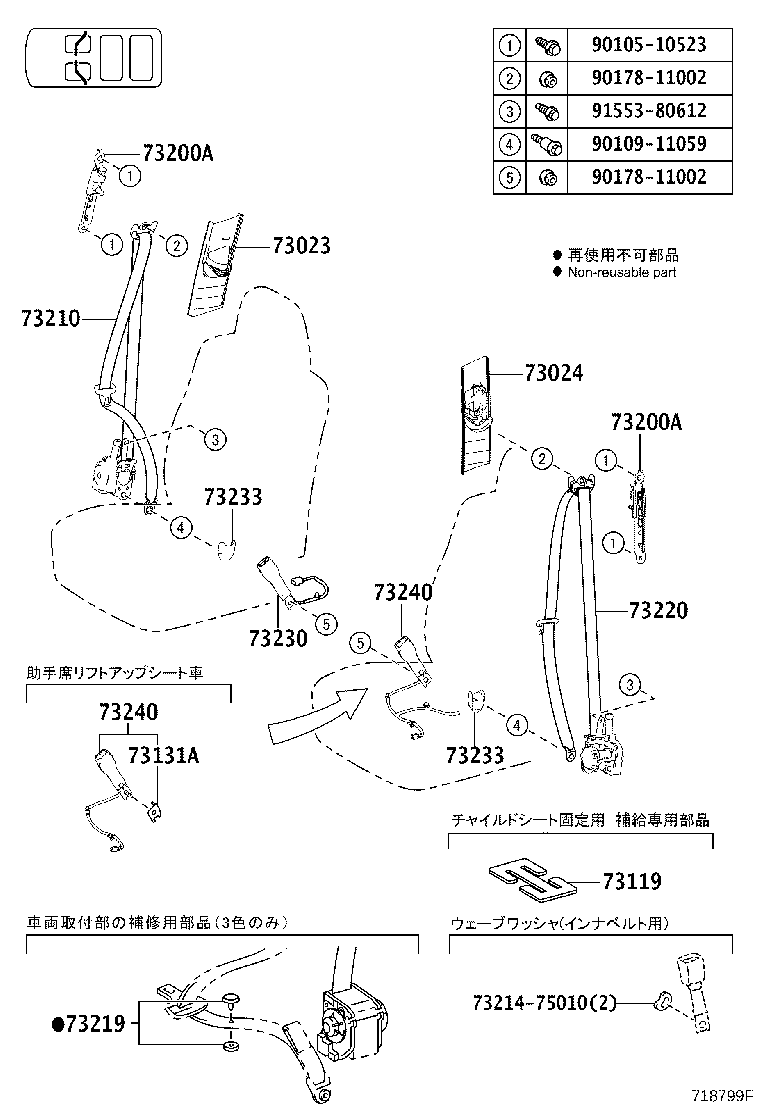

ILLUST NO. 1 OF 4(1401- )
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33030B1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33030B1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR8#,ZWR80 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZRR8#,ZWR80 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZRR8#,ZWR80 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28850B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZRR8#,ZWR80 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR8#,ZWR80 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ZRR8#,ZWR80 ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28840B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28651C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73230-28652C0 |
ZWR80..SI,ZS;ZRR8#..SI,V,XI,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73230-28651C0 |
ZRR8#..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73230-28652C0 |
ZWR80..NOAH..X;ZRR8#..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28210C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73240-28210C0 |
ZRR8#..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73240-28211C0 |
ZWR80..SI,ZS;ZRR8#..SI,V,XI,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73240-28211C0 |
ZWR80..NOAH..X;ZRR8#..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28210C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73240-28210C0 |
ZRR8#..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73240-28211C0 |
ZWR80..SI,ZS;ZRR8#..SI,V,XI,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73240-28211C0 |
ZWR80..NOAH..X;ZRR8#..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 91553-80612 | ||||

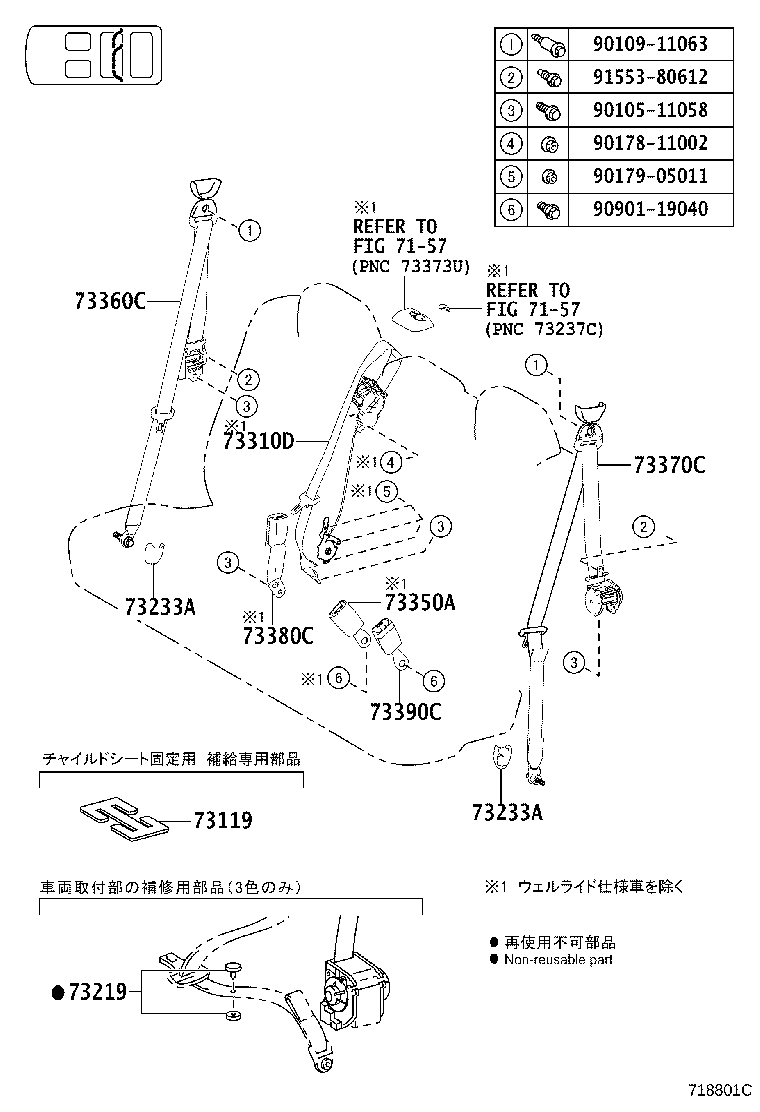

ILLUST NO. 3 OF 4(1401- )08S
ﾘﾔNO.1ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR8#,ZWR80 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZRR8#,ZWR80 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR8#,ZWR80 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ZRR8#,ZWR80 ﾌﾞﾗｯｸ |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,XI,ZS) BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,XI,ZS) BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#..NOAH..08S..(G,X) BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73310D - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER | ||||
| 73310-28290C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 73310-28290C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73350A - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER | ||||
| 73350-28310C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 73350-28310C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-28730B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28670B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-28540C1 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73380-28540C1 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73390-28370C0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73390-28370C0 |
ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7157 | ||||

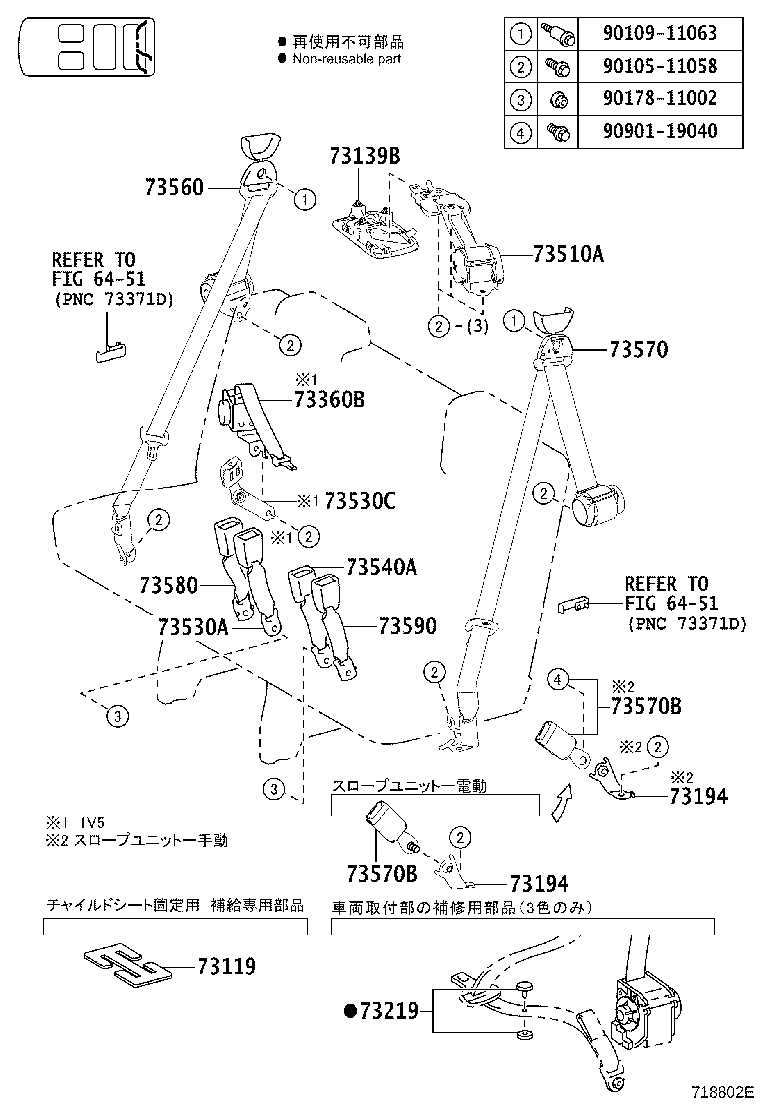

ILLUST NO. 4 OF 4(1401- )
ﾘﾔNO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR8#,ZWR80 |
1 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-28060B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73194 - BRACKET, SEAT BELT INNER ANCHOR, NO.2 LH | ||||
| 73192-28110 |
ZRR8#..08S..IV5 |
1 | ||
| 73194 - BRACKET, SEAT BELT INNER ANCHOR, NO.2 LH | ||||
| 73192-28110 |
ZRR8#..08S..IV5 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZRR8#,ZWR80 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR8#,ZWR80 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ZRR8#,ZWR80 ﾌﾞﾗｯｸ |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73560-28460C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-28170C1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK/LT.GRAY,TRIM0#,2# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28130C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73530C - BELT ASSY, NO.2 SEAT LAP TYPE | ||||
| 73530-28140C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28130C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73570B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73580-28250C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 73570B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73580-28250C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28240C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-28240C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90178-11002 | ||||
| 90901-19040 | ||||
| Linked diagrams | ||||
| 6451 | ||||
