ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire
(1401- )
ﾉｰﾏﾙﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

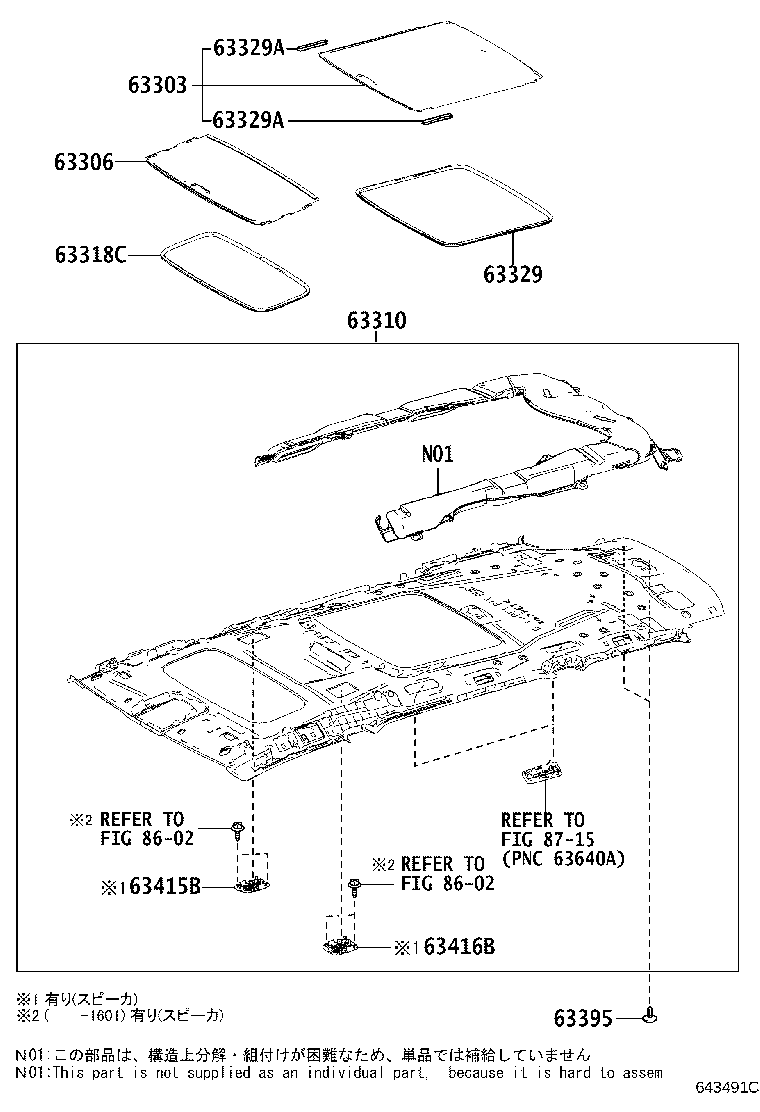

| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28K70B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K80B0 |
ZRR8#,ZWR80..GI,V LT.GRAY,TRIM2# |
1 | ||
| 63310-28L10B0 |
ZRR8#,ZWR80..GI,V SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM2# |
1 | ||
| 63310-28K80B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K80B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28L10B0 |
ZRR8#,ZWR80..G SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K81B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K81B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K71B0 |
ZRR8#,ZWR80..NOAH..X LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K81B0 |
ZRR8#,ZWR80..V LT.GRAY,TRIM2# |
1 | ||
| 63310-28L11B0 |
ZRR8#,ZWR80..G SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28L11B0 |
ZRR8#,ZWR80..V SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM2# |
1 | ||
| 63327E - FASTENER, ROOF HEADLINING, NO.1 | ||||
| 90530-10007 |
ZRR8#,ZWR80 |
3 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 90467-05021P4 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
2 | ||
| 63415B - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..V LT.GRAY,TRIM2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..V LT.GRAY,TRIM2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28120 |
ZRR8#,ZWR80 |
1 | ||
| 66413C - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-28120 |
ZRR8#,ZWR80 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28120 |
ZRR8#,ZWR80 |
1 | ||
| 66423A - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-28120 |
ZRR8#,ZWR80 |
1 | ||
| Linked diagrams | ||||
| 8602 | ||||
| 8715 | ||||
(1401- )
ﾂｲﾝﾑｰﾝﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

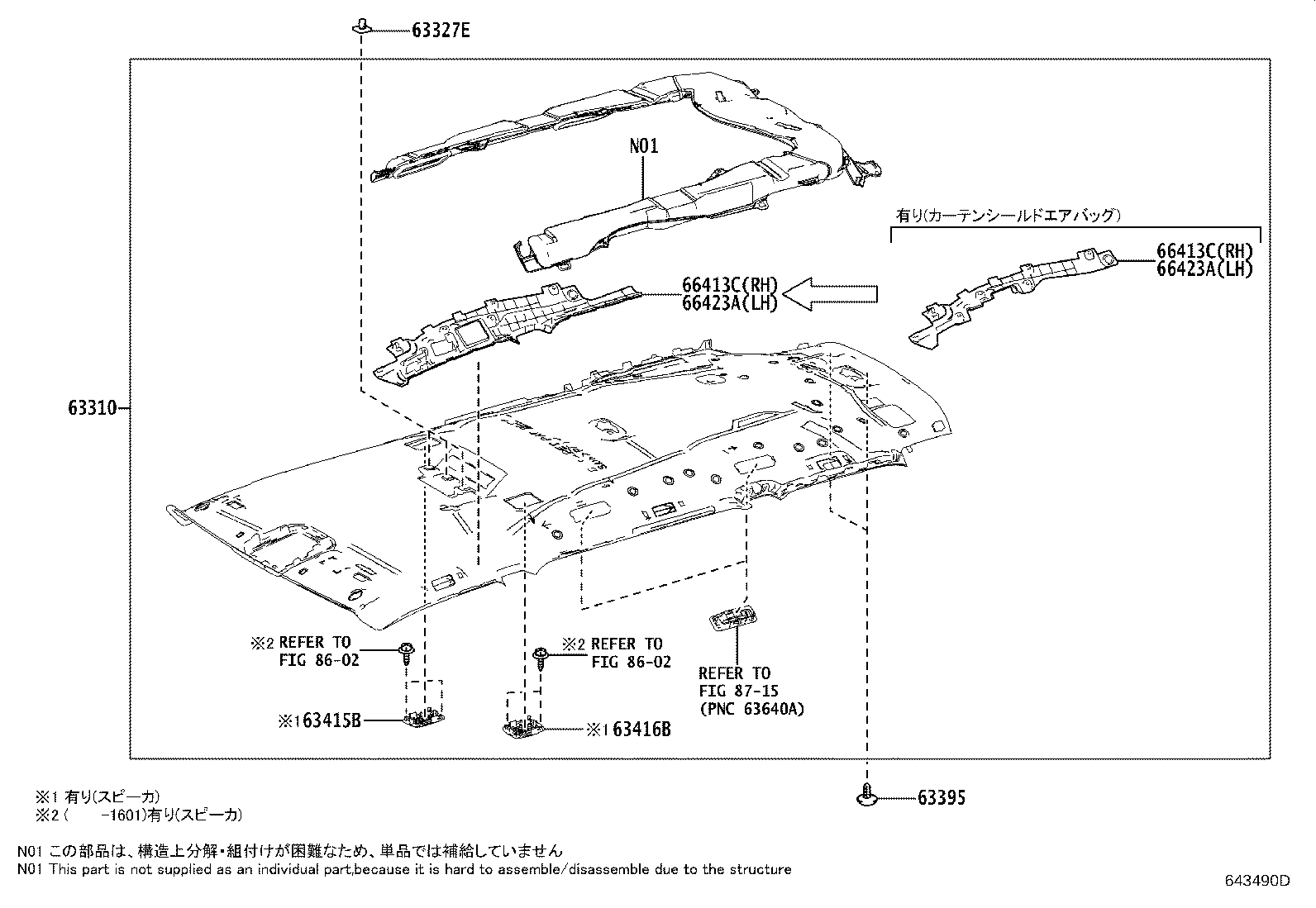

| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-28K70B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K80B0 |
ZRR8#,ZWR80..GI,V LT.GRAY,TRIM2# |
1 | ||
| 63310-28L10B0 |
ZRR8#,ZWR80..GI,V SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM2# |
1 | ||
| 63310-28K80B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K80B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28L10B0 |
ZRR8#,ZWR80..G SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K81B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K81B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K71B0 |
ZRR8#,ZWR80..NOAH..X LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28K81B0 |
ZRR8#,ZWR80..V LT.GRAY,TRIM2# |
1 | ||
| 63310-28L11B0 |
ZRR8#,ZWR80..G SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM0#,2# |
1 | ||
| 63310-28L11B0 |
ZRR8#,ZWR80..V SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,LT.GRAY,TRIM2# |
1 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 90467-05021P4 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
2 | ||
| 63415B - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..V LT.GRAY,TRIM2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..V LT.GRAY,TRIM2# |
1 | ||
| 63415-28030B0 |
ZRR8#,ZWR80..G LT.GRAY,TRIM0#,2# |
1 | ||
| 63415-28030B0 |
ZRR8#..NOAH..X ｵｰﾃﾞｨｵ−有り(ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ),LT.GRAY,TRIM0#,2# |
1 | ||
| Linked diagrams | ||||
| 8602 | ||||
| 8715 | ||||
