ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire
ILLUST NO. 1 OF 2(1401- )
ﾌﾛﾝﾄｻｲﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47256B - GROMMET, CAP | ||||
| 47256-26010B5 |
ZRR85..(ESQIR,NOAH)..08S..IV5 LT.GRAY,TRIM0#,2# |
2 | ||
| 47256B - GROMMET, CAP | ||||
| 47256-26010B5 |
ZRR85..(ESQIR,NOAH)..08S..IV5 LT.GRAY,TRIM0#,2# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
ZRR8#,ZWR80 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-28230C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62111-28230C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62112-28240C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62112-28240C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-28140C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62210-28140C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-28140C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62220-28140C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
6 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
6 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62225-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62226-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-28130C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62311-28130C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-28130C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62312-28130C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 67871-28100 |
ZRR8#,ZWR80 |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 67872-28160 |
ZRR8#,ZWR80 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
ZRR8#,ZWR80 |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-28110B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-28110B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-28110C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62413-28110C0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
6 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-28140C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62414-28140C0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
3 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
3 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62470-28050B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62470-28120B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-09240 |
ZRR8#,ZWR80 |
12 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-28070B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62480-28070B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62480-28150B0 |
ZRR8#,ZWR80..NOAH..(G,X) LT.GRAY,TRIM0#,2# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-60020 |
ZRR8#,ZWR80 |
4 | ||
| 62566A - COVER, REAR PILLAR, RH | ||||
| 62566-28050B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62566-28050B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62566C - CLAMP, COWL SIDE TRIM | ||||
| 67923-28020 |
ZRR8#,ZWR80 |
2 | ||
| 62567B - COVER, REAR PILLAR, LH | ||||
| 62567-28060B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62567-28060B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) LT.GRAY,TRIM2# |
1 | ||
| 62570E - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-10161 |
ZRR8#,ZWR80 |
4 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-28310B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
ZRR8#..08S |
4 | ||
| 62638B - CLIP | ||||
| 90467-10161 |
ZRR8#..08S |
4 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-28330B0 |
ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 64515A - HOLDER, LUGGAGE COMPARTMENT DOOR HOOK | ||||
| 64515-28020C0 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU BLACK,TRIM0#,2# |
14 | ||
| 64515-28020C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
14 | ||
| 64515A - HOLDER, LUGGAGE COMPARTMENT DOOR HOOK | ||||
| 64515-28020C0 |
ZRR80..08S;ZRR85..CBU;ZRR85..08S..IV5;ZRR80,ZWR80..07S..CBU BLACK,TRIM0#,2# |
14 | ||
| 64515-28020C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
14 | ||
| 67887L - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-28080 |
ZRR8#,ZWR80 |
1 | ||
| 67888L - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-28090 |
ZRR8#,ZWR80 |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-28080C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67913-28080C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-28080C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67914-28080C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-28161C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67917-28160C0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS;ZWR80..(ESQIR,VOXY)..(GI,V,X) BLACK,TRIM2# |
1 | ||
| 67917-28160C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-28161C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67918-28160C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-28161C0 |
ZRR8#..NOAH..08S..(G,X);ZRR8#,ZWR80..NOAH..07S..(G,X)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67918-28160C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 58521-28270 | ||||
| 62217-13010 | ||||
| 90148-60058 | ||||
| 90467-09236 | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7157 | ||||
| 7455 | ||||

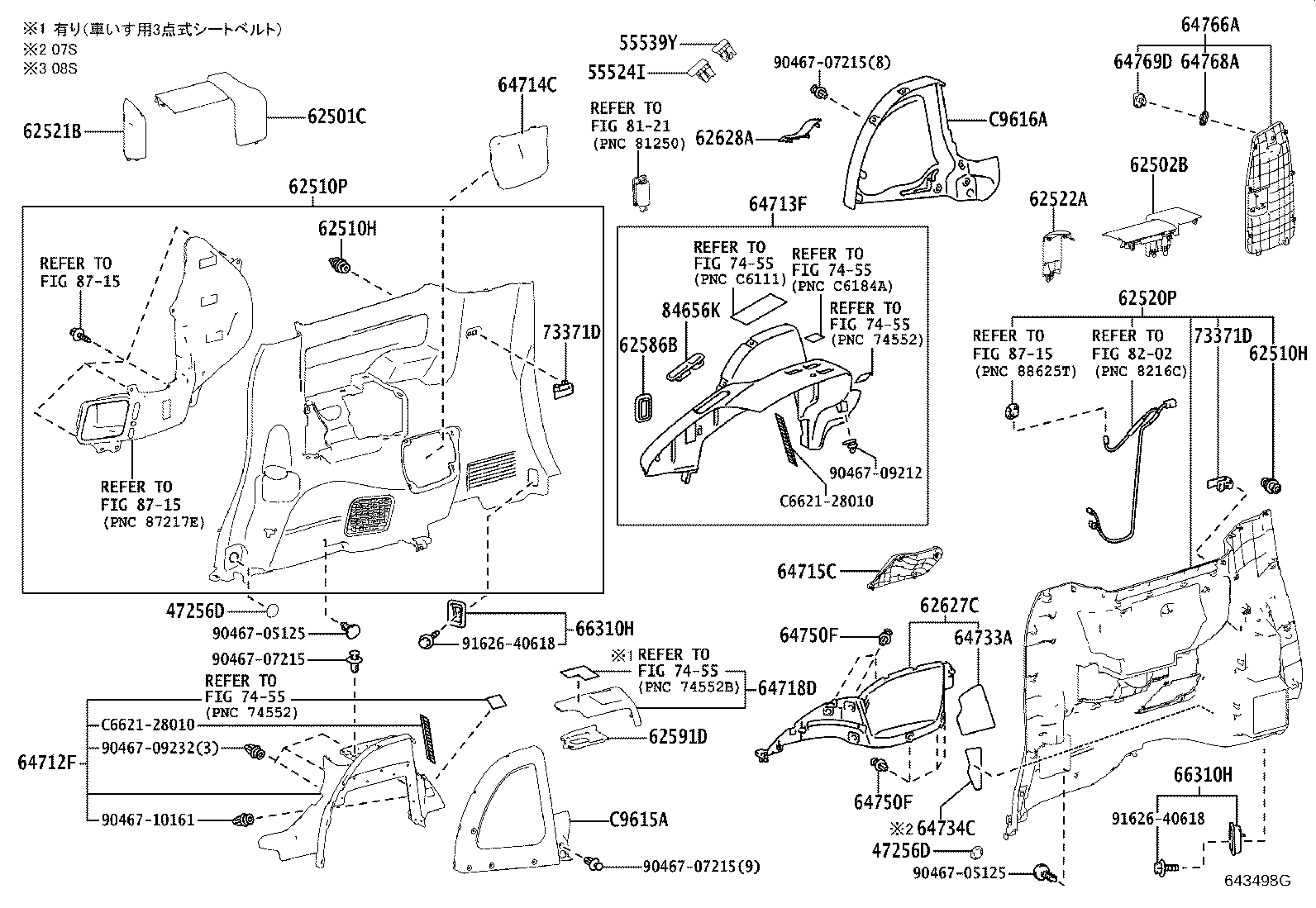

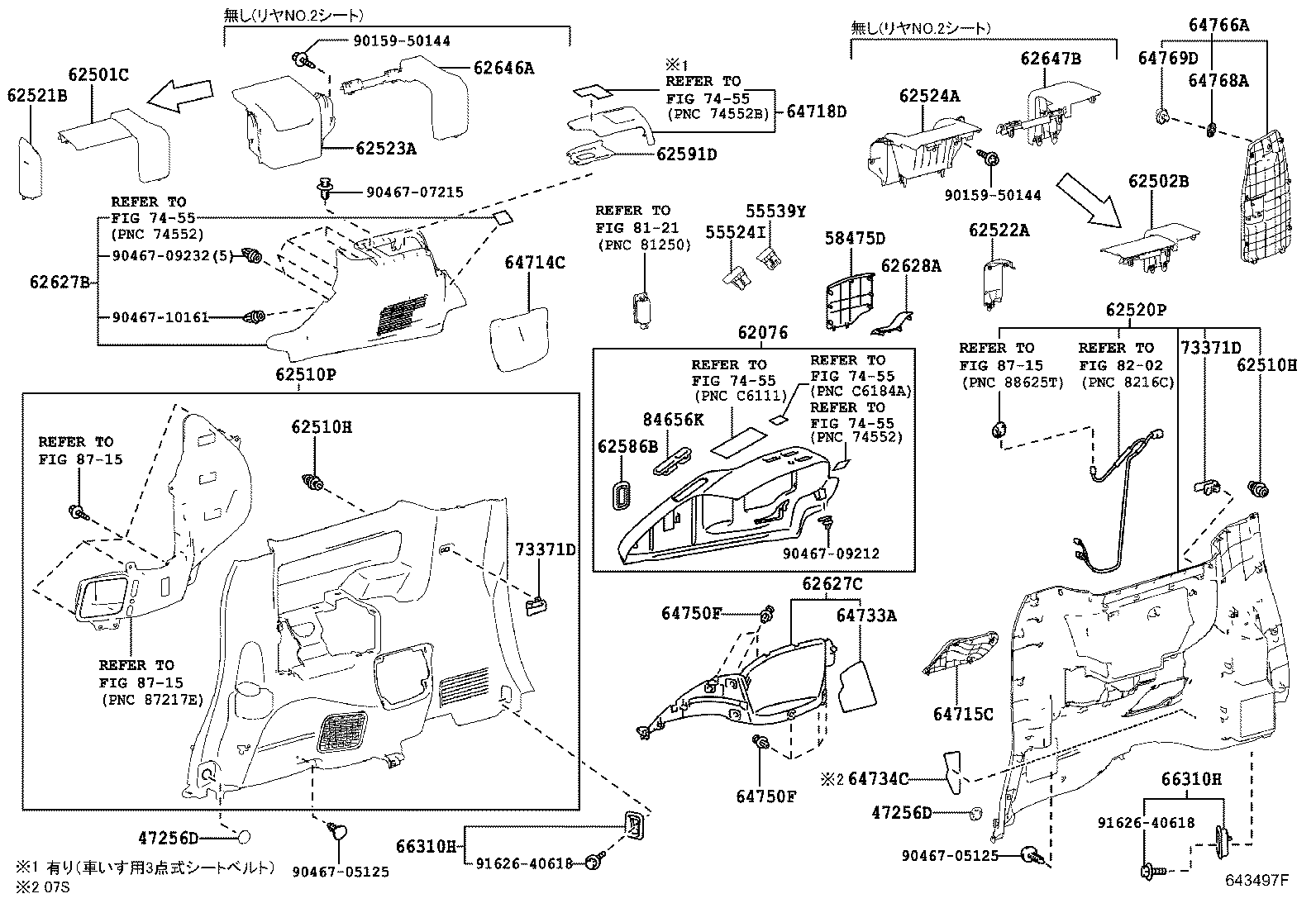

ILLUST NO. 2 OF 2(1401- )IV5
ﾃﾞｯｷｻｲﾄﾞ,ｳｪﾙｷｬﾌﾞｽﾛｰﾌﾟｼｬ(ﾏﾆｭｱﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524I - COVER, SWICH BASE HOLE | ||||
| 55524-28070C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-58040 |
ZRR8#..IV5 |
1 | ||
| 58475D - COVER, ECU SERVICE | ||||
| 58475-28040C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62076 - COVER SUB-ASSY, SIDE TRIM, LOWER LH | ||||
| 62076-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62501C - COVER SUB-ASSY, QUARTER TRIM, RH | ||||
| 62501-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62502B - COVER SUB-ASSY, QUARTER TRIM, LH | ||||
| 62502-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-09236 |
ZRR8#,ZWR80 |
22 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-09236 |
ZRR8#,ZWR80 |
22 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-28370C1 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-28510C1 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-28040C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62521-28040C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-28030C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62522-28030C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62523A - COVER, QUARTER TRIM, LOWER RH | ||||
| 62523-28020C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62524A - COVER, QUARTER TRIM, LOWER LH | ||||
| 62524-28020C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62586B - RETAINER, QUARTER TRIM, NO.2 | ||||
| 81398-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62591D - PLATE, SIDE TRIM BASE, NO.1 | ||||
| 62517-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62628-28020C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62627-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62628A - COVER, SIDE TRIM, LH | ||||
| 85659-28070C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62646A - BASE, QUARTER TRIM, REAR RH | ||||
| 62644-28040C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62647B - BASE, QUARTER TRIM, REAR LH | ||||
| 62645-28040C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5 BLACK,TRIM0#,2# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64714-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64715-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-28010C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 64733A - PAD, DECK TRIM SIDE, NO.1 | ||||
| 64734-28080 |
ZRR8#..IV5 |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10216 |
ZRR8#..IV5 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10216 |
ZRR8#..IV5 |
6 | ||
| 64766A - COVER, DECK SIDE TRIM TOOL | ||||
| 64766-28100C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64766-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64768A - STOPPER, QUARTER TRIM LID | ||||
| 64768-60030 |
ZRR8#,ZWR80 |
1 | ||
| 64769D - KNOB, JACK COVER | ||||
| 64769-60010C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64769-60010C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 66310-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 66310-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73371D - HANGER, REAR SEAT SHOULDER BELT | ||||
| 73371-1605022 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73371-1605022 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73371D - HANGER, REAR SEAT SHOULDER BELT | ||||
| 73371-1605022 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73371-1605022 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 84656K - BEZEL, SWITCH | ||||
| 84656-28120C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90159-50144 | ||||
| 90467-05125 | ||||
| 90467-07215 | ||||
| 90467-09212 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 91626-40618 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8121 | ||||
| 8202 | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(1401- )IV5
ﾃﾞｯｷｻｲﾄﾞ,ｳｪﾙｷｬﾌﾞｽﾛｰﾌﾟｼｬ(ﾊﾟﾜｰ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524I - COVER, SWICH BASE HOLE | ||||
| 55524-28070C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 55539Y - COVER, SPARE SWITCH HOLE | ||||
| 55539-58040 |
ZRR8#..IV5 |
1 | ||
| 62501C - COVER SUB-ASSY, QUARTER TRIM, RH | ||||
| 62501-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62502B - COVER SUB-ASSY, QUARTER TRIM, LH | ||||
| 62502-28010C0 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-09236 |
ZRR8#,ZWR80 |
22 | ||
| 62510H - CLIP(FOR QUARTER TRIM FRONT PANEL) | ||||
| 90467-09236 |
ZRR8#,ZWR80 |
22 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-28370C1 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-28510C1 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-28040C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62521-28040C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-28030C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 62522-28030C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 62586B - RETAINER, QUARTER TRIM, NO.2 | ||||
| 81398-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62591D - PLATE, SIDE TRIM BASE, NO.1 | ||||
| 62517-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62627C - COVER, SIDE TRIM, NO.1 | ||||
| 62627-28010C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 62628A - COVER, SIDE TRIM, LH | ||||
| 85659-28070C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64714-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64715-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-28010C0 |
ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| 64733A - PAD, DECK TRIM SIDE, NO.1 | ||||
| 64734-28080 |
ZRR8#..IV5 |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10216 |
ZRR8#..IV5 |
6 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10216 |
ZRR8#..IV5 |
6 | ||
| 64766A - COVER, DECK SIDE TRIM TOOL | ||||
| 64766-28100C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 64766-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64768A - STOPPER, QUARTER TRIM LID | ||||
| 64768-60030 |
ZRR8#,ZWR80 |
1 | ||
| 64769D - KNOB, JACK COVER | ||||
| 64769-60010C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 64769-60010C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 66310-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-28070C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 66310-28070C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73371D - HANGER, REAR SEAT SHOULDER BELT | ||||
| 73371-1605022 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73371-1605022 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73371D - HANGER, REAR SEAT SHOULDER BELT | ||||
| 73371-1605022 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73371-1605022 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 84656K - BEZEL, SWITCH | ||||
| 84656-28120C0 |
ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90467-05125 | ||||
| 90467-07215 | ||||
| 90467-09212 | ||||
| 90467-09232 | ||||
| 90467-10161 | ||||
| 91626-40618 | ||||
| C6621-28010 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8121 | ||||
| 8202 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
