ZRR85G-ARXEP5 (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )08S..IV5

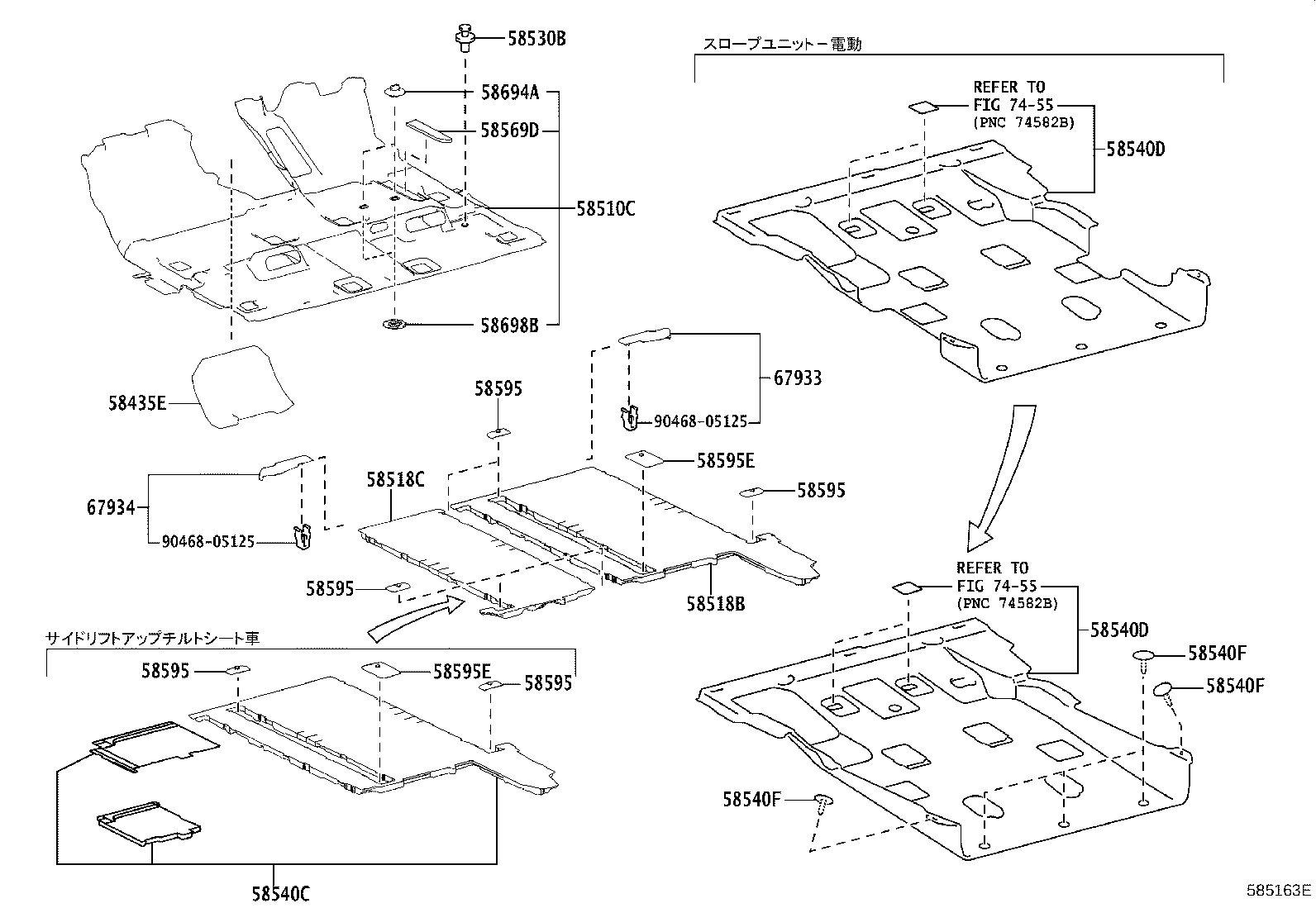

Click highlighted areas on diagram

diagram 58435E 58510C 58518B 58518C 58530B 58540C 58540D 58540D 58540F 58540F 58540F 58569D 58595 58595 58595 58595 58595 58595E 58595E 58694A 58698B 67933 67934 7455 7455 9046805125 9046805125
Part # Description Qty Price
58435E - SILENCER, FRONT FLOOR, CENTER
58435-28090

ZRR8#,ZWR80

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-28F40B0

ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS

GRAY,TRIM2#

 1
58510-28F40B0

ZRR8#..(ESQIR,NOAH)..(G,X,XI)

GRAY,TRIM0#,2#

 1
58518B - MAT, REAR FLOOR, NO.2
58518-28B70C0

ZRR8#..08S..G

FLOOR CARPET,TRIM0#,2#

 1
58518-28G20C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

FLOOR CARPET,TRIM0#,2#

 1
58518-28F50C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ｽﾛｰﾌﾟ),FLOOR CARPET,TRIM0#,2#

 1
58518C - MAT, REAR FLOOR, NO.2
58518-28F60C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

FLOOR CARPET,TRIM0#,2#

 1
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-07215

ZRR8#,ZWR80

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-28E60C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

BLACK,TRIM0#,2#

 1
58540-28E61C0

ZRR8#..NOAH..08S..X..IV5

BLACK,TRIM0#,2#

 1
58540D - CARPET ASSY, FLOOR, REAR
58540-28E60C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

BLACK,TRIM0#,2#

 1
58540-28E61C0

ZRR8#..NOAH..08S..X..IV5

BLACK,TRIM0#,2#

 1
58540F - CLIP(FOR REAR FLOOR CARPET)
90467-05164C0

ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5

BLACK,TRIM0#,2#

 5
90467-05164C7

ZRR8#..NOAH..X..IV5

BLACK,TRIM0#,2#

 5
58540F - CLIP(FOR REAR FLOOR CARPET)
90467-05164C0

ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5

BLACK,TRIM0#,2#

 5
90467-05164C7

ZRR8#..NOAH..X..IV5

BLACK,TRIM0#,2#

 5
58540F - CLIP(FOR REAR FLOOR CARPET)
90467-05164C0

ZRR8#..(ESQIR,NOAH)..(X,XI)..IV5

BLACK,TRIM0#,2#

 5
90467-05164C7

ZRR8#..NOAH..X..IV5

BLACK,TRIM0#,2#

 5
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-28020B0

ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)

GRAY,TRIM0#,2#

 1
58569-28020B0

ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS

GRAY,TRIM2#

 1
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS)

BLACK,TRIM2#

 5
58595-28100C0

ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)

BLACK,TRIM0#,2#

 5
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS)

BLACK,TRIM2#

 5
58595-28100C0

ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)

BLACK,TRIM0#,2#

 5
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS)

BLACK,TRIM2#

 5
58595-28100C0

ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)

BLACK,TRIM0#,2#

 5
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS)

BLACK,TRIM2#

 5
58595-28100C0

ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)

BLACK,TRIM0#,2#

 5
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

ZRR8#..VOXY..08S..X;ZRR8#..08S..(GI,SI,V,ZS)

BLACK,TRIM2#

 5
58595-28100C0

ZRR8#..(ESQIR,NOAH)..08S..(G,X,XI)

BLACK,TRIM0#,2#

 5
58595E - MOULDING, FLOOR CARPET, NO.4
58595-28120C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

BLACK,TRIM0#,2#

 1
58595E - MOULDING, FLOOR CARPET, NO.4
58595-28120C0

ZRR8#..(ESQIR,NOAH)..08S..(X,XI)..IV5

BLACK,TRIM0#,2#

 1
58694A - PLATE, MAT SET, UPPER
58694-76010

ZRR8#,ZWR80

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

ZRR8#,ZWR80

 2
67933 - PLATE, QUARTER SCUFF, INNER RH
67933-28060C0

ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)

BLACK,TRIM0#,2#

 1
67933-28060C0

ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS

BLACK,TRIM2#

 1
67934 - PLATE, QUARTER SCUFF, INSIDE LH
67934-28050C0

ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU

BLACK,TRIM0#,2#

 1
Common parts
90468-05125
Linked diagrams
7455
