ZRR85G-ARXEP5 (2014)

Toyota Noah/Voxy/Esquire

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

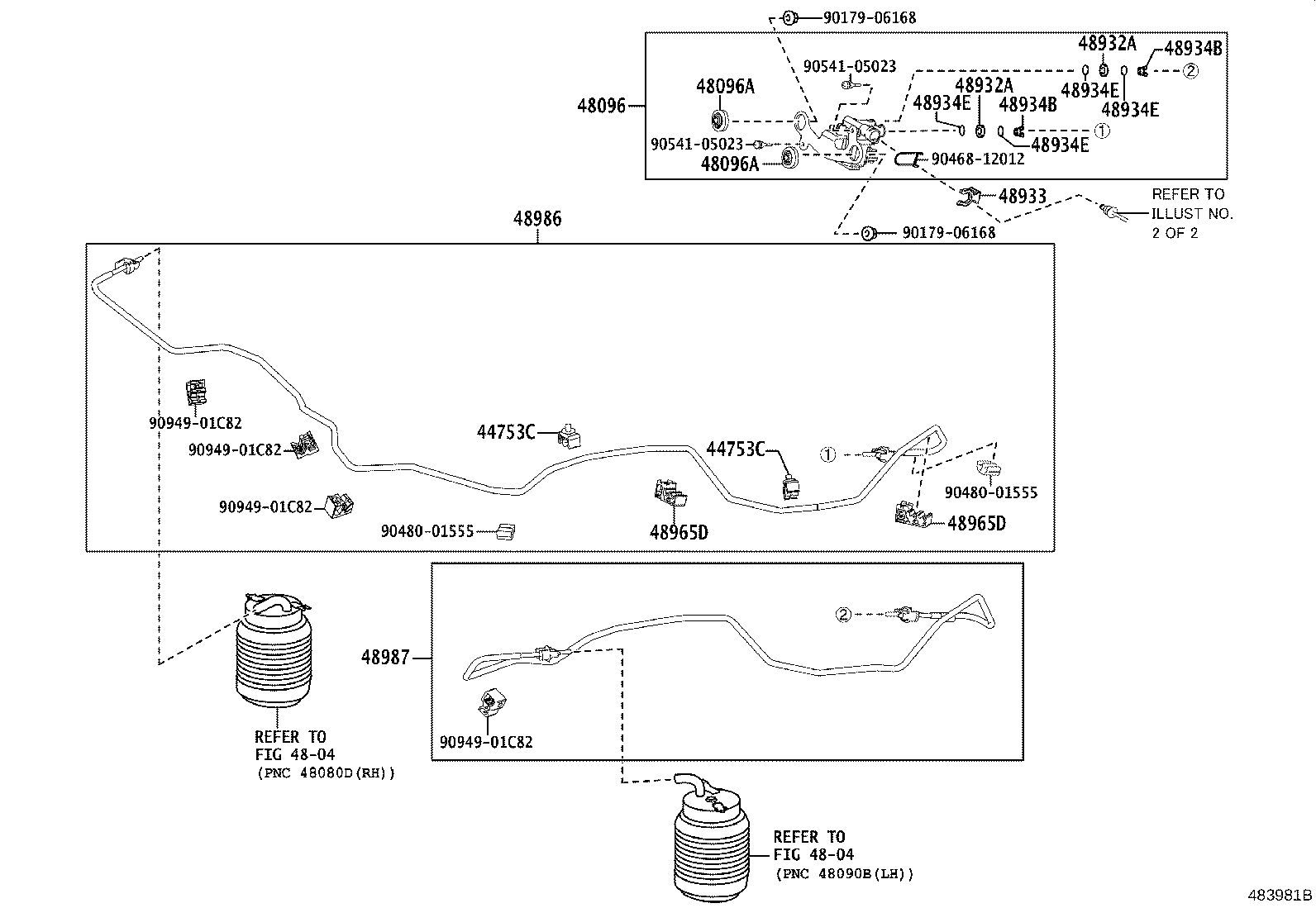

ILLUST NO. 1 OF 2(1401- )IV5

Click highlighted areas on diagram

ﾊｲﾄｺﾝﾄﾛｰﾙ ﾊﾞﾙﾌﾞ & ﾁｭｰﾌﾞ

diagram 44753C 44753C 4804 4804 48096 48096A 48096A 48932A 48932A 48933 48934B 48934B 48934E 48934E 48934E 48934E 48965D 48965D 48986 48987 9017906168 9017906168 9046812012 9048001555 9048001555 9054105023 9054105023 9094901C82 9094901C82 9094901C82 9094901C82
Part # Description Qty Price
44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2
90949-01D12

ZRR8#..IV5

 2
44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2
90949-01D12

ZRR8#..IV5

 2
48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096-28010

ZRR8#..IV5

 1
48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48912-30020

ZRR8#..IV5

 2
48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE)
48912-30020

ZRR8#..IV5

 2
48932A - PLATE, HEIGHT CONTROL TUBE
48932-30010

ZRR8#..IV5

 2
48932A - PLATE, HEIGHT CONTROL TUBE
48932-30010

ZRR8#..IV5

 2
48933 - HOLDER, AIR CONNECTOR CLIP
48933-30010

ZRR8#..IV5

 2
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010

ZRR8#..IV5

 2
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010

ZRR8#..IV5

 2
48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
90301-04011

ZRR8#..IV5

 4
48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
90301-04011

ZRR8#..IV5

 4
48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
90301-04011

ZRR8#..IV5

 4
48934E - RING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)
90301-04011

ZRR8#..IV5

 4
48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2
90949-01D60

ZRR8#..IV5

 2
48965D - CLAMP, HEIGHT CONTROL TUBE, NO.2
90949-01D60

ZRR8#..IV5

 2
48986 - TUBE, HEIGHT CONTROL, NO.6
48986-28020

ZRR8#..IV5

 1
48987 - TUBE, HEIGHT CONTROL, NO.7
48987-28010

ZRR8#..IV5

 1
Common parts
90179-06168
90468-12012
90480-01555
90541-05023
90949-01C82
Linked diagrams
4804

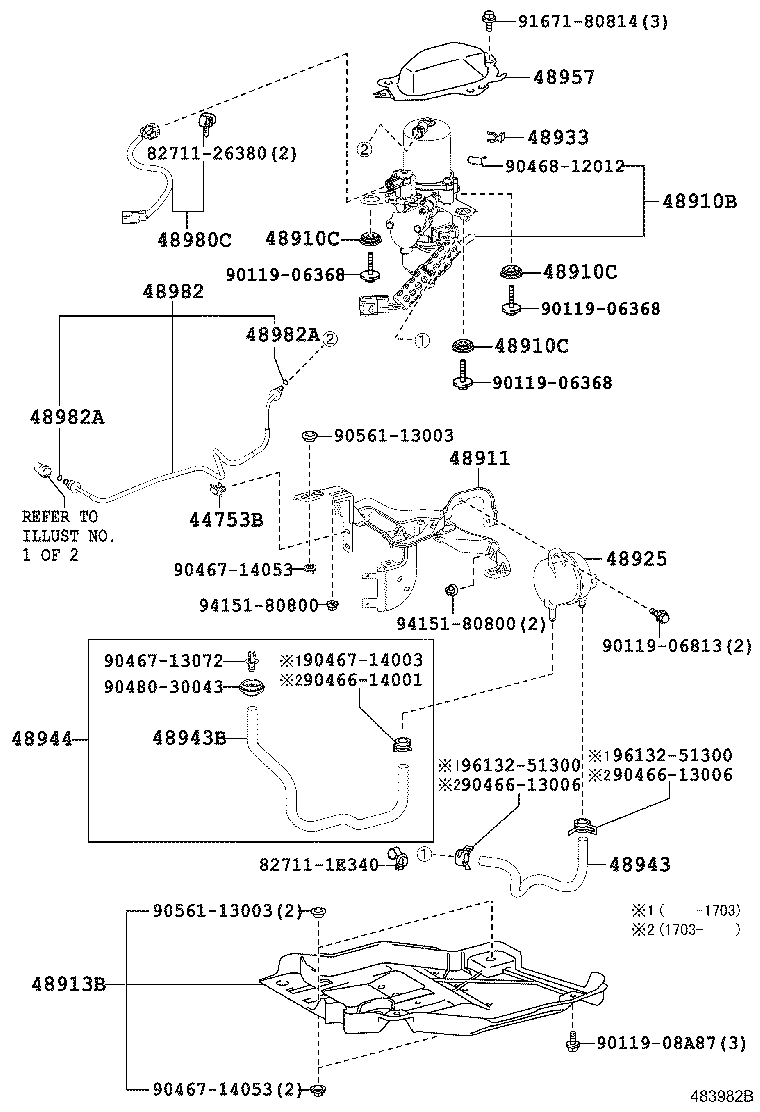

ILLUST NO. 2 OF 2(1401- )IV5

Click highlighted areas on diagram

ﾊｲﾄｺﾝﾄﾛｰﾙ ｺﾝﾌﾟﾚｯｻ

diagram 44753B 48910B 48910C 48910C 48910C 48911 48913B 48925 48933 48943 48943B 48944 48957 48980C 48982 48982A 48982A 827111E340 8271126380 9011906368 9011906368 9011906368 9011906813 9011908A87 9046613006 9046613006 9046614001 9046713072 9046714003 9046714053 9046714053 9046812012 9048030043 9056113003 9056113003 9167180814 9415180800 9415180800 9613251300 9613251300
Part # Description Qty Price
44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1
44753-48300

ZRR8#..IV5

 1
48910B - COMPRESSOR ASSY, HEIGHT CONTROL
48910-28010

ZRR8#..IV5

 1
48910C - BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR)
90389-06033

ZRR8#..IV5

 3
48910C - BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR)
90389-06033

ZRR8#..IV5

 3
48910C - BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR)
90389-06033

ZRR8#..IV5

 3
48911 - BRACKET, HEIGHT CONTROL COMPRESSOR
48911-28010

ZRR8#..IV5

 1
48913B - COVER, HEIGHT CONTROL PUMP
48913-28010

ZRR8#..IV5

 1
48925 - FILTER, HEIGHT CONTROL
48925-60050

ZRR8#..IV5

 1
48933 - HOLDER, AIR CONNECTOR CLIP
48933-30010

ZRR8#..IV5

 2
48943 - HOSE, HEIGHT CONTROL, NO.1
48943-28060

ZRR8#..IV5

 1
48943B - HOSE, HEIGHT CONTROL, NO.2
48943-28070

ZRR8#..IV5

 1
48944 - HOSE, HEIGHT CONTROL, NO.2
48944-28010

ZRR8#..IV5

 1
48944-28011

ZRR8#..IV5

 1
48957 - CAP, HEIGHT CONTROL COMPRESSOR
48957-28010

ZRR8#..IV5

 1
48980C - HARNESS ASSY, HEIGHT CONTROL VALVE
48980-28010

ZRR8#..IV5

 1
48982 - TUBE, HEIGHT CONTROL, NO.2
48982-28020

ZRR8#..IV5

 1
48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2)
90301-04004

ZRR8#..IV5

 2
48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2)
90301-04004

ZRR8#..IV5

 2
Common parts
82711-1E340
82711-26380
90119-06368
90119-06813
90119-08A87
90466-13006
90466-14001
90467-13072
90467-14003
90467-14053
90468-12012
90480-30043
90561-13003
91671-80814
94151-80800
96132-51300
