ZRR85G-ARXEP5 (2014)
Toyota Noah/Voxy/Esquire
Production
Jan 2014
-
Jun 2017
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401- )IV5

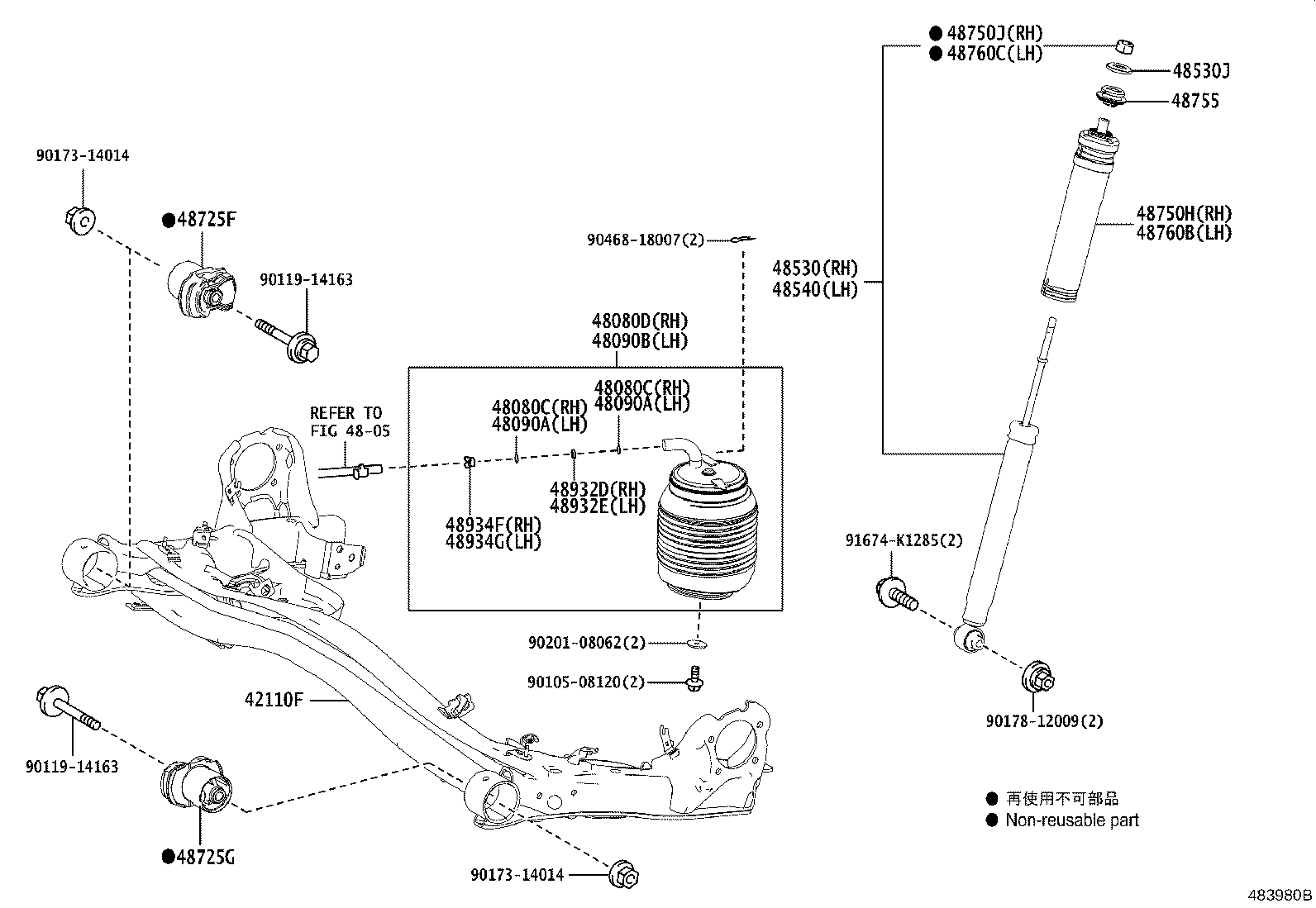

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42101-28470 |
ZRR8#,ZWR80 |
1 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
ZRR8#..IV5 |
2 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
ZRR8#..IV5 |
2 | ||
| 48080D - CYLINDER ASSY, PNEUMATIC, REAR RH | ||||
| 48080-28010 |
ZRR8#..IV5 |
1 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
ZRR8#..IV5 |
2 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
ZRR8#..IV5 |
2 | ||
| 48090B - CYLINDER ASSY, PNEUMATIC, REAR LH | ||||
| 48090-28010 |
ZRR8#..IV5 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80791 |
ZRR85..IV5 ﾏｰｸ 48531−28840 |
1 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02192 |
ZRR8#,ZWR80 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80791 |
ZRR85..IV5 ﾏｰｸ 48531−28840 |
1 | ||
| 48725F - BUSH, REAR AXLE CARRIER, RH | ||||
| 48725-28080 |
ZRR8#,ZWR80 |
1 | ||
| 48725G - BUSH, REAR AXLE CARRIER, LH | ||||
| 48725-28080 |
ZRR8#,ZWR80 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-28031 |
ZRR8#..IV5 |
1 | ||
| 48750-28030 |
ZRR8#..IV5 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-12002 |
ZRR8#,ZWR80 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-28020 |
ZRR8#,ZWR80 |
2 | ||
| 90905-40019 |
ZRR8#,ZWR80 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-28030 |
ZRR8#..IV5 |
1 | ||
| 48750-28031 |
ZRR8#..IV5 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-12002 |
ZRR8#,ZWR80 |
1 | ||
| 48932D - PLATE, HEIGHT CONTROL TUBE, RH | ||||
| 48932-30010 |
ZRR8#..IV5 |
1 | ||
| 48932E - PLATE, HEIGHT CONTROL TUBE, LH | ||||
| 48932-30010 |
ZRR8#..IV5 |
1 | ||
| 48934F - CONNECTOR, HEIGHT CONTROL TUBE, RH | ||||
| 48934-30010 |
ZRR8#..IV5 |
1 | ||
| 48934G - CONNECTOR, HEIGHT CONTROL TUBE, LH | ||||
| 48934-30010 |
ZRR8#..IV5 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-14163 | ||||
| 90173-14014 | ||||
| 90178-12009 | ||||
| 90201-08062 | ||||
| 90468-18007 | ||||
| 91674-K1285 | ||||
| Linked diagrams | ||||
| 4805 | ||||
