ZRR85G-APXGP (2014)
Toyota Noah/Voxy/Esquire
ILLUST NO. 1 OF 4(1401- )
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33030B1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33030B1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR8#,ZWR80 |
1 | ||
| 73131A - BRACKET, SEAT BELT | ||||
| 73131-D1260 |
ZRR80..08S..(SI,X,XI,ZS)..CBU;ZRR85..07S..(SI,X,XI,ZS)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZRR8#,ZWR80 |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-53010 |
ZRR8#,ZWR80 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-28850B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZRR8#,ZWR80 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR8#,ZWR80 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ZRR8#,ZWR80 ﾌﾞﾗｯｸ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-28840B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-28651C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73230-28652C0 |
ZWR80..SI,ZS;ZRR8#..SI,V,XI,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73230-28651C0 |
ZRR8#..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73230-28661C0 |
ZRR80..(ESQIR,NOAH)..08S..(X,XI)..CBU;ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRS) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 73230-28661C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 73230-28652C0 |
ZWR80..NOAH..X;ZRR8#..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 73230-28661C0 |
ZWR80..SI,ZS;ZRR8#..(SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C1 |
ZRR8#,ZWR80..NOAH..(G,X) BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C1 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,XI,ZS BLACK,TRIM2# |
2 | ||
| 73233-60020C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28220C0 |
ZWR80..SI,ZS;ZRR8#..(SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM2# |
1 | ||
| 73240-28210C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73240-28210C0 |
ZRR8#..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73240-28220C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 73240-28211C0 |
ZWR80..SI,ZS;ZRR8#..SI,V,XI,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73230-D1420C0 |
ZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車,BLACK,TRIM0#,2# |
1 | ||
| 73240-28211C0 |
ZWR80..NOAH..X;ZRR8#..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-28220C0 |
ZWR80..SI,ZS;ZRR8#..(SI,V,ZS)..CBU;ZRR8#,ZWR80..VOXY..X..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM2# |
1 | ||
| 73240-28210C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73240-28210C0 |
ZRR8#..SI,V,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73240-28220C0 |
ZWR80..NOAH..X;ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 73240-28211C0 |
ZWR80..SI,ZS;ZRR8#..SI,V,XI,ZS;ZRR8#,ZWR80..VOXY..X BLACK,TRIM2# |
1 | ||
| 73230-D1420C0 |
ZRR80..NOAH..08S..X..CBU;ZRR85..NOAH..07S..X..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車,BLACK,TRIM0#,2# |
1 | ||
| 73240-28211C0 |
ZWR80..NOAH..X;ZRR8#..NOAH..(G,X) BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90109-11059 | ||||
| 90178-11002 | ||||
| 91553-80612 | ||||

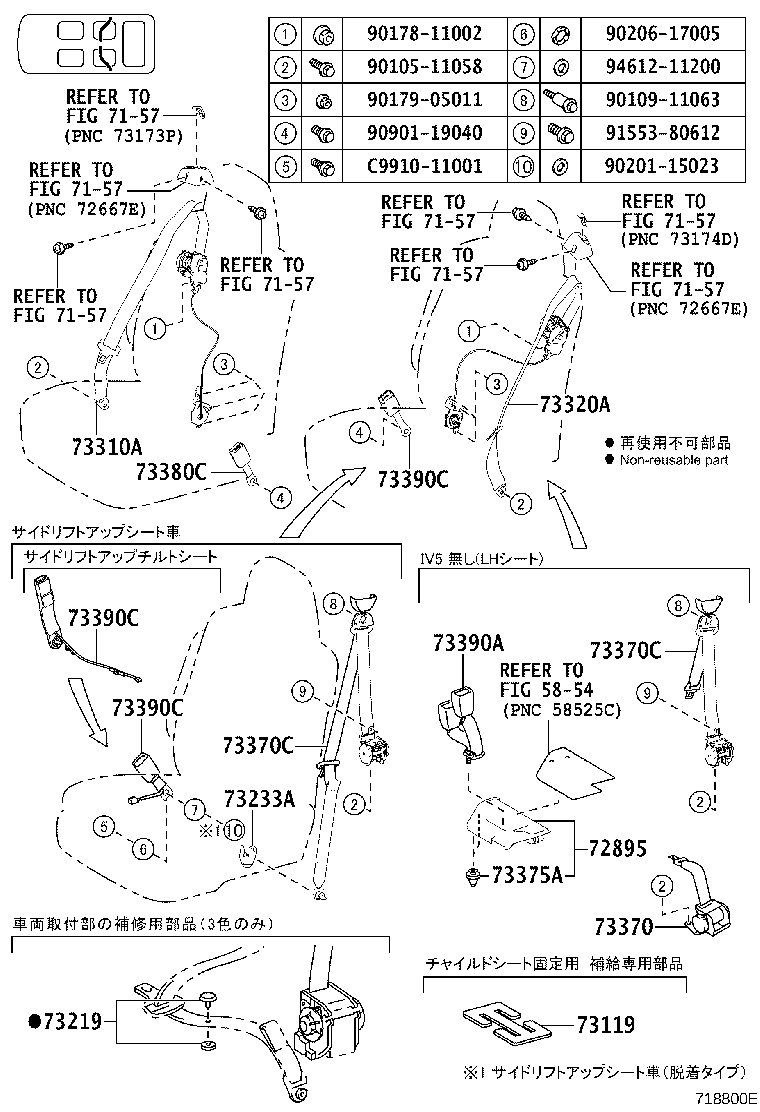

ILLUST NO. 2 OF 4(1401- )07S
ﾘﾔNO.1ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR8#,ZWR80 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZRR8#,ZWR80 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR8#,ZWR80 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ZRR8#,ZWR80 ﾌﾞﾗｯｸ |
1 | ||
| 73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT | ||||
| 73233-60020C1 |
ZRR8#..NOAH..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 73233-60020C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH | ||||
| 73310-28300C1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73310-28300C1 |
ZRR8#,ZWR80..VOXY..07S..X;ZRR8#,ZWR80..07S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH | ||||
| 73320-28250C1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 73320-28250C1 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28670B0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),LT.GRAY,TRIM0#,2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-28670B0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),LT.GRAY,TRIM0#,2# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-28560C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73380-28560C0 |
ZRR8#,ZWR80..VOXY..07S..X;ZRR8#,ZWR80..07S..(GI,SI,V,ZS) BLACK,TRIM2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28560C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 73380-28560C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73380-28570C0 |
ZRR8#..NOAH..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28560C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 73380-28560C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73380-28570C0 |
ZRR8#..NOAH..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-28560C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 73380-28560C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 73380-28570C0 |
ZRR8#..NOAH..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90178-11002 | ||||
| 90179-05011 | ||||
| 90201-15023 | ||||
| 90206-17005 | ||||
| 90901-19040 | ||||
| 91553-80612 | ||||
| 94612-11200 | ||||
| C9910-11001 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7157 | ||||
ILLUST NO. 4 OF 4(1401- )
ﾘﾔNO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ZRR8#,ZWR80 |
1 | ||
| 73139B - COVER, SEAT BELT ANCHOR | ||||
| 73139-28060B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ZRR8#,ZWR80 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
ZRR8#,ZWR80 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33010 |
ZRR8#,ZWR80 ﾌﾞﾗｯｸ |
1 | ||
| 73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE | ||||
| 73510-28170C1 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK/LT.GRAY,TRIM0#,2# |
1 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28130C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73530-28130C1 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28130C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73540-28130C1 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28450B0 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28510B0 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) LT.GRAY,TRIM0#,2# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28240C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73580-28240C1 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-28240C1 |
ZRR85..VOXY..X..CBU;ZRR80,ZWR80..VOXY..X;ZRR85..VOXY..07S..IV5;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 73580-28240C1 |
ZRR85..(ESQIR,NOAH)..07S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90178-11002 | ||||
| 90901-19040 | ||||
| Linked diagrams | ||||
| 6451 | ||||
