ZRR85G-APXGP (2014)
Toyota Noah/Voxy/Esquire

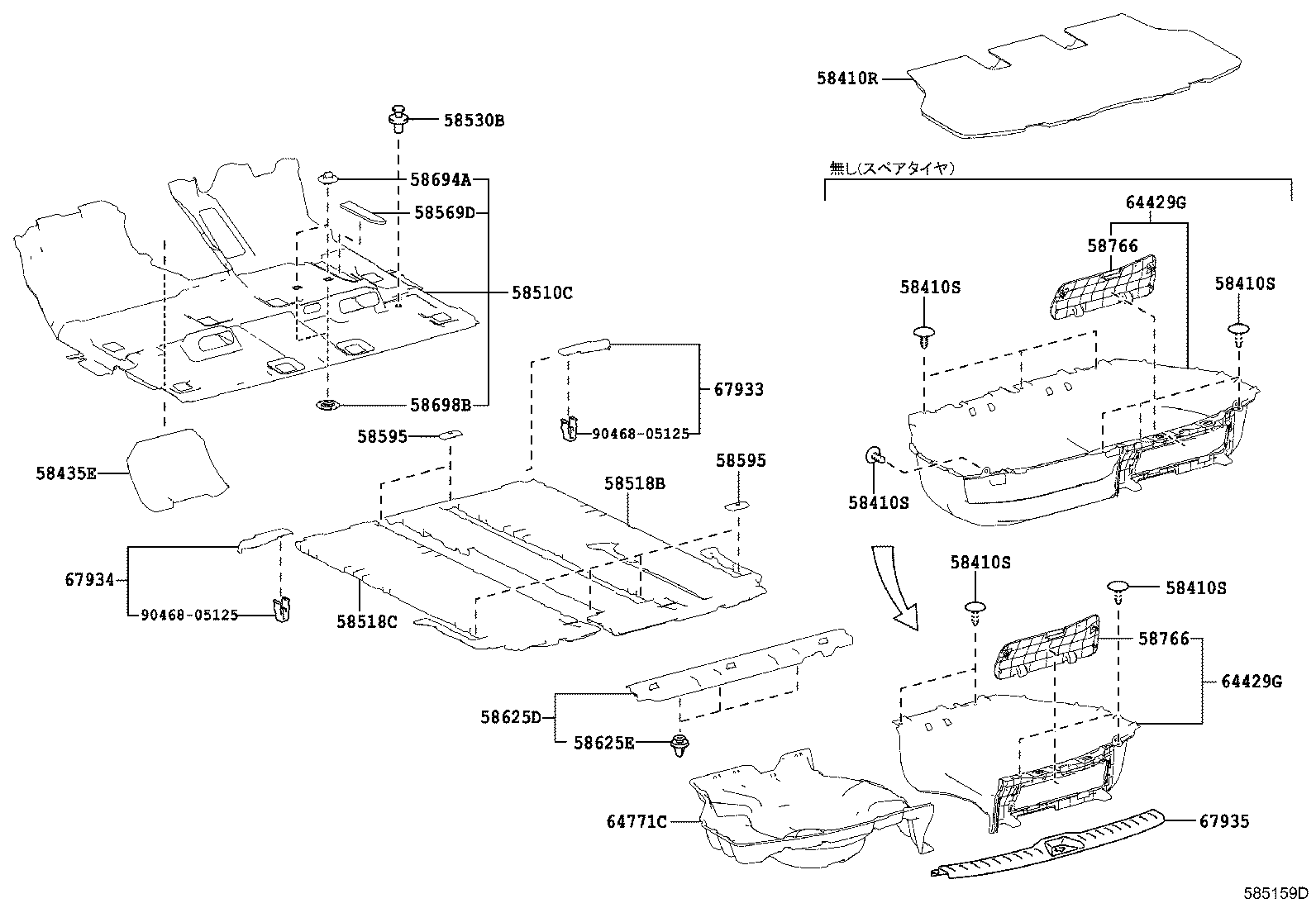

(1401- )ZRR8#..07S..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410R - BOARD ASSY, DECK | ||||
| 58410-28090C1 |
ZRR8#..VOXY..X..CBU;ZRR8#..(GI,SI,V,ZS)..CBU FLOOR CARPET,TRIM2# |
1 | ||
| 58410-28090C1 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-28090 |
ZRR8#,ZWR80 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-28F40B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58510-28F40B0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) GRAY,TRIM0#,2# |
1 | ||
| 58510-28G10B1 |
ZRR80..(ESQIR,NOAH)..08S..(X,XI)..CBU;ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車,GRAY,TRIM0#,2# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28B80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..07S..G FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..07S..(GI,SI,V,ZS)..CBU FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28F90C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 58518-28F80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28F90C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 58518C - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28C20C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28C30C0 |
ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRS) & *CUSA,FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28C20C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28C30C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28C30C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28C30C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,FLOOR CARPET,TRIM2# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07215 |
ZRR8#,ZWR80 |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-28020B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) GRAY,TRIM0#,2# |
1 | ||
| 58569-28020B0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
6 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
6 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
6 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
6 | ||
| 58625D - PLATE, REAR FLOOR MAT, NO.1 | ||||
| 58625-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 58625-28100C0 |
ZRR8#,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 58625E - CLIP(FOR REAR FLOOR MAT PLATE) | ||||
| 62217-13010 |
ZRR8#,ZWR80..CBU |
3 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ZRR8#,ZWR80 |
2 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ZRR8#,ZWR80 |
2 | ||
| 58766 - COVER, JACK BOX HOLE | ||||
| 64786-28010 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58766 - COVER, JACK BOX HOLE | ||||
| 64786-28010 |
ZRR8#,ZWR80..CBU |
1 | ||
| 64429G - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64993-28010 |
ZRR8#..CBU |
1 | ||
| 64993-28030 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28031 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28011 |
ZRR8#..CBU |
1 | ||
| 64429G - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64993-28010 |
ZRR8#..CBU |
1 | ||
| 64993-28030 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28031 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28011 |
ZRR8#..CBU |
1 | ||
| 64771C - COVER, SPARE WHEEL | ||||
| 64771-28010 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64771-28011 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 67933 - PLATE, QUARTER SCUFF, INNER RH | ||||
| 67933-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67933-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67934 - PLATE, QUARTER SCUFF, INSIDE LH | ||||
| 67934-28050C0 |
ZRR85..VOXY..08S..X;ZRR80..VOXY..08S..X..IV5;ZRR80..08S..(SI,ZS)..IV5;ZRR85..VOXY..07S..X..CBU;ZRR80,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67934-28050C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-28100C0 |
ZRR8#,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67935-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90468-05125 | ||||

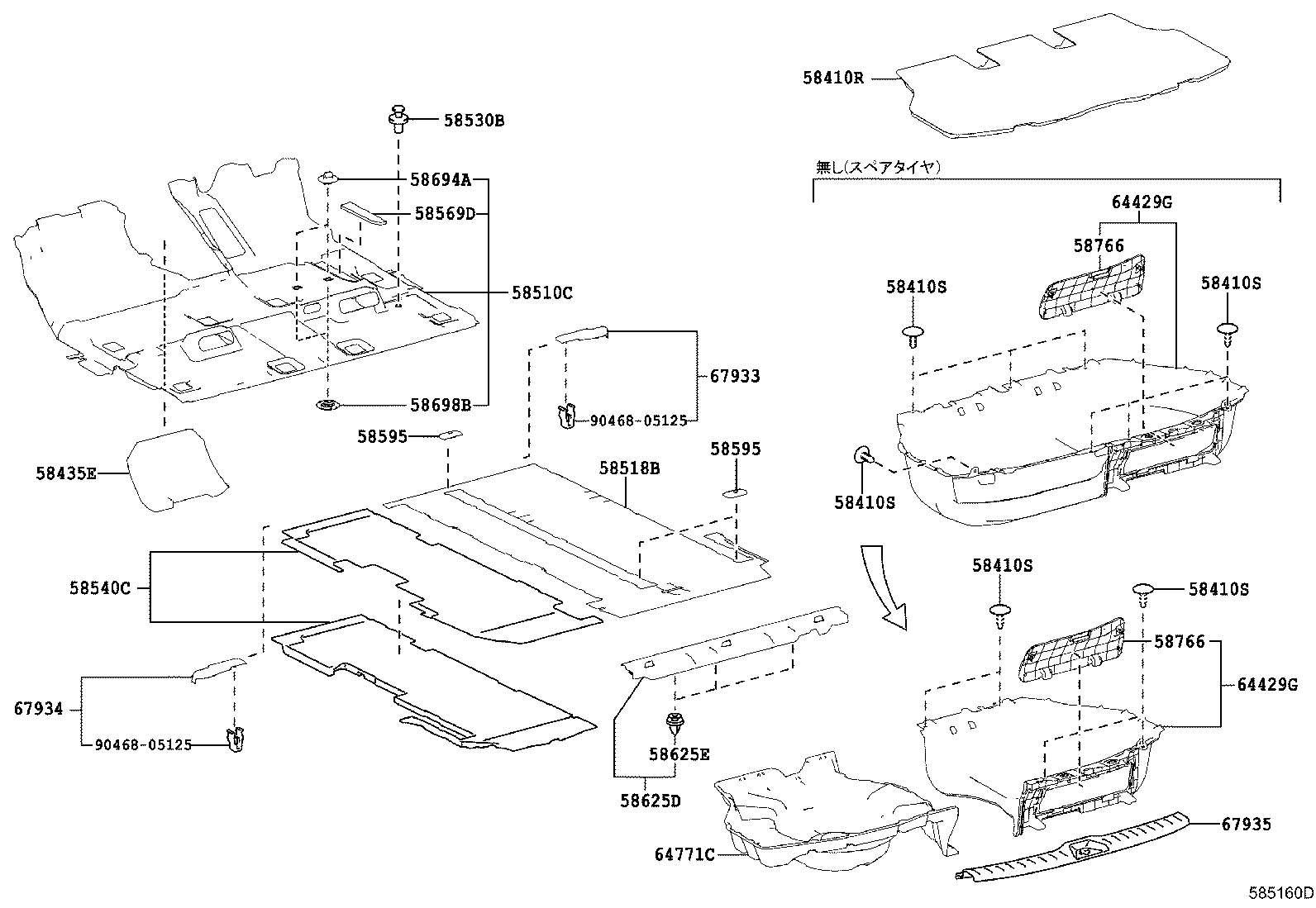

(1401- )ZRR8#..07S..CBU
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄｼｬ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410R - BOARD ASSY, DECK | ||||
| 58410-28090C1 |
ZRR8#..VOXY..X..CBU;ZRR8#..(GI,SI,V,ZS)..CBU FLOOR CARPET,TRIM2# |
1 | ||
| 58410-28090C1 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI)..CBU FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU CREAM YELLOW |
7 | ||
| 67771-26230E0 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ),CREAM YELLOW |
4 | ||
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-28090 |
ZRR8#,ZWR80 |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-28F40B0 |
ZRR8#..VOXY..X;ZRR8#..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58510-28F40B0 |
ZRR8#..(ESQIR,NOAH)..(G,X,XI) GRAY,TRIM0#,2# |
1 | ||
| 58510-28G10B1 |
ZRR80..(ESQIR,NOAH)..08S..(X,XI)..CBU;ZRR85..(ESQIR,NOAH)..07S..(X,XI)..CBU 助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ車,GRAY,TRIM0#,2# |
1 | ||
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-28B80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾄﾞｱ&ﾊﾞｯｸﾄﾞｱ),FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..07S..G FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28B80C0 |
ZRR8#..07S..(GI,SI,V,ZS)..CBU FLOOR CARPET,TRIM2# |
1 | ||
| 58518-28F90C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 58518-28F80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU FLOOR CARPET,TRIM0#,2# |
1 | ||
| 58518-28F90C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07215 |
ZRR8#,ZWR80 |
1 | ||
| 58540C - MAT ASSY, FLOOR, REAR | ||||
| 58540-28E80C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
1 | ||
| 58540-28E90C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
1 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-28020B0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) GRAY,TRIM0#,2# |
1 | ||
| 58569-28020B0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS GRAY,TRIM2# |
1 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
6 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
6 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#..(ESQIR,NOAH)..07S..(X,XI)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−*DRP & ｻｲﾄﾞ(*DRP) & *CUSA,BLACK,TRIM0#,2# |
3 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
6 | ||
| 58595-28100C0 |
ZRR8#,ZWR80..VOXY..07S..X..CBU;ZRR8#,ZWR80..07S..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
6 | ||
| 58625D - PLATE, REAR FLOOR MAT, NO.1 | ||||
| 58625-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 58625-28100C0 |
ZRR8#,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 58625E - CLIP(FOR REAR FLOOR MAT PLATE) | ||||
| 62217-13010 |
ZRR8#,ZWR80..CBU |
3 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
ZRR8#,ZWR80 |
2 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
ZRR8#,ZWR80 |
2 | ||
| 58766 - COVER, JACK BOX HOLE | ||||
| 64786-28010 |
ZRR8#,ZWR80..CBU |
1 | ||
| 58766 - COVER, JACK BOX HOLE | ||||
| 64786-28010 |
ZRR8#,ZWR80..CBU |
1 | ||
| 64429G - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64993-28010 |
ZRR8#..CBU |
1 | ||
| 64993-28030 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28031 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28011 |
ZRR8#..CBU |
1 | ||
| 64429G - BOX, LUGGAGE COMPARTMENT TRIM | ||||
| 64993-28010 |
ZRR8#..CBU |
1 | ||
| 64993-28030 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28031 |
ZRR8#..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64993-28011 |
ZRR8#..CBU |
1 | ||
| 64771C - COVER, SPARE WHEEL | ||||
| 64771-28010 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 64771-28011 |
ZRR8#,ZWR80..CBU ｽﾍﾟｱﾀｲﾔ−T135/80D16(ﾃﾝﾊﾟ) |
1 | ||
| 67933 - PLATE, QUARTER SCUFF, INNER RH | ||||
| 67933-28060C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI) BLACK,TRIM0#,2# |
1 | ||
| 67933-28060C0 |
ZRR8#,ZWR80..VOXY..X;ZRR8#,ZWR80..GI,SI,V,ZS BLACK,TRIM2# |
1 | ||
| 67934 - PLATE, QUARTER SCUFF, INSIDE LH | ||||
| 67934-28050C0 |
ZRR85..VOXY..08S..X;ZRR80..VOXY..08S..X..IV5;ZRR80..08S..(SI,ZS)..IV5;ZRR85..VOXY..07S..X..CBU;ZRR80,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67934-28050C0 |
ZRR85..(ESQIR,NOAH)..08S..IV5;ZRR85..(ESQIR,NOAH)..(G,X,XI)..CBU;ZRR80..(ESQIR,NOAH)..08S..(G,X,XI);ZRR80,ZWR80..(ESQIR,NOAH)..07S..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-28100C0 |
ZRR8#,ZWR80..VOXY..X..CBU;ZRR8#,ZWR80..(GI,SI,V,ZS)..CBU BLACK,TRIM2# |
1 | ||
| 67935-28100C0 |
ZRR8#,ZWR80..(ESQIR,NOAH)..(G,X,XI)..CBU BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90468-05125 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
